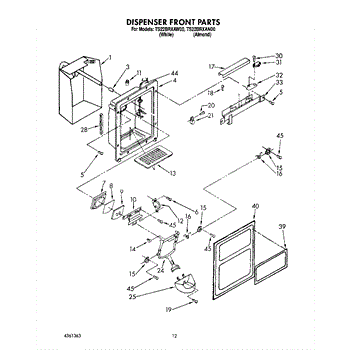

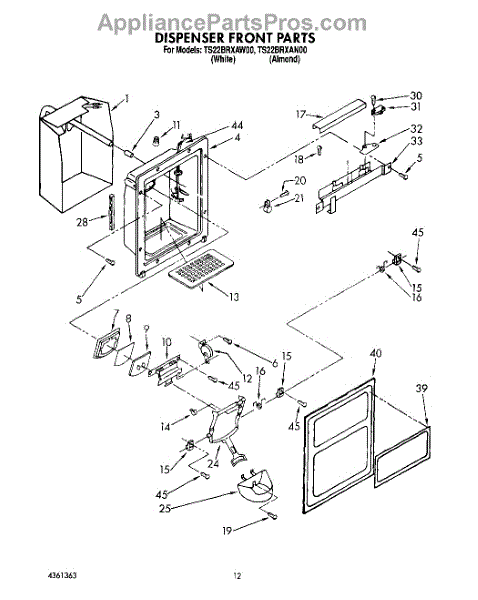

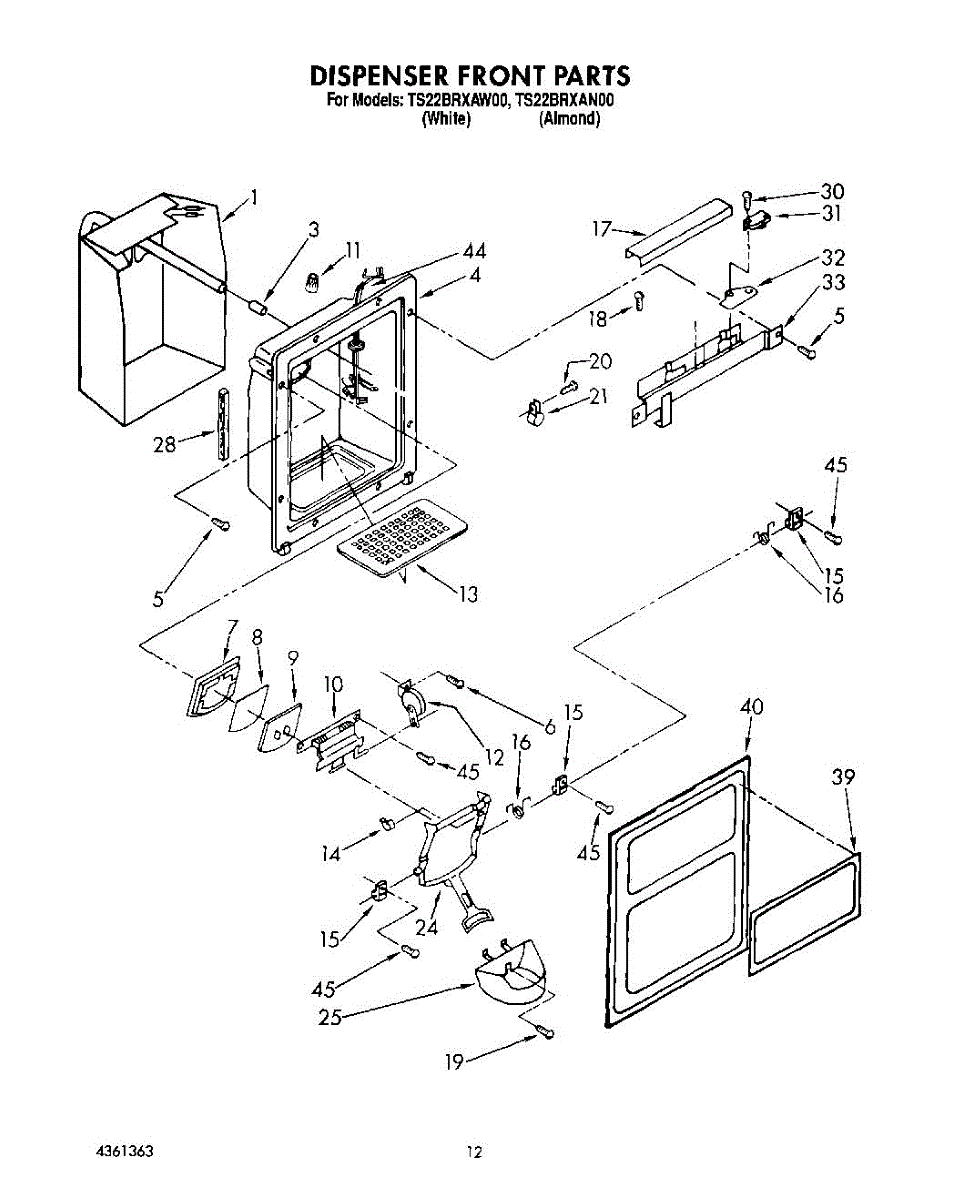

Parts for Whirlpool TS22BRXAN00: 09 - Dispenser Front Parts

These inserts are for 1/4 inch plastic tubing. Package of 4.

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

Size: 8-28 x 3/4 inch.

An ice maker delay mechanism is the small timing device that staggers the steps of the ice-making cycle so each action happens in the right order. Replacing a worn unit helps restore steady, predictable ice production.

• Provides a brief, controlled delay in the ice maker cycle so components engage in the correct order
• Helps prevent short cycling or erratic operation
• Failure may result in no ice, intermittent ice, or stalls mid-cycle
• May be accompanied by repeated clicking or ticking from the ice maker head

• Disconnect power to the refrigerator and shut off the water supply before servicing
• Remove the ice maker assembly to access the delay mechanism
• Transfer any brackets or clips from the original part if required
• Align components carefully during reassembly to avoid bending any lever arms

Color: black. Chrome Is No longer Available. Measures about 6-1/2 inches wide by 3-1/2 inches deep.

Screw: 8-16 x 3/8 inch.

Size; 8-18 x 1/2 inch.

This hose clamp secures a rubber or plastic hose to its fitting on your appliance, maintaining a tight, leak-resistant seal under vibration and pressure. Replace when the old clamp is rusted, bent, or no longer holds tension. What it does:

• Clamps around a hose to grip the fitting and seal the joint
• Helps prevent drips, leaks, and hose blow-off at the connection
• Restores secure clamping force when the original is worn or damaged
• Common symptoms: water at the connection, hose slipping off, visible corrosion or distortion

• 1 hose clamp

• Disconnect power and shut off the water supply before servicing
• Slide clamp onto hose, seat hose fully on the fitting, then position clamp just behind the bead/raised lip
• Tighten or compress evenly with the appropriate tool; avoid overtightening that could damage the hose
• After reassembly, run a short test and inspect for leaks

White

This replacement screw secures appliance panels and internal components. Installing a correct OEM fastener restores a tight fit, reduces rattles and vibration, and helps keep assemblies aligned so your machine operates smoothly.

• Fastens brackets, panels, ducts, or housings to the cabinet or frame
• Replaces missing, stripped, or corroded hardware
• Helps stop rattles, vibration, and loose or misaligned parts
• Maintains proper alignment for reliable operation

• Disconnect power; shut off gas and water before servicing
• Match this screw to the original location and hardware type used on your model
• Start threads by hand to avoid cross-threading; use the correct driver
• Snug only—do not overtighten, especially into plastic or thin sheet metal
