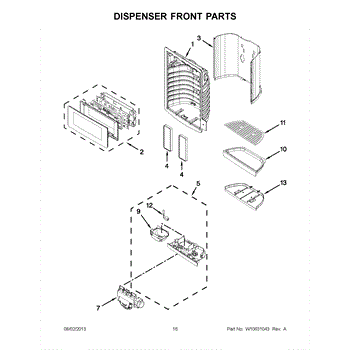

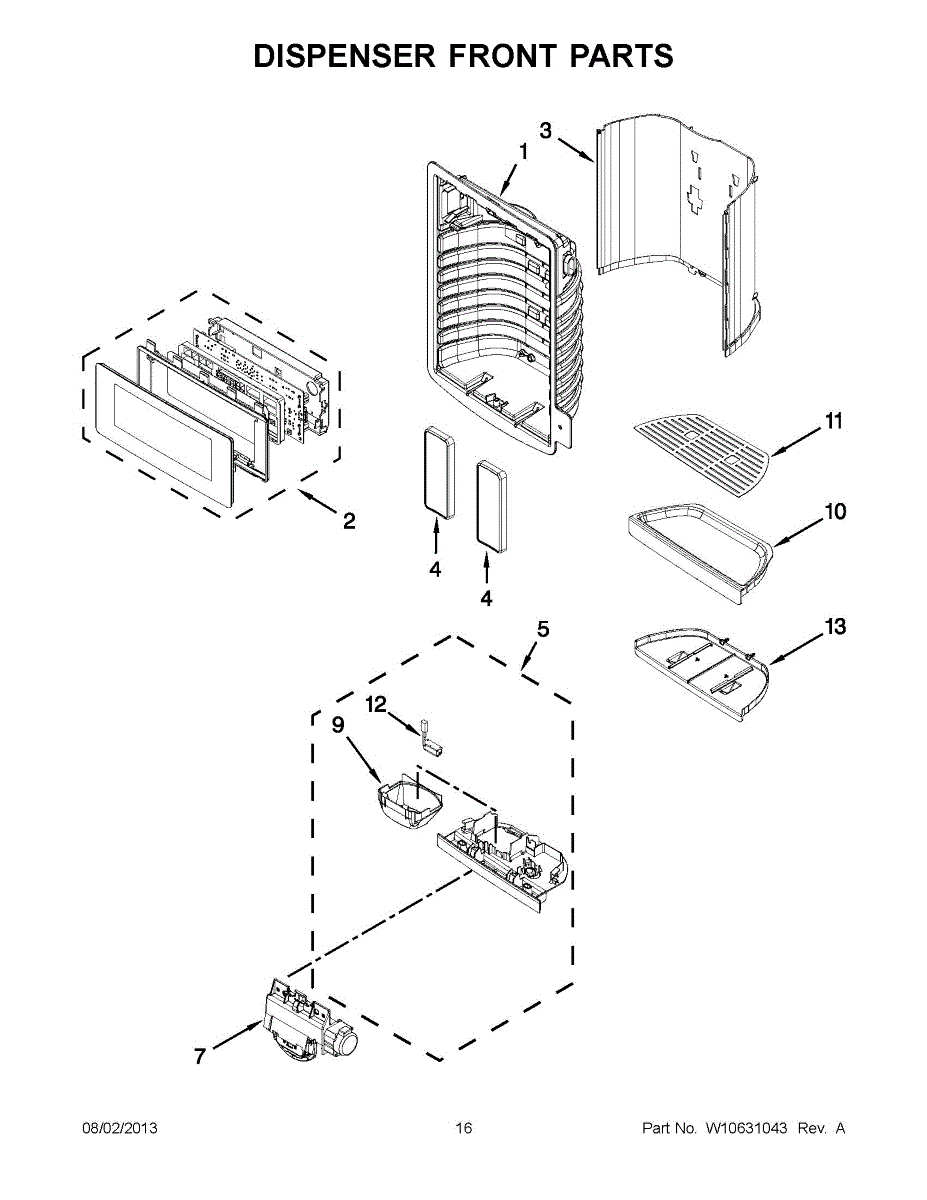

Parts for Kitchenaid KFIS29BBBL02: 08 - Dispenser Front Parts

The Control-Electric Assembly is an OEM component specifically designed for Whirlpool refrigerators. It plays a vital role in regulating and controlling the electrical functions that power the refrigerator and its components.

Symptoms of a bad control-electric assembly include:

• The refrigerator failing to turn on or encountering temperature control issues
• Fault codes or error messages being continuously displayed
• Inability to regulate temperature zones
• Intermittent or unreliable operation of internal lighting and fans

Causes of a bad control-electric assembly can include water damage from potential leaks, failure or malfunction of electronic components over time, or issues with power distribution circuits.

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black


This shield is a protective trim piece that helps guard internal components from debris, heat, and wear, keeping the appliance running quietly and extending component life. It's a direct-fit replacement when the original shield is damaged or missing. What it does:

• Protects nearby wiring, hoses, and components from heat and abrasion
• Reduces rattles or vibration caused by loose or damaged shielding
• Helps prevent debris build-up in sensitive areas
• Restores the intended clearance and component alignment

• One replacement shield

• Disconnect power (and water if applicable) before starting any repair
• Remove exterior panels as needed to access the damaged shield; keep fasteners organized
• Inspect surrounding components for damage while replacing the shield
• Use proper hand tools; avoid overtightening fasteners to prevent cracking

Color: Grey

Color: Black

The Dispenser Actuator is an OEM part for Whirlpool refrigerators. It is responsible for controlling and actuating the dispensing of water and ice from the refrigerator door. The dispenser actuator contains electronic components that sense when a cup is placed in the dispenser area and signal the water and ice systems to operate.

Symptoms of a bad dispenser actuator include:

• Failure to dispense water or ice
• Water or ice dispensing continuously without a cup present
• Delayed or inconsistent response time when dispensing
• Electronic control issues such as blinking lights or error codes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Grey

This refrigerator ice guide channels cubes and crushed ice along the intended path so they land in your bin or glass. When the guide is damaged or missing, ice can scatter, jam, or miss the dispenser opening. What it does

• Guides ice from the ice maker/bucket into the bin and through the dispenser chute
• Helps keep ice flowing smoothly and reduces spills at the opening
• Restores proper aim for cubed and crushed ice
• Typical symptoms: ice spraying or missing the glass, frequent jams, or visible damage to the guide

• 1 ice guide

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the guide per your model's design
• Transfer and reuse existing mounting screws or clips, if applicable
• Verify alignment, then test both cubed and crushed dispensing

Color: Black

Color: Grey


This drip tray sits beneath the grate area to catch grease and boil-overs, helping keep the cooktop cleaner and protecting components below. Replacing a bent, corroded, or missing tray restores proper fit and appearance. What it does:

• Collects drips, grease, and spills under the grate area
• Helps prevent liquids from reaching the burner box or wiring
• Supports correct placement of the grate/grill assembly
• Common symptoms: missing tray, heavy rust, warping, leaks or messes under the top

• 1 drip tray

• Disconnect power and shut off gas; allow the appliance to cool completely
• Remove the cooking grates/grill section to access the tray
• Lift out the old tray and position the new one with correct orientation
• Reinstall grates and verify proper seating and clearances before use

This dispenser light replaces the small lamp that illuminates the refrigerator's ice/water dispenser alcove. It restores clear visibility of the dispenser area in low light so you can see fill levels and selections while dispensing.

• Provides illumination for the dispenser alcove when the control turns the light on
• Common symptoms: no dispenser light, dim or flickering light, or intermittent illumination
• Helps with accurate filling and improves visibility when dispensing ice or water

• Unplug the refrigerator or disconnect power before servicing
• Access the dispenser housing; remove any trim or lens as needed to reach the light
• Release locking tabs or screws and unplug the wire connector from the old light
• Connect and seat the new light, reassemble, restore power, and test operation

Color: Black

Color: Grey
