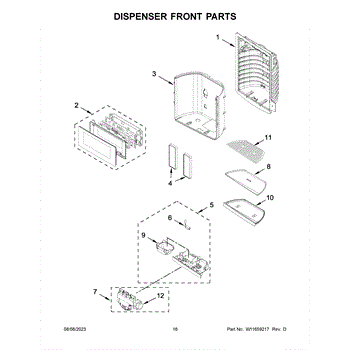

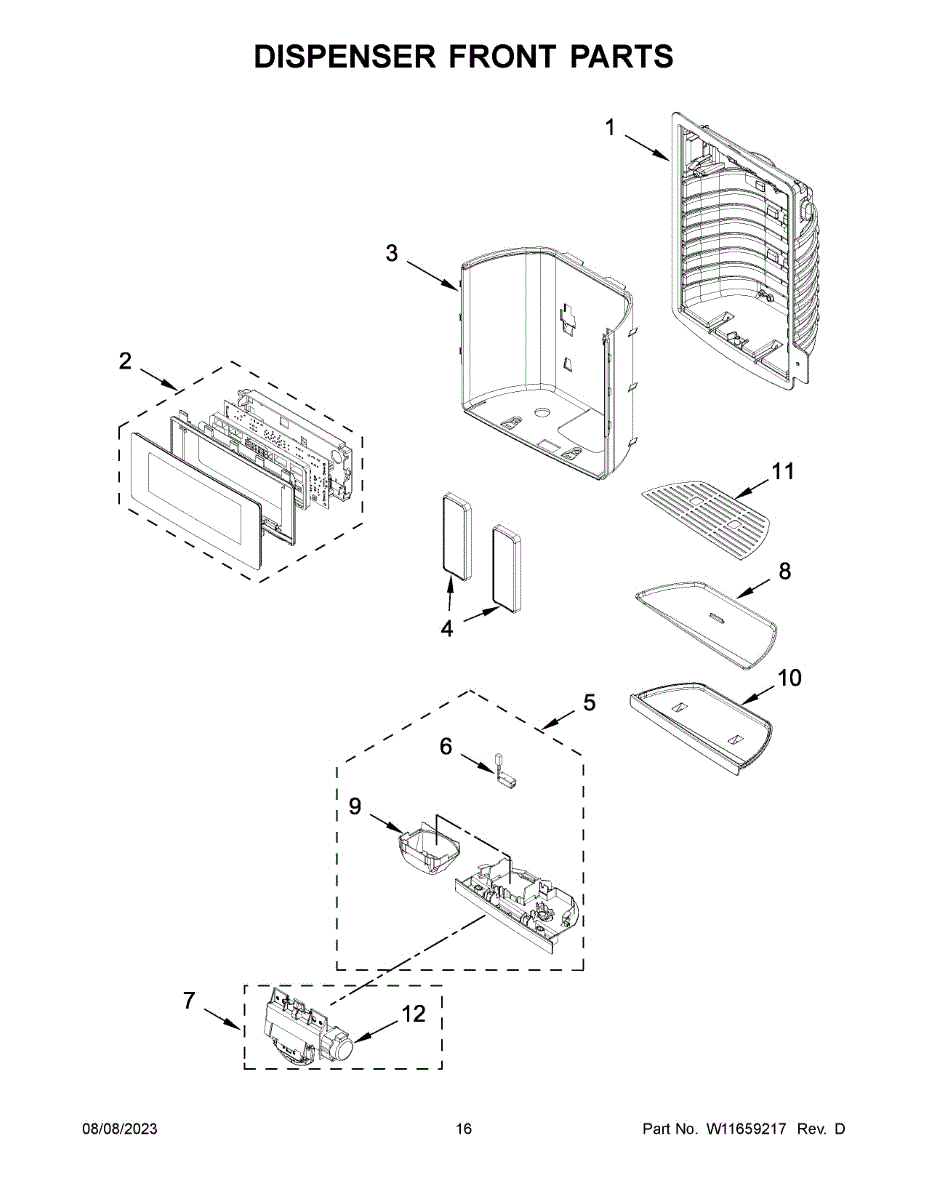

Parts for Kitchenaid KRFF577KBS02: Dispenser Front Parts

Black shield for bottom-mount refrigerators. Replaces cracked, broken, or missing shields. Cosmetic and structural component for interior trim.

Grey shield panel for bottom-mount refrigerators. Replaces cracked, broken, or missing shields. Installs on interior or exterior surfaces.

Black dispenser paddle for refrigerator door water and ice controls. Replaces worn, stained, or cracked actuator pads on front dispenser panel.

Fix a dispenser that won't stop running or doesn't respond when pressed. This actuator pad acts as the switch to control water and ice dispensing.

Replace your refrigerator's crisper drawer separator if it's cracked, broken, or missing. This divider installs inside the crisper to organize produce.

Illuminates your refrigerator's ice and water dispenser area. Replace if light is dim, flickering, or out. Confirm fit with your model number.

Ice chute door flapper for refrigerator freezer dispenser. Replaces broken, cracked, or worn door that won't seal properly or open for ice delivery.

Color: Black

Gray plastic drip tray insert for bottom-mount refrigerators. Replaces cracked, stained, or missing inserts in the drip collection tray assembly.

Channels ice from maker to dispenser opening. Replace if cracked, broken, or missing to prevent ice scatter and jams. Installs in freezer door dispenser.

Black drip tray for bottom-mount refrigerators. Installs beneath the condenser to catch water condensation. Replace if cracked, broken, or missing.

Grey plastic drip tray that sits beneath the water and ice dispenser on your refrigerator door. Replace if cracked, stained, or missing.

This is the front-facing grille panel that mounts at the bottom of the refrigerator, covering the condenser area and drip tray. It allows airflow to the condenser while catching condensation and defrost water. Replace this part if the grille is cracked, broken, discolored, or if the drip tray portion is damaged and leaking water onto the floor.

This ice door motor drives the dispenser flap that opens for ice dispensing and closes to seal the chute. Replacing a weak or failed motor restores smooth door movement and helps prevent warm air and moisture from entering the freezer. What it does:

• Actuates the ice chute door during dispensing and returns it closed for a proper seal
• Helps reduce frost, condensation, and ice clumping around the dispenser
• Can address ice not dispensing due to the door not opening/closing
• May resolve clicking or grinding noises from the dispenser area

• Unplug the refrigerator before servicing; wear cut-resistant gloves
• Remove dispenser trim/control panel to access the ice door assembly; handle wiring carefully
• Note linkage and wire orientation before removal to ensure proper reassembly
• After installation, test the dispenser to verify the door opens/closes and seals the chute
