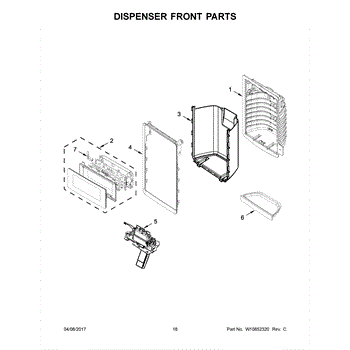

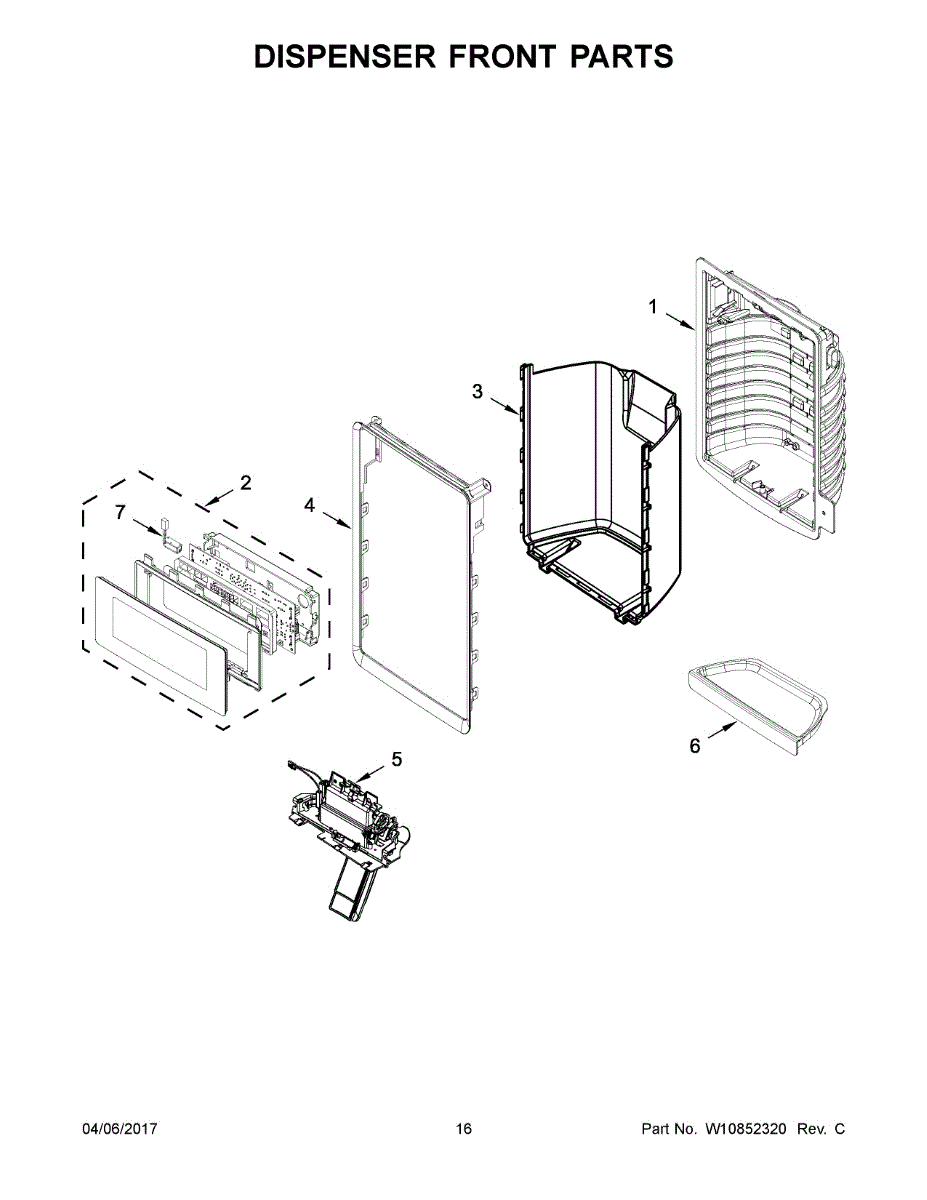

Parts for Whirlpool WRF736SDAB14: 09 - Dispenser Front Parts

The Refrigerator Water Filter is an OEM part for Whirlpool refrigerators. It delivers clean, filtered drinking water and ice by effectively reducing contaminants, including chlorine taste and odor, particulates, and various other harmful substances that may be present in the water supply.

Causes of a bad Refrigerator Water Filter can include regular wear and tear over time leading to reduced efficacy in filtering out contaminants, as well as accumulation of contaminants and sediment.

Symptoms of a bad Refrigerator Water Filter include:

• Noticeable decrease in water flow rate.
• Unpleasant taste or odor in the water or ice.
• Discoloration of water or ice.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This separator housing directs and isolates fluid flow inside the appliance to help the pump and drainage systems work correctly. Replacing a worn or cracked separator restores proper flow routing and helps reduce leaks and drainage problems. What it does:

• Channels water away from sensitive components to prevent cross-contamination or leaks
• Helps maintain correct pump suction and drainage performance
• Reduces the risk of water reaching electrical parts that could cause errors or shorts
• Can stop symptoms such as visible leaks, poor draining, or unusual pump noise

• One separator housing

• Disconnect power and water supply before starting any repair
• Inspect mating seals and clamps; replace if worn to ensure a watertight connection
• Handle plastic parts carefully to avoid cracks; do not overtighten clamps or fasteners

This control trim ring replaces the decorative bezel around a console control or knob, restoring a finished appearance and protecting the control opening from dirt and wear. Fits where the control meets the console for a clean look. What it does:

• Covers the gap around a control or knob to improve appearance and keep debris out
• Protects the control area from spills and grime that can affect operation
• Restores a secure, finished edge if the original trim is cracked, warped, or missing
• Matches OEM fit and mounting style for straightforward replacement

• Remove power to the appliance before beginning any work.
• Installation generally requires removing the knob and snapping or fastening the trim into place; follow your model's service instructions.
• Handle trim carefully to avoid scratching finish; use trim-safe tools if prying is needed.
• If mounting clips or screws are damaged or missing, replace them before completing installation.

This separator directs ice from the freezer ice maker into the dispenser and helps control airflow to reduce melting. It replaces a cracked, warped, or missing ice door to restore reliable dispensing and ice containment. What it does:

• Guides ice through the dispenser chute so cubes drop cleanly into the cup or bin
• Helps seal the ice chute to limit warm air entering the ice compartment
• Reduces ice jams and sticking by maintaining proper chute alignment
• Restores proper operation if the original door is broken, warped, or not closing

• One separator

• Basic hand tools required; locate and access the ice maker/dispenser area before starting
• Handle plastic parts carefully to avoid cracking; align door on its hinge before securing
• Disconnect power to the appliance before beginning work to avoid injury

This ice door replaces the flip/cover on the refrigerator ice dispenser to help control ice flow and keep the ice chute sealed. Restores proper opening and closing so ice dispenses cleanly and helps reduce warm air entering the compartment. What it does:

• Covers and seals the ice chute to help keep ice inside the bin and reduce melting or clumping
• Opens and closes with the dispenser mechanism to allow ice to pass through while minimizing drafts
• Prevents debris from entering the ice chute and helps maintain dispenser hygiene
• Helps restore normal dispensing if the original door is cracked, broken, or sticking

• Disconnect power to the appliance before starting any repair
• Remove ice bin and any obstructing parts per your model's service instructions to access the door
• Typically secures with clips or a small screw; handle plastic tabs carefully to avoid breakage

Replacement drip tray that collects defrost and condensate water and helps direct moisture to the refrigerator drain, reducing the chance of leaks and water damage. Fits into the evaporator/drain area to restore proper drainage. What it does:

• Collects defrost and condensation runoff and channels it to the drain system
• Helps prevent water pooling or leaks under the appliance
• Replaces cracked, warped, clogged, or missing trays that allow water to escape
• Can reduce musty odors caused by standing water in the tray area

• Disconnect power and remove food before accessing internal refrigerator components
• Access often requires removing the kickplate, evaporator cover, or shelves
• Make sure the drain path is clear and the tray is seated correctly before restoring power; dry any standing water before testing

This dispenser light replaces the small lamp that illuminates the refrigerator's ice/water dispenser alcove. It restores clear visibility of the dispenser area in low light so you can see fill levels and selections while dispensing.

• Provides illumination for the dispenser alcove when the control turns the light on
• Common symptoms: no dispenser light, dim or flickering light, or intermittent illumination
• Helps with accurate filling and improves visibility when dispensing ice or water

• Unplug the refrigerator or disconnect power before servicing
• Access the dispenser housing; remove any trim or lens as needed to reach the light
• Release locking tabs or screws and unplug the wire connector from the old light
• Connect and seat the new light, reassemble, restore power, and test operation
