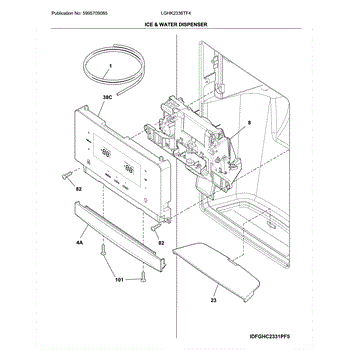

Parts for Frigidaire LGHK2336TF4: Dispenser Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Frigidaire PureSource Ultra II Refrigerator Water & Ice Filter is an OEM part for Frigidaire refrigerators provides clean, fresh-tasting water and ice. This advanced filtration system is specifically engineered to remove impurities and contaminants from your water supply, including lead, chlorine, mercury, and certain pesticides, without removing beneficial fluoride.

Regular replacement of the water and ice filter is crucial for maintaining the quality of your drinking water and the efficiency of your refrigerator's water and ice dispensing system. Over time, filters can become saturated with contaminants, reducing their effectiveness and potentially impacting the taste and safety of your water.

Symptoms of a filter in need of replacement include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in the water and ice
• The refrigerator's water filter indicator light turning on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This refrigerator water tube carries water between internal components such as the inlet valve, filter/reservoir, dispenser, or ice maker. Replacing a brittle, kinked, or leaking tube helps restore proper water flow and prevents messy leaks. What it does:

• Routes water within the refrigerator's water and ice system
• Helps deliver water to the dispenser and/or ice maker
• Common symptoms of a bad tube: leaks, poor dispenser flow, no ice production, visible cracks/kinks, or dripping at connections
• Restores dependable water delivery when tubing is damaged

• 1 water tube

• Unplug the refrigerator and shut off the water supply before servicing
• Note the tube's routing and connection points; take photos for reference
• Cut tubing ends squarely if trimming and fully seat into existing fittings
• Turn water back on and check all connections for leaks; flush the system to clear air

Color: Gray
The Dispenser Trim is an OEM part for Frigidaire refrigerators. It is a trim piece that surrounds the dispenser area and adds an aesthetic flair. The dispenser trim helps complete the look of the refrigerator door panel, framing in the key dispensing functionality.

Causes of a bad dispenser trim can include damage from opening and closing the refrigerator door repeatedly over time, accidental impacts that crack or dent the trim, or normal wear and tear that leaves it loose or misaligned.

Symptoms of a bad dispenser trim include:

• Gaps or misalignment around the dispenser opening
• Loose fit that allows for movement when touching the trim
• Cracks, dents, or other exterior damage
• Discoloration from prolonged sunlight exposure

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

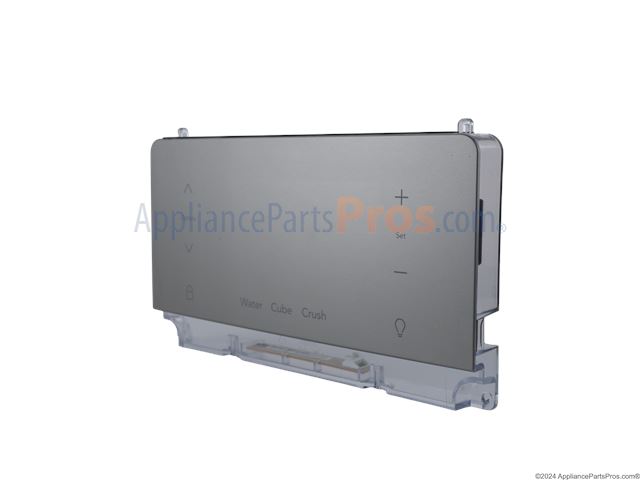

The Dispenser Module is an OEM part for Frigidaire refrigerators. It functions to dispense filtered water and ice through the refrigerator door. The module works with the water filtration system as well as ice maker components like the evaporator and ice accumulator, to monitor water levels and release ice or water on demand.

Symptoms of a bad dispenser module include:

• Inconsistent or failing water or ice dispensing
• Water leaks inside refrigerator compartments
• Fault codes or error messages related to dispensing issues
• Repeated trips requiring door access for dispenser system checks

Causes of failure can be worn electronic contacts, failures in water or ice level sensors, or moisture damage over time. Replacement maintains integrated controls for convenient filtered water access.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This dispenser drip tray sits at the base of the refrigerator's ice/water dispenser. It catches small drips and splashes to help keep the dispenser recess and door front cleaner and drier. What it does:

• Collects minor drips and splashes from the ice and water dispenser
• Helps protect the door finish and surrounding area from moisture
• Replace if the tray is cracked, warped, stained, or missing
• Common signs include water pooling in the dispenser recess or a loose, ill-fitting tray

• 1 dispenser drip tray

• Pull the old tray straight out of the dispenser recess; no tools are typically required
• Clean any mineral deposits or debris in the recess before installing the new tray
• Align and seat the new tray flat and flush in the opening
• Disconnect power and shut off water

The Damper Control Assembly is an OEM replacement part for Frigidaire refrigerators. It contains linkages and controls responsible for directing airflow across refrigerator coils during cooling operations.

Symptoms of a faulty damper control assembly include:

• Elevated temperatures inside refrigerator and freezer compartments
• Frost or ice buildup indicating improper air circulation
• Inoperative or stuck damper flaps that do not open fully
• Premature compressor cycling and higher energy usage

Causes stem from standard wear of moving parts over 10-15 years of use. Exposure to dust particles or crimps from occasional door slamming can inhibit smooth operation.

This OEM part is compatible with additional appliance brands like Electrolux, Gibson and Kelvinator.

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

This is a factory replacement screw fastener used to secure components in your appliance. It restores a tight, rattle-free fit for panels, brackets, and trim when an original screw is missing, stripped, or corroded.

• Secures panels, brackets, and trim to the appliance cabinet or liner
• Replaces a missing, stripped, or rusty screw
• Helps eliminate looseness, vibration, or rattling components
• Maintains proper alignment and a clean, factory fit

• Unplug the appliance before servicing; if near water lines, shut off the supply
• Match to the original and install in the same location/orientation
• Start threads by hand to avoid cross-threading; do not overtighten, especially into plastic
• Keep and reuse any original washers or spacers if present

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This water inlet tube routes incoming water from the supply to the refrigerator's internal water system, restoring proper flow for the dispenser and icemaker. Replace a damaged tube to stop leaks and regain reliable water delivery. What it does

• Channels water from the household supply to the fridge's water valve, dispenser, and icemaker
• Helps prevent leaks caused by cracked, pinched, or deteriorated tubing
• Can restore water flow when internal tubing is blocked or split
• Works with the appliance's existing fittings and seals when installed correctly

• One water inlet tube

• Disconnect power and shut off the water supply before beginning work
• Inspect and reuse only original fittings and seals if undamaged; replace seals if leaking
• Avoid sharp bends or kinks when routing the tube; secure with existing clips or brackets

This refrigerator clip is a small retainer that secures a component in place so it stays properly seated during use. Replacing a worn or missing clip restores a snug fit and helps eliminate looseness, rattling, or misalignment.

• Holds a part, panel, tube, or wire securely in its mounting point
• Maintains alignment to prevent shifting or vibration
• Helps preserve proper fit and airflow when components are correctly seated
• Symptoms can include loose or sagging pieces, rattling noises, or parts that won't stay attached

• Unplug the refrigerator; if working near water lines, shut off the water supply
• Note the clip's orientation before removal; take a photo for reference
• Use needle-nose pliers to release/install; avoid over-flexing the clip
• After installation, tug-test gently to confirm a secure fit before reassembling
