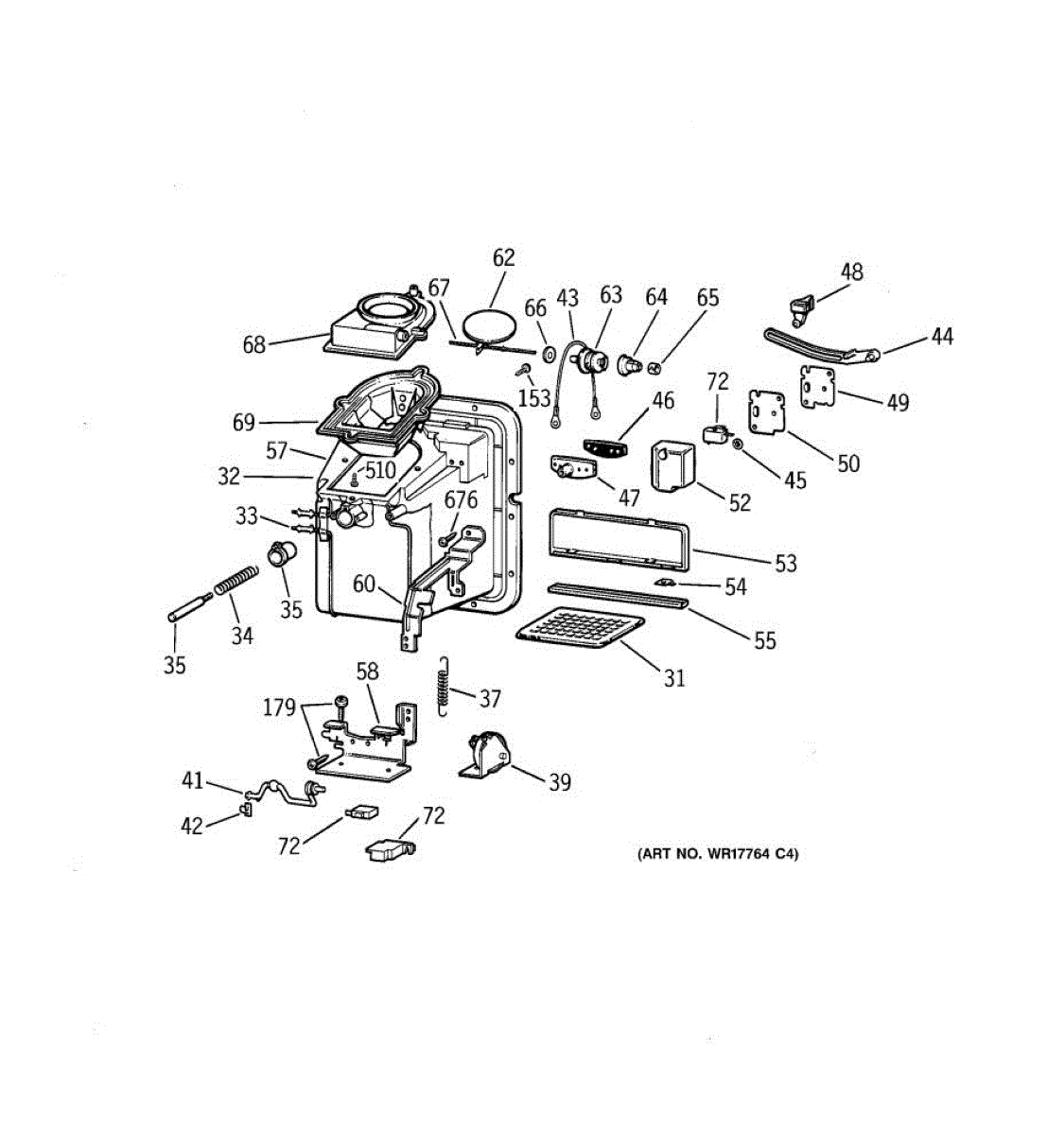

Parts for Ge TBE25PCSKRWW: 02 - Dispenser Parts

Color: White.

Spring for recess duct. For spring sleeve use WR2X4822.

This dispenser sleeve comes with plunger, sleeve, and screw.

This dispenser cradle is the molded housing that supports and guides the refrigerator dispenser components, helping keep the dispenser chute and actuator aligned for smooth water or ice dispensing. Replacement restores proper fit and function. What it does:

• Holds the dispenser chute and actuator assembly in the door for stable dispensing
• Guides water or ice flow to the dispense area and helps prevent spills
• Replaces cracked, warped, or broken housing that can cause misalignment or leaks
• Restores a solid mounting surface for switches, nozzles, and trim

• One dispenser cradle housing

• Disconnect power and shut off water supply before beginning any work
• Removal typically requires opening the freezer/refrigerator door and removing inner door trim and screws to access the cradle
• Handle plastic parts gently to avoid cracking; use a trim tool to disengage clips where needed

Color: White. For black use WR2X7951.

A replacement support recess that secures and centers a component in the appliance, restoring proper fit and stability. Replaces a worn or broken receptacle to stop misalignment and prevent loose or sagging parts. What it does:

• Acts as a mounting receptacle that holds and locates a related trim, panel, shelf or bracket
• Restores proper alignment so the secured component sits flush and functions correctly
• Stops movement, rattling or sagging caused by a cracked or missing receptacle
• Compatible with the appliance's original mounting points for a like-for-like repair

• One support recess

• Disconnect power to the appliance before starting any repair
• Remove any adjacent trim or panels as needed to access the recess; keep fasteners organized
• Press or snap the replacement into the original mounting location; may require light hand tools to remove the old piece
• Do not force parts; compare old and new parts for orientation before final installation

Ice maker dispenser door.

Time delay display arm.

Includes 12 washers.

Ice chute door lever.

Includes 12 screws.

Includes 12 screws.

Package of 12

Size: 10-16 ab.
