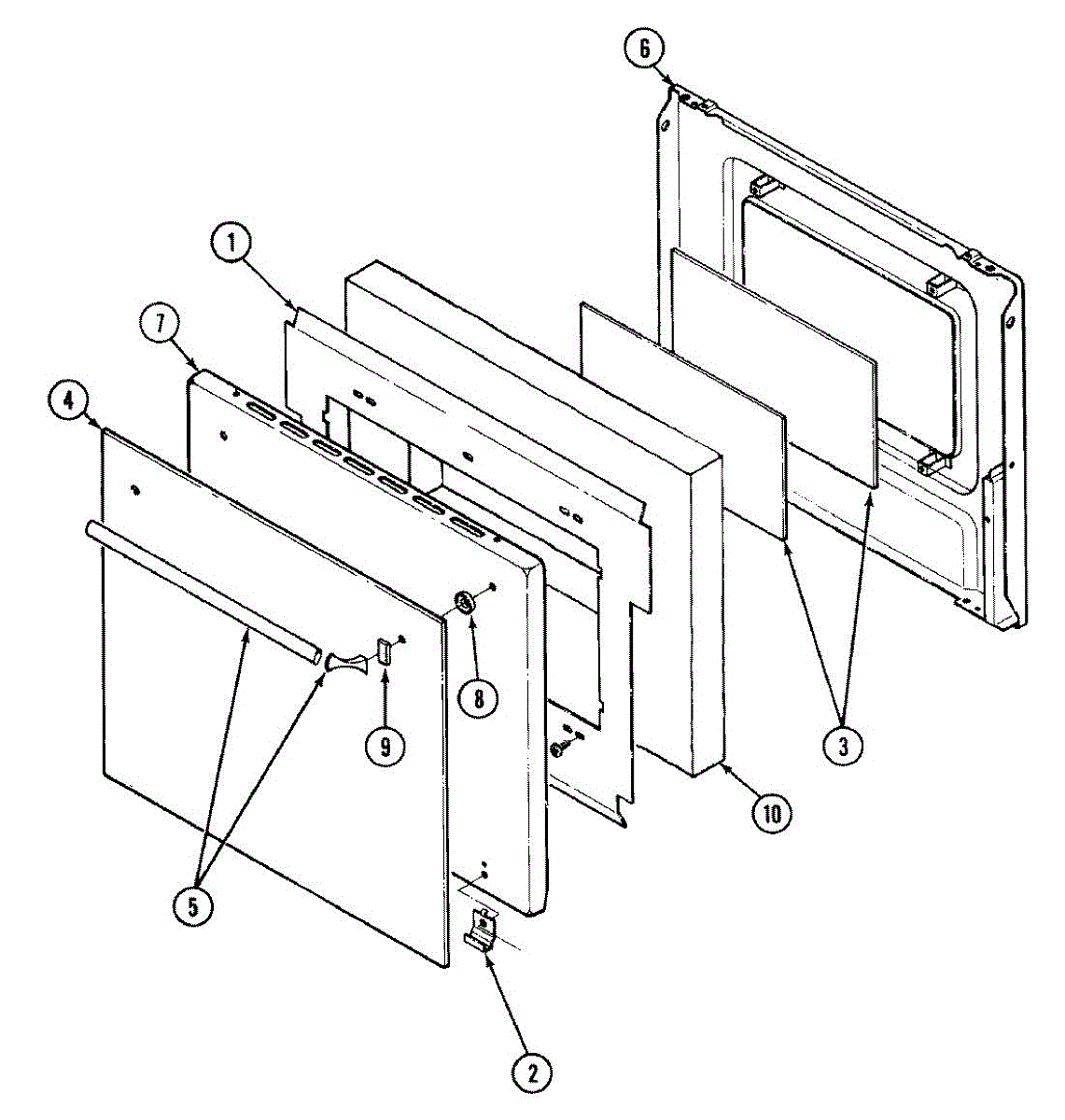

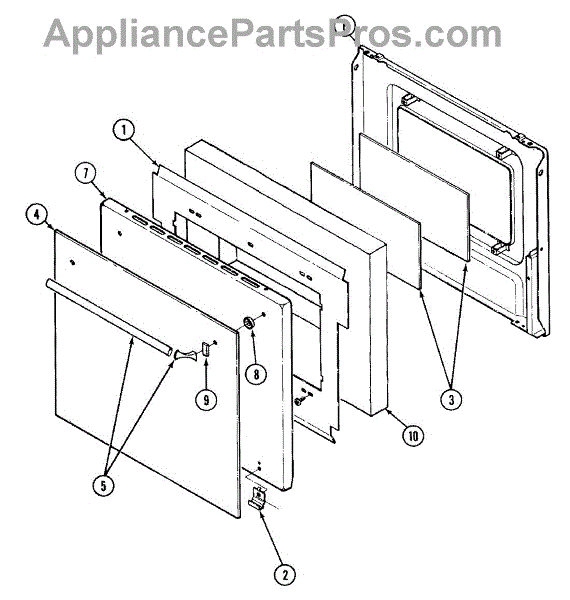

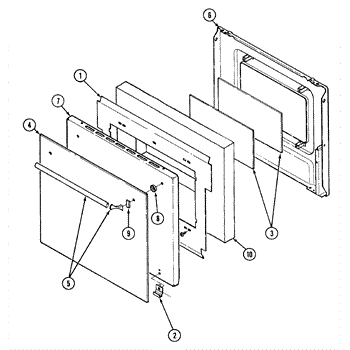

Parts for Magic Chef 9854VPV: 03 - Door Assembly-Lower (Series 01) Parts

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This part has been discontinued and is no longer available.

This seal strip replaces a worn or damaged door gasket edge to restore a proper seal and help the appliance maintain temperature and operate quietly. It's a direct-fit service part used where a continuous seal is required. What it does:

• Provides a flexible barrier along the door/frame to reduce air leaks and heat/cold loss
• Helps prevent moisture buildup and improves energy efficiency when sealing is restored
• Reduces rattling and vibration caused by a compressed or torn seal edge
• Commonly replaced when the strip is torn, missing, or no longer adheres properly

• One seal strip

• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Clean and dry the mounting surface; remove old adhesive or residue for best adhesion
• Align the strip carefully and press firmly; allow any adhesive to cure per manufacturer instructions

This vertical door seal runs along the sides of the oven door opening to keep heat contained. Replacing a worn side gasket restores a tight seal for more consistent temperatures and efficient baking performance.

• Seals the side edges of the oven door to reduce heat loss and maintain set temperature
• Helps the oven preheat properly and bake more evenly
• Replaces side gaskets that are torn, frayed, hardened, or permanently compressed
• Common signs include visible gaps or tears, heat escaping at door edges, longer preheat times, and temperature fluctuations

• Disconnect power (and shut off gas, if applicable). Allow the oven to cool completely.
• Remove the old side seal from its channel or clips; note routing and orientation.
• Clean the channel. Press the new seal into place without stretching; ensure ends/clips are fully seated.
• Close the door to confirm uniform contact along both sides; reseat as needed.

This horizontal oven door seal lines the top and bottom edges of the door opening to keep heat contained inside the cavity. Replacing a worn seal restores stable temperatures, more efficient preheating, and consistent baking results.

• Seals the oven opening along the top and bottom edges to reduce heat loss
• Helps maintain set temperature and overall cooking performance
• Replaces cracked, frayed, flattened, or brittle horizontal gasket
• Common signs include visible gaps, heat escaping around the door, longer preheat times, and temperature fluctuations

• Disconnect power and allow the oven to cool completely before servicing
• Open the door and carefully pull the old seal straight out of the retainer
• Note clip/retainer positions as you remove the old seal and reuse them as designed
• Press the new seal evenly into place without stretching; ensure corners are fully seated for a uniform seal

This spacer fits between the inner and outer oven door glass panels to help maintain the correct gap and alignment for safe operation. It replaces a missing or damaged spacer to restore proper door assembly and appearance. What it does:

• Keeps the inner and outer door glass correctly spaced and aligned
• Helps prevent glass contact, rattling, and uneven sealing
• Supports proper door assembly after glass or panel replacement
• Addresses symptoms like loose or rattling door glass and misaligned panels

• One door glass spacer as shown

• High-level replacement only; follow the appliance's service manual for disassembly and reassembly steps
• Handle glass carefully and wear cut-resistant gloves and eye protection
• Ensure power is disconnected before accessing the door assembly
• If door glass is cracked or damaged, replace glass panels per OEM instructions rather than relying solely on the spacer
