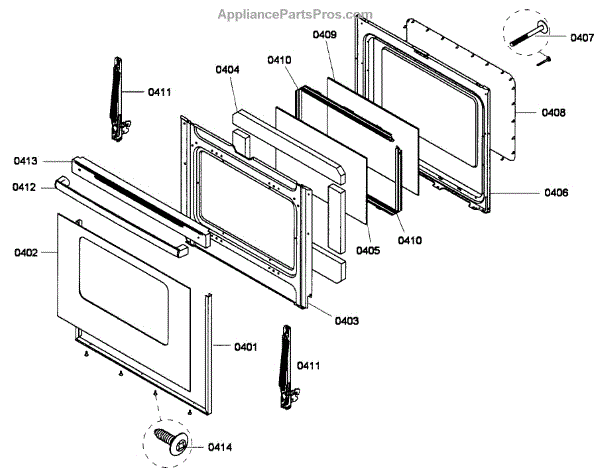

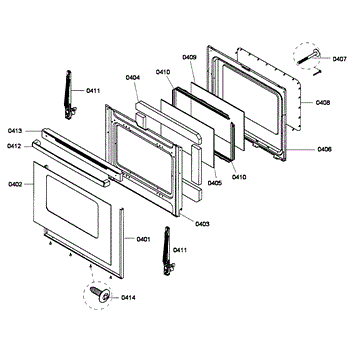

Parts for Bosch HES3023U/01: Door Assembly Parts

A roll of insulating tape used to protect and secure electrical connections and wiring inside appliances. Helps prevent short circuits and keeps wiring organized for safer operation. What it does:

• Wraps and insulates exposed wires, splices and terminals to reduce risk of shorts
• Secures wiring and small components to prevent abrasion and movement
• Provides basic protection from dust and incidental contact in appliance compartments
• Commonly used during wiring repairs and component replacements

• One roll of insulating tape

• Disconnect power to the appliance before performing any electrical work
• Clean and dry surfaces before applying tape for best adhesion
• Wrap tape tightly and overlap by half the width for secure insulation

This glass turntable plate supports and rotates food for even microwave cooking and serving. It replaces a broken, chipped, or missing glass plate to restore stable rotation and a safe cooking surface. What it does:

• Provides a stable, heat-safe surface for dishes during microwave operation
• Centers on the roller ring so the motor can rotate food for even heating
• Replaces cracked, chipped, or shattered glass that can cause uneven cooking or safety risks
• Helps prevent food spills from contacting the microwave floor

• Handle with care; glass can chip or break if dropped
• Clean before first use and dry thoroughly to avoid slipping on the roller ring
• Ensure the plate is properly seated on the roller support and motor spindle before operating
• Do not use if the glass is cracked or severely chipped—replace to avoid injury or further damage

This replacement door frame restores proper alignment and appearance to compatible Bosch dishwasher doors, helping the door close securely and reducing gaps that can cause rattling or leaks. Fits specific models—verify model compatibility before ordering. What it does:

• Replaces a damaged, bent, or cracked outer door frame to restore proper door fit
• Helps stop door sag, rubbing, or misalignment that can prevent full closure
• Reduces vibration noise and helps maintain a tight seal to minimize water escape
• Restores the door's finished look when the original frame is dented or cosmetically worn

• One replacement door frame

• Disconnect power and water supply before beginning any repair
• Remove the dishwasher door trim and inner panel per service instructions to access mounting points
• Keep track of screws and mounting clips; some fasteners are reused

This inner door glass is the replacement glass panel that fits inside the oven door to restore a clear view and maintain proper thermal performance. It replaces cracked, broken, or fogged inner glass so the door functions and looks right again. What it does:

• Forms the inside-facing surface of the oven door, protecting internal components and insulating the cavity
• Restores a clear viewing window when original glass is cracked, shattered, or clouded
• Stops rattling or movement caused by damaged or missing glass
• Helps maintain normal door sealing and thermal behavior when installed correctly

• Handle with care and wear cut-resistant gloves; glass edges can be sharp
• Door removal is commonly required; support the door and follow OEM disassembly steps
• Inspect door hardware, clips and any interleaving insulation; reuse only parts explicitly shown in OEM instructions

This mounting spacer positions and separates components to ensure correct alignment and clearance in your appliance, helping parts fit securely and operate quietly. It's a small but essential piece for proper assembly and function. What it does:

• Keeps components spaced at the correct distance to prevent rubbing or interference
• Maintains proper alignment of panels, brackets, or assemblies
• Reduces vibration-related noise by ensuring stable part placement
• Helps prevent wear on adjacent parts caused by contact or misalignment

• Disconnect power and water before servicing the appliance
• Handle small parts carefully and note orientation before removal
• Use appropriate tools and follow the appliance service manual for proper placement
