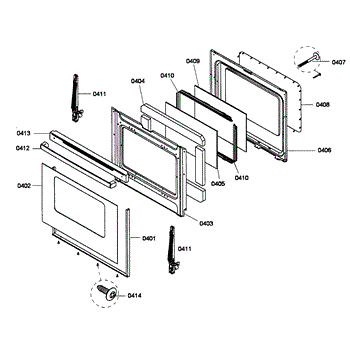

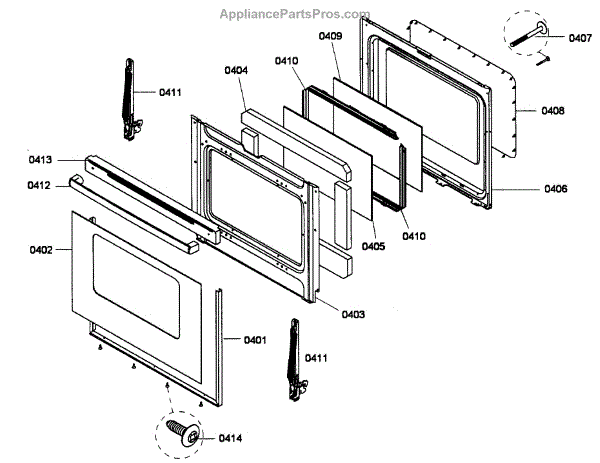

Parts for Bosch HES3063U/01: Door Assembly Parts

Parts for Bosch HES3063U/01: Door Assembly Parts

Location on Diagram
Part Description
Price & Availability
401
By: Bosch
Part Number: 00649216
$67.56

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
402
By: Bosch
Part Number: 00684104
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

403
By: Bosch
Part Number: 00684074

This replacement door frame restores proper alignment and appearance to compatible Bosch dishwasher doors, helping the door close securely and reducing gaps that can cause rattling or leaks. Fits specific models—verify model compatibility before ordering. What it does:

  • Replaces a damaged, bent, or cracked outer door frame to restore proper door fit
  • Helps stop door sag, rubbing, or misalignment that can prevent full closure
  • Reduces vibration noise and helps maintain a tight seal to minimize water escape
  • Restores the door's finished look when the original frame is dented or cosmetically worn
What's included:
  • One replacement door frame
Install notes:
  • Disconnect power and water supply before beginning any repair
  • Remove the dishwasher door trim and inner panel per service instructions to access mounting points
  • Keep track of screws and mounting clips; some fasteners are reused

More
$102.59

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
404
By: Bosch
Part Number: 00684075
$96.74

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
405
By: Bosch
Part Number: 00684076
$303.41

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
406
By: Bosch
Part Number: 00684077
$204.18

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
407
By: Bosch
Part Number: 00617738
$22.55

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
408
By: Bosch
Part Number: 00649181

Seals your range door to retain heat and improve cooking efficiency. Replace if cracked, torn, or allowing heat to escape. Verify fit with your model number.

More
$418.54

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
409
5.0 (1)
By: Bosch
Part Number: 00684078

Replace cracked, fogged, or broken inner glass panel inside your range oven door. Restores clear visibility and proper insulation for safe use.

More
$300.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
410
By: Bosch
Part Number: 00684079

This mounting spacer positions and separates components to ensure correct alignment and clearance in your appliance, helping parts fit securely and operate quietly. It's a small but essential piece for proper assembly and function. What it does:

  • Keeps components spaced at the correct distance to prevent rubbing or interference
  • Maintains proper alignment of panels, brackets, or assemblies
  • Reduces vibration-related noise by ensuring stable part placement
  • Helps prevent wear on adjacent parts caused by contact or misalignment
What's included: One spacer Install notes:
  • Disconnect power and water before servicing the appliance
  • Handle small parts carefully and note orientation before removal
  • Use appropriate tools and follow the appliance service manual for proper placement

More
$81.73

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
411
By: Bosch
Part Number: 00649182
$114.38

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
412
By: Bosch
Part Number: 00676814
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

413

Cap

By: Bosch
Part Number: 00649217
$125.50

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
414
By: Bosch
Part Number: 00617695

Replacement mounting screw for ranges. Secures panels, brackets, or internal components. Order a new screw if the original is stripped, missing, or damaged.

More
$20.88

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
