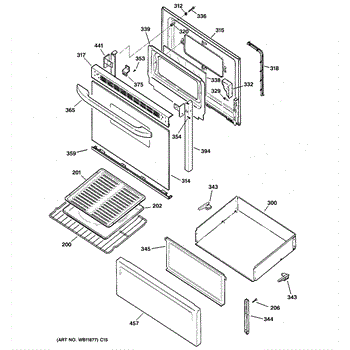

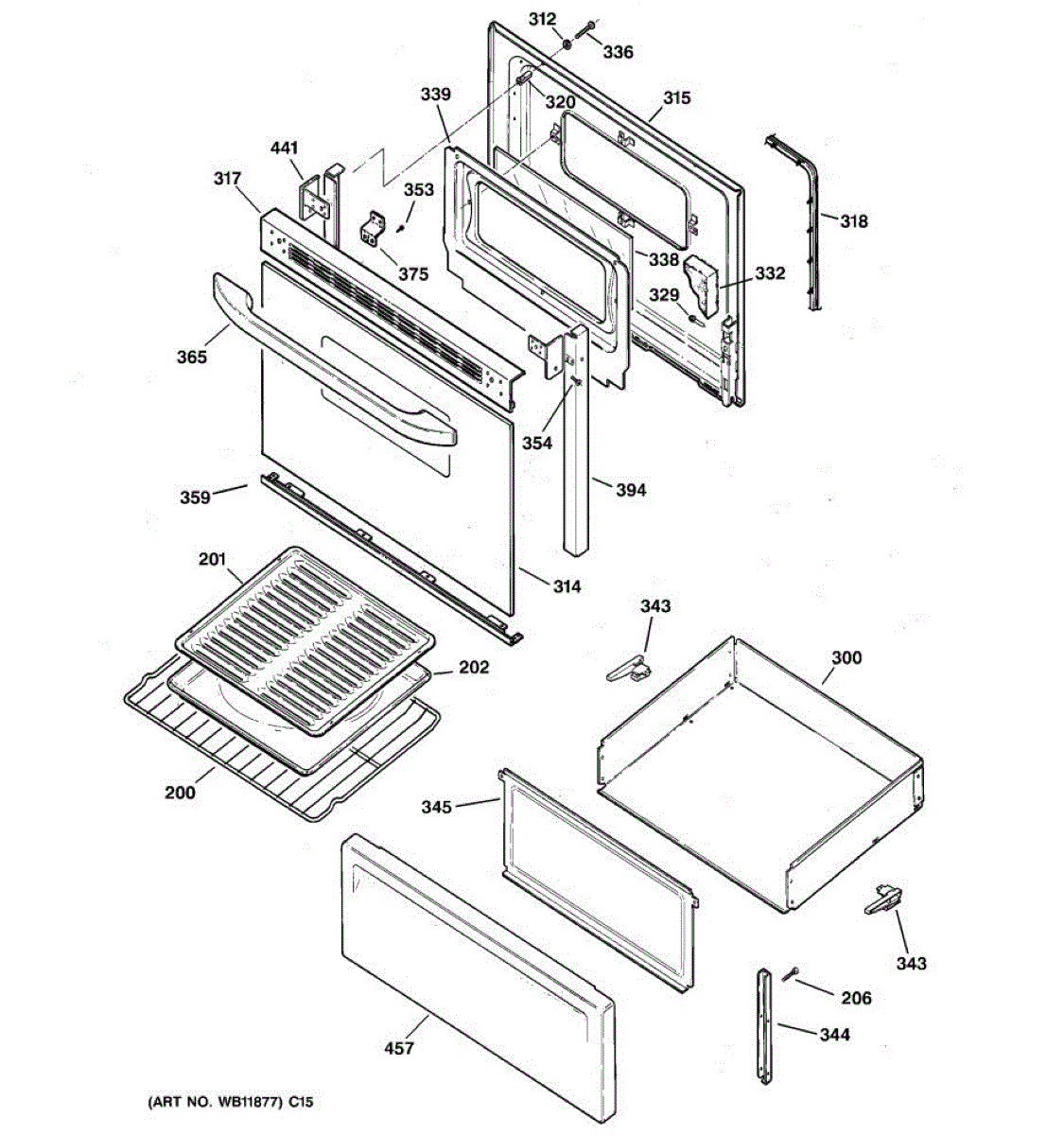

Parts for Ge 154510: 03 - Door & Drawer Parts

The Oven Rack is an OEM part for GE ranges, providing a sturdy and reliable platform for baking and roasting a variety of dishes. Its design allows for easy placement and removal from the oven, offering flexibility in cooking heights and accommodating different sizes of bakeware.

Causes of a bad Oven Rack can range from excessive weight being placed on the rack, exposure to high moisture levels leading to rust, or simply the age-related wear and tear that comes from regular use.

Symptoms of a bad Oven Rack include:

• Warping or bending, which can prevent the rack from sitting level in the oven and affect cooking performance.
• Rust or corrosion, which can weaken the rack's structure and potentially contaminate food.
• Difficulty sliding the rack in and out, which may indicate damage or misalignment.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

Size: 10-32 GXTT FLP.595 S

Includes 12 washers.

Outer door glass for oven. Color: white. Glass has clear window.

The Gasket Door Assembly is an OEM replacement part for GE ovens. This gasket provides a seal around the oven door, ensuring that heat is retained inside the oven for efficient cooking and baking. It helps to maintain the correct temperature and prevents heat from escaping, which can affect cooking performance and energy efficiency.

Causes of a bad gasket door assembly can include regular wear and tear, exposure to high temperatures, and physical damage such as cuts or tears. Over time, the gasket can lose its elasticity and sealing capability.

Symptoms of a bad Gasket Door Assembly include:

• Heat escaping from the oven door
• The oven taking longer to preheat or maintain temperature
• Uneven cooking or baking results
• Visible damage or gaps in the gasket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This spacer fits between mating parts in select GE cooking appliances to set correct clearance and alignment. Replacing a worn or missing spacer helps secure the assembly and prevents rubbing or damage to adjacent surfaces during use.

• Maintains proper spacing so hardware tightens squarely and components sit evenly
• Helps prevent metal-to-metal contact that can cause noise, wear, or surface damage
• If missing, broken, or deformed, you may notice looseness, misalignment, rattling, or scraping
• Restores original fit and finish when replaced

• Disconnect power; if applicable, shut off gas. Allow the appliance to cool completely
• Support the part being unfastened (such as a door, handle, or trim) to avoid strain on panels or glass
• Install the spacer in the same location/orientation as the original and reuse existing hardware if serviceable
• Tighten screws evenly; do not overtighten against glass or enameled surfaces

Includes 12 screws.

Includes 12 screws.

Replace a cracked, shattered, or heat-damaged inner oven door pane with this heat-resistant glass. It restores proper insulation and visibility, helping your oven maintain temperature and protecting the door assembly from spills and high heat.

• Replaces the interior pane within the oven door assembly
• Helps retain heat for consistent cooking performance
• Shields the door liner and insulation from spills and steam
• Common signs it's needed: cracked/shattered inner glass, missing or loose pane, heat escaping, or the door exterior feeling hotter than usual

• Disconnect power or turn off gas and allow the oven to cool completely
• Remove the door per your model's instructions and place it on a padded surface
• Wear gloves; handle glass by the edges and avoid overtightening retainers
• Transfer any brackets, trim, or gasket from the original pane if your model uses them; before reassembly

This right-side drawer glide supports and guides the lower drawer on your range so it opens and closes smoothly. Replace a worn or broken glide to restore easy operation and keep the drawer aligned. What it does:

• Mounts to the cabinet frame on the right-hand side to guide the lower drawer
• Provides a smooth sliding surface for the drawer rail
• Helps keep the drawer level and properly aligned
• Common symptoms: drawer hard to open/close, rubs or binds, sags, or comes off track

• 1 right-hand drawer glide

• Disconnect power and let the appliance cool; for gas ranges, also shut off gas supply
• Remove the lower drawer to access the side glides
• Note right-side orientation; release or unfasten the old glide and install the new one in the same position
• Reinstall the drawer and check for smooth, level travel

Left side

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

This part has been discontinued and is no longer available.

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

The Bottom Door Trim is an OEM part for GE ranges. It serves as a finishing touch, providing a seamless transition between the bottom of the oven door and the base or kick plate area.

Causes of a damaged Bottom Door Trim range from impacts during cleaning or moving the range, to general wear and tear over years of use. Exposure to high heat or spills can also contribute to the deterioration of the trim.

Symptoms of a bad Bottom Door Trim can include:

• Cracked or broken trim pieces
• Missing sections of trim
• Loose or misaligned trim
• Faded or discolored trim material

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models

This White Door Handle is an OEM replacement part for GE ranges. Located on the oven door, this handle provides a means of safely accessing the cooking cavities. As contact points, this durable handle allows withstanding high-heat openings and closings.

Causes can be normal wear and tear over many heating cycles, repeated heavy impacts from storage items, or long-term UV exposure breaking down surface finishes.

Symptoms of a bad door handle may include:

• Breaks, cracks, or splits appearing in the plastic or coating
• Discoloration, fading, or peeling removing their clean look
• Wobble, looseness, or difficulty opening/closing the door due to wear

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This right-side door end cap provides a finished edge and secure mounting point for the outer oven/stove door trim, restoring fit and appearance. Use it to replace a cracked, loose, or missing end cap and reduce rattling or gaps. What it does:

• Covers and protects the outer door edge while anchoring the trim for a proper door fit
• Restores the door's finished appearance when the original cap is cracked, broken, or faded
• Helps eliminate noise or vibration caused by a loose or damaged end cap
• Maintains alignment so the door trim and handle sit correctly

• Designed to install on the outer door edge; confirm right-side orientation before starting
• Remove door trim screws or clips as required; keep hardware separate and reuse if intact
• Use basic hand tools; avoid force that can damage surrounding trim or finish
• Disconnect power to the appliance and allow surfaces to cool before beginning work

This white drawer panel is the exterior front of the appliance's drawer. Replace a dented, cracked, or discolored panel to restore a clean look and ensure proper alignment, secure handle mounting, and smooth opening and closing. What it does:

• Forms the visible drawer front and mounting surface for the handle or badge
• Helps the drawer sit flush and operate smoothly when correctly aligned
• Replaces panels that are dented, scuffed, cracked, or rusted
• Can address a loose handle, misaligned drawer front, or scraping when closing

• One white drawer front panel

• Disconnect power and allow the appliance to cool; shut off gas before servicing
• Remove the drawer to access fasteners; retain all screws and hardware
• Transfer the handle/trim from the old panel, align the new panel, and secure fasteners without overtightening
• Wear cut-resistant gloves and use caution around sharp metal edges
