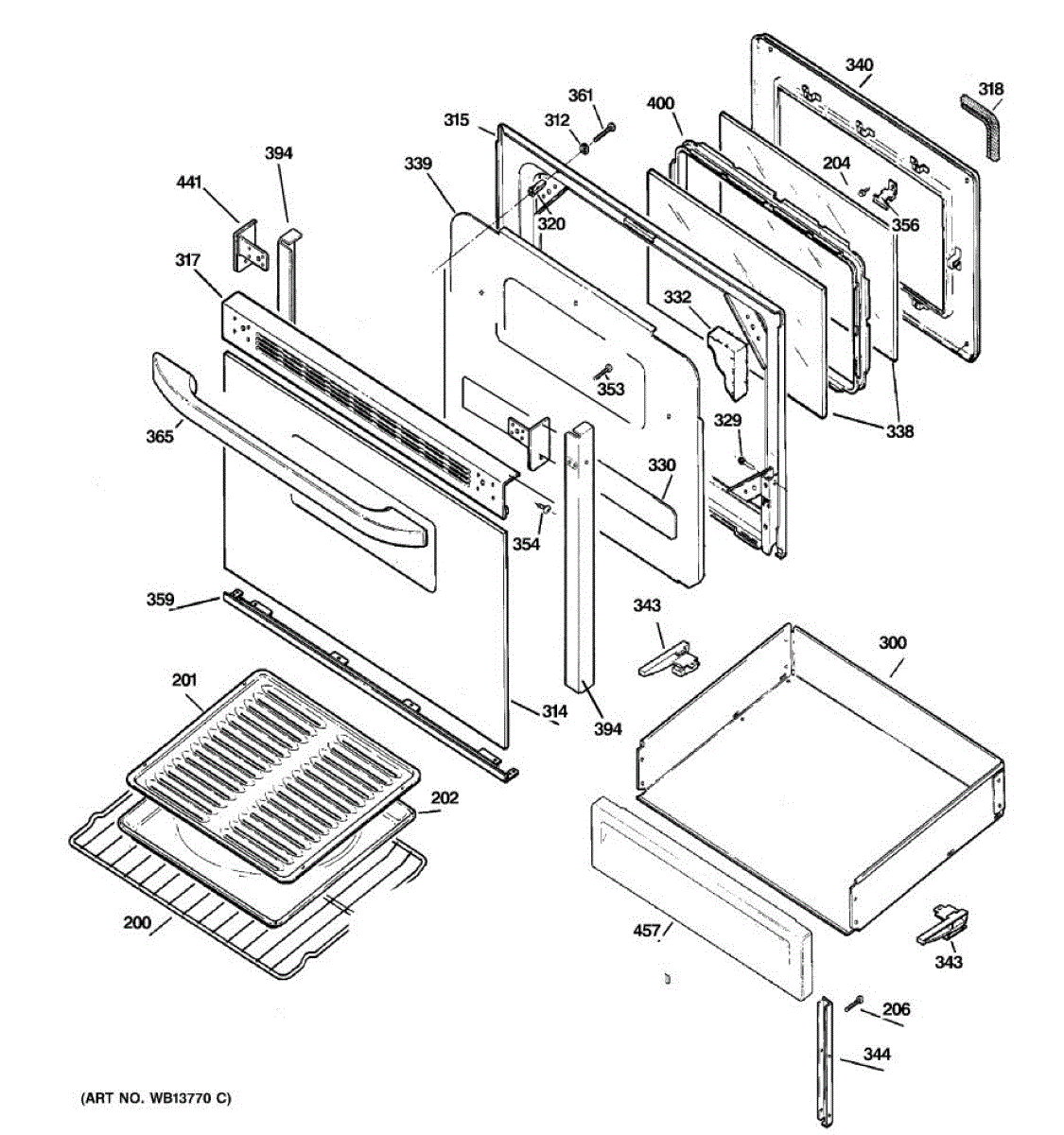

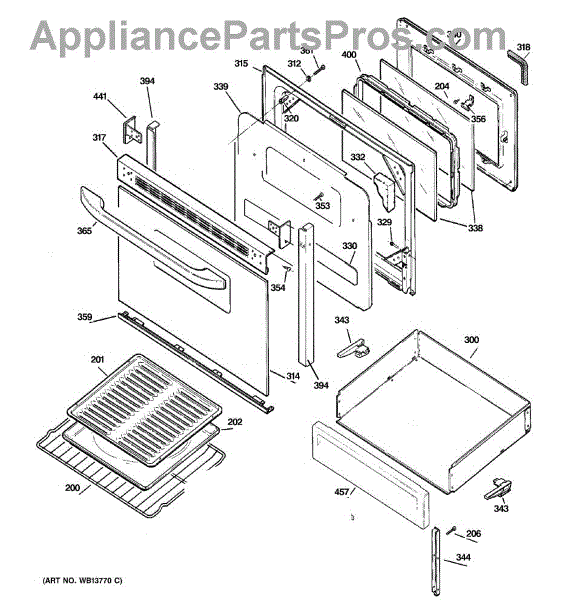

Parts for Ge JBP15CJ2CC: 03 - Door & Drawer Parts

Replacement oven rack for electric and gas ranges. Installs inside oven cavity. Needed when original rack is missing, damaged, or warped from use.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Package of 12

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Size: 10-32 GXTT FLP.595 S

Includes 12 washers.

Replacement outer glass panel for range oven doors. Restores clear viewing area when original glass is cracked, broken, or fogged. Bisque color finish.

Door liner weld assembly for electric ranges. Replaces cracked, damaged, or broken door liner frames. Structural component that secures inner door panel.

Color: Bisque

Seals the gap between oven door and body to retain heat during cooking. Replace if cracked, worn, or heat escapes. Verify fit with your model number.

Cushions and secures your range or oven door handle to the door surface. Replace if cracked, worn, or missing to eliminate handle rattling and restore snug fit.

Includes 12 screws.

Side

Insulation strip that installs along the bottom of your electric range door. Replace if torn, compressed, missing, or damaged to restore proper fit.

Oven door glass window pack for viewing food while cooking. Replaces cracked, shattered, or broken glass. Installs inside the oven door frame assembly.

Inner welded panel assembly for range control/backguard structure. Restores secure fit and alignment. Replace if bent, cracked, or damaged to stop rattling.

Replacement drawer glide for range bottom drawer. Needed when glide is broken, cracked, or snapped, causing drawer to fall, scrape floor, or not slide.

Secures the lower storage drawer assembly to your range cabinet. Replace this stamped metal bracket if cracked, bent, or missing to restore alignment.

Replacement mounting screw for range panels, brackets, and trim. Restores secure fit when original fastener is missing, stripped, or damaged.

This mounting screw secures an appliance end cap or trim piece, keeping covers and brackets fastened for safe, stable operation. It's a direct-fit replacement used when the original screw is lost, stripped, or damaged. What it does:

• Secures the end cap or trim to the appliance frame to prevent gaps and movement
• Stops rattling or vibration caused by a missing or worn screw
• Holds covers in place to protect internal components from debris
• Restores proper fit and alignment of the end cap/trim

• Disconnect power before servicing the appliance
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and tighten until snug—do not overtighten
• Replace damaged screws or threaded inserts to ensure a secure fit

Replaces cracked, rusted, or missing bottom trim on your range oven door. This decorative trim piece installs along the lower door edge for a finished look.

Color: Bisque

Positions and supports oven door glass to maintain proper alignment. Replace if worn, cracked, or missing to prevent glass rattling and gaps.

Replace a cracked, broken, or missing end cap on your range door. This decorative trim piece installs at the door edge to complete the finished look.

Replace a cracked or missing end cap on your range door. This plastic trim piece covers the door edge, providing a finished look and protection.

Color: Bisque
