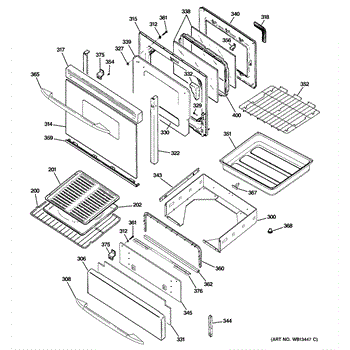

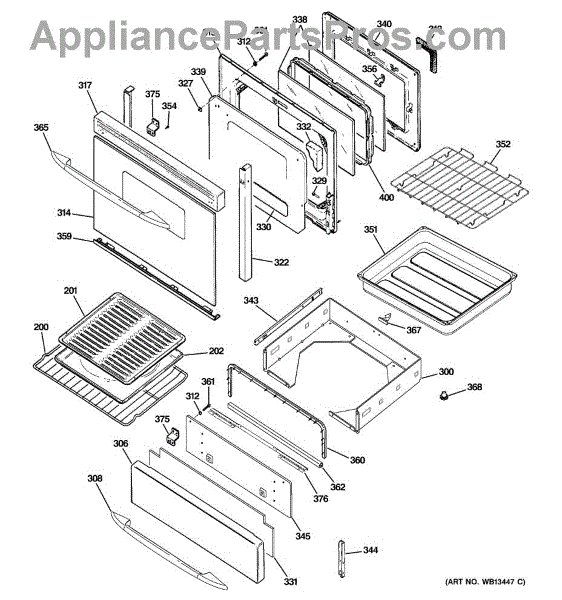

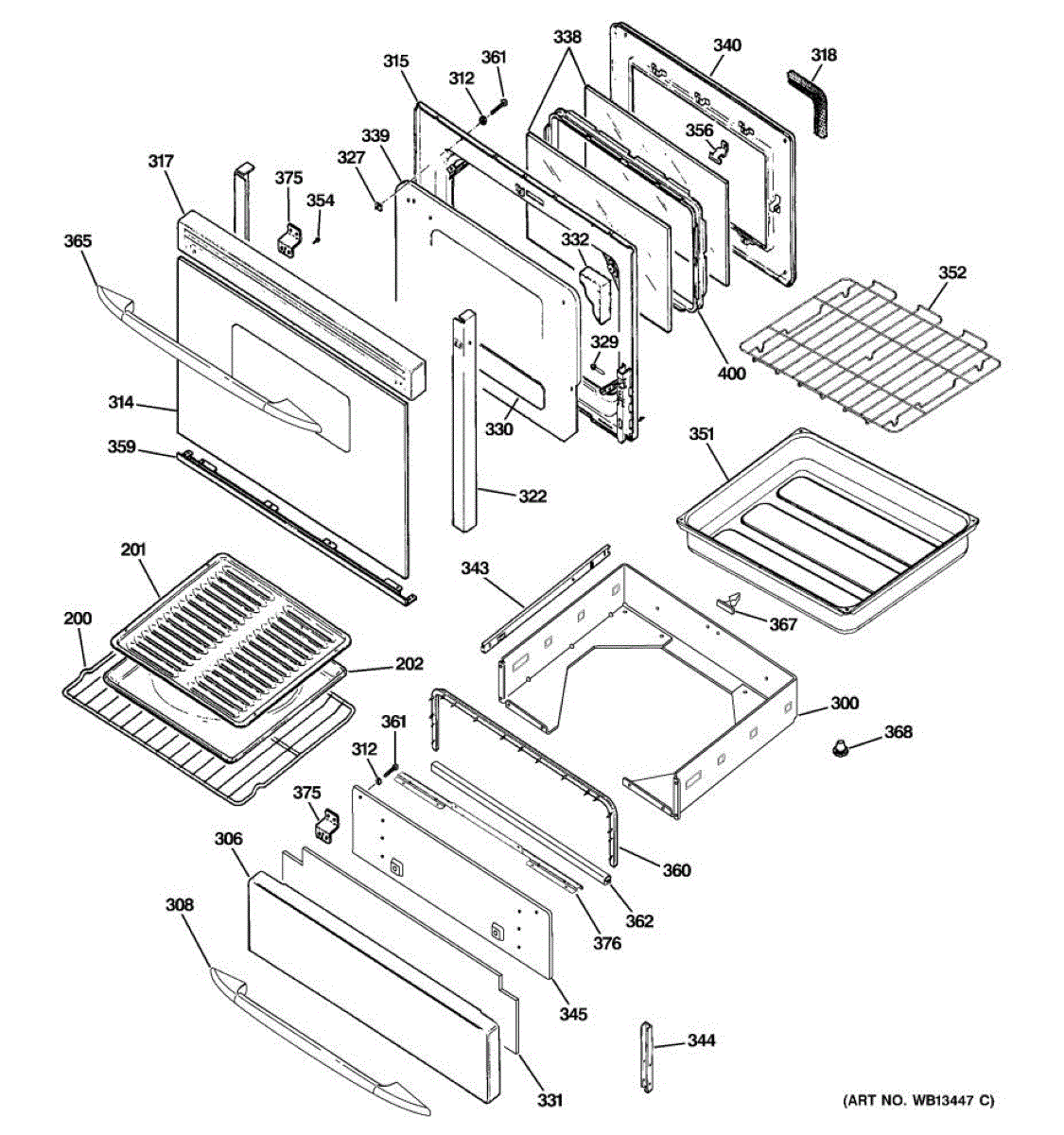

Parts for Ge JGB928KEK2CC: 04 - Door & Drawer Parts

The Oven Rack is an OEM part for GE ranges, providing a sturdy and reliable platform for baking and roasting a variety of dishes. Its design allows for easy placement and removal from the oven, offering flexibility in cooking heights and accommodating different sizes of bakeware.

Causes of a bad Oven Rack can range from excessive weight being placed on the rack, exposure to high moisture levels leading to rust, or simply the age-related wear and tear that comes from regular use.

Symptoms of a bad Oven Rack include:

• Warping or bending, which can prevent the rack from sitting level in the oven and affect cooking performance.
• Rust or corrosion, which can weaken the rack's structure and potentially contaminate food.
• Difficulty sliding the rack in and out, which may indicate damage or misalignment.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

Includes 12 washers.

The Door Gasket Assembly is an OEM replacement part for GE ranges and wall ovens. This assembly forms an airtight seal around the oven door to retain heat within the cooking chamber. The door gasket is responsible for ensuring optimal cooking temperatures can be maintained regardless of outdoor conditions. It prevents hot air and moisture from escaping the oven cavity.

Causes of a bad door gasket assembly can include deterioration of sealing materials over many heating and cooling cycles. Physical damage from impact or over-closing of the heavy oven door may also occur.

Symptoms of a bad oven door gasket assembly include:

• Inefficient or uneven cooking as heat escapes around the edges
• Condensation appearing on exterior oven surfaces during baking
• Visibly observable gaps around the door frame when closed

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This speed nut is a clip-on fastener that provides threads for a screw on the appliance. It secures sheet-metal panels, brackets, or trim and helps keep assemblies tight under vibration and repeated use.

• Provides captive threads so a screw can tighten into thin sheet metal
• Helps secure panels, brackets, and trim pieces in place
• Replace if a screw spins without tightening, a panel rattles/feels loose, or the original clip is missing or damaged
• Restores a snug, reliable attachment point without a loose nut

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool before servicing
• Note the clip's orientation; slide it onto the panel edge or stud as designed
• Start the screw by hand to avoid cross-threading; do not overtighten
• Wear cut-resistant gloves when handling sheet-metal parts

Includes 12 screws.

Side

Bottom

The Window Pack is an OEM replacement part for GE ovens. This assembly includes the glass window for the oven door, allowing users to view the contents of the oven without opening the door and disrupting the cooking process.

The window pack can become damaged due to accidental impact, thermal stress from frequent temperature changes, or general wear and tear over time. A broken or cracked window not only affects visibility but can also pose safety risks and affect oven performance.

Symptoms of a bad window pack include:

• Visible cracks or breaks in the glass
• Heat escaping from the oven
• Difficulty maintaining oven temperature
• The oven door not closing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This inner welded panel assembly restores the stove/oven control/backguard interior structure for a secure fit and proper alignment. Replaces a bent, cracked or damaged inner panel to help stop rattling and improve component support. What it does:

• Replaces the inner welded panel that supports the control/backguard area and helps align the outer trims.
• Restores structural integrity when the original panel is dented, cracked or separated at welds.
• Reduces rattling or vibration caused by loose or damaged interior paneling.
• Provides the proper mounting surface for switches, trim pieces and related hardware.

• One inner welded panel assembly as pictured.

• Disconnect power to the appliance before starting any work.
• Handle edges and sheet metal carefully—wear gloves and eye protection.
• May require removal of control panel, backguard or cooktop to access mounting points; retain original screws and clips for reassembly.

This internal slide is a single replacement rail used to restore smooth guidance and support for a sliding drawer or internal compartment. It prevents sticking and wobbling so the drawer opens and closes reliably. What it does:

• Guides and supports a drawer or compartment for smooth travel
• Replaces worn, bent, or damaged slide hardware that causes sticking or misalignment
• Helps restore proper drawer alignment and load support
• Reduces noise and binding when opening or closing the drawer

• Disconnect power to the appliance and remove any contents before starting
• Basic hand tools typically required; support the drawer while removing/installing the slide
• Align slide fully before tightening fasteners to ensure smooth operation
• Replace with equivalent screws for secure fit

This drawer mounting bracket secures the lower storage/drawer assembly to the range/cabinet, restoring stable alignment and smooth opening. Durable stamped metal bracket used where the drawer frame needs a reliable support point. What it does:

• Provides a secure attachment point for the appliance storage drawer or lower kick drawer
• Keeps the drawer aligned to prevent sagging, rubbing, or uneven movement
• Restores stability if original bracket is bent, broken, or missing
• Helps eliminate rattling or excessive play in the drawer during use

• One drawer mounting bracket

• Inspect surrounding drawer frame and fasteners; replace missing or damaged screws with OEM-specified hardware
• Disconnect power and ensure range is cool and stable before working on lower drawer assemblies
• Minor hand tools typically required; handle sharp edges carefully and wear gloves if needed

This rack baking drawer assembly restores a lower oven's storage and baking surface for sheet pans, pans and cookware. It provides a stable, removable rack that slides in and out for easy access and even heat exposure. What it does

• Provides a removable rack surface for baking or storing cookware in the lower drawer compartment
• Slides smoothly on drawer tracks to position pans and trays for cooking or access
• Helps promote even heat exposure to pans placed in the drawer area
• Replaces worn, bent or missing drawer rack assemblies that prevent proper sliding or support

• One rack baking drawer assembly as shown

• High-level replacement: remove the drawer from the oven, slide out old assembly, and install new drawer rack per factory diagram
• Use care to avoid scratching enamel surfaces and to keep track of any clips or rollers
• Disconnect power at the breaker for electric ovens before removing drawer components

Handle mounting

Hex

Color: Bisque

Includes 12 screws.

This lower door gasket seals the bottom edge of the appliance door to help maintain proper temperature and reduce heat loss. It replaces a worn or damaged lower seal to improve performance and efficiency. What it does:

• Forms a tight seal along the bottom of the door to limit air and heat exchange
• Helps prevent heat or cold from escaping, supporting consistent cooking or cooling
• Reduces drafts, energy waste, and uneven temperatures caused by a failing seal
• Visible signs include cracked, torn, flattened, or missing gasket material

• Disconnect power (and gas for gas appliances) and allow the appliance to cool before starting.
• Remove the door or support it per the manufacturer's service instructions to access the lower gasket area.
• Replace only the lower gasket; inspect surrounding door frame for damage or debris and clean mating surfaces before installing.
• Press the gasket into its track evenly; do not force or stretch excessively. If adhesive or fasteners are specified by the manufacturer, follow OEM guidance.

The Bumper is an OEM replacement part for GE ovens and ranges. It is designed to cushion and protect the oven door or cooktop when it is opened or closed, preventing direct contact between components. This small yet crucial part helps reduce noise and wear by absorbing impact during regular use.

Over time, bumpers can wear out, deteriorate, or become dislodged due to frequent use or exposure to heat and cleaning agents. A damaged or missing bumper can lead to increased noise and potential wear on adjoining parts.

Symptoms of a bad or missing bumper include:

• Increased noise when the oven door or cooktop is opened or closed
• Visible wear or marks on the surfaces that contact the bumper
• The door or cooktop not aligning properly during use
• Missing or deformed bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Bumper is an OEM part for GE ranges. It is located on the sides of the oven drawer and serves as a cushion to prevent noise, vibration, and wear. As time goes on, regular use of the appliance can cause it to become damaged or worn out.

Causes of a bad bumper can include wear and tear from regular use, deterioration of the material over time, or damage from excessive force when closing the door.

Symptoms of a bad Bumper include:

• Excessive noise
• Difficulty in sliding the drawer
• Misalignment
• Wear, and increased friction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This door bracket secures a refrigerator or freezer door to the cabinet, helping maintain proper alignment and smooth opening/closing. It replaces worn or damaged brackets to reduce door sag and improve sealing. What it does:

• Serves as the mounting point between the door and cabinet/frame to hold door position
• Restores proper door alignment to prevent rubbing, gaps, or uneven closing
• Helps the door seal correctly, reducing cold air loss and temperature issues
• Reduces door sag and excessive play that can cause noisy or uneven operation

• Disconnect power to the appliance before beginning work and remove contents from the door
• Support the door while removing fasteners to prevent dropping; an assistant may be helpful
• Use common hand tools; retain original fasteners unless replacements are specified
• If door alignment or gasket sealing issues persist after replacement, inspect hinges and seals

This window spacer assembly positions and supports the appliance door/window glass to maintain proper alignment and a snug fit. Replacing a worn or damaged spacer restores stable glass placement and helps prevent rattling or moisture buildup. What it does:

• Holds and spaces the door/window glass for correct alignment and seal
• Reduces glass movement and vibration that causes rattling noises
• Helps maintain a tight fit to limit air/moisture entry and fogging
• Replaces a cracked, warped, or missing spacer that can allow loose or misaligned glass

• Disconnect power to the appliance before beginning any disassembly
• Handle glass carefully and support it while removing or installing the spacer
• Follow OEM instructions for your model
