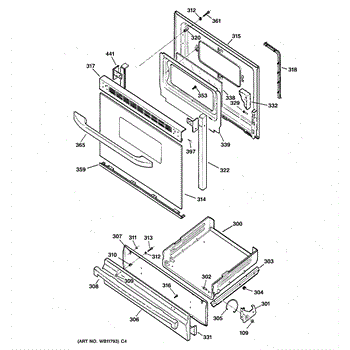

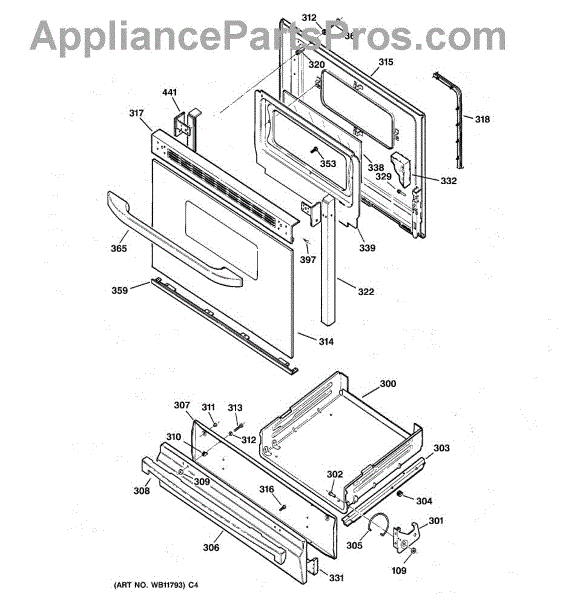

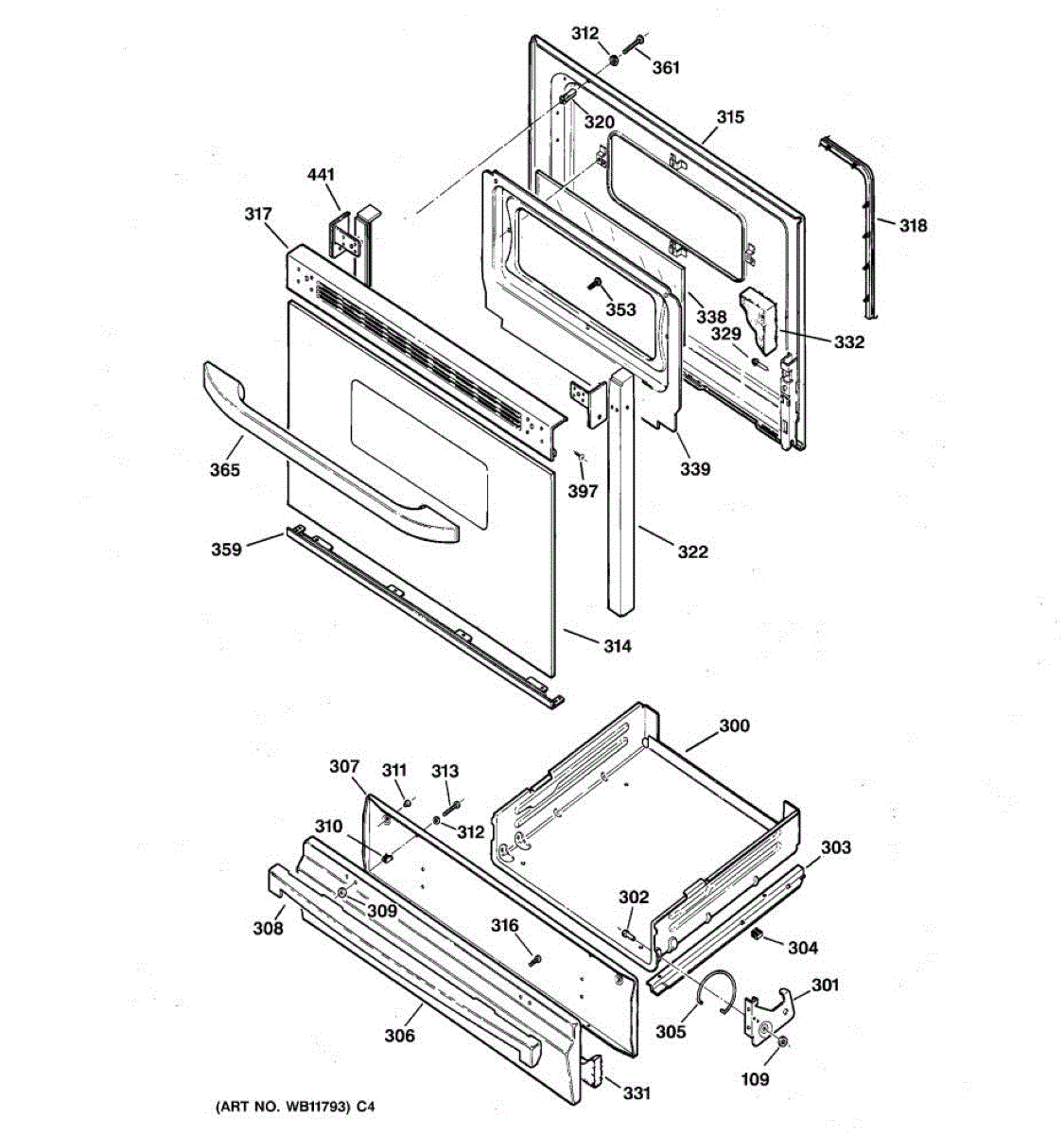

Parts for Ge JGBC20WEA4WW: 04 - Door & Drawer Parts

Includes 12 speed nuts.

This is the right side broiler hinge. For left side use WB10K6.

This is the left side broiler hinge. For right side use WB10K5.

This broiler pin secures the oven's broiler drawer or rack, letting it slide and lock smoothly for even broiling. Replaces a worn or broken pin to restore proper broiler movement and alignment. What it does:

• Acts as the hinge/anchor for the broiler drawer or rack so it opens and closes smoothly
• Prevents the drawer or rack from sagging, binding, or coming loose
• Helps maintain correct broiler alignment for even heat exposure
• Common symptom: drawer or rack won't slide, sits crooked, or falls out

• Disconnect power (and gas if applicable) and allow the appliance to cool before servicing.
• Remove the broiler drawer or rack per the owner's manual to access the pin.
• This part typically installs by sliding or snapping into a bracket; verify fit before final assembly.

This broiler slide is the oven rack support that lets the broiler pan and rack slide in and out smoothly for cooking and removal. It restores proper rack movement and helps keep broiler pans supported and stable. What it does

• Supports the broiler pan and rack so they sit level and slide smoothly
• Replaces worn or bent slides that cause racks to bind, tilt, or fall
• Reduces scraping, sticking, and uneven pan movement during use
• Restores safe access for inserting and removing broiler pans

• One broiler slide

• Disconnect power to the range before starting work; if a gas range, also shut off the gas supply
• Remove oven racks and broiler pan before replacing the slide to access mounting points
• Reuse original fasteners unless replacements are specified by the manufacturer

This is the right side broiler door spring. For left side use WB9K3.

This is the left side broiler door spring. For right side use WB9K2.

This replacement drawer panel restores the front trim of the appliance drawer for a clean, finished appearance and proper fit. It replaces a damaged, dented, or worn drawer front so the drawer closes and looks like new. What it does:

• Replaces the external front surface of the drawer to restore appearance and alignment
• Helps the drawer close evenly and prevents gaps that allow items to catch
• Addresses visible damage such as dents, scratches, or paint wear on the drawer front
• Works with existing drawer hardware; does not include internal drawer bin parts

• One replacement drawer panel

• Handle part carefully to avoid surface scratches
• Power off and empty drawer before starting; remove any clips or screws securing the old panel
• Reuse original fasteners and brackets unless damaged

This white broiler handle replaces a cracked, loose, or missing handle so you can open and close the oven broiler or broiler drawer smoothly. Durable plastic construction restores safe, reliable access to the broiler compartment. What it does:

• Provides a secure grip to open and close the broiler or broiler drawer
• Replaces worn, broken, or chipped handles that are hard to use
• Helps prevent accidental slippage when accessing the broiler area
• Restores normal operation and appearance to the oven front

• One white broiler handle

• Turn off power to the appliance before beginning any work
• Installation typically requires removing the broiler drawer or access panel and fastening the handle with the original screws or clips
• Handle broken hardware may require replacement fasteners; confirm what's needed before starting
• Wear gloves to avoid cuts from sharp sheet metal edges during installation

Includes 12 washers.

This spacer fits between mating parts in select GE cooking appliances to set correct clearance and alignment. Replacing a worn or missing spacer helps secure the assembly and prevents rubbing or damage to adjacent surfaces during use.

• Maintains proper spacing so hardware tightens squarely and components sit evenly
• Helps prevent metal-to-metal contact that can cause noise, wear, or surface damage
• If missing, broken, or deformed, you may notice looseness, misalignment, rattling, or scraping
• Restores original fit and finish when replaced

• Disconnect power; if applicable, shut off gas. Allow the appliance to cool completely
• Support the part being unfastened (such as a door, handle, or trim) to avoid strain on panels or glass
• Install the spacer in the same location/orientation as the original and reuse existing hardware if serviceable
• Tighten screws evenly; do not overtighten against glass or enameled surfaces

The Bumper is an OEM part for GE ranges. It is located on the sides of the oven drawer and serves as a cushion to prevent noise, vibration, and wear. As time goes on, regular use of the appliance can cause it to become damaged or worn out.

Causes of a bad bumper can include wear and tear from regular use, deterioration of the material over time, or damage from excessive force when closing the door.

Symptoms of a bad Bumper include:

• Excessive noise
• Difficulty in sliding the drawer
• Misalignment
• Wear, and increased friction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 washers.

Includes 12 screws.

Outer door glass for oven. Color: white. Glass has clear window.

Size: 10-16 X 0.95 inch.

Color: White.

The Gasket Door Assembly is an OEM replacement part for GE ovens. This gasket provides a seal around the oven door, ensuring that heat is retained inside the oven for efficient cooking and baking. It helps to maintain the correct temperature and prevents heat from escaping, which can affect cooking performance and energy efficiency.

Causes of a bad gasket door assembly can include regular wear and tear, exposure to high temperatures, and physical damage such as cuts or tears. Over time, the gasket can lose its elasticity and sealing capability.

Symptoms of a bad Gasket Door Assembly include:

• Heat escaping from the oven door
• The oven taking longer to preheat or maintain temperature
• Uneven cooking or baking results
• Visible damage or gaps in the gasket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: White.

Includes 12 screws.

Replace a cracked, shattered, or heat-damaged inner oven door pane with this heat-resistant glass. It restores proper insulation and visibility, helping your oven maintain temperature and protecting the door assembly from spills and high heat.

• Replaces the interior pane within the oven door assembly
• Helps retain heat for consistent cooking performance
• Shields the door liner and insulation from spills and steam
• Common signs it's needed: cracked/shattered inner glass, missing or loose pane, heat escaping, or the door exterior feeling hotter than usual

• Disconnect power or turn off gas and allow the oven to cool completely
• Remove the door per your model's instructions and place it on a padded surface
• Wear gloves; handle glass by the edges and avoid overtightening retainers
• Transfer any brackets, trim, or gasket from the original pane if your model uses them; before reassembly

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

This end cap is a replacement terminal cover that protects and secures exposed connector ends on the appliance. It restores a finished appearance and helps prevent accidental contact with live terminals. What it does:

• Covers and protects terminal ends and wiring from contact and debris
• Helps maintain a secure connection by holding terminals in place
• Prevents shorting or arcing caused by exposed connectors
• Useful when the original cap is cracked, missing, or damaged

• Disconnect power to the appliance before servicing to avoid electric shock
• Verify fit and orientation before snapping the cap into place over the terminals
• If terminals or wiring are damaged, replace or repair those components before installing the cap

The Bottom Door Trim is an OEM part for GE ranges. It serves as a finishing touch, providing a seamless transition between the bottom of the oven door and the base or kick plate area.

Causes of a damaged Bottom Door Trim range from impacts during cleaning or moving the range, to general wear and tear over years of use. Exposure to high heat or spills can also contribute to the deterioration of the trim.

Symptoms of a bad Bottom Door Trim can include:

• Cracked or broken trim pieces
• Missing sections of trim
• Loose or misaligned trim
• Faded or discolored trim material

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models

This White Door Handle is an OEM replacement part for GE ranges. Located on the oven door, this handle provides a means of safely accessing the cooking cavities. As contact points, this durable handle allows withstanding high-heat openings and closings.

Causes can be normal wear and tear over many heating cycles, repeated heavy impacts from storage items, or long-term UV exposure breaking down surface finishes.

Symptoms of a bad door handle may include:

• Breaks, cracks, or splits appearing in the plastic or coating
• Discoloration, fading, or peeling removing their clean look
• Wobble, looseness, or difficulty opening/closing the door due to wear

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This part has been discontinued and is no longer available.
