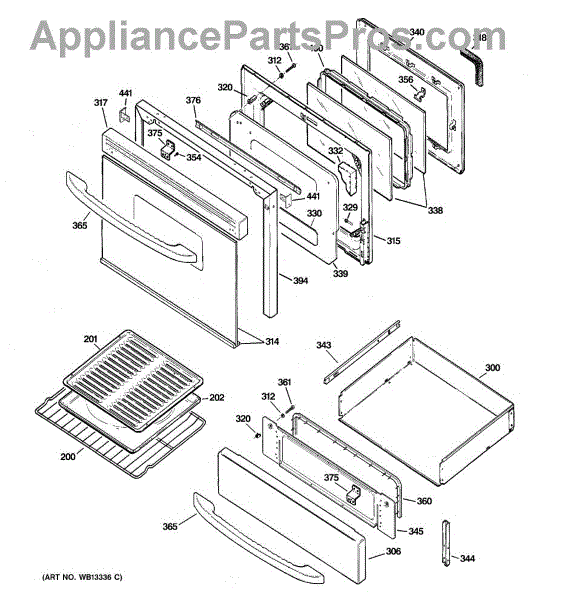

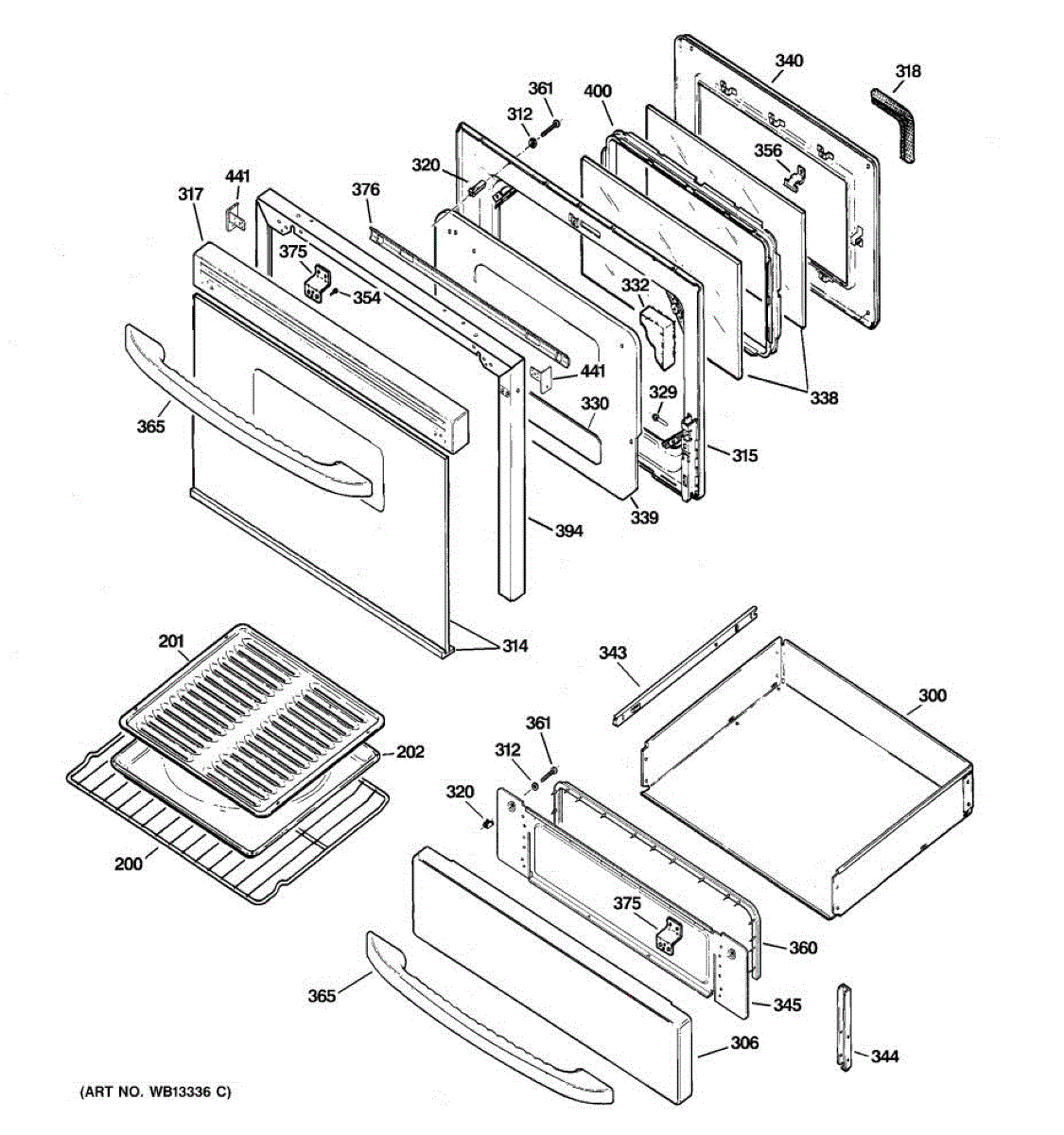

Parts for Ge JGBP85SEJ3SS: 04 - Door & Drawer Parts

The Oven Rack is an OEM part for GE ranges, providing a sturdy and reliable platform for baking and roasting a variety of dishes. Its design allows for easy placement and removal from the oven, offering flexibility in cooking heights and accommodating different sizes of bakeware.

Causes of a bad Oven Rack can range from excessive weight being placed on the rack, exposure to high moisture levels leading to rust, or simply the age-related wear and tear that comes from regular use.

Symptoms of a bad Oven Rack include:

• Warping or bending, which can prevent the rack from sitting level in the oven and affect cooking performance.
• Rust or corrosion, which can weaken the rack's structure and potentially contaminate food.
• Difficulty sliding the rack in and out, which may indicate damage or misalignment.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

Includes 12 washers.

The Oven Door Gasket is an OEM part for GE ovens. This part is designed to seal the gap between the oven door and the oven body, ensuring that heat is retained during the cooking process.

Causes of a bad Oven Door Gasket can include wear and tear from regular use, resulting in cracks or gaps, heat damage causing the gasket to become brittle or melt in places, and accidental damage such as tears or cuts.

Symptoms of a failing Oven Door Gasket include:

• Visible damage or deterioration of the gasket material.
• The oven takes longer to preheat or has difficulty maintaining the set temperature.
• Increased energy usage as the oven works harder to compensate for heat loss.
• Uneven cooking results due to heat escaping from the oven cavity.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 screws.

Side

Bottom

The Window Pack is an OEM replacement part for GE ovens. This assembly includes the glass window for the oven door, allowing users to view the contents of the oven without opening the door and disrupting the cooking process.

The window pack can become damaged due to accidental impact, thermal stress from frequent temperature changes, or general wear and tear over time. A broken or cracked window not only affects visibility but can also pose safety risks and affect oven performance.

Symptoms of a bad window pack include:

• Visible cracks or breaks in the glass
• Heat escaping from the oven
• Difficulty maintaining oven temperature
• The oven door not closing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This inner welded panel assembly restores the stove/oven control/backguard interior structure for a secure fit and proper alignment. Replaces a bent, cracked or damaged inner panel to help stop rattling and improve component support. What it does:

• Replaces the inner welded panel that supports the control/backguard area and helps align the outer trims.
• Restores structural integrity when the original panel is dented, cracked or separated at welds.
• Reduces rattling or vibration caused by loose or damaged interior paneling.
• Provides the proper mounting surface for switches, trim pieces and related hardware.

• One inner welded panel assembly as pictured.

• Disconnect power to the appliance before starting any work.
• Handle edges and sheet metal carefully—wear gloves and eye protection.
• May require removal of control panel, backguard or cooktop to access mounting points; retain original screws and clips for reassembly.

This drawer mounting bracket secures the lower storage/drawer assembly to the range/cabinet, restoring stable alignment and smooth opening. Durable stamped metal bracket used where the drawer frame needs a reliable support point. What it does:

• Provides a secure attachment point for the appliance storage drawer or lower kick drawer
• Keeps the drawer aligned to prevent sagging, rubbing, or uneven movement
• Restores stability if original bracket is bent, broken, or missing
• Helps eliminate rattling or excessive play in the drawer during use

• One drawer mounting bracket

• Inspect surrounding drawer frame and fasteners; replace missing or damaged screws with OEM-specified hardware
• Disconnect power and ensure range is cool and stable before working on lower drawer assemblies
• Minor hand tools typically required; handle sharp edges carefully and wear gloves if needed

This 10-32 x 9/16 hex washer head screw secures appliance panels and components for a snug, reliable fit. It replaces worn or missing fasteners so parts stay in place and doors or panels stop rattling. What it does:

• Fastens control panels, brackets, and trim to the appliance frame
• Restores secure mounting when original screws are stripped or lost
• Helps eliminate rattling, vibration noise, and loose-fitting panels
• Works where a small machine screw with integrated washer is required

• One 10-32 x 9/16 hex washer head screw

• Unplug the appliance or disconnect power before servicing
• Use the correct 10-32 driver or nut driver to avoid stripping the head
• Do not overtighten; snug until secure to avoid damaging threads or components
• Keep small parts away from children and magnetic surfaces for safety

Hex

This window spacer assembly positions and supports the appliance door/window glass to maintain proper alignment and a snug fit. Replacing a worn or damaged spacer restores stable glass placement and helps prevent rattling or moisture buildup. What it does:

• Holds and spaces the door/window glass for correct alignment and seal
• Reduces glass movement and vibration that causes rattling noises
• Helps maintain a tight fit to limit air/moisture entry and fogging
• Replaces a cracked, warped, or missing spacer that can allow loose or misaligned glass

• Disconnect power to the appliance before beginning any disassembly
• Handle glass carefully and support it while removing or installing the spacer
• Follow OEM instructions for your model
