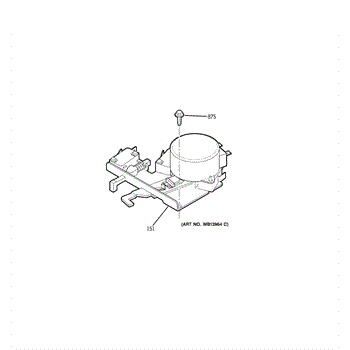

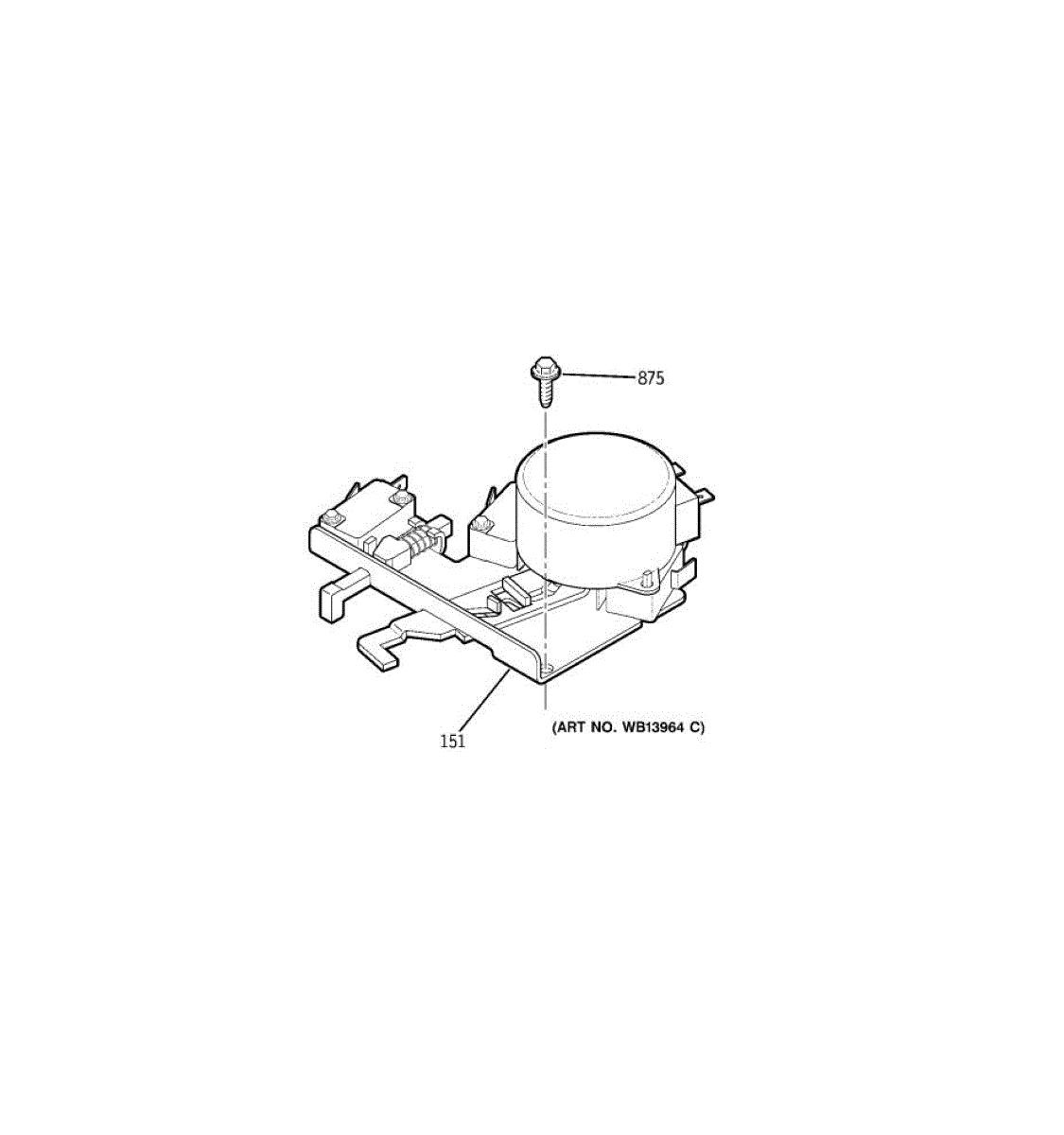

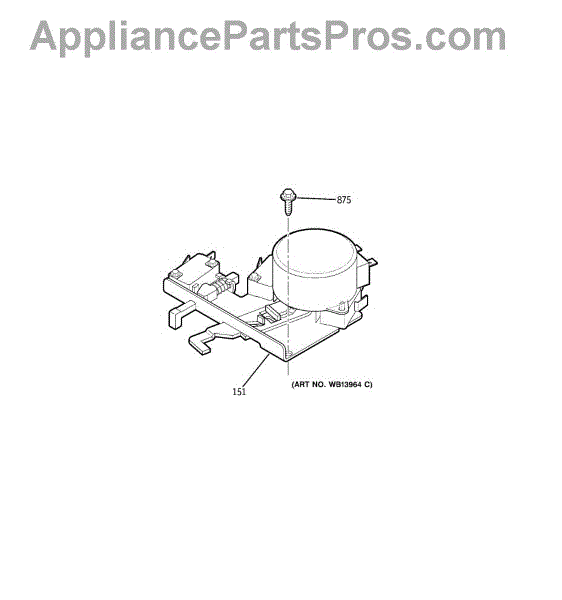

Parts for Ge PCT916BM1BB: 04 - Door Lock Parts

This oven door latch assembly secures the door and communicates lock status to the control. Replacing a worn or jammed latch restores safe door locking so bake and self-clean cycles can start and finish correctly.

• Locks and unlocks the oven door when engaged or commanded by the control
• Secures the door during the self-clean cycle for safety
• Helps resolve issues such as a door that won't lock or unlock, self-clean that won't start/finish, or a persistent "door locked" indicator
• Wear, binding, or internal failure can prevent proper latching

• Disconnect power at the breaker before servicing
• Access location varies by model; typically serviced from the top, rear, or control/console area—follow your model's service procedures
• Transfer any mounting hardware and reconnect wire harnesses one at a time
• After installation, verify smooth latch movement and door locking before running a cycle

Black. 8-18 AB HXW 3/8
