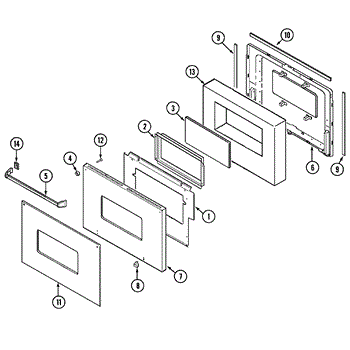

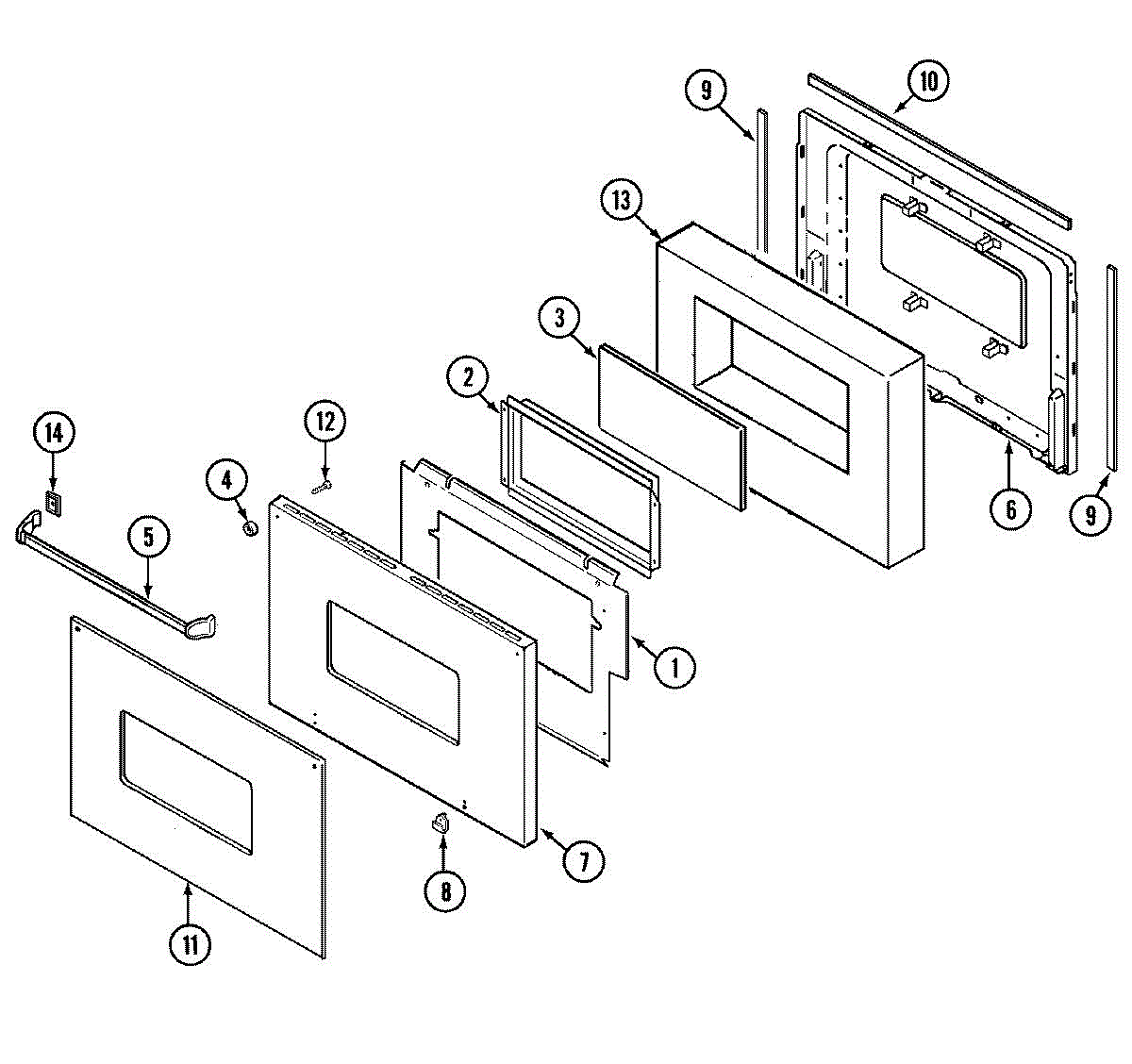

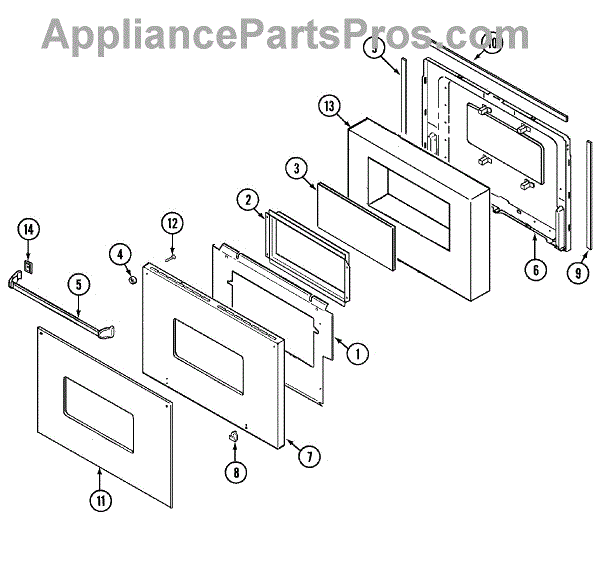

Parts for Magic Chef 9824VPV: 03 - Door-Lower Parts

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

This spacer fits between the inner and outer oven door glass panels to help maintain the correct gap and alignment for safe operation. It replaces a missing or damaged spacer to restore proper door assembly and appearance. What it does:

• Keeps the inner and outer door glass correctly spaced and aligned
• Helps prevent glass contact, rattling, and uneven sealing
• Supports proper door assembly after glass or panel replacement
• Addresses symptoms like loose or rattling door glass and misaligned panels

• One door glass spacer as shown

• High-level replacement only; follow the appliance's service manual for disassembly and reassembly steps
• Handle glass carefully and wear cut-resistant gloves and eye protection
• Ensure power is disconnected before accessing the door assembly
• If door glass is cracked or damaged, replace glass panels per OEM instructions rather than relying solely on the spacer

Color: Black. For biscuit order 98008169. For white order WP98008544.

This vertical door seal runs along the sides of the oven door opening to keep heat contained. Replacing a worn side gasket restores a tight seal for more consistent temperatures and efficient baking performance.

• Seals the side edges of the oven door to reduce heat loss and maintain set temperature
• Helps the oven preheat properly and bake more evenly
• Replaces side gaskets that are torn, frayed, hardened, or permanently compressed
• Common signs include visible gaps or tears, heat escaping at door edges, longer preheat times, and temperature fluctuations

• Disconnect power (and shut off gas, if applicable). Allow the oven to cool completely.
• Remove the old side seal from its channel or clips; note routing and orientation.
• Clean the channel. Press the new seal into place without stretching; ensure ends/clips are fully seated.
• Close the door to confirm uniform contact along both sides; reseat as needed.

This horizontal oven door seal lines the top and bottom edges of the door opening to keep heat contained inside the cavity. Replacing a worn seal restores stable temperatures, more efficient preheating, and consistent baking results.

• Seals the oven opening along the top and bottom edges to reduce heat loss
• Helps maintain set temperature and overall cooking performance
• Replaces cracked, frayed, flattened, or brittle horizontal gasket
• Common signs include visible gaps, heat escaping around the door, longer preheat times, and temperature fluctuations

• Disconnect power and allow the oven to cool completely before servicing
• Open the door and carefully pull the old seal straight out of the retainer
• Note clip/retainer positions as you remove the old seal and reuse them as designed
• Press the new seal evenly into place without stretching; ensure corners are fully seated for a uniform seal

This part has been discontinued and is no longer available.

This 10-24 threaded screw secures appliance components that use a #10 machine screw. It provides reliable fastening for panels, brackets, and assemblies so parts stay aligned and stable during normal use and service. What it does:

• Fastens panels, brackets, or assemblies that accept a 10-24 machine screw
• Maintains alignment and structural connection under normal operating loads
• Replaces worn, stripped, or missing screws to restore secure mounting
• Works with sheet-metal and component mating nuts or threaded inserts commonly used in appliances

• One 10-24 threaded screw

• Power tools can be used; avoid overtightening to prevent stripped threads or damaged components
• Disconnect power and follow all safety steps for your appliance before servicing
• Ensure proper engagement and torque to avoid damage
