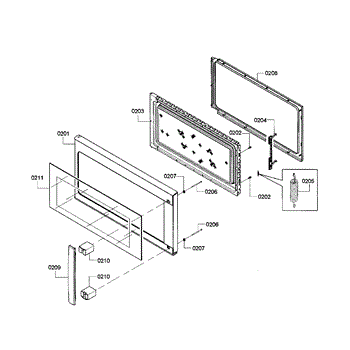

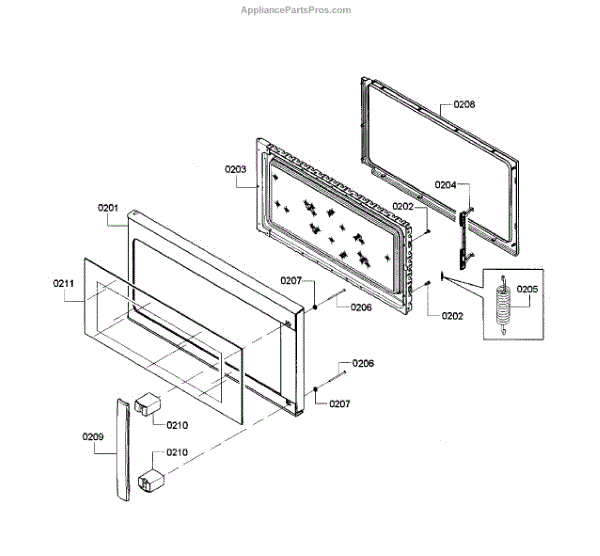

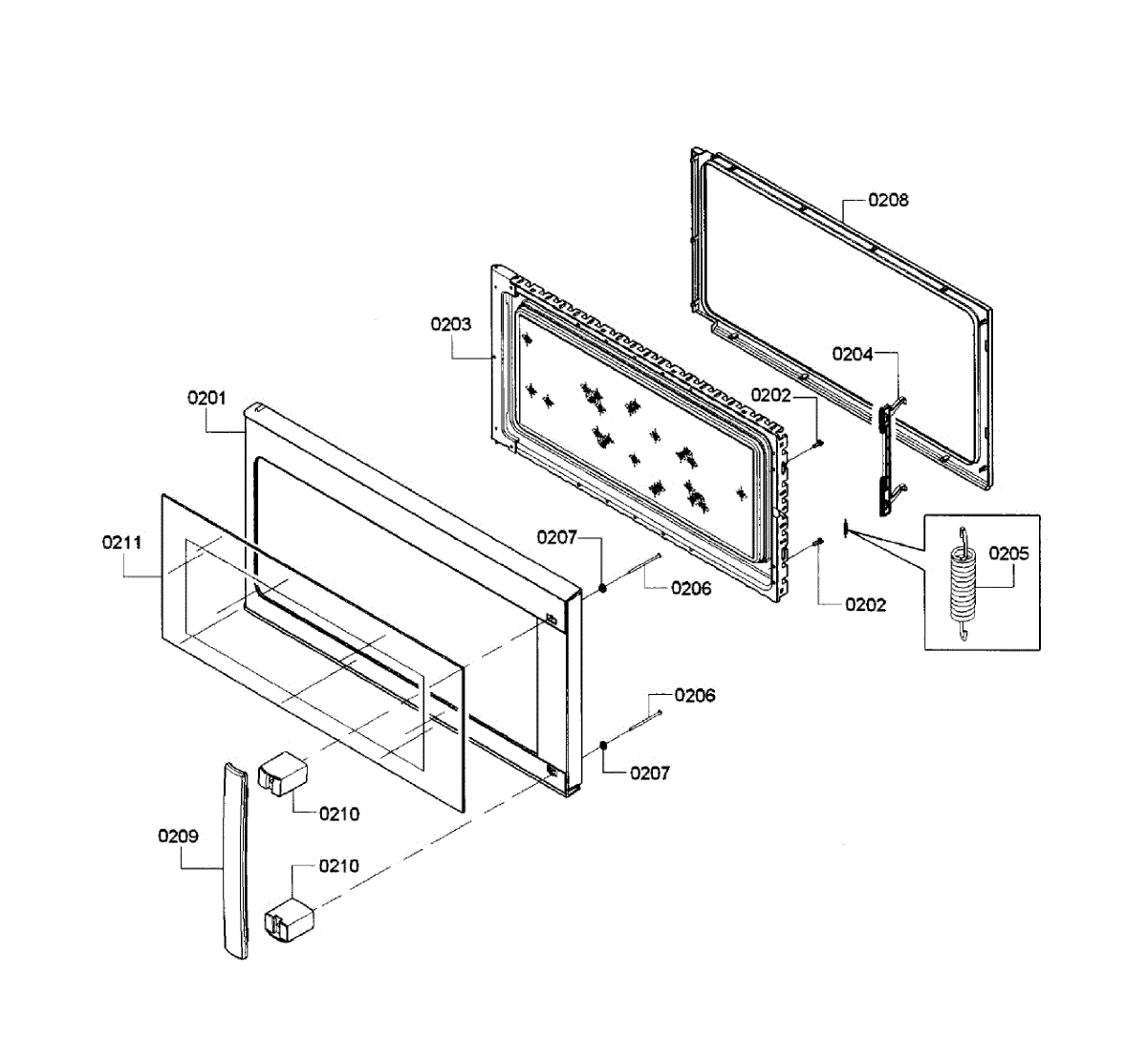

Parts for Bosch HMV3022U/02: Door Parts

This is the replacement door for your appliance. It restores a secure, smooth close and proper latching so the unit can operate safely and as intended, while also refreshing the appearance if the original door is damaged. What it does:

• Provides the complete front door assembly that closes the unit's opening
• Engages the latch/interlock system so cycles can start and run properly
• Helps maintain correct alignment for a tight, reliable close
• Common symptoms: door won't close or stay shut, unit won't start unless pressing on the door, visible cracks/damage, loose or sagging door

• 1 door

• Disconnect power to the appliance before servicing
• Support the door during removal to prevent hinge damage; keep track of any screws or hinge pins
• Mount the new door and verify smooth operation and proper latching

This is a replacement mounting nut used to secure components on compatible Bosch appliances. It restores proper fastening to reduce movement and noise from loose connections. What it does:

• Secures panels, assemblies or brackets to prevent shifting during operation
• Restores proper clamp force where a stripped or missing nut causes looseness
• Helps eliminate rattling or vibration caused by unsecured parts
• Provides a direct replacement for the original fastener

• Turn off and unplug the appliance or shut off power at the breaker before servicing
• Use the correct-size wrench or socket to avoid rounding the nut
• Tighten to a snug fit; avoid over-tightening which can strip threads or damage parts

The Hook is an OEM part for Bosch microwave doors. Manufactured from heat resistant composite materials, it firmly holds the door closed during cooking cycles.

Causes of a faulty latch/hook include failures of being worn down from repetitive opening/closing motions over time. Exposure to high heat or abrasive cleaners also leads to decreased functionality.

Symptoms of a damaged latch/hook involve:

• Doors not sealing fully or locking properly
• Failure to open after cooking
• Degrading latch fittings allowing moisture or debris entry

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This replacement spring restores the proper tension and return action for the mechanism it serves in your appliance. It helps moving parts operate smoothly and reset reliably so doors, levers, or linkages stay aligned and feel correct. What it does:

• Provides controlled tension so doors, flaps, levers, or linkages move and return to position correctly
• Helps maintain alignment and consistent feel of the mechanism
• Typical failure signs: weak or broken return, sticking/sluggish movement, parts that won't stay in position, or unusual popping noises
• Visible distortion, rust, or a missing spring indicates replacement is needed

• Includes 1 spring

• Disconnect power (and water, if applicable) before servicing; wear gloves and eye protection
• Springs store energy—release and install with care, keeping fingers clear
• Note original routing/orientation; take photos to match placement during reassembly
• Use needle-nose pliers or a hook tool for control; replace paired springs together if your model uses two

Replacement screw for securing appliance components and panels. Use it to swap out a missing, stripped, or corroded fastener so parts stay tight and properly aligned for smooth, reliable operation.

• Fastens panels, brackets, or assemblies to the appliance frame or subassemblies
• Replaces missing, stripped, or rusted hardware
• Helps reduce vibration, rattling, and loose fits
• Supports correct alignment of mating parts during reassembly

• Disconnect power; shut off water or gas supply before service
• Match the screw to the original location and orientation
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Reuse any original washers or clips from the assembly if present

This replacement frame is a structural support piece used to hold and align its associated assembly within the appliance. Replacing a damaged or warped frame restores proper fitment and helps prevent looseness, rattling, or misalignment.

• Provides mounting and structural support for the related assembly
• Keeps panels, covers, or hardware properly positioned
• Helps reduce vibration, rubbing, and premature wear
• Common clues it's needed: cracked/missing tabs, distortion, loose fit, difficulty opening/closing the related component

• Disconnect power (and water or gas, if applicable) before servicing
• Note orientation and hardware locations; take photos for reference
• Transfer any clips, screws, seals, or brackets from the original part if required
• Do not overtighten fasteners; confirm smooth fit and test operation before reassembly

This support mounting bracket secures internal components inside the appliance, helping maintain proper alignment and stable operation. It replaces a worn or broken support to restore structural fit and reduce rattling or misalignment. What it does:

• Provides a stable mounting point for internal assemblies or panels
• Prevents component movement that can cause noise or improper operation
• Restores proper alignment after a damaged or missing bracket
• Commonly replaces cracked, bent, or broken supports found during repairs

• One support mounting bracket

• Install with the OEM fasteners and torque to manufacturer recommendations when specified
• Inspect adjacent clips, screws, and mating surfaces; replace any damaged hardware
• Disconnect power and follow appliance-specific safety procedures before servicing

This glass front panel replaces the outer door glass on select Bosch dishwashers, restoring a clean exterior and protecting internal components from steam and splashes. It's a direct-fit cosmetic and protective door piece. What it does:

• Covers the dishwasher door to provide a finished, easy-to-clean surface
• Shields internal door components from moisture and steam
• Restores appearance if the outer glass is cracked, chipped, or scratched
• Helps maintain proper sealing when installed with factory gaskets and hardware

• Turn off power to the appliance and disconnect water supply before beginning work.
• Replacement typically requires removing the door outer panel and carefully transferring any trim, handles, or controls; handle glass with care to avoid breakage.
• Keep all original screws, clips, and gaskets; replace any damaged hardware for a secure fit.
