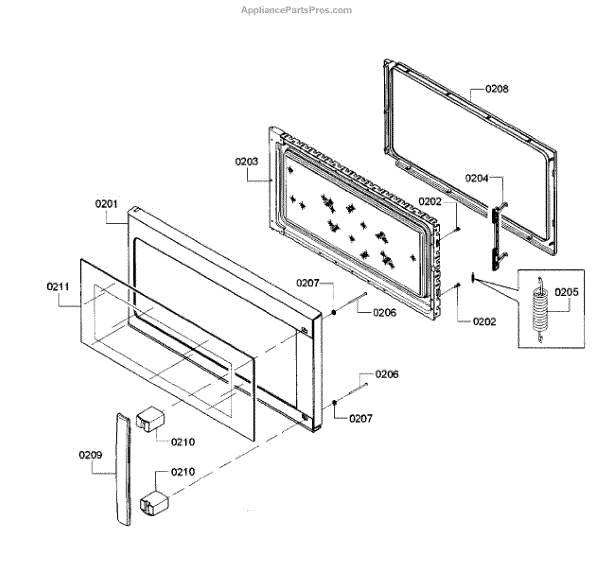

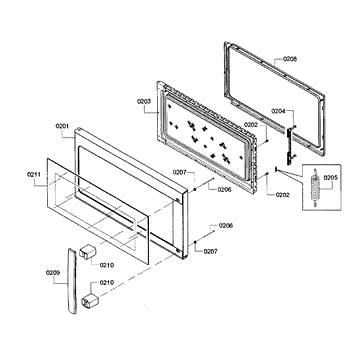

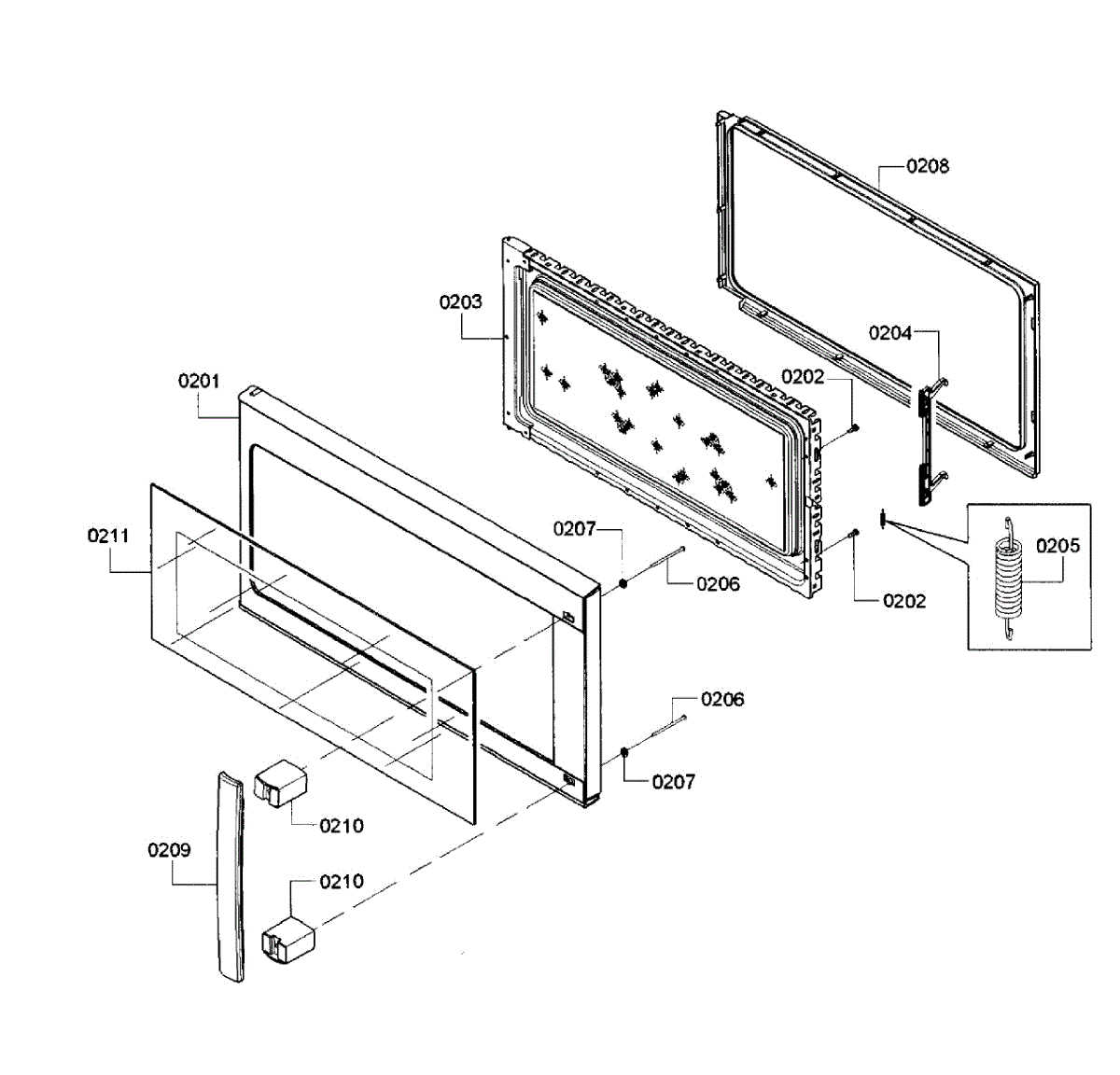

Parts for Bosch HMV3052U/02: Door Parts

Outer door panel that restores the appliance's exterior and protects internal components from damage. Replacing a worn or dented outer door improves appearance and provides the proper mounting surface for handles and trim. What it does:

• Replaces the appliance's exterior front panel and restores the finished look of the door.
• Protects the inner door liner and internal components from impact and corrosion.
• Provides the mounting surface for handles, trim, and any attached hardware.
• Commonly used when the front is dented, scratched, or cosmetically damaged.

• Disconnect power (and water if appliance type requires) before beginning any repair.
• Some hardware, handles, trim, and seals are typically transferred from the old door.
• Door assemblies can be heavy or awkward; having a second person and the proper tools is recommended.

This is a replacement mounting nut used to secure components on compatible Bosch appliances. It restores proper fastening to reduce movement and noise from loose connections. What it does:

• Secures panels, assemblies or brackets to prevent shifting during operation
• Restores proper clamp force where a stripped or missing nut causes looseness
• Helps eliminate rattling or vibration caused by unsecured parts
• Provides a direct replacement for the original fastener

• Turn off and unplug the appliance or shut off power at the breaker before servicing
• Use the correct-size wrench or socket to avoid rounding the nut
• Tighten to a snug fit; avoid over-tightening which can strip threads or damage parts

This frame is a replacement mounting support that secures and aligns the appliance panel and related components for stable operation and a proper fit. Restores correct panel positioning and reduces rattles or gaps. What it does:

• Provides structural support for the appliance panel or door to maintain proper alignment
• Secures attached components and helps prevent movement or vibration during operation
• Helps restore a tight fit and consistent gaps between the panel and cabinet
• Common symptoms: loose or misaligned panel, visible gaps, rattling or vibration during use

• Disconnect power before beginning any disassembly or service
• Follow the OEM service manual or diagram for step-by-step removal and reinstallation
• Handle surrounding trim and finish panels carefully to avoid scratches or damage
• Retain and reuse any original clips or fasteners unless replacement is specified

The Hook is an OEM part for Bosch microwave doors. Manufactured from heat resistant composite materials, it firmly holds the door closed during cooking cycles.

Causes of a faulty latch/hook include failures of being worn down from repetitive opening/closing motions over time. Exposure to high heat or abrasive cleaners also leads to decreased functionality.

Symptoms of a damaged latch/hook involve:

• Doors not sealing fully or locking properly
• Failure to open after cooking
• Degrading latch fittings allowing moisture or debris entry

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This replacement spring restores the proper tension and return action for the mechanism it serves in your appliance. It helps moving parts operate smoothly and reset reliably so doors, levers, or linkages stay aligned and feel correct. What it does:

• Provides controlled tension so doors, flaps, levers, or linkages move and return to position correctly
• Helps maintain alignment and consistent feel of the mechanism
• Typical failure signs: weak or broken return, sticking/sluggish movement, parts that won't stay in position, or unusual popping noises
• Visible distortion, rust, or a missing spring indicates replacement is needed

• Includes 1 spring

• Disconnect power (and water, if applicable) before servicing; wear gloves and eye protection
• Springs store energy—release and install with care, keeping fingers clear
• Note original routing/orientation; take photos to match placement during reassembly
• Use needle-nose pliers or a hook tool for control; replace paired springs together if your model uses two

Replacement screw for securing appliance components and panels. Use it to swap out a missing, stripped, or corroded fastener so parts stay tight and properly aligned for smooth, reliable operation.

• Fastens panels, brackets, or assemblies to the appliance frame or subassemblies
• Replaces missing, stripped, or rusted hardware
• Helps reduce vibration, rattling, and loose fits
• Supports correct alignment of mating parts during reassembly

• Disconnect power; shut off water or gas supply before service
• Match the screw to the original location and orientation
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Reuse any original washers or clips from the assembly if present

This replacement frame is a structural support piece used to hold and align its associated assembly within the appliance. Replacing a damaged or warped frame restores proper fitment and helps prevent looseness, rattling, or misalignment.

• Provides mounting and structural support for the related assembly
• Keeps panels, covers, or hardware properly positioned
• Helps reduce vibration, rubbing, and premature wear
• Common clues it's needed: cracked/missing tabs, distortion, loose fit, difficulty opening/closing the related component

• Disconnect power (and water or gas, if applicable) before servicing
• Note orientation and hardware locations; take photos for reference
• Transfer any clips, screws, seals, or brackets from the original part if required
• Do not overtighten fasteners; confirm smooth fit and test operation before reassembly

This outer door handle replaces a cracked, loose, or missing handle to restore safe, reliable opening and closing. It matches OEM fit and appearance so the appliance looks and functions correctly. What it does:

• Provides a sturdy grip for opening and closing the appliance door
• Replaces broken, cracked, or bent handles that catch or wobble
• Restores proper levering and reduces strain on the door seal and latch
• Improves the appliance's exterior appearance when the original is worn

• One outer door handle

• Disconnect power to the appliance before starting any repair
• Access mounting screws/clips from the inner door panel; handle secures to the outer door shell
• Keep track of fasteners and any trim pieces; gentle prying may be needed to release clips

This factory support secures its mating component inside the appliance, keeping it properly positioned so things open, slide, or operate as intended. Replacing a cracked or missing support restores alignment and prevents excess movement, noise, or wear.

• Provides a stable mounting point for the associated part or assembly
• Maintains alignment to ensure smooth, consistent operation
• Helps prevent vibration, rattling, rubbing, or premature wear
• Common signs of failure: visible cracks, looseness, misalignment, dragging, or a part that won't stay in place

• Disconnect power and, if applicable, shut off water or gas before servicing
• Use your model's diagram to identify the exact location and fasteners
• Transfer any screws/clips from the original part; seat the support fully
• Verify alignment and operation before restoring power
