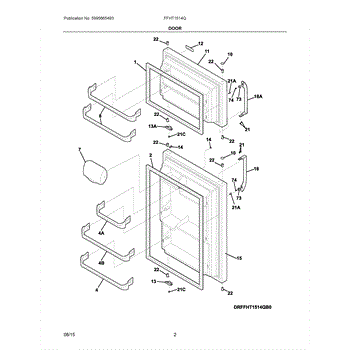

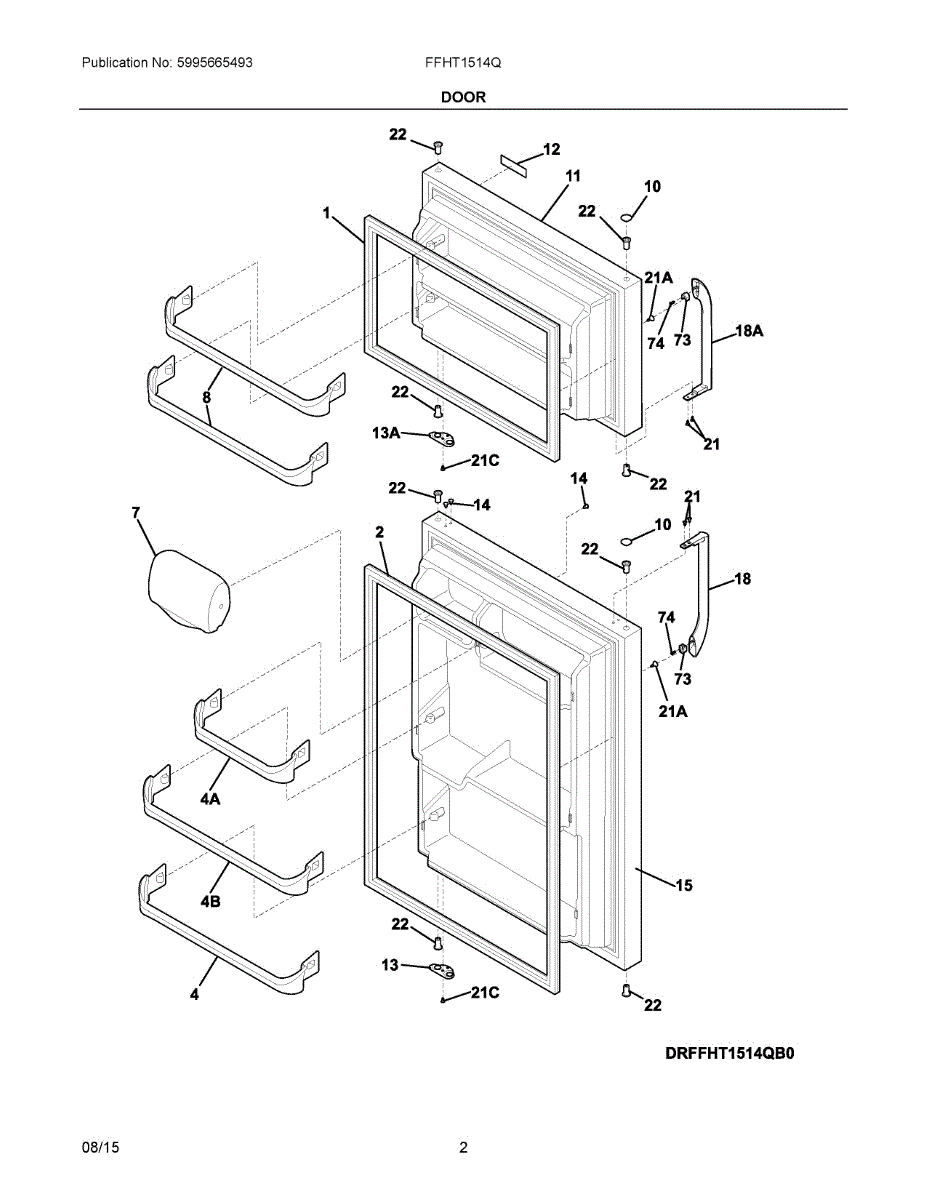

Parts for Frigidaire FFHT1514QS2: 02 - Door Parts

This freezer door gasket forms the airtight seal between the door and cabinet. Replacing a worn or damaged gasket stops air leaks, reduces frost and condensation, and helps the freezer hold the correct temperature and operate efficiently. What it does:

• Seals the freezer door perimeter to keep warm air out and cold air in
• Helps maintain stable internal temperature and energy efficiency
• Reduces frost/ice buildup and moisture around the door opening
• Common symptoms: torn, warped, or brittle gasket; frost along the door edges; door not sealing or popping open

• Includes: 1 freezer door gasket

• Disconnect power and remove items from the freezer door as needed.
• Remove the old gasket and clean the retainer/channel of debris.
• Warm the new gasket with warm water or low heat to relax folds; press it fully into the groove, working evenly around the perimeter.
• Close the door and check for uniform contact all around; use gentle heat to smooth waves and recheck the seal.

This door gasket creates an airtight seal between the door and cabinet. Replacing a worn gasket restores proper sealing to maintain temperature, reduce frost and moisture, and help the door close securely.

• Forms a continuous seal around the door perimeter to keep cold air in and humid air out
• Helps stabilize temperatures and minimize frost or ice from air leaks
• Improves door closure and reduces condensation around the opening
• Common signs of failure: torn, cracked, or deformed gasket; gaps at corners; persistent frost or moisture; warm spots near the door

• Unplug the appliance if removing the door or inner-liner screws during replacement
• Warm the new gasket with hot water or a hair dryer to make it pliable
• Start the corners first, then press the gasket evenly into the channel or under the retainer—do not stretch
• Check the seal with a paper-slip test and adjust hinges/leveling for uniform contact

The Door Rack is an OEM component for Frigidaire refrigerators. Located inside the fresh food compartment, it provides adjustable shelving for organization.

Normal usage causes wear of plastic parts from repeated removal/replacement of items stored on the rack over time. Excessive weight loads could potentially lead to bending or cracking as well.

Symptoms of a faulty or damaged door rack include:

• Gaps forming that allow smaller items to fall
• Instability where contents shift more easily
• Shelves unable to lock firmly into position
• Rack potentially detaching from mounting tracks

This genuine Frigidaire rackis also compatible with Electrolux, Kelvinator, and some Kenmore fridges.

The Door Shelf Bar is an OEM part for Frigidaire refrigerators. This bar attaches to the door, providing a secure front barrier for door shelves to help hold items like bottles, jars, and condiments in place. It enhances the storage capacity and organization of the refrigerator door, ensuring that items do not fall out when the door is opened or closed.

Over time, the bar can crack, warp, or break due to frequent use, overloading, or accidental impacts. A compromised door shelf bar can result in items falling out, leading to spills and reduced storage efficiency.

Symptoms of a bad Door Shelf Bar include:

• Cracks or breaks in the bar
• Difficulty attaching the bar securely to the door
• Items falling out or not staying in place
• Reduced storage capacity on the door

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Door Rack is an OEM part compatible with Frigidaire refrigerators. It is a convenient storage component designed to fit securely inside the refrigerator door, providing additional space for organizing and storing items.This rack is white in color and measures about 23 inches wide by 3 inches high by 5 inches deep.

Causes of needing to replace a door rack can include damage from mishandling or impact, wear and tear over time, or the desire to upgrade or customize the interior organization of the refrigerator.

Symptoms indicating it's time for a new door rack include:

• Cracks, breaks, or visible damage to the rack or shelves
• Difficulty in sliding or removing the rack from the door
• Inability to securely hold or support items placed on the rack

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

The Dairy Door is an OEM replacement part for  Frigidaire side-by-side refrigerators. Located inside the fresh food compartment, it provides a dedicated storage area for milk, yogurt, cheese and other dairy products requiring colder temperatures. The door measures approximately 9 inches wide and 5 inches high.

Causes of a bad dairy door include normal wear from repeated opening and closing over time. Exposure to spills inside the refrigerator can also potentially damage door shelf components or seals.

Symptoms of a bad dairy door are:

• Difficulty opening or closing the door smoothly
• Door alignment issues where it does not sit flush in the frame
• Leaks or moisture inside the dairy storage area
• Damage or cracks in shelf supports or gasket seals

This OEM part is also compatible with models from brands like Electrolux, Gibson, and Kelvinator brand models.

NOTE: For white use 240337701

The Door Rack is an OEM part for Frigidaire refrigerators. This rack provides additional storage space for bottles, jars, and other condiments. It's an essential component for maximizing the storage capacity and organization of your refrigerator, making the most out of the available space.

Over time, door racks can experience wear or become damaged due to overloading, accidental impacts, or the natural aging process. This can lead to issues such as the rack becoming loose, cracking, or not being able to securely hold items.

Symptoms of a bad Door Rack include:

• Cracks or breaks in the rack, compromising its structural integrity
• The rack sagging or not attaching securely to the refrigerator door
• Difficulty in sliding the rack in or out, or it not fitting properly
• Reduced effectiveness in holding items securely

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This plug button is a small control panel push button used on select Frigidaire appliances to replace a worn or broken button and restore normal user control. It snaps into the panel for a clean, factory-fit appearance. What it does:

• Acts as the tactile push button used to operate a specific control or function on the appliance
• Replaces cracked, loose, or missing buttons that prevent consistent button actuation
• Restores proper contact engagement so the control registers presses reliably
• Helps eliminate cosmetic damage and keeps the control surface sealed against debris

• One plug button

• Snap-in replacement; remove power to the appliance before attempting any service
• If button is attached to an electronics assembly, handle boards and connectors carefully to avoid damage
• Use basic hand tools as needed and avoid forcing parts—verify orientation before snapping into place

This replacement freezer door restores the enclosure that protects and insulates your freezer compartment, helping maintain cold temperatures and the appliance's appearance. Use it when the original door is dented, bent, or failing to close properly. What it does:

• Replaces a damaged or distorted freezer door to help restore proper closure and insulation
• Helps prevent cold air loss that can lead to frost buildup or food spoilage
• Restores the exterior appearance and provides the mounting surface for handles, gaskets, and interior components
• Addresses symptoms such as visible dents, warping, difficulty closing, or recurring frost/moisture inside the freezer

• Disconnect power before starting and work with a helper—doors can be heavy and awkward
• Remove and transfer existing hinges, handle, gaskets, and any interior trims as required
• Inspect hinge hardware and door gasket for wear; replace damaged hardware or seals to ensure a proper fit
• Follow OEM instructions and torque specifications when tightening hinge fasteners

A replacement name plate that restores the appliance's factory identification label so model and serial information are legible for service and parts lookup. Helps maintain the appliance's appearance and accurate identification. What it does:

• Provides the factory identification area showing model/serial and manufacturer data for parts lookup and service.
• Use when the original label is missing, scratched, faded, or peeling and no longer readable.
• Restores exterior appearance where the original name plate has cosmetic damage.

• Clean and dry the mounting surface before installing; remove old adhesive residue if present.
• Align carefully and press firmly; some installations may require removal of trim or a cover.
• Use appropriate tools and avoid sharp solvents that could damage surrounding surfaces.

This door stop limits the opening range of your refrigerator door to prevent overextension and hinge strain. Replace a worn or broken stop to restore controlled door movement and protect surrounding cabinetry from accidental impacts. What it does:

• Controls how far the door opens to prevent overextension and damage
• Helps maintain proper door alignment and reduces stress on the hinges
• Replaces cracked, deformed, or missing stops that no longer hold the door at its stop point
• Common symptoms include the door swinging too far, a hard "clunk" at full open, or visible damage to the stop

• 1 door stop

• Disconnect power; turn off water supply if your unit has a dispenser/ice maker
• Support the door before loosening any hinge fasteners to access the stop
• Note the stop's orientation and position; transfer any spacers and reinstall the same way
• Open and close the door to verify proper range and clearance before fully tightening fasteners

The Door Stop is an OEM part for Frigidaire refrigerators. This small part helps protect the appliance's door from damage and prevents it from impacting walls or adjacent cabinetry, ensuring the longevity and integrity of your refrigerator's exterior.

Causes of a bad Door Stop can range from physical damage due to forceful door opening, to normal wear and tear from repeated use. In some cases, the mounting area for the door stop may become worn or damaged, affecting its ability to hold the door stop securely.

Symptoms of a bad Door Stop include:

• The refrigerator door swings open wider than usual
• Noticeable wear, damage, or breakage on the door stop
• Difficulty in opening or closing the door smoothly

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Note: Quantity is one plug button.

The Handle Set is an OEM replacement part for Frigidaire refrigerators. It comprises the handles that are attached to the doors of the refrigerator, providing a convenient and ergonomic way to open and close them. You'll need to reuse your old screws or buy part numbers 5304515677 for the top and 218252201 for the bottom.

Symptoms of needing to replace the handle set include:

• Loose or wobbly handles
• Cracked, broken, or damaged handles
• Discoloration or fading of the handle material
• Difficulty in opening or closing the refrigerator doors due to faulty handles

Causes of needing a new handle set can include normal wear and tear, accidental impact or mishandling, or simply a desire to update the look of your appliance.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models, ensuring a perfect fit and seamless integration with your specific appliance.

The Handle Set is an OEM replacement part for Frigidaire refrigerators. It comprises the handles that are attached to the doors of the refrigerator, providing a convenient and ergonomic way to open and close them. You'll need to reuse your old screws or buy part numbers 5304515677 for the top and 218252201 for the bottom.

Symptoms of needing to replace the handle set include:

• Loose or wobbly handles
• Cracked, broken, or damaged handles
• Discoloration or fading of the handle material
• Difficulty in opening or closing the refrigerator doors due to faulty handles

Causes of needing a new handle set can include normal wear and tear, accidental impact or mishandling, or simply a desire to update the look of your appliance.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models, ensuring a perfect fit and seamless integration with your specific appliance.

The Screw is an OEM replacement part for Frigidaire refrigerators. This small but essential component is used to secure various parts of the appliance, such as panels, brackets, or internal fixtures, ensuring the refrigerator's structural integrity and proper operation.

Over time, screws may become loose, stripped, or corroded due to regular use, environmental factors, or maintenance work. A damaged or missing screw can lead to misaligned parts or reduced stability of the appliance.

Symptoms of a bad or missing screw include:

• Loose or wobbly components within the refrigerator
• Panels or fixtures coming apart or misaligned
• Difficulty securing parts during maintenance or repair
• Rattling or unusual noises during operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Specs: 10-16 X 0.500

The Screw Kit is an OEM part for Frigidaire appliances. It contains various screws specifically designed to fit and secure different components of Frigidaire appliances, ensuring a tight and secure assembly. This kit is essential for both initial installations and for making repairs or replacements to existing appliances, providing the necessary hardware to maintain or restore the structural integrity of your appliance.  These screws are #10-16 x .500 inches long and can be loosened or tightened using either a Phillips-head or square-head screwdriver.

Symptoms of needing a new Screw Kit include:

• Loose components or panels on your appliance due to missing or damaged screws.
• Inability to securely fasten parts during assembly or repairs, which can lead to operational issues or safety hazards.
• Screws stripping or corroding over time, which can compromise the stability and durability of the appliance.

Causes for replacing screws can include mechanical stress that causes screws to loosen or fall out, environmental factors like moisture leading to corrosion, or accidental damage during cleaning or maintenance.

This screw kit is designed to be universally compatible with various Frigidaire models, ensuring that you have the right screws for a range of repair needs.

The Hinge Bearing is an OEM part for Frigidaire refrigerators. It is designed to facilitate the smooth opening and closing of the refrigerator door by providing a pivot point for the door hinge. This bearing ensures that the door moves easily and remains properly aligned, helping to maintain a tight seal and optimal refrigerator performance.

Causes of a bad hinge bearing can include regular wear and tear from frequent use, exposure to moisture or temperature changes, and physical damage due to accidental impacts. Over time, these factors can cause the hinge bearing to wear out, become loose, or break, affecting the door's functionality.

Symptoms of a bad hinge bearing include:

• Difficulty opening or closing the refrigerator door
• The door not staying in place or sagging
• Unusual noises, such as squeaking or grinding, when the door is moved
• The door not sealing properly, leading to temperature fluctuations inside the refrigerator

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Handle Mounting Block is an OEM part for Frigidaire refrigerators. This component anchors the refrigerator door handle assembly while also reinforcing the door structure.

Causes of a bad mounting block can include cracks developing from repeated opening/closing stresses, broken fasteners loosening its installation, or residual damage during door replacement or repair attempts.

Symptoms of a bad handle mounting block include:

• Loose, sagging or misaligned door handles
• Doors difficult to open or not staying securely closed/latched
• Noisy rattling coming from the door handle area
• Cracks or breaks visible in the mounting plastic

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Screw is an OEM part for Frigidaire appliances. This specific screw is designed for Frigidaire models, ensuring a secure fit and proper function in the appliance assembly. Screws like this one are critical for holding components together tightly, contributing to the overall stability and durability of the appliance. Whether used in refrigerators, ovens, washers, or dryers, this screw plays a pivotal role in assembly and maintenance tasks, ensuring parts remain securely fastened during operation.

Over time, screws can become loose, stripped, or lost during repairs or adjustments, potentially compromising the appliance's integrity and performance.

Symptoms of needing replacement screws include:

• Loose parts or panels on the appliance
• Difficulty in securing components during assembly or maintenance
• The need to replace lost or damaged screws during repair work

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.
