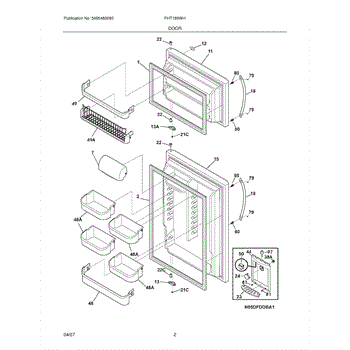

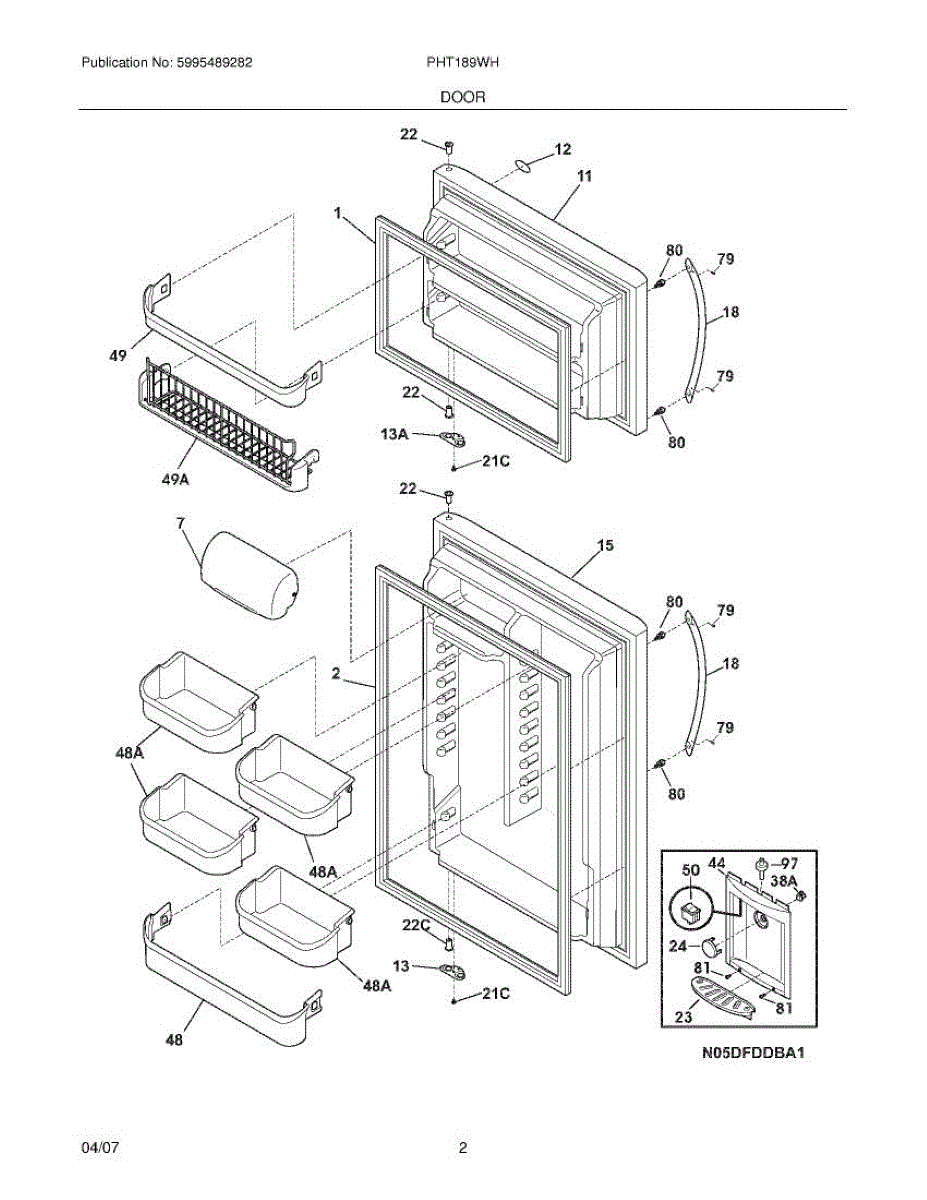

Parts for Frigidaire PHT189WHSM1: 03 - Door Parts

The Frigidaire PureSource Plus WFCB Refrigerator Water Filter is an OEM part for Frigidaire refrigerators. This water filter is specifically engineered to reduce impurities and contaminants in your drinking water and ice, including chlorine taste and odor, lead, cysts, and particulates.

Regular replacement of the water filter is recommended to maintain the best water quality and flow rate. Over time, the filter can become clogged with particles and contaminants, which can reduce its effectiveness and potentially affect the taste and odor of your water.

Symptoms of a filter that needs replacement include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in the water and ice
• The refrigerator's water filter indicator light turns on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Freezer Door Gasket is an OEM part for Frigidaire freezers. This part creates a seal around the freezer door to prevent warm air from entering and cold air from escaping, ensuring the freezer maintains its optimal freezing temperature. The gasket is made from a durable rubber material designed to conform tightly against the freezer frame when the door is closed.

Over time, freezer door gaskets can wear out, become brittle, or lose their elasticity, leading to gaps and leaks in the seal.

Symptoms of a bad Freezer Door Gasket include:

• Visible cracks or tears in the gasket
• Condensation or frost buildup around the door edges
• The freezer runs more frequently or for longer periods
• Difficulty in maintaining the set freezer temperature
• Increased energy bills due to the freezer working harder

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Refrigerator Door Gasket is an OEM part for Frigidaire refrigerators, designed to seal the door of the refrigerator compartment, ensuring an airtight closure. This door gasket plays a crucial role in maintaining the efficiency of the refrigerator by preventing cold air from escaping and warm air from entering.

Common causes for a Refrigerator Door Gasket to fail include normal wear and tear from opening and closing the door, damage from cleaning or misuse, and aging of the material, which can lead to hardening and loss of elasticity.

Symptoms of a bad Refrigerator Door Gasket include:

• Noticeable gaps or tears in the gasket
• The refrigerator door does not close as tightly as it should, or it requires more force to close.
• Condensation or frost buildup around the door edges
• An increase in energy consumption

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Dairy Door is an OEM replacement part for Frigidaire side-by-side refrigerators. As the access point to the dedicated dairy compartment, the door is designed with precision seals to maintain optimal humidity levels inside. This helps keep dairy and other perishable items fresh longer.

Causes of a bad dairy door can include worn or damaged seals, dents or impacts warping the door frame, or issues with the electronic components that control humidity levels.

Symptoms of a bad dairy door include:

• Excessive frost or ice buildup inside the dairy compartment
• Difficulty opening and closing the door smoothly
• Warm or dried-out dairy products despite a cold refrigerator interior
• Moisture leaks around the door seals

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore side-by-side models.

The Door Stop is an OEM part for Frigidaire refrigerators. This small part helps protect the appliance's door from damage and prevents it from impacting walls or adjacent cabinetry, ensuring the longevity and integrity of your refrigerator's exterior.

Causes of a bad Door Stop can range from physical damage due to forceful door opening, to normal wear and tear from repeated use. In some cases, the mounting area for the door stop may become worn or damaged, affecting its ability to hold the door stop securely.

Symptoms of a bad Door Stop include:

• The refrigerator door swings open wider than usual
• Noticeable wear, damage, or breakage on the door stop
• Difficulty in opening or closing the door smoothly

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Screw is an OEM replacement part for Frigidaire refrigerators. This small but essential component is used to secure various parts of the appliance, such as panels, brackets, or internal fixtures, ensuring the refrigerator's structural integrity and proper operation.

Over time, screws may become loose, stripped, or corroded due to regular use, environmental factors, or maintenance work. A damaged or missing screw can lead to misaligned parts or reduced stability of the appliance.

Symptoms of a bad or missing screw include:

• Loose or wobbly components within the refrigerator
• Panels or fixtures coming apart or misaligned
• Difficulty securing parts during maintenance or repair
• Rattling or unusual noises during operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This upper door hinge bearing serves as the low-friction bushing on the top hinge pin so the refrigerator door pivots smoothly. Replacing a worn bearing can stop squeaks and help restore level, easy-opening door operation.

• Provides a low-friction sleeve for the upper hinge pin to reduce wear
• Helps maintain door alignment with the cabinet for a consistent seal
• Common symptoms include squeaking or grinding, door rubbing or sagging, or the door not closing smoothly
• Physical signs include cracks, flattening, or oval-shaped wear in the bushing

• Unplug the refrigerator and remove items from the door
• Support the door; remove the top hinge cover and screws, then lift the door slightly
• Replace the worn upper hinge bearing on the hinge pin or bracket (design varies)
• Reinstall the hinge, align the door, and ensure proper gasket contact

The Hinge Bearing is an OEM part for Frigidaire refrigerators. It is designed to facilitate the smooth opening and closing of the refrigerator door by providing a pivot point for the door hinge. This bearing ensures that the door moves easily and remains properly aligned, helping to maintain a tight seal and optimal refrigerator performance.

Causes of a bad hinge bearing can include regular wear and tear from frequent use, exposure to moisture or temperature changes, and physical damage due to accidental impacts. Over time, these factors can cause the hinge bearing to wear out, become loose, or break, affecting the door's functionality.

Symptoms of a bad hinge bearing include:

• Difficulty opening or closing the refrigerator door
• The door not staying in place or sagging
• Unusual noises, such as squeaking or grinding, when the door is moved
• The door not sealing properly, leading to temperature fluctuations inside the refrigerator

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Door Bin is an OEM part for Frigidaire refrigerators. It provides additional storage space on the refrigerator door, allowing for the convenient organization of smaller items such as condiments, beverages, and jars. This bin is designed to fit securely into the slots on the refrigerator door, making it easy to remove and clean when necessary.

Replace this door bin if it becomes cracked, warped, or no longer fits securely in the door slots. Over time, exposure to varying temperatures and frequent use can cause the plastic to weaken and break.

Symptoms of a bad door bin include:

• Cracks or breakage in the plastic
• Difficulty in securing the bin to the door
• Items falling out or not staying in place

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Door Shelf Bin is an OEM replacement part for Frigidaire refrigerators. It is designed to fit on the refrigerator door, providing convenient storage space for condiments, bottles, and other small items. This shelf bin helps to keep the refrigerator organized, making it easier to find and reach items stored in the door.

Causes of a bad door shelf bin can include cracking, breaking, or warping due to overloading, impact from items being moved in and out, or deterioration over time.

Symptoms of a bad door shelf bin include:

• Cracks or breakage in the bin.
• The bin not securely attaching to the door.
• Items falling out or not fitting properly in the bin.
• Difficulty in accessing or retrieving items from the bin.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Freezer Door Shelf Bin is an OEM replacement part for Frigidaire refrigerators. It provides adjustable storage on the inside of the freezer door with removable bin shelves. These bins maximize storage potential in the limited door space through customizable shelving.

Causes of a bad Door Shelf Bin can include shelf breakage from heavy loads, damage to supporting rails or walls of the bin inhibiting proper shelf attachment and use, or broken/missing bin walls reducing structural integrity.

Symptoms of a bad Door Shelf Bin include:

• Detached or missing shelves
• Shelves that do not stay firmly in place when loaded
• Damage or deterioration of bin walls
• Insufficient or compromised storage space

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

This part number contains one (1) screw.

The Door Handle Screw is an OEM part for Frigidaire refrigerators. This screw secures the door handle to the refrigerator door, ensuring a firm and stable grip for opening and closing the door.

Causes of a bad door handle screw can include regular wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or stripping. A faulty screw can lead to a loose or wobbly door handle, making it difficult to operate the refrigerator.

Symptoms of a bad door handle screw include:

• The door handle feeling loose or coming off
• Difficulty in securely tightening the handle
• Visible rust or corrosion on the screw
• Stripped threads on the screw or handle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

This is a service wrench used to loosen and tighten appliance fasteners for maintenance and repairs, making access and part replacement easier for technicians and DIYers. Durable tool designed for specific appliance fastener sizes. What it does:

• Provides the correct fit and leverage for removing or installing designated appliance nuts, bolts, and fittings
• Helps safely access internal components during service and part replacement
• Reduces risk of rounding fasteners compared with improvised tools
• Useful for routine maintenance tasks and repair procedures that require a dedicated wrench

• One wrench

• Use the wrench only for its intended appliance fasteners; avoid excessive force
• Disconnect power and water to the appliance before beginning service
• Wear safety gloves and eye protection when working on appliances

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle
