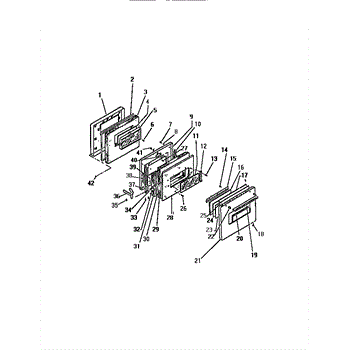

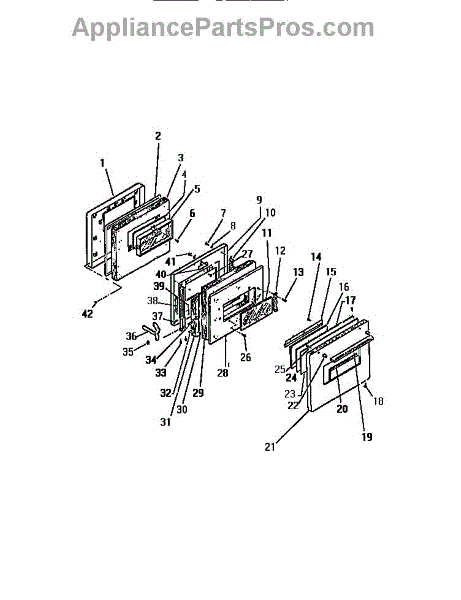

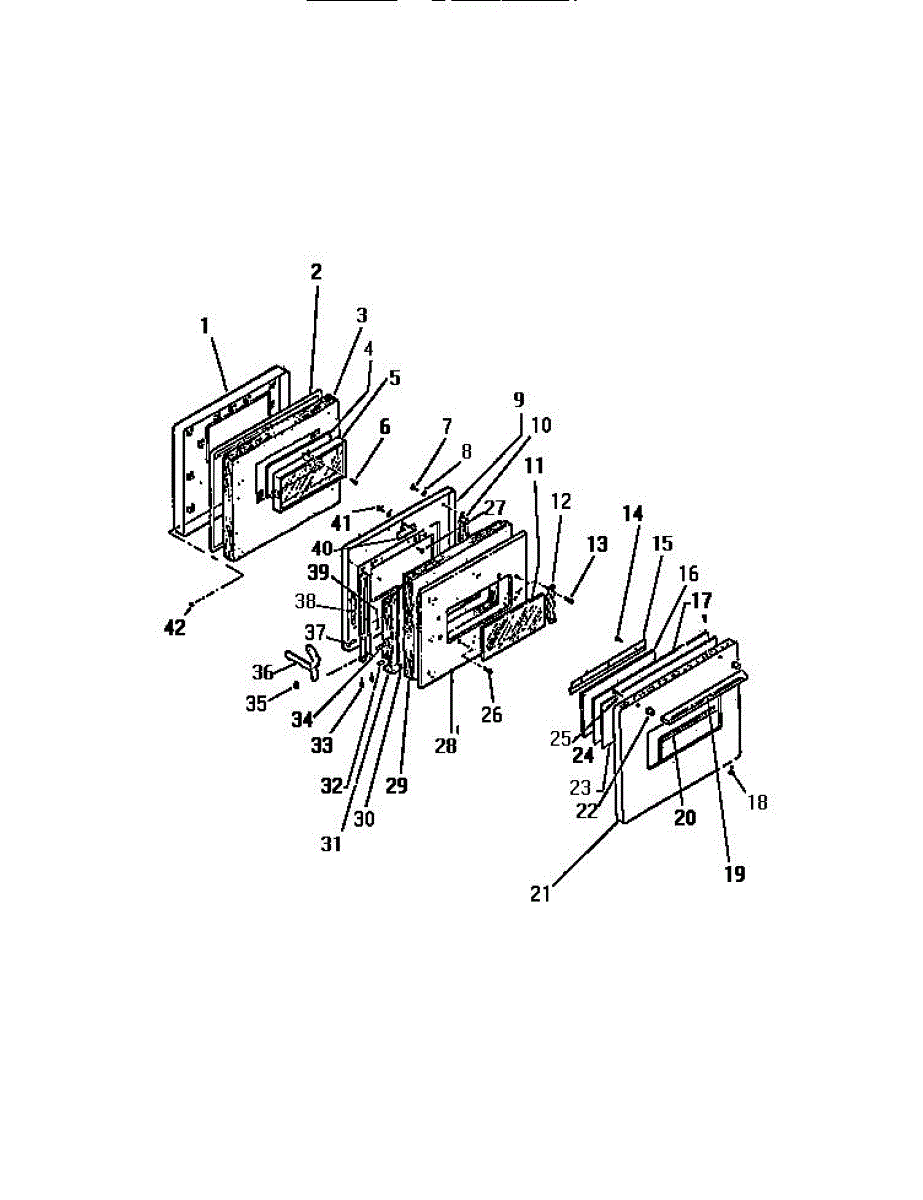

Parts for Frigidaire REP306CV1: 04 - Door Parts

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Glass mounting bracket secures the oven door glass panel in place. Replace if bracket is cracked, broken, or missing to properly hold glass components.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Size: 7" x 16". If you need one that measures 8" x 16.25", order 5303209513.

This door lock assembly secures and releases your appliance door so it can latch reliably during use. It replaces a worn or broken lock to restore safe door operation and proper cycling. What it does:

• Engages and holds the door closed during operation to maintain heat and cycle functions
• Releases the door when the cycle finishes or power is removed
• Commonly used when the door won't stay latched, won't lock, or the appliance fails to start due to a faulty latch
• Fits into the door/latch area and connects to the existing mounting and electrical interface

• One complete door lock assembly as shown

• Disconnect power (and gas if applicable) before starting any repair to avoid shock or injury
• Handle electrical connectors and mounting tabs gently; replace any damaged fasteners

This handle spacer maintains proper alignment and spacing for range door handles. It prevents the handle from sitting flush against the door surface and ensures smooth operation. Replace this part if your range door handle feels loose, wobbly, or doesn't align properly with the door.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

This part has been discontinued by the manufacturer and is no longer available.

This is a replacement mounting screw used to secure appliance panels and components so parts stay in place and operate quietly. Fits specific Frigidaire appliance locations where the original screw has stripped, rusted, or gone missing. What it does:

• Fastens panels, trim, brackets, or small components to the appliance frame
• Restores secure attachment to stop rattling or loose parts
• Replaces lost or damaged screws that prevent proper assembly
• Helps maintain safe, stable operation of the affected component

• Disconnect power (unplug appliance or shut off breaker) before beginning any repair
• Use the properly sized screwdriver or driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage to mating parts
• Keep small parts away from children and magnetic pickup tools can help retrieve dropped screws

This part has been discontinued and is no longer available.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.
