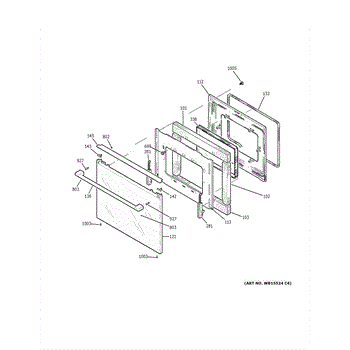

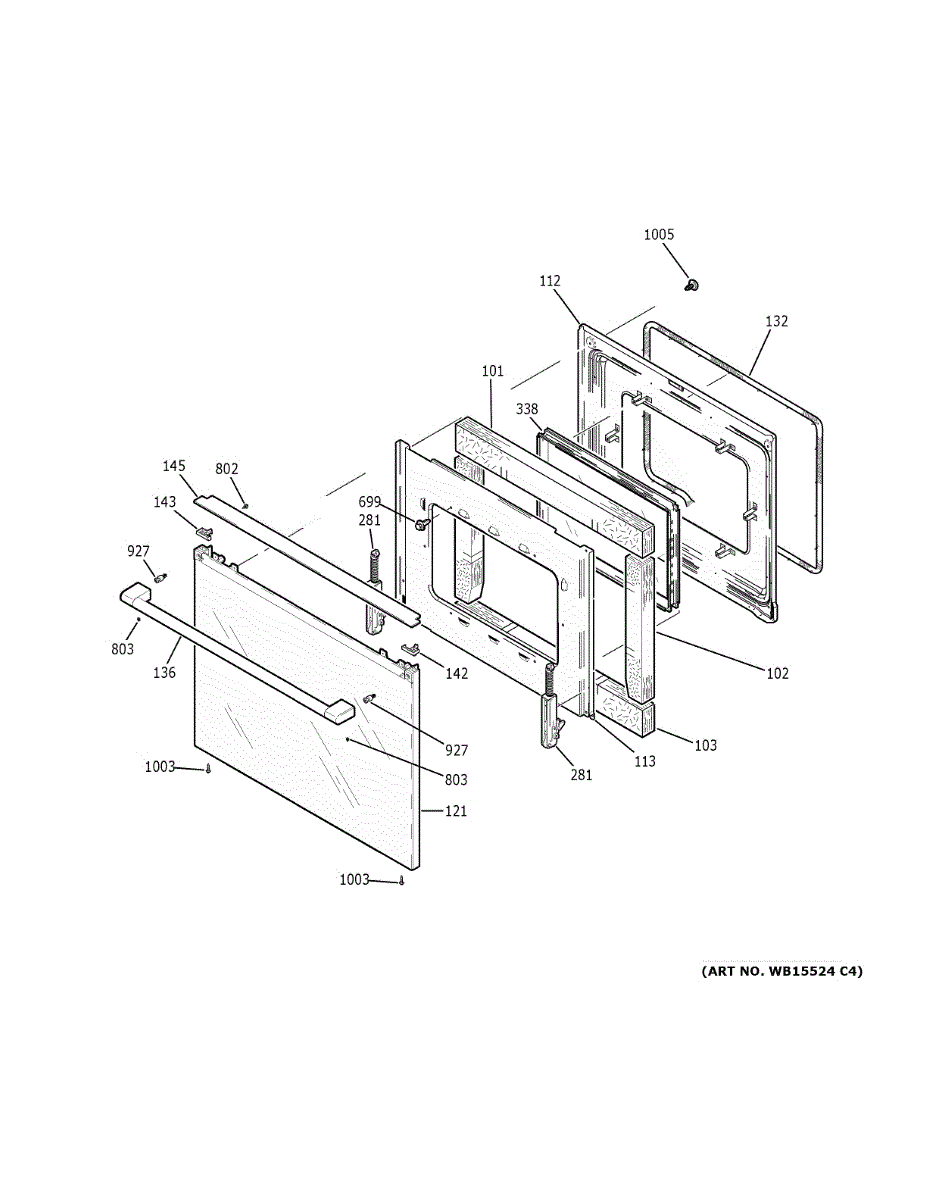

Parts for Ge CES700M2N4S5: Door Parts

This door insulation replaces the inner thermal pad that helps block heat transfer through the oven door, improving temperature stability and reducing exterior door heat. Fits behind the inner door panel to restore proper insulation. What it does

• Replaces the oven door's internal insulation to help maintain oven temperature and improve heating efficiency.
• Reduces exterior door surface heat for safer operation and lower cabinet heat exposure.
• Helps prevent heat loss that can cause longer preheat times or uneven baking.
• Fits behind the inner door panel and works with the door's liners and glass to insulate the cooking cavity.

• One oven door insulation piece as shown.

• Always disconnect power at the breaker and allow the oven to cool completely before servicing.
• Remove the oven door and inner door panel per the manufacturer's instructions to access the insulation.
• Handle insulation with gloves and avoid compressing or tearing the material; position it flat against the inner panel.
• If any mounting clips, screws, or inner door glass were removed, keep parts organized and reassemble.

This oven door liner assembly provides the inner surface for the oven door and restores proper fit and appearance. Replacing a damaged liner helps protect door insulation and maintain safe, even cooking performance. What it does:

• Replaces the interior liner that holds the oven door inner components and insulation
• Restores the door's inner surface if the liner is cracked, dented, or warped
• Helps prevent direct contact with insulation and internal parts
• Reduces rattling or misalignment caused by a damaged liner
• Preserves the oven door's appearance and functional seal

• Disconnect power (and gas, if applicable) before servicing the oven
• Handle carefully—sharp edges or attached glass can cause injury
• Removing the door may be required to access and replace the liner; keep track of screws and fasteners

This oven door gasket forms the heat-resistant seal around the oven door opening. Replacing a worn seal helps the oven preheat and hold temperature, reduces heat and steam escaping at the door, and supports consistent cooking results.

• Seals the gap between the oven cavity frame and the door to contain hot air and steam
• Helps maintain stable temperatures and more even baking/roasting
• Replace if you notice fraying, tears, flattened sections, or visible gaps around the door
• Symptoms of a failing seal can include longer preheat or cook times and heat escaping around the door

• Disconnect power and let the oven cool completely before servicing
• Remove the old gasket and clean the mounting area of any debris
• Install the new gasket following the original routing; seat retainer points evenly and do not stretch the gasket
• Close the door to confirm uniform contact, then run a short heat cycle to verify no leaks

This left upper door spacer positions and secures the appliance door trim to ensure proper alignment and smooth operation. Replaces worn or damaged spacers that can cause rubbing, misalignment, or uneven gaps at the top corner of the door. What it does:

• Provides the correct gap and spacing between the door and surrounding trim for proper door alignment
• Helps prevent door binding, rubbing, or uneven closing at the upper left corner
• Restores factory fit after panel, hinge, or trim service
• Durable molded construction resists wear from normal door movement

• Disconnect power to the appliance before beginning any repair
• Access may require removing the door trim or inner door panel
• Handle trim pieces and spacer carefully to avoid scratching finishes

The Window Pack Assembly is an OEM replacement part for GE electric ranges. It comprises the outer oven window and securing brackets that hold the glass in place.

Causes of failure can include cracks in the glass from impact or thermal stress over time. Mounting brackets may loosen from normal use.

Symptoms of a faulty window pack assembly include:

• Fogging or condensation between panes of glass
• Leaks evident around the perimeter of the oven window
• Window that rocks or wiggles in the frame
• Inability to securely latch the window shut

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore oven models.

The Set Screw is an OEM part for GE refrigerators. The set screw fits into the handle assembly, ensuring a tight and stable connection to the refrigerator door. This set screw is essential for preventing the door handle from becoming loose or coming off, which can affect the ease of opening and closing the refrigerator door.

Causes of a malfunctioning Set Screw can vary. Normal wear and tear is a common issue, causing the screw to strip or loosen over time. Incorrect installation is another factor.

Symptoms of a bad Set Screw include:

• A loose refrigerator door handle, which may wobble or detach partially from the door.
• Difficulty in opening or closing the refrigerator door due to a lack of secure grip.
• The need to frequently retighten the door handle.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This threaded mounting stud secures appliance components, restoring proper fit and stability for panels, trim, or internal parts. Replacing a damaged or missing stud helps stop rattling and keeps assemblies aligned for safe operation. What it does:

• Provides a secure anchor point for panels, trim pieces, or component housings
• Restores correct alignment to reduce vibration and noise from loose parts
• Replaces broken, stripped, or missing studs that prevent proper fastening
• Helps maintain electrical and mechanical clearance by keeping parts in place

• Disconnect power to the appliance before beginning any repair.
• Use appropriate hand tools and match thread engagement; do not overtighten.
• Inspect mating threads and surrounding parts for damage before installation.
