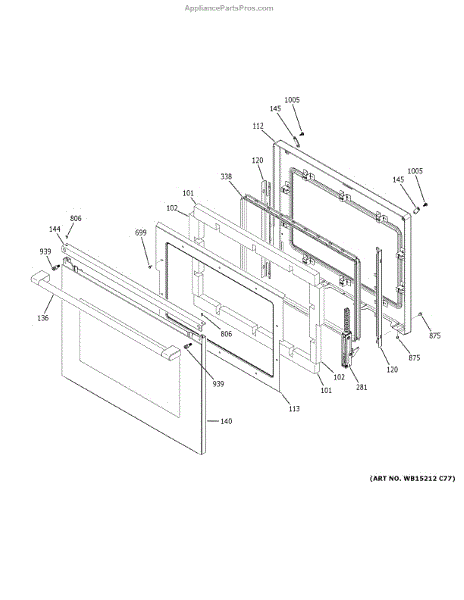

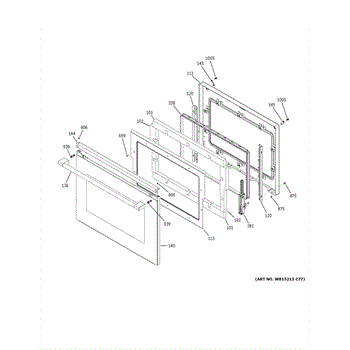

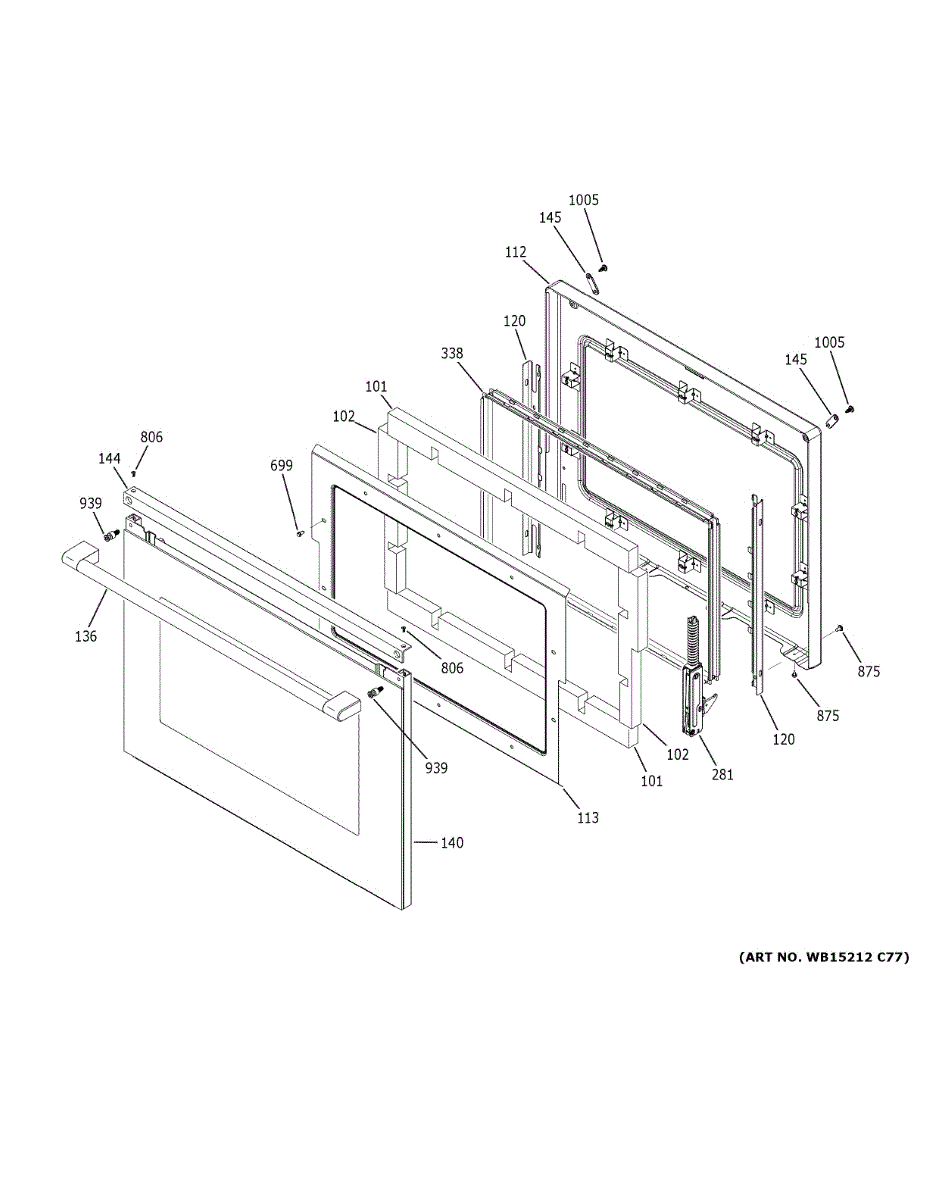

Parts for Ge CKS70DM2N1S5: Door Parts

This oven door liner is the inner metal panel that forms the inside surface of the oven door, restoring structural support and the finished interior appearance. Replaces a damaged or warped liner to help the door seal and support the inner glass. What it does:

• Provides the interior surface and structural backing for the oven door and inner glass
• Restores proper alignment and support when liner is dented, cracked, or bent
• Helps maintain the door's sealing surface to reduce heat loss and maintain cooking performance
• Prevents contact between the inner glass and insulation or components

• Disconnect power to the appliance before starting and allow all surfaces to cool completely
• Handle glass and metal edges with care; wear gloves and eye protection
• Installation typically requires removing the oven door and inner glass; follow the oven manufacturer's instructions

A replacement liner support that secures the refrigerator cabinet liner and keeps interior trim and panels aligned for a proper seal and appearance. Restores stability to cracked or broken support points. What it does:

• Holds the cabinet liner and interior trim in position to prevent gaps and movement
• Helps maintain door seal alignment by keeping liner edges stable
• Reduces rattling or shifting caused by a damaged support
• Commonly replaced when liner pieces are cracked, broken, or loose

• One liner support

• Disconnect power to the appliance before beginning any repair
• Remove food, shelves, and trim pieces as needed to access the damaged support
• This part typically secures with clips or fasteners; inspect existing hardware and replace if necessary

This door liner plug snaps into the inner door liner to cover fastener or access holes. It restores a clean, finished look and helps keep grease and debris from entering the door assembly.

• Covers exposed holes in the inner door liner
• Replaces a missing, loose, or damaged plug/cap
• Helps protect the door cavity from splashes and debris
• Restores a neat, factory-finished appearance

• Disconnect power before servicing; for gas ranges, also shut off gas. Allow the appliance to cool completely.
• Open the door and gently pry out the old plug with a plastic trim tool or flat-blade screwdriver.
• Align and press the new plug into the liner until it seats flush.
• Support glass and follow the manufacturer's instructions.

The Window Pack Assembly is an OEM part for GE ranges. This part includes the glass window and frame, which provide a clear view into the oven cavity, allowing you to monitor the cooking process without opening the door and losing heat.

Causes of a bad window pack assembly can include wear and tear over time, thermal stress from repeated heating and cooling cycles, or physical damage from impacts.

Symptoms of a bad Window Pack Assembly include:

• Cracks or breaks in the glass
• Difficulty seeing through the window due to fogging or staining
• Heat escaping from the oven door, making the outer surface excessively hot
• Visible damage or wear to the frame or seal

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models..

This is a replacement 8-32 screw (TT FLT 7/20) for securing appliance panels and internal components. It restores a secure fastened connection so parts stay aligned and rattle-free during normal use. What it does:

• Fastens panels, brackets, and small assemblies that use 8-32 threaded holes
• Helps stop loose or vibrating parts caused by missing or stripped screws
• Provides a direct one-for-one replacement where this specific screw was used
• Works with metal or plastic mounting points designed for 8-32 threads

• Use the correct 8-32 driver; do not overtighten to avoid stripping threads
• Inspect mating threads and replace damaged inserts or clips before installing
• Disconnect power to the appliance and follow manufacturer safety guidance when accessing internal components

This threaded mounting stud secures appliance components, restoring proper fit and stability for panels, trim, or internal parts. Replacing a damaged or missing stud helps stop rattling and keeps assemblies aligned for safe operation. What it does:

• Provides a secure anchor point for panels, trim pieces, or component housings
• Restores correct alignment to reduce vibration and noise from loose parts
• Replaces broken, stripped, or missing studs that prevent proper fastening
• Helps maintain electrical and mechanical clearance by keeping parts in place

• Disconnect power to the appliance before beginning any repair.
• Use appropriate hand tools and match thread engagement; do not overtighten.
• Inspect mating threads and surrounding parts for damage before installation.
