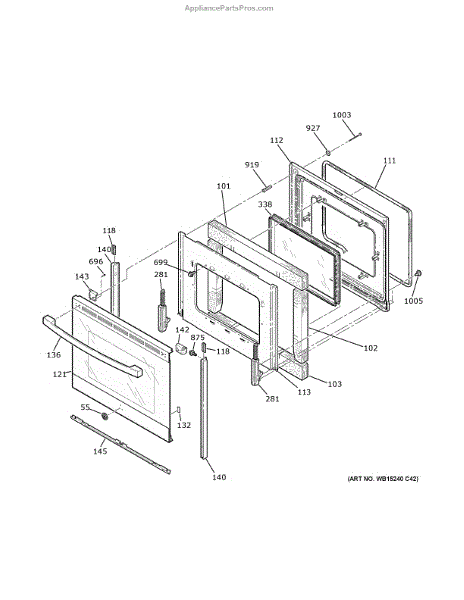

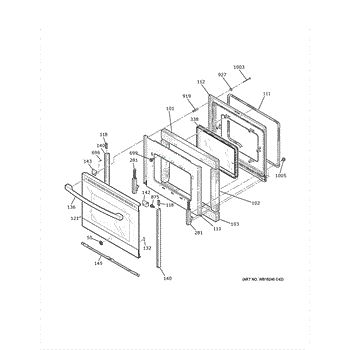

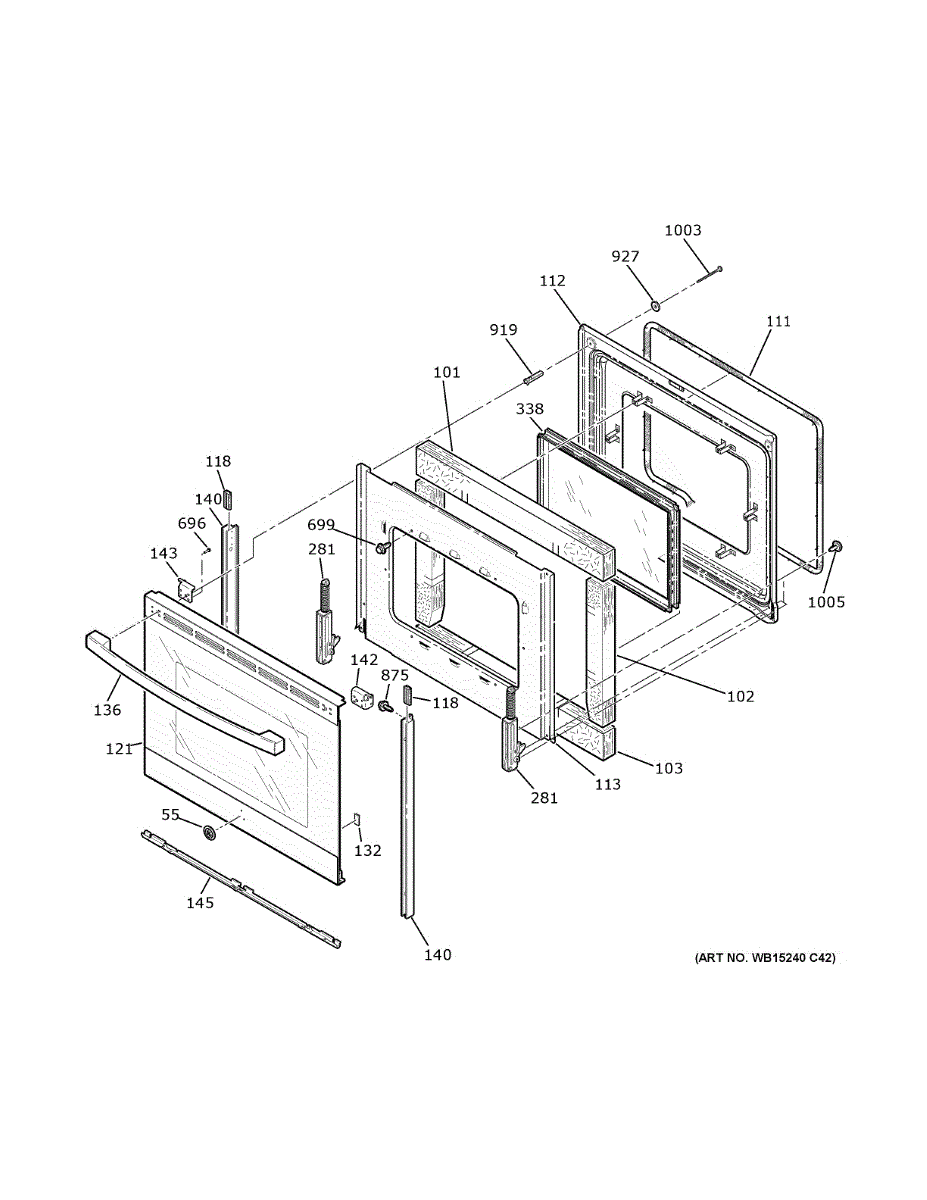

Parts for Ge JB645EK9ES: Door Parts

Decorative badge assembly that mounts on the front of your range. Displays brand and model information. Replace if cracked, peeling, or missing.

Insulation pad that lines the inside of your range oven door. Replace if torn, burnt, saturated, or missing to restore thermal barrier performance.

If your oven door exterior gets too hot or temperature fluctuates, this inner door insulation pad blocks heat transfer. Fits behind the inner panel.

Seals oven cavity to prevent heat loss during baking and broiling. Replace if worn, cracked, or heat escapes around door. Verify fit by model number.

Replace your range's oven door liner assembly if the inner panel is cracked, discolored, or damaged. Installs inside the door for a clean finish.

Retains oven door insulation in place on electric ranges. Replace if cracked, broken, or missing to secure door insulation and maintain proper fit.

Replacement mounting spacer for electric ranges. Positions and supports internal components to maintain proper clearance and alignment. Needed when cracked or missing.

Slate finish outer door panel for electric range ovens. Replaces cracked, dented, scratched, or worn exterior panels to restore appearance.

Replaces a worn, cracked, or damaged range door handle and end cap. Restores a clean, finished look and secure grip for smooth door operation.

Replacement side trim for electric range doors. Restores door edge finish when original is cracked, broken, or worn. Maintains proper door fit and appearance.

Secures exterior trim to your range door on the right side. Replace this bracket if cracked, broken, or missing to restore a flush, finished look.

This left-hand door handle bracket secures the refrigerator door handle to the door, restoring a stable grip and proper handle alignment. Durable replacement part helps stop a loose or wobbly handle and keeps the door operating smoothly. What it does:

• Mounts the door handle to the left side of the refrigerator door
• Provides a secure anchor to prevent handle movement or sagging
• Restores proper handle alignment for comfortable opening and closing
• Helps eliminate rattling or looseness when the door is used

• One left-hand door handle bracket

• Designed for direct replacement; inspect mounting screws and handle for wear before installing
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the bracket
• Disconnect power only when working near electrical components; follow appliance safety guidance
• If screws or handle hardware are missing or damaged, replace those parts as well

This door gap filler is a trim insert that fills the exposed space between refrigerator doors for a neater appearance and an improved seal. It restores proper door edge coverage and helps prevent visible gaps and light leaks. What it does:

• Covers the visible gap between refrigerator doors or door panels
• Helps reduce drafts and visible light entering the cabinet opening
• Prevents small items from getting caught in the door gap
• Restores finished appearance after panel or gasket service
• Fits into the door edge as a push-in/slide-in trim piece

• Disconnect power to the appliance before performing any service to avoid injury
• Remove any door panels or trim that obstruct access
• Align the filler with the door edge and press or slide into place until seated; some models use retaining clips or screws
• If replacement requires door panel removal, keep fasteners and gaskets in a safe place and follow instructions

Replace worn, damaged, or broken range door hinges. Installs on both ends of the oven door to enable smooth opening and closing. Essential when hinges fail.

Replace cracked, broken, or shattered oven door window glass. This assembly includes the glass pane and securing brackets that install inside your range door.

Replacement mounting spacer for electric ranges. Positions and supports panels to maintain alignment and proper fit. Replaces worn, missing, or damaged spacers.

10-32 threaded screw secures control panels, brackets, and internal components in electric ranges. Replace when stripped, missing, or loose.
