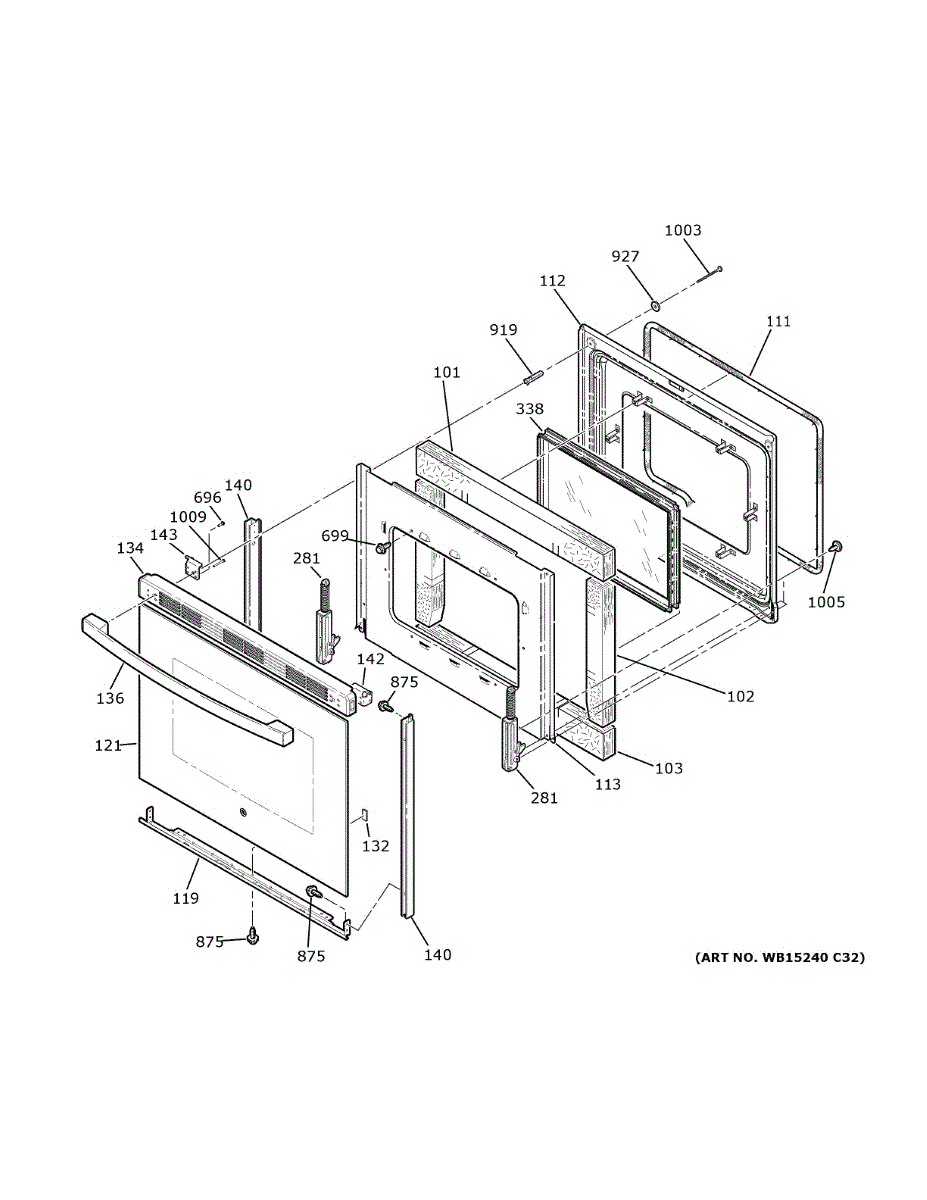

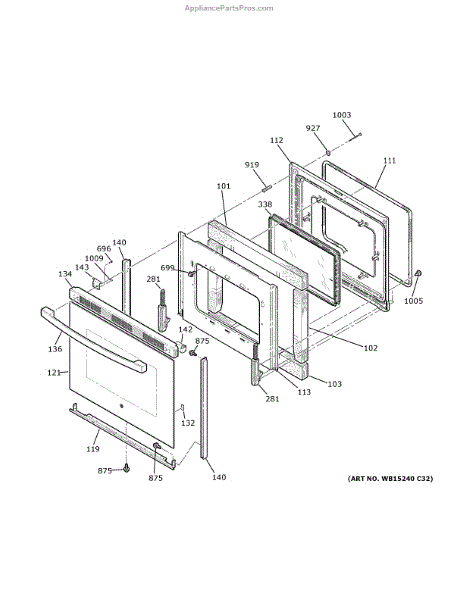

Parts for Ge JB655DK7CC: Door Parts

This door insulation lines the inside of the oven door to reduce heat loss and help maintain stable temperatures. Replace a torn, burnt, or saturated pad to restore heating performance and keep the outer door cooler.

• Provides a thermal barrier between the oven cavity and the outer door panel
• Helps the oven reach and hold set temperature more consistently
• Helps reduce heat felt on the exterior door and nearby controls
• Replace if insulation is damaged, compressed, burnt, or grease-soaked; common signs include heat escaping at the door, longer preheat, or temperature swings

• Disconnect power/gas and allow the range to cool completely
• Remove the oven door; place it on a padded surface
• Separate door panels; note insulation routing and any cutouts before removal
• Position the new pad without over-compressing; keep clear of the window and latch, reassemble, and ensure hinges are fully seated

This door insulation replaces the inner thermal pad that helps block heat transfer through the oven door, improving temperature stability and reducing exterior door heat. Fits behind the inner door panel to restore proper insulation. What it does

• Replaces the oven door's internal insulation to help maintain oven temperature and improve heating efficiency.
• Reduces exterior door surface heat for safer operation and lower cabinet heat exposure.
• Helps prevent heat loss that can cause longer preheat times or uneven baking.
• Fits behind the inner door panel and works with the door's liners and glass to insulate the cooking cavity.

• One oven door insulation piece as shown.

• Always disconnect power at the breaker and allow the oven to cool completely before servicing.
• Remove the oven door and inner door panel per the manufacturer's instructions to access the insulation.
• Handle insulation with gloves and avoid compressing or tearing the material; position it flat against the inner panel.
• If any mounting clips, screws, or inner door glass were removed, keep parts organized and reassemble.

The Oven Door Gasket is an OEM part for GE ranges. This seal prevents heat from escaping the oven cavity when baking or broiling. The gasket helps maintain temperatures for more efficient cooking and reliable operation. The gasket measures approximately 84" long.

Causes of a bad gasket can include deterioration over prolonged high-heat use, damage due to abrasion or impact, or warping from moisture exposure over time.

Symptoms of a bad oven door gasket include:

• Excessive heat loss from around the oven door when in use
• Difficulty keeping desired baking temperatures
• Cooler/cold air felt escaping around the door seal
• Visible cracks, splits, or gaps in the gasket seal

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

This oven door liner assembly provides the inner surface for the oven door and restores proper fit and appearance. Replacing a damaged liner helps protect door insulation and maintain safe, even cooking performance. What it does:

• Replaces the interior liner that holds the oven door inner components and insulation
• Restores the door's inner surface if the liner is cracked, dented, or warped
• Helps prevent direct contact with insulation and internal parts
• Reduces rattling or misalignment caused by a damaged liner
• Preserves the oven door's appearance and functional seal

• Disconnect power (and gas, if applicable) before servicing the oven
• Handle carefully—sharp edges or attached glass can cause injury
• Removing the door may be required to access and replace the liner; keep track of screws and fasteners

Color: Bisque

The Bottom trim channel is an OEM part for GE ranges. This trim piece provides an aesthetic finishing touch to the bottom exterior of the oven, covering any gaps and protecting internal components.

Causes of a bad trim chanel can include normal wear and tear over time from regular cleaning or accidental impacts. Plastic trim pieces can fade or become discolored with exposure to heat and cleaning chemicals.

Symptoms of a bad trim chanel include:

• Visible gaps along the bottom front edge of the oven
• Scratches, cracks or fading of the trim surface
• Looseness or inability to snap tightly into place

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the outer glass panel for an oven door, a direct-fit replacement that restores the door's appearance and helps the oven maintain proper heat containment. Ideal when outer glass is cracked, chipped, or cosmetically damaged. What it does:

• Replaces damaged or shattered outer oven door glass to restore safe viewing and appearance
• Helps the oven retain heat and improves cooking consistency when the door glass is intact
• Eliminates rattling or sharp edges caused by broken or loose outer glass
• Restores a sealed, finished door surface for cleaning and safe use

• One outer oven door glass (black finish)

• Disconnect power to the appliance before starting any repair
• Handle glass carefully; wear cut-resistant gloves and eye protection
• Door removal is typically required to access the glass—follow the oven's service manual or OEM instructions

A replacement trim vent door that covers and finishes the appliance vent opening for a clean look and proper airflow. Restores the exterior appearance and allows the vent to open and close as designed. What it does

• Acts as the exterior door/trim for the appliance vent, providing a finished opening and protection.
• Opens to allow normal exhaust airflow and closes when the appliance is idle to limit drafts and pests.
• Commonly replaced when the door or surrounding trim is cracked, warped, stuck, or no longer closes properly.
• Helps maintain proper vent function and prevent unwanted debris or small pests from entering the vent opening.

• One trim vent door assembly as shown.

• Disconnect power to the appliance (and gas if applicable) before starting any service.
• Remove any surrounding access panels or fasteners to reach the vent door; handle trim pieces carefully to avoid cosmetic damage.
• Check that the door opens/closes freely after installation and that any mounting clips or screws are secure.
• Inspect the vent duct and exhaust path for obstructions or damage.

This right-side door trim bracket secures the exterior trim to the appliance door, restoring a flush, finished appearance and preventing the trim from coming loose. Designed to replace a damaged or missing right-hand bracket. What it does:

• Holds the door trim in place on the right side to maintain alignment and appearance
• Prevents trim gaps, vibration noise, and rattling caused by a loose or broken bracket
• Restores proper trim attachment after collision, wear, or failed fasteners
• Works with the factory trim assembly to ensure a straight, secure fit

• One right-side door trim bracket

• Use basic hand tools; retain any reusable screws or clips unless damaged
• Power off and unplug the appliance before starting work for safety
• Align the bracket and trim before tightening fasteners to avoid cracking the trim
• Replace missing or damaged clips or screws with OEM-specified fasteners

This left-hand door handle bracket secures the refrigerator door handle to the door, restoring a stable grip and proper handle alignment. Durable replacement part helps stop a loose or wobbly handle and keeps the door operating smoothly. What it does:

• Mounts the door handle to the left side of the refrigerator door
• Provides a secure anchor to prevent handle movement or sagging
• Restores proper handle alignment for comfortable opening and closing
• Helps eliminate rattling or looseness when the door is used

• One left-hand door handle bracket

• Designed for direct replacement; inspect mounting screws and handle for wear before installing
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the bracket
• Disconnect power only when working near electrical components; follow appliance safety guidance
• If screws or handle hardware are missing or damaged, replace those parts as well

Oven doors utilize door hinges to open and close efficiently. There is a door hinge attached to opposite ends of the door, and the part is also connected to the range. With time, the hinges can wear out, get damaged, or break off. When the hinges are no longer functioning correctly, replacement parts are necessary to continue using the appliance.An indication that there is a problem with the door hinge on an oven door is difficulty opening or closing or a door that partially slips on one side or the other out of position. A visual inspection will determine the condition of a door hinge. The replacement of the piece is simple. Unplug the range from its power source before starting the repair. Wear gloves for protection. Check the condition of both hinges before ordering. This door hinge is an authentic OEM replacement part. It is sourced directly from the manufacturer. The piece is sold as an individual unit. The door hinge fits several different models of ranges. The replacement part is compatible with appliances produced by General Electric, Hotpoint, and RCA. It is manufactured using high-quality, durable metal materials.

The Window Pack Assembly is an OEM replacement part for GE electric ranges. It comprises the outer oven window and securing brackets that hold the glass in place.

Causes of failure can include cracks in the glass from impact or thermal stress over time. Mounting brackets may loosen from normal use.

Symptoms of a faulty window pack assembly include:

• Fogging or condensation between panes of glass
• Leaks evident around the perimeter of the oven window
• Window that rocks or wiggles in the frame
• Inability to securely latch the window shut

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore oven models.

A silicon-controlled rectifier (SCR) used on appliance control boards to regulate power to motors, igniters or other loads. Replacing a faulty SCR can restore proper power switching and steady operation of the driven component. What it does:

• Acts as a power-switching semiconductor in appliance electronic control circuits to allow current flow only when triggered.
• Enables controlled delivery of voltage/current to motors, igniters and similar loads on the control board.
• A failing SCR can cause symptoms such as no power to a motor or igniter, intermittent operation, or complete failure of the driven component.
• Match the SCR package and electrical ratings to the control board before replacing.

• Disconnect all power to the appliance before accessing control electronics to avoid shock or damage.
• Take electrostatic-discharge (ESD) precautions; handle the SCR by its body and avoid touching leads.
• Package orientation and electrical ratings on the control board and wiring before installation.

This 10-32 threaded screw fastens appliance panels and components, restoring secure attachments and reducing vibration. It's a direct-fit fastener for assemblies that use a standard 10-32 UNC machine screw. What it does

• Secures control panels, brackets, and internal components that use a 10-32 thread.
• Stops loose parts that can rattle, vibrate, or cause misalignment.
• Replaces stripped, missing, or damaged 10-32 screws to restore proper fit.
• Works where a short machine screw with a 10-32 thread is required.

• One 10-32 threaded screw.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or nut driver for the screw head to avoid stripping.
• Install matching thread engagement; do not force or cross-thread.
• Tighten snugly but avoid over-torquing to prevent damage to mounting holes or plastic parts.

This silicon controlled rectifier (SCR) is an electrical switching component used to control power to heating or motor circuits, restoring proper on/off control for affected appliance functions. What it does:

• Regulates power flow in heater and motor control circuits to enable correct cycling
• Helps control startup and run voltage to motors and heating elements
• Commonly linked to symptoms like no power to heater or motor, intermittent operation, or erratic cycling
• Works as a replacement component on control assemblies that use a discrete SCR

• Disconnect all power to the appliance before accessing electrical components
• SCRs are static-sensitive and may require careful handling; use ESD precautions
• May be soldered or mounted to terminals; confirm mounting and connector type before installation
