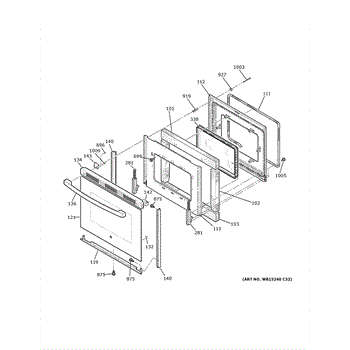

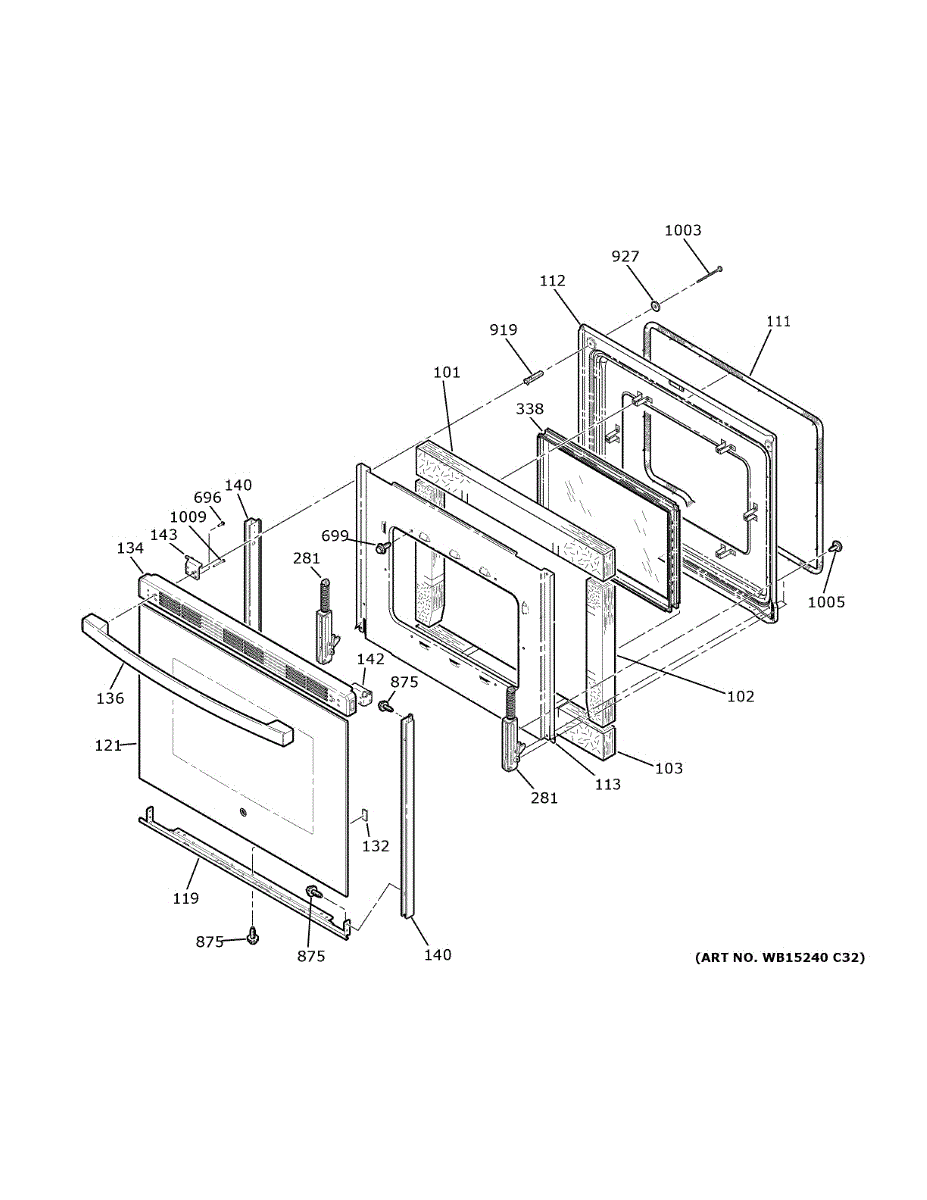

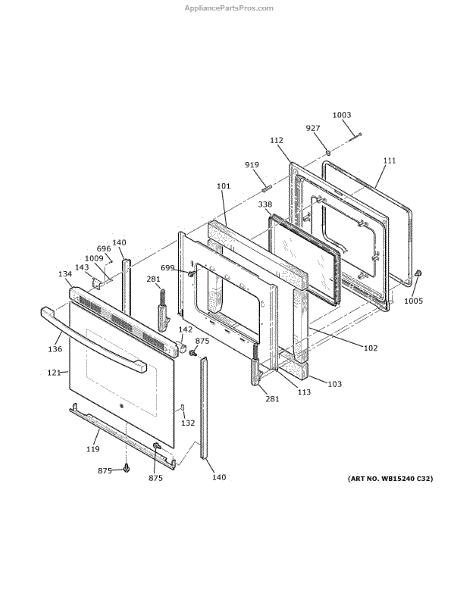

Parts for Ge JB735DP2BB: Door Parts

The Oven Door Gasket is an OEM part for GE ranges. This seal prevents heat from escaping the oven cavity when baking or broiling. The gasket helps maintain temperatures for more efficient cooking and reliable operation. The gasket measures approximately 84" long.

Causes of a bad gasket can include deterioration over prolonged high-heat use, damage due to abrasion or impact, or warping from moisture exposure over time.

Symptoms of a bad oven door gasket include:

• Excessive heat loss from around the oven door when in use
• Difficulty keeping desired baking temperatures
• Cooler/cold air felt escaping around the door seal
• Visible cracks, splits, or gaps in the gasket seal

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

This oven door liner assembly provides the inner surface for the oven door and restores proper fit and appearance. Replacing a damaged liner helps protect door insulation and maintain safe, even cooking performance. What it does:

• Replaces the interior liner that holds the oven door inner components and insulation
• Restores the door's inner surface if the liner is cracked, dented, or warped
• Helps prevent direct contact with insulation and internal parts
• Reduces rattling or misalignment caused by a damaged liner
• Preserves the oven door's appearance and functional seal

• Disconnect power (and gas, if applicable) before servicing the oven
• Handle carefully—sharp edges or attached glass can cause injury
• Removing the door may be required to access and replace the liner; keep track of screws and fasteners

 Color: Black

The Bottom Trim Channel is an OEM part for GE ranges and wall ovens. This trim piece attaches along the bottom front edge of the oven cavity, creating a seamless facade.

The bottom trim channel is responsible for covering any unsightly gaps and providing a sleek, finished look. It also acts as a protective barrier, shielding internal electronics and insulation from accidental impacts or liquid spills on the counter below.

Symptoms of a bad bottom trim channel include:

• Drooping, loose, or improperly fitted trim piece
• Exposed internal components behind missing or damaged trim
• Liquids or debris accumulating behind or beneath the channel

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Glass Oven Door Outer Assembly is an OEM part for GE electric ranges. As the front enclosure of the oven cavity, it serves as a protective barrier while allowing viewing of baking and cooking functions through its see-through glass.

Symptoms of a bad glass oven door include:

• Fogging or condensation between the panes of glass indicates a seal failure
• Broken or cracked glass that compromises the structure of the door
• Difficulty opening and closing the door smoothly

Causes of a bad glass oven door can include wear and tear over time, impact damage from accidental mishandling, or heat damage from exceeding maximum recommended oven temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement trim vent door that restores the vent opening and appearance on compatible appliances. Replaces a cracked, loose, or missing vent door to help protect the vent opening and maintain proper airflow. What it does:

• Covers the exterior vent opening and provides a finished trim around the vent
• Helps prevent debris and pests from entering the vent when closed
• Replaces damaged or warped doors that stick or won't latch properly
• Restores proper door movement and a clean, finished exterior appearance

• One black trim vent door

• Disconnect power (or gas) and follow the appliance manufacturer's safety instructions before replacing parts
• Installation typically requires removing a few mounting screws; keep hardware for reuse
• Handle the part carefully to avoid scratching the finish during installation
• After installation, check that the door opens and closes freely and is securely fastened

This replacement handle and endcap assembly restores a secure, finished grip on your refrigerator door while covering the handle end for a clean appearance. It fits where the original endcap has cracked, broken, or come loose. What it does:

• Replaces a broken, cracked, or missing handle endcap to stop the handle from wobbling or pulling away
• Restores the finished look of the door by covering the exposed handle end
• Provides a direct-fit replacement that uses existing fasteners and mounting points
• Helps maintain safe, reliable door operation by securing the handle assembly

• Disconnect power to the appliance before working in or around electrical components when recommended by the manufacturer
• Typical installation uses basic hand tools; keep original fasteners unless stated otherwise
• Align the assembly carefully and snug fasteners—do not overtighten to avoid damaging plastic parts

A replacement door side frame that restores the oven door's fit and appearance. This black side trim replaces damaged or worn door framing to help the door close and seal correctly while improving cosmetic condition. What it does:

• Replaces a cracked, chipped, or warped door side frame to restore door alignment and finish
• Supports the door assembly and maintains the correct spacing for the door seal
• Addresses visible cosmetic damage and helps prevent drafts around the oven door
• Matches original mounting points for a direct fit when the correct OEM part is used

• One (1) door side frame (black)

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Remove the oven door or open it to the service position per the manufacturer's instructions for safe access
• Handle glass and painted surfaces carefully to avoid scratches; use proper fasteners and torque per OEM guidance

This right-side door trim bracket secures the exterior trim to the appliance door, restoring a flush, finished appearance and preventing the trim from coming loose. Designed to replace a damaged or missing right-hand bracket. What it does:

• Holds the door trim in place on the right side to maintain alignment and appearance
• Prevents trim gaps, vibration noise, and rattling caused by a loose or broken bracket
• Restores proper trim attachment after collision, wear, or failed fasteners
• Works with the factory trim assembly to ensure a straight, secure fit

• One right-side door trim bracket

• Use basic hand tools; retain any reusable screws or clips unless damaged
• Power off and unplug the appliance before starting work for safety
• Align the bracket and trim before tightening fasteners to avoid cracking the trim
• Replace missing or damaged clips or screws with OEM-specified fasteners

This left-hand door handle bracket secures the refrigerator door handle to the door, restoring a stable grip and proper handle alignment. Durable replacement part helps stop a loose or wobbly handle and keeps the door operating smoothly. What it does:

• Mounts the door handle to the left side of the refrigerator door
• Provides a secure anchor to prevent handle movement or sagging
• Restores proper handle alignment for comfortable opening and closing
• Helps eliminate rattling or looseness when the door is used

• One left-hand door handle bracket

• Designed for direct replacement; inspect mounting screws and handle for wear before installing
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the bracket
• Disconnect power only when working near electrical components; follow appliance safety guidance
• If screws or handle hardware are missing or damaged, replace those parts as well

Oven doors utilize door hinges to open and close efficiently. There is a door hinge attached to opposite ends of the door, and the part is also connected to the range. With time, the hinges can wear out, get damaged, or break off. When the hinges are no longer functioning correctly, replacement parts are necessary to continue using the appliance.An indication that there is a problem with the door hinge on an oven door is difficulty opening or closing or a door that partially slips on one side or the other out of position. A visual inspection will determine the condition of a door hinge. The replacement of the piece is simple. Unplug the range from its power source before starting the repair. Wear gloves for protection. Check the condition of both hinges before ordering. This door hinge is an authentic OEM replacement part. It is sourced directly from the manufacturer. The piece is sold as an individual unit. The door hinge fits several different models of ranges. The replacement part is compatible with appliances produced by General Electric, Hotpoint, and RCA. It is manufactured using high-quality, durable metal materials.

The Window Pack Assembly is an OEM replacement part for GE electric ranges. It comprises the outer oven window and securing brackets that hold the glass in place.

Causes of failure can include cracks in the glass from impact or thermal stress over time. Mounting brackets may loosen from normal use.

Symptoms of a faulty window pack assembly include:

• Fogging or condensation between panes of glass
• Leaks evident around the perimeter of the oven window
• Window that rocks or wiggles in the frame
• Inability to securely latch the window shut

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore oven models.

A silicon-controlled rectifier (SCR) used on appliance control boards to regulate power to motors, igniters or other loads. Replacing a faulty SCR can restore proper power switching and steady operation of the driven component. What it does:

• Acts as a power-switching semiconductor in appliance electronic control circuits to allow current flow only when triggered.
• Enables controlled delivery of voltage/current to motors, igniters and similar loads on the control board.
• A failing SCR can cause symptoms such as no power to a motor or igniter, intermittent operation, or complete failure of the driven component.
• Match the SCR package and electrical ratings to the control board before replacing.

• Disconnect all power to the appliance before accessing control electronics to avoid shock or damage.
• Take electrostatic-discharge (ESD) precautions; handle the SCR by its body and avoid touching leads.
• Package orientation and electrical ratings on the control board and wiring before installation.

This spacer positions and supports appliance panels and components to maintain correct alignment and clearances, helping reduce panel movement and ensure proper fit. It's a simple replacement that restores intended spacing where worn or missing. What it does

• Provides consistent spacing between panels or components to prevent rubbing or misalignment
• Helps stabilize trim, panels, or assemblies that sit flush against the cabinet
• Used when gaps, loose panels, or misaligned trim are present

• One spacer

• Disconnect power to the appliance before servicing to avoid shock or injury
• Inspect surrounding fasteners and mounting points; replace any damaged screws or clips
• Install in the same orientation and location as the original spacer; do not force into place

This 10-32 threaded screw fastens appliance panels and components, restoring secure attachments and reducing vibration. It's a direct-fit fastener for assemblies that use a standard 10-32 UNC machine screw. What it does

• Secures control panels, brackets, and internal components that use a 10-32 thread.
• Stops loose parts that can rattle, vibrate, or cause misalignment.
• Replaces stripped, missing, or damaged 10-32 screws to restore proper fit.
• Works where a short machine screw with a 10-32 thread is required.

• One 10-32 threaded screw.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or nut driver for the screw head to avoid stripping.
• Install matching thread engagement; do not force or cross-thread.
• Tighten snugly but avoid over-torquing to prevent damage to mounting holes or plastic parts.

This silicon controlled rectifier (SCR) is an electrical switching component used to control power to heating or motor circuits, restoring proper on/off control for affected appliance functions. What it does:

• Regulates power flow in heater and motor control circuits to enable correct cycling
• Helps control startup and run voltage to motors and heating elements
• Commonly linked to symptoms like no power to heater or motor, intermittent operation, or erratic cycling
• Works as a replacement component on control assemblies that use a discrete SCR

• Disconnect all power to the appliance before accessing electrical components
• SCRs are static-sensitive and may require careful handling; use ESD precautions
• May be soldered or mounted to terminals; confirm mounting and connector type before installation
