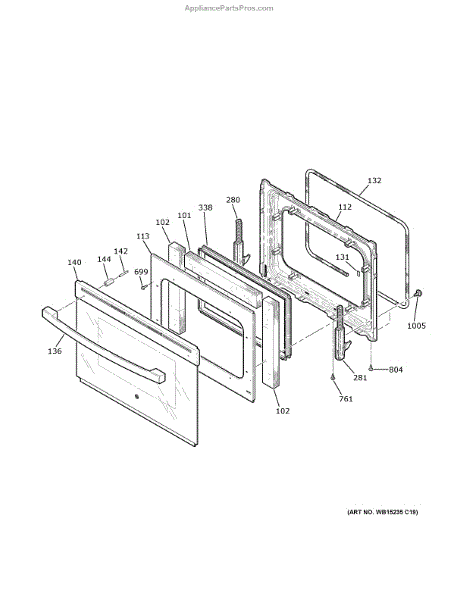

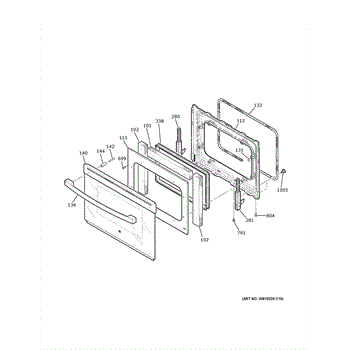

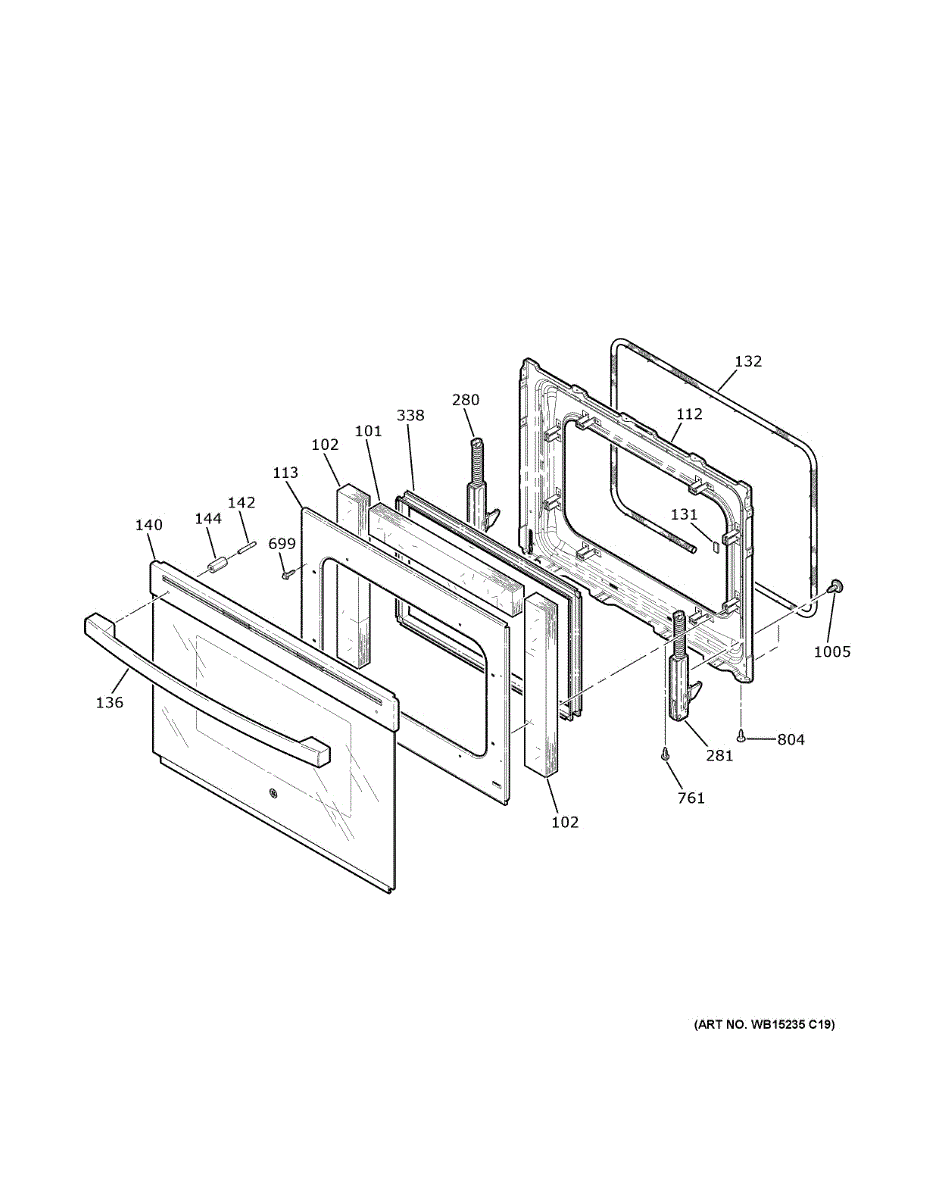

Parts for Ge JD630SFASS: Door Parts

Parts for Ge JD630SFASS: Door Parts

Location on Diagram
Part Description
Price & Availability
101
4.0 (1)
By: Ge
Part Number: WB35X30052

Insulation pad that installs behind the oven inner door liner to retain heat. Replace if worn, damaged, water-logged, or missing to restore proper insulation.

More
$7.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
102
By: Ge
Part Number: WB35X30053

This oven door insulation side panel fits inside the oven door to help reduce heat transfer and improve cooking consistency. It replaces damaged or missing insulation to help maintain proper oven temperatures and protect the door assembly. What it does

  • Helps retain heat inside the oven for more even cooking and efficient operation
  • Reduces exterior door temperature by insulating the inner door cavity
  • Prevents hot spots and heat loss caused by torn, compressed, or missing insulation
  • Supports the oven door structure and helps keep inner components protected
What's included One oven door insulation side panel Install notes
  • Disconnect power to the appliance before servicing to avoid shock or injury
  • Remove the oven door per the manufacturer instructions to access internal insulation
  • Handle insulation and door components carefully; wear gloves and eye protection
  • Follow OEM instructions for reassembly and proper placement of the insulation panel

More
$9.88

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
112
By: Ge
Part Number: WB63X32774
$92.68

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
113
By: Ge
Part Number: WB02T10371

Secures insulation inside the oven door to prevent shifting and maintain heat containment. Replace if clip is cracked, broken, or missing.

More
$44.22

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
132
Product photo
By: Ge
Part Number: WB04T10076

The Oven Door Gasket is an OEM part for GE ranges. This gasket is responsible for creating an air-tight seal between the door and the oven housing. It allows heat to be properly contained within the oven cavity during the cooking process.

Causes of a bad gasket can include warping, cracking, or breakdown of the gasket material over repeated heating and cooling cycles. Exposure to excessive heat or impact damage is also possible.

Symptoms of a bad gasket include:

  • Inability to maintain proper oven temperatures
  • Leaks of heat, smoke, or flames from the door seal area
  • Drafts or cold spots felt around the door perimeter
  • Difficulty in fully latching the oven door closed

This OEM GE replacement gasket is also compatible with Hotpoint, RCA, and some Kenmore models.

More
$42.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
136
Product photo
By: Ge
Part Number: WB15X41198

Color: Stainless Steel

The Handle is an OEM part for GE ranges. It is the outer handle used to open and close the oven door. The handle plays an important role in providing an easy grip to safely access the oven interior.

Causes of a bad handle could include damage over time due to repeated use, chemical exposure from spills or cleaners, or loss of integrity from excessive heat.

Symptoms of a bad handle include:

  • Loose fit or sensation when opening/closing the oven door
  • Visible cracks, chips, or discoloration of the handle material
  • Difficulty gripping or lifting the handle
  • Potential safety issues if the handle breaks off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

More
$57.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
142
By: Ge
Part Number: WB02X36025

Stabilizes and aligns the range frame where the spacer sits. Replace if cracked, broken, or missing to restore proper fit and prevent gaps or rubbing.

More
$19.55

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
144
By: Ge
Part Number: WB02X25272

Door spacer for electric ranges. Installs between door panels to maintain proper spacing and alignment. Replace if cracked, broken, or missing.

More
$5.15

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
280
By: Ge
Part Number: WB10X30491

This left door hinge secures and pivots a refrigerator or freezer door so it opens and closes smoothly. Replacing a worn hinge restores proper door alignment and helps the seal close evenly to maintain temperature. What it does:

  • Provides the pivot point that supports the door and allows smooth opening/closing
  • Restores correct door alignment to help prevent sagging or uneven gaps
  • Reduces binding or scraping that can occur with worn or bent hinges
  • Helps the door seal fully to reduce cool-air loss and compressor overwork
What's included: One left door hinge Install notes:
  • Unplug the appliance and empty/secure the door before starting work
  • Support the door while removing and installing the hinge to prevent dropping or damage
  • Use the existing screws or included hardware as specified by the OEM; tighten fasteners securely

More
$19.81

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
281
By: Ge
Part Number: WB10X30492
$21.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
761
Product photo
By: Ge
Part Number: WB01T10110
$9.88

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
