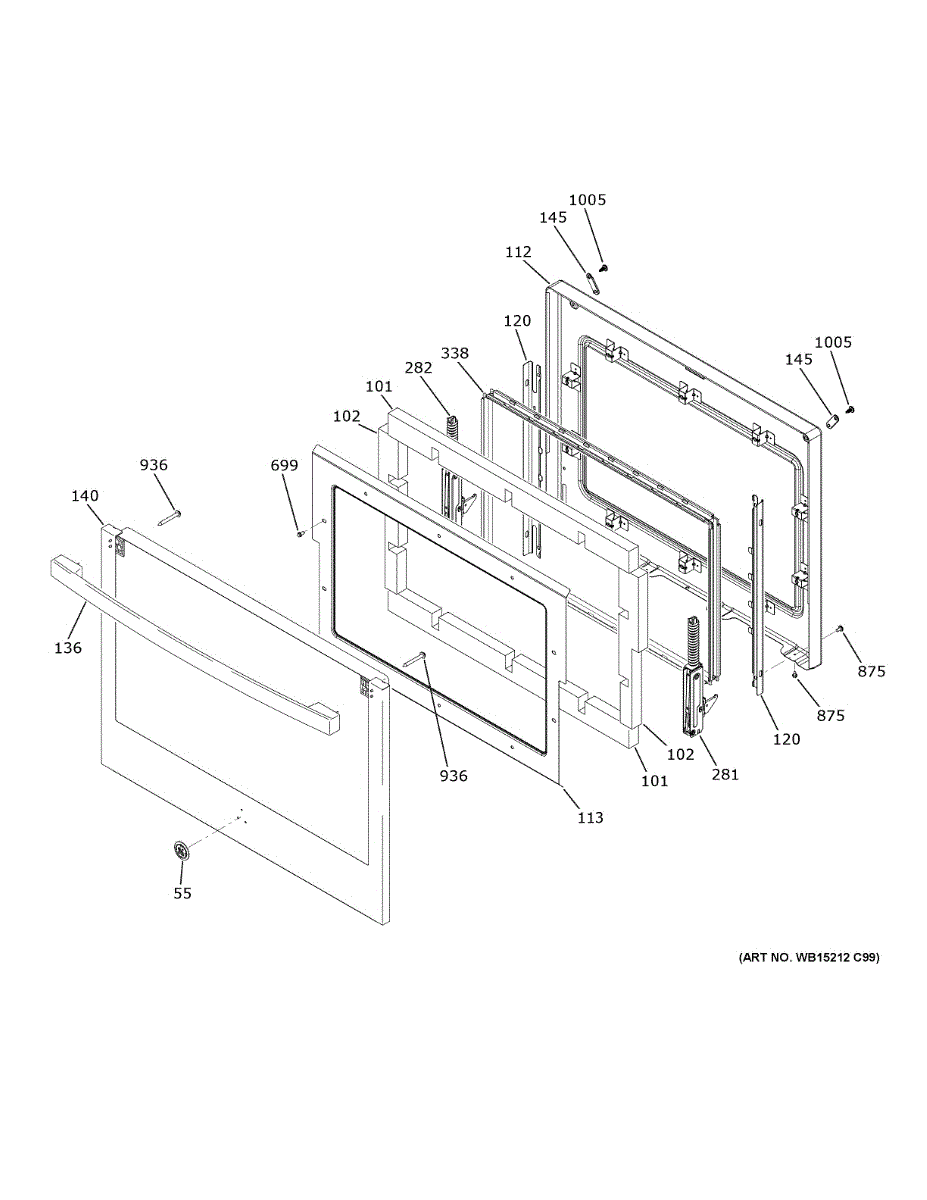

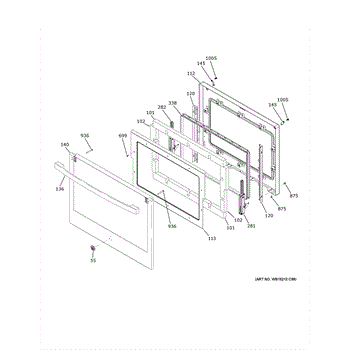

Parts for Ge JKS5000DN2BB: Door Parts

This oven door liner is the inner metal panel that forms the inside surface of the oven door, restoring structural support and the finished interior appearance. Replaces a damaged or warped liner to help the door seal and support the inner glass. What it does:

• Provides the interior surface and structural backing for the oven door and inner glass
• Restores proper alignment and support when liner is dented, cracked, or bent
• Helps maintain the door's sealing surface to reduce heat loss and maintain cooking performance
• Prevents contact between the inner glass and insulation or components

• Disconnect power to the appliance before starting and allow all surfaces to cool completely
• Handle glass and metal edges with care; wear gloves and eye protection
• Installation typically requires removing the oven door and inner glass; follow the oven manufacturer's instructions

A replacement liner support that secures the refrigerator cabinet liner and keeps interior trim and panels aligned for a proper seal and appearance. Restores stability to cracked or broken support points. What it does:

• Holds the cabinet liner and interior trim in position to prevent gaps and movement
• Helps maintain door seal alignment by keeping liner edges stable
• Reduces rattling or shifting caused by a damaged support
• Commonly replaced when liner pieces are cracked, broken, or loose

• One liner support

• Disconnect power to the appliance before beginning any repair
• Remove food, shelves, and trim pieces as needed to access the damaged support
• This part typically secures with clips or fasteners; inspect existing hardware and replace if necessary

This outer door assembly replaces a damaged or cosmetically worn refrigerator door to restore appearance and proper sealing. It provides the finished exterior panel and attachment points needed for a clean, factory look. What it does:

• Replaces a scratched, dented, or dent-prone outer door surface to improve appliance appearance
• Restores proper alignment and sealing where the outer door shell contributes to door fit
• Provides the factory exterior panel and mounting locations for inner components and trim
• Helps eliminate rattles or gaps caused by a bent or cracked outer door

• Designed to mount to the existing inner door and hinges; reuse existing gasket, trim, and hardware unless replacement is specified
• Inspect inner door components and fasteners during installation; tighten to manufacturer torque specs
• Disconnect power and remove food from door shelves before starting work on refrigerators with electrical components in the door

This door liner plug snaps into the inner door liner to cover fastener or access holes. It restores a clean, finished look and helps keep grease and debris from entering the door assembly.

• Covers exposed holes in the inner door liner
• Replaces a missing, loose, or damaged plug/cap
• Helps protect the door cavity from splashes and debris
• Restores a neat, factory-finished appearance

• Disconnect power before servicing; for gas ranges, also shut off gas. Allow the appliance to cool completely.
• Open the door and gently pry out the old plug with a plastic trim tool or flat-blade screwdriver.
• Align and press the new plug into the liner until it seats flush.
• Support glass and follow the manufacturer's instructions.

The Window Pack Assembly is an OEM part for GE ranges. This part includes the glass window and frame, which provide a clear view into the oven cavity, allowing you to monitor the cooking process without opening the door and losing heat.

Causes of a bad window pack assembly can include wear and tear over time, thermal stress from repeated heating and cooling cycles, or physical damage from impacts.

Symptoms of a bad Window Pack Assembly include:

• Cracks or breaks in the glass
• Difficulty seeing through the window due to fogging or staining
• Heat escaping from the oven door, making the outer surface excessively hot
• Visible damage or wear to the frame or seal

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models..

This hex-head machine screw has a 10-32 thread and measures 1-3/4 inches long. Use it to replace a missing, stripped, or rusted fastener and restore a secure fit where this exact size is specified.

• Secures brackets, panels, and internal components requiring a 10-32 x 1-3/4 in hex-head screw
• Restores proper alignment and mounting integrity
• Replaces damaged, corroded, or lost hardware
• Can help resolve symptoms like loose/rattling parts or shifting components

• Disconnect power (and shut off gas, if applicable) before servicing; allow appliance to cool
• Remove the old screw, align parts, and start the new screw by hand to avoid cross-threading
• Tighten snugly but do not overtighten
• Reuse any original washers or spacers if present
