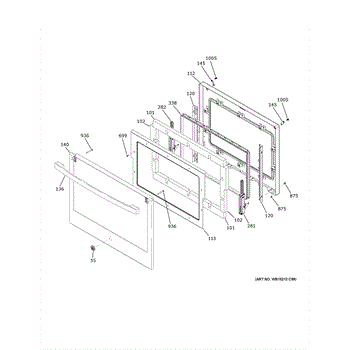

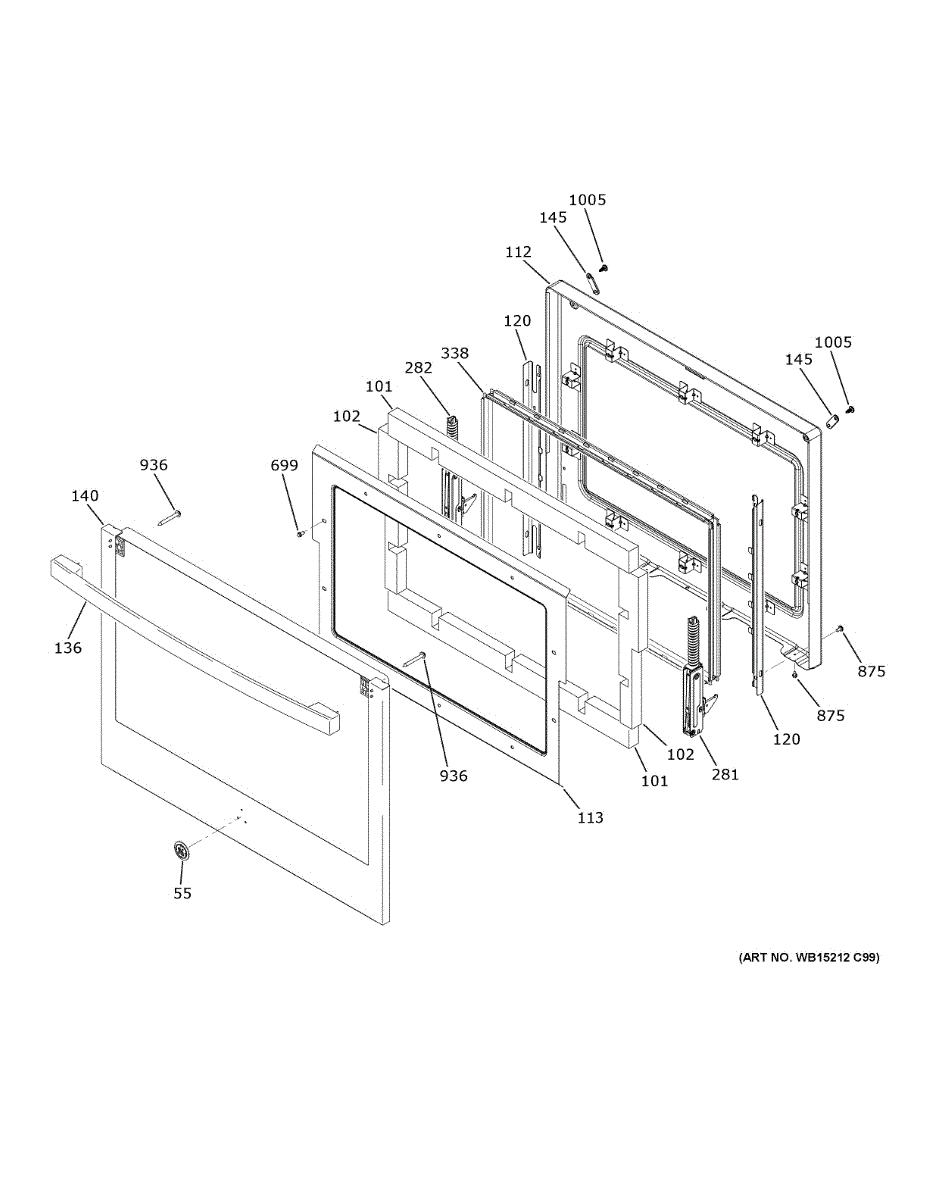

Parts for Ge JKS5000SN2SS: Door Parts

The Badge Assembly is an OEM part for GE ranges. It includes the magnetic decorative badge affixed to the front of the range. This badge displays important information such as the brand name, model number, and technical specifications.

Causes of a bad badge assembly can include damage from impacts or abrasions over time, adhesive failure from repeated heat exposure, or normal wear from routine cleaning. On a range, the badge must withstand higher cooking temperatures.

Symptoms of a bad badge assembly include:

• Faded or illegible print on the badge face
• Cracks or breaks in the plastic material
• The badge lifting or peeling away from the surface
• Missing or loose attachment clips/fasteners

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven door liner is the inner metal panel that forms the inside surface of the oven door, restoring structural support and the finished interior appearance. Replaces a damaged or warped liner to help the door seal and support the inner glass. What it does:

• Provides the interior surface and structural backing for the oven door and inner glass
• Restores proper alignment and support when liner is dented, cracked, or bent
• Helps maintain the door's sealing surface to reduce heat loss and maintain cooking performance
• Prevents contact between the inner glass and insulation or components

• Disconnect power to the appliance before starting and allow all surfaces to cool completely
• Handle glass and metal edges with care; wear gloves and eye protection
• Installation typically requires removing the oven door and inner glass; follow the oven manufacturer's instructions

A replacement liner support that secures the refrigerator cabinet liner and keeps interior trim and panels aligned for a proper seal and appearance. Restores stability to cracked or broken support points. What it does:

• Holds the cabinet liner and interior trim in position to prevent gaps and movement
• Helps maintain door seal alignment by keeping liner edges stable
• Reduces rattling or shifting caused by a damaged support
• Commonly replaced when liner pieces are cracked, broken, or loose

• One liner support

• Disconnect power to the appliance before beginning any repair
• Remove food, shelves, and trim pieces as needed to access the damaged support
• This part typically secures with clips or fasteners; inspect existing hardware and replace if necessary

This stainless steel handle and end cap assembly replaces a worn or damaged oven/range door handle, restoring a secure grip and a clean, finished look. Designed for direct fit on compatible GE ovens and ranges. What it does:

• Provides a sturdy, corrosion-resistant grip for opening and closing the oven/range door
• Replaces scratched, dented, or loose handles to improve function and appearance
• Helps restore proper door operation when original handle is bent or broken
• Matches stainless finishes for a cohesive exterior look

• Handle attaches with hidden screws—retain mounting hardware if reusing
• Disconnect power to the appliance and allow the oven to cool before installing
• Use appropriate hand tools and avoid overtightening screws to prevent stripping or damage

This outer door panel replaces a damaged or worn stainless steel exterior on select GE ovens to restore appearance and protect internal door components. It provides the outer shell that you see and touch on the oven door. What it does:

• Replaces a dented, scratched or corroded outer door surface to improve aesthetics
• Restores the oven's exterior protection for inner door insulation and glass
• Helps maintain proper door alignment when used with original inner parts and hardware
• Matches the stainless finish used on applicable OEM oven models

• One stainless steel outer door panel

• Power off and disconnect the appliance before starting; follow OEM service instructions
• Door removal and reinstallation may require two people to avoid dropping or bending the panel
• Reuse original screws, brackets and inner door components unless replacements are specified

This door liner plug snaps into the inner door liner to cover fastener or access holes. It restores a clean, finished look and helps keep grease and debris from entering the door assembly.

• Covers exposed holes in the inner door liner
• Replaces a missing, loose, or damaged plug/cap
• Helps protect the door cavity from splashes and debris
• Restores a neat, factory-finished appearance

• Disconnect power before servicing; for gas ranges, also shut off gas. Allow the appliance to cool completely.
• Open the door and gently pry out the old plug with a plastic trim tool or flat-blade screwdriver.
• Align and press the new plug into the liner until it seats flush.
• Support glass and follow the manufacturer's instructions.

The Window Pack Assembly is an OEM part for GE ranges. This part includes the glass window and frame, which provide a clear view into the oven cavity, allowing you to monitor the cooking process without opening the door and losing heat.

Causes of a bad window pack assembly can include wear and tear over time, thermal stress from repeated heating and cooling cycles, or physical damage from impacts.

Symptoms of a bad Window Pack Assembly include:

• Cracks or breaks in the glass
• Difficulty seeing through the window due to fogging or staining
• Heat escaping from the oven door, making the outer surface excessively hot
• Visible damage or wear to the frame or seal

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models..

This hex-head machine screw has a 10-32 thread and measures 1-3/4 inches long. Use it to replace a missing, stripped, or rusted fastener and restore a secure fit where this exact size is specified.

• Secures brackets, panels, and internal components requiring a 10-32 x 1-3/4 in hex-head screw
• Restores proper alignment and mounting integrity
• Replaces damaged, corroded, or lost hardware
• Can help resolve symptoms like loose/rattling parts or shifting components

• Disconnect power (and shut off gas, if applicable) before servicing; allow appliance to cool
• Remove the old screw, align parts, and start the new screw by hand to avoid cross-threading
• Tighten snugly but do not overtighten
• Reuse any original washers or spacers if present
