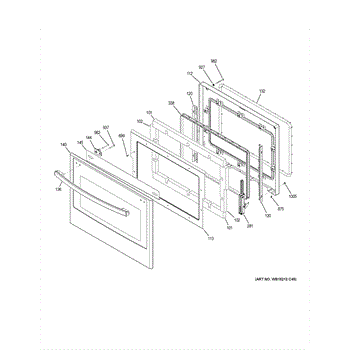

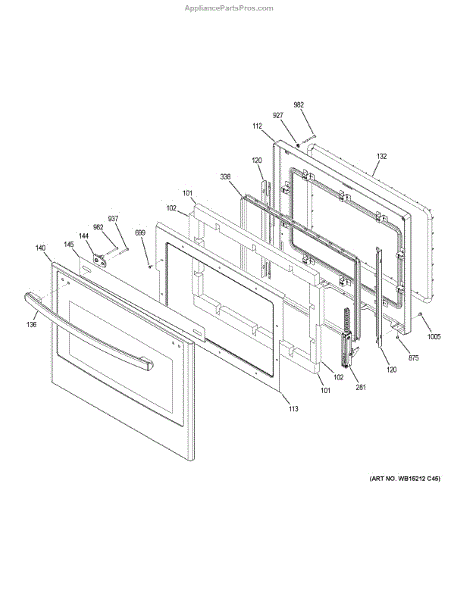

Parts for Ge PT7800DH9BB: Door Parts

This door insulation retainer is a small plastic clip that secures insulation inside a refrigerator/freezer door to help maintain proper temperature and reduce noise. It replaces worn or missing retainers to keep the door liner insulation in place. What it does:

• Secures the door insulation to the inner door liner so insulation stays positioned
• Helps prevent insulation from shifting or sagging that can affect door seal performance
• Commonly used when insulation falls out or the liner shows gaps around the insulation
• Works as a direct-fit replacement for the original retainer designed for the door assembly

• One door insulation retainer clip

• Installation generally requires removing the door panel or liner; keep track of fasteners and trim
• Handle the door liner and insulation carefully to avoid damage or tearing the insulation
• Use proper tools and disconnect power if working near electrical components or lights
• Replace all affected clips for an even, secure fit

A replacement liner support that secures the refrigerator cabinet liner and keeps interior trim and panels aligned for a proper seal and appearance. Restores stability to cracked or broken support points. What it does:

• Holds the cabinet liner and interior trim in position to prevent gaps and movement
• Helps maintain door seal alignment by keeping liner edges stable
• Reduces rattling or shifting caused by a damaged support
• Commonly replaced when liner pieces are cracked, broken, or loose

• One liner support

• Disconnect power to the appliance before beginning any repair
• Remove food, shelves, and trim pieces as needed to access the damaged support
• This part typically secures with clips or fasteners; inspect existing hardware and replace if necessary

The Oven door gasket is an OEM part for GE wall ovens and ranges. It fits around the inner rim of the oven door, creating an essential heat and air seal when closed.

Symptoms of a bad door gasket include:

• Excessive heat loss around the door when preheating or cooking
• Ghosting or condensation buildup visible on the door glass
• Worn or misshapen gasket that no longer presses firmly against the door rim

Gasket material naturally hardens over time through repeated exposure to temperature changes. Accidental damage from cleaning can also impact the gasket's integrity. Replacing it with this genuine GE part helps maintain an efficient cooking environment.

This OEM GE replacement gasket is also compatible with some Kenmore, Hotpoint, and RCA wall oven and range models. Proper sealing is important for energy efficiency as well as consistent cooking results.


This refrigerator door handle assembly provides a durable replacement for a cracked, loose or broken exterior handle, restoring a secure grip and the appliance's finished appearance. What it does:

• Replaces a worn, cracked or broken refrigerator door handle to restore proper gripping and door operation
• Stops handle wobble and prevents further damage to the door edge or gasket
• Improves appearance by replacing faded or scuffed handles
• Fits where the OEM WB15X37134 handle assembly is specified

• Unplug the appliance or shut off power before beginning any work
• Remove the old handle by loosening the visible screws; keep or verify mounting hardware compatibility before discarding
• Use basic hand tools (screwdriver, possibly a Torx) and avoid over-tightening fasteners to prevent cracking

The Black Outer Door is an OEM replacement for GE wall ovens. As the front-facing exterior component, it represents the style and finish of the entire appliance.

Causes of a bad outer door can include scratches or other surface damage accumulated through regular opening and closing motions. Overheating from occasional oven usage may cause the black enamel coating to peel or flake off over time as well.

Symptoms of a bad outer door include:

• Dents, cracks or severe scratches marring the exterior appearance
• Peeling, chipped or missing black enamel coating
• Difficulty properly latching or sealing the door shut during bakes
• The door failing to stay securely closed while in use

This genuine GE replacement is also compatible with Hotpoint, RCA or select Kenmore wall oven models.

This support handle replaces the damaged or worn support used to stabilize and operate the appliance door/handle, restoring secure opening and closing and improving fit and appearance. What it does

• Replaces a broken or cracked support that lets the door or handle sit and move correctly
• Restores stable, even handle alignment for smooth opening and closing
• Helps eliminate wobbling, sagging, or loose-handle symptoms
• Returns the door/handle to proper function and appearance

• Disconnect power to the appliance before starting any work
• Remove the door or access panel per the service manual to reach the support if required
• Use appropriate hand tools (screwdriver or nut driver) and avoid overtightening fasteners

The Window Pack Assembly is an OEM part for GE ovens. This component includes the oven door window and its associated parts, providing visibility into the oven cavity during cooking. It helps retain heat within the oven while allowing users to monitor the cooking process without opening the door.

Causes of a bad window pack assembly can include thermal stress from repeated heating and cooling, accidental impact, or general wear and tear. A damaged window can compromise the oven's efficiency and safety by allowing heat to escape.

Symptoms of a bad window pack assembly include:

• Cracks or damage to the window glass
• Heat escaping from the oven door
• Condensation or discoloration between the window panes
• Difficulty seeing through the window during cooking

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This contoured washer is a shaped fastening washer used on compatible GE top-load washers to secure and cushion mating parts. It helps maintain proper alignment and reduces wear where parts bear against each other. What it does

• Provides a contoured bearing surface to help distribute load and reduce point wear
• Cushions and isolates components to help limit vibration and noise
• Secures fasteners or assemblies in tight, shaped recesses
• Helps maintain correct part alignment for reliable operation

• One contoured washer

• Disconnect power to the washer before servicing to avoid shock or injury
• Use proper tools and observe orientation; tighten fasteners to manufacturer guidance

This hex-head machine screw has a 10-32 thread and measures 1-3/4 inches long. Use it to replace a missing, stripped, or rusted fastener and restore a secure fit where this exact size is specified.

• Secures brackets, panels, and internal components requiring a 10-32 x 1-3/4 in hex-head screw
• Restores proper alignment and mounting integrity
• Replaces damaged, corroded, or lost hardware
• Can help resolve symptoms like loose/rattling parts or shifting components

• Disconnect power (and shut off gas, if applicable) before servicing; allow appliance to cool
• Remove the old screw, align parts, and start the new screw by hand to avoid cross-threading
• Tighten snugly but do not overtighten
• Reuse any original washers or spacers if present

This is a 10-18 x 3/4 inch Torx T20 screw used to secure appliance panels and components. It replaces missing, stripped, or damaged fasteners to restore a tight, rattle-free fit. What it does:

• Secures control panels, trim pieces, and internal components where a 10-18 x 3/4 in fastener is specified
• Restores proper alignment and reduces vibration or rattling caused by loose or missing screws
• Replaces stripped or damaged screws to allow proper fastening and safe operation
• Matches Torx T20 drive for secure bit engagement and reduced cam-out

• One 10-18 x 3/4 in Torx T20 screw

• Use the correct Torx T20 driver; avoid over-tightening which can strip threads or damage components
• Disconnect power to the appliance and follow manufacturer service instructions when working near electrical components
• If screws repeatedly loosen, inspect mating threads or clip/mounting hardware for wear
