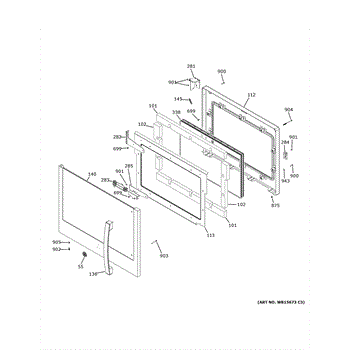

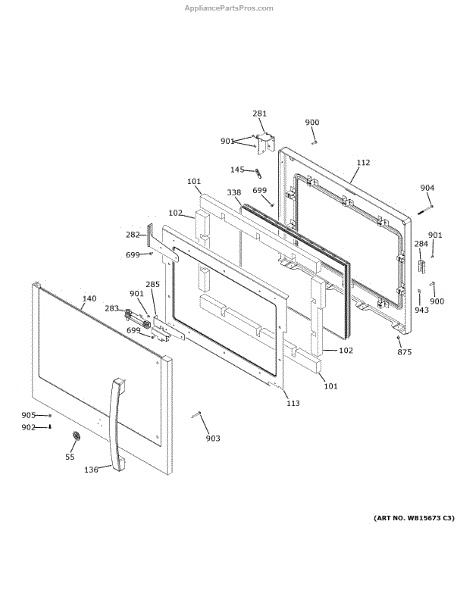

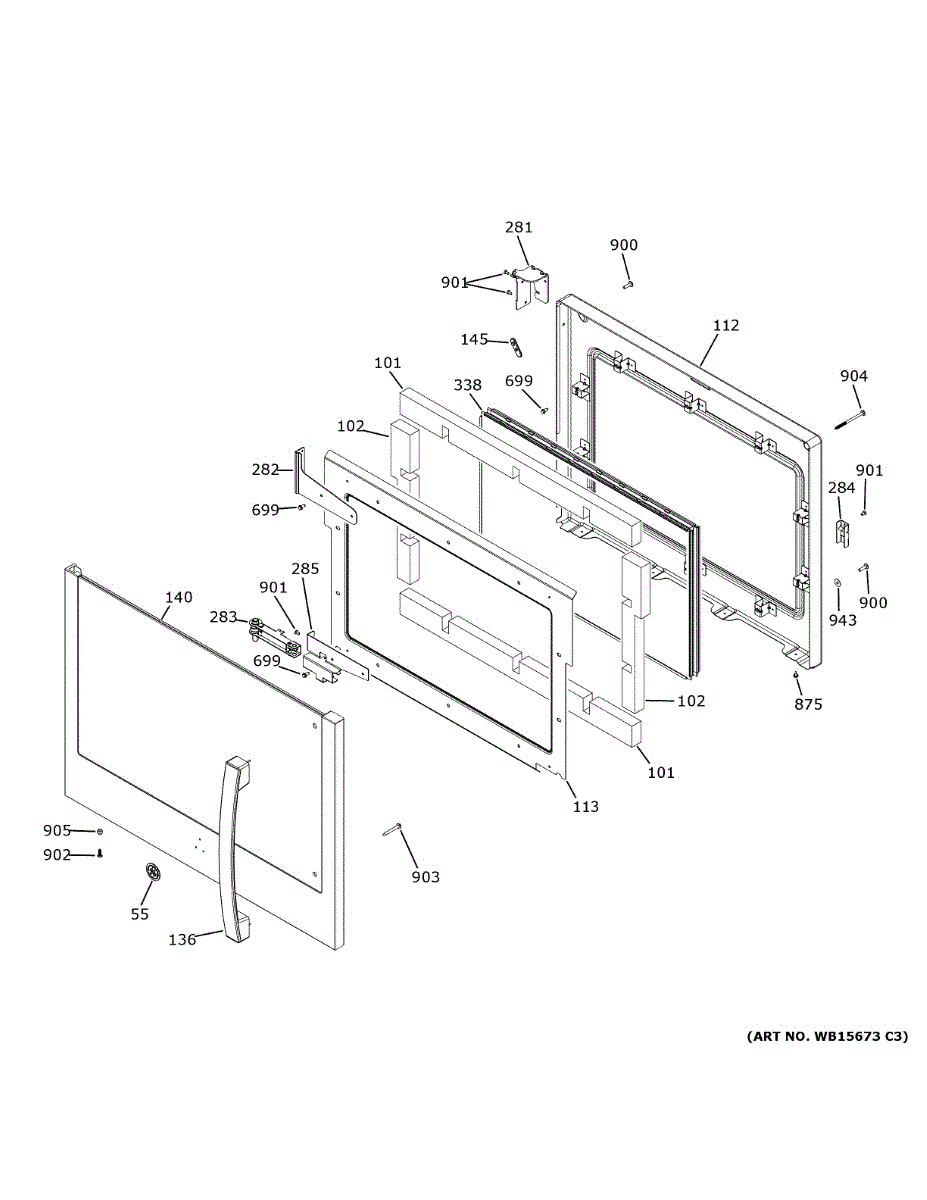

Parts for Ge PTS700LSN1SS: Door Parts

The Badge Assembly is an OEM part for GE ranges. It includes the magnetic decorative badge affixed to the front of the range. This badge displays important information such as the brand name, model number, and technical specifications.

Causes of a bad badge assembly can include damage from impacts or abrasions over time, adhesive failure from repeated heat exposure, or normal wear from routine cleaning. On a range, the badge must withstand higher cooking temperatures.

Symptoms of a bad badge assembly include:

• Faded or illegible print on the badge face
• Cracks or breaks in the plastic material
• The badge lifting or peeling away from the surface
• Missing or loose attachment clips/fasteners

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a 10-18 x 3/4 inch Torx T20 screw used to secure appliance panels and components. It replaces missing, stripped, or damaged fasteners to restore a tight, rattle-free fit. What it does:

• Secures control panels, trim pieces, and internal components where a 10-18 x 3/4 in fastener is specified
• Restores proper alignment and reduces vibration or rattling caused by loose or missing screws
• Replaces stripped or damaged screws to allow proper fastening and safe operation
• Matches Torx T20 drive for secure bit engagement and reduced cam-out

• One 10-18 x 3/4 in Torx T20 screw

• Use the correct Torx T20 driver; avoid over-tightening which can strip threads or damage components
• Disconnect power to the appliance and follow manufacturer service instructions when working near electrical components
• If screws repeatedly loosen, inspect mating threads or clip/mounting hardware for wear

This is a #8-18 x 5/8 inch oval-head stainless steel screw used to secure panels and components on compatible GE appliances. It replaces missing or damaged fasteners to restore a secure fit and reduce vibration or rattling. What it does

• Secures trim, access panels, brackets or small components in place
• Restores proper alignment when a lost or stripped screw causes loose parts
• Helps eliminate rattling, vibration, or intermittent contact caused by missing fasteners
• Corrosion-resistant stainless finish for longer life in appliance environments

• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread damage or cracking nearby plastic
• Power tools can be used carefully on low torque settings
• Replace any stripped mating nuts or threaded inserts for secure fastening

This hex-head machine screw has a 10-32 thread and measures 1-3/4 inches long. Use it to replace a missing, stripped, or rusted fastener and restore a secure fit where this exact size is specified.

• Secures brackets, panels, and internal components requiring a 10-32 x 1-3/4 in hex-head screw
• Restores proper alignment and mounting integrity
• Replaces damaged, corroded, or lost hardware
• Can help resolve symptoms like loose/rattling parts or shifting components

• Disconnect power (and shut off gas, if applicable) before servicing; allow appliance to cool
• Remove the old screw, align parts, and start the new screw by hand to avoid cross-threading
• Tighten snugly but do not overtighten
• Reuse any original washers or spacers if present
