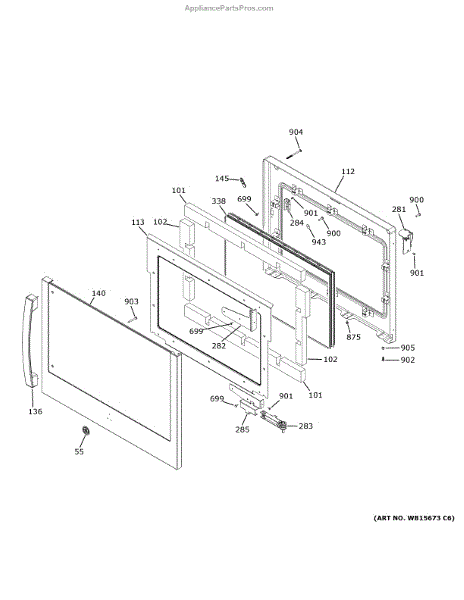

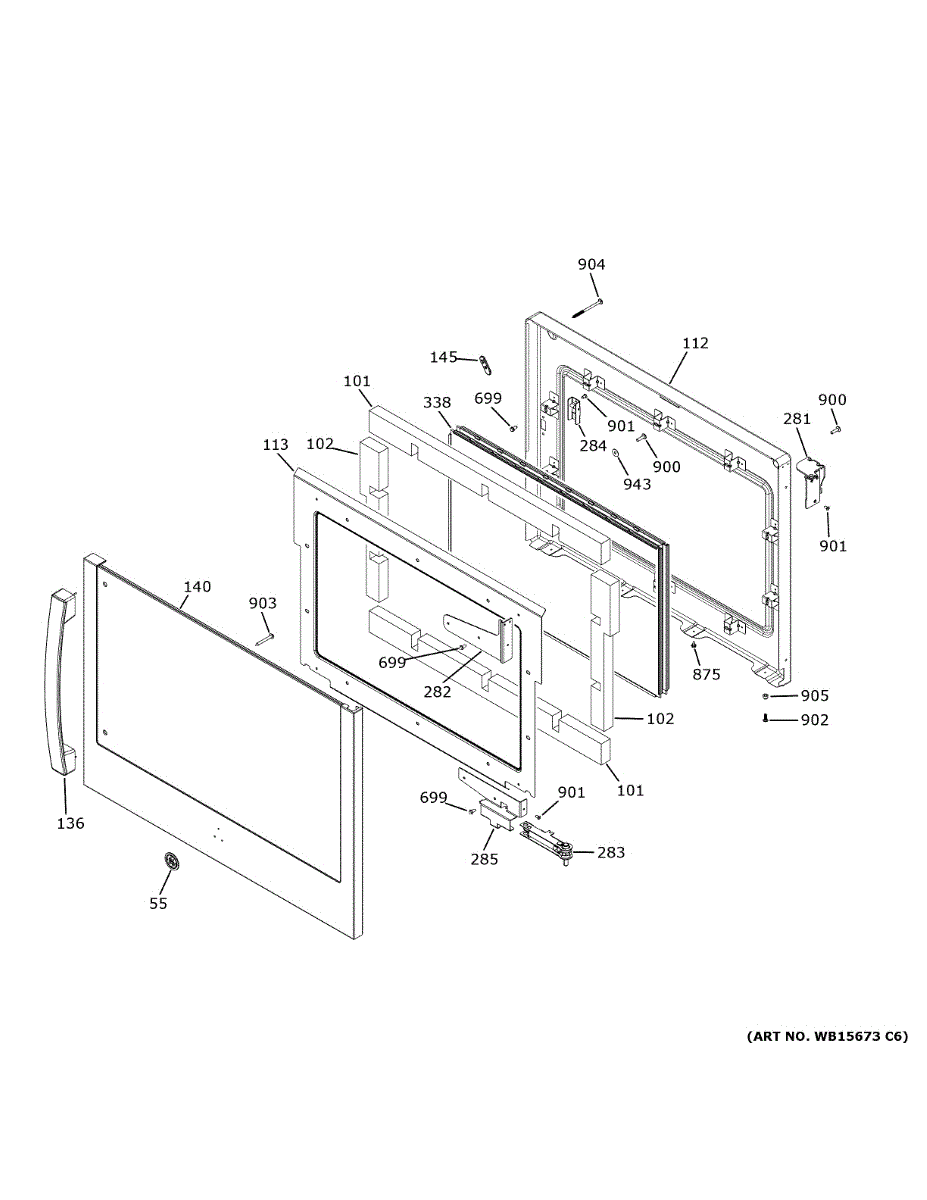

Parts for Ge PTS700RSN2SS: Door Parts

The Badge Assembly is an OEM part for GE ranges. It includes the magnetic decorative badge affixed to the front of the range. This badge displays important information such as the brand name, model number, and technical specifications.

Causes of a bad badge assembly can include damage from impacts or abrasions over time, adhesive failure from repeated heat exposure, or normal wear from routine cleaning. On a range, the badge must withstand higher cooking temperatures.

Symptoms of a bad badge assembly include:

• Faded or illegible print on the badge face
• Cracks or breaks in the plastic material
• The badge lifting or peeling away from the surface
• Missing or loose attachment clips/fasteners

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

A stainless outer right door hinge that secures the refrigerator/freezer door and helps maintain proper alignment for smooth opening and closing. Replaces a worn or damaged hinge to restore door fit and function. What it does:

• Supports the door at the right side and guides hinge movement for stable operation
• Helps keep the door properly aligned to maintain a consistent seal
• Commonly replaced when the door sags, binds, rubs, or fails to stay closed
• Durable stainless finish resists corrosion where exposed

• Disconnect power to the appliance and remove or support the door before removing the hinge
• Retain original fasteners and note hinge orientation for reinstallation
• Use proper tools and avoid forcing misaligned parts; check door alignment after installation

This upper right refrigerator door hinge secures the door to the cabinet and helps the door open and close smoothly. It restores proper alignment and prevents sagging for reliable sealing and operation. What it does:

• Supports the upper right side of the refrigerator door and keeps it aligned
• Enables smooth opening and closing of the door without binding
• Helps the door seal properly to maintain cooling performance
• Commonly replaced when the door sags, rubs, or hangs unevenly

• One upper right refrigerator door hinge

• Disconnect power to the appliance before starting any repair
• Support the door while removing and installing the hinge to prevent injury or damage
• Use basic hand tools; follow the appliance manufacturer's instructions for torque and fastener placement
• Inspect hinge mating surfaces and screws; replace damaged hardware as needed

This is a 10-18 x 3/4 inch Torx T20 screw used to secure appliance panels and components. It replaces missing, stripped, or damaged fasteners to restore a tight, rattle-free fit. What it does:

• Secures control panels, trim pieces, and internal components where a 10-18 x 3/4 in fastener is specified
• Restores proper alignment and reduces vibration or rattling caused by loose or missing screws
• Replaces stripped or damaged screws to allow proper fastening and safe operation
• Matches Torx T20 drive for secure bit engagement and reduced cam-out

• One 10-18 x 3/4 in Torx T20 screw

• Use the correct Torx T20 driver; avoid over-tightening which can strip threads or damage components
• Disconnect power to the appliance and follow manufacturer service instructions when working near electrical components
• If screws repeatedly loosen, inspect mating threads or clip/mounting hardware for wear

This is a #8-18 x 5/8 inch oval-head stainless steel screw used to secure panels and components on compatible GE appliances. It replaces missing or damaged fasteners to restore a secure fit and reduce vibration or rattling. What it does

• Secures trim, access panels, brackets or small components in place
• Restores proper alignment when a lost or stripped screw causes loose parts
• Helps eliminate rattling, vibration, or intermittent contact caused by missing fasteners
• Corrosion-resistant stainless finish for longer life in appliance environments

• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread damage or cracking nearby plastic
• Power tools can be used carefully on low torque settings
• Replace any stripped mating nuts or threaded inserts for secure fastening

This hex-head machine screw has a 10-32 thread and measures 1-3/4 inches long. Use it to replace a missing, stripped, or rusted fastener and restore a secure fit where this exact size is specified.

• Secures brackets, panels, and internal components requiring a 10-32 x 1-3/4 in hex-head screw
• Restores proper alignment and mounting integrity
• Replaces damaged, corroded, or lost hardware
• Can help resolve symptoms like loose/rattling parts or shifting components

• Disconnect power (and shut off gas, if applicable) before servicing; allow appliance to cool
• Remove the old screw, align parts, and start the new screw by hand to avoid cross-threading
• Tighten snugly but do not overtighten
• Reuse any original washers or spacers if present
