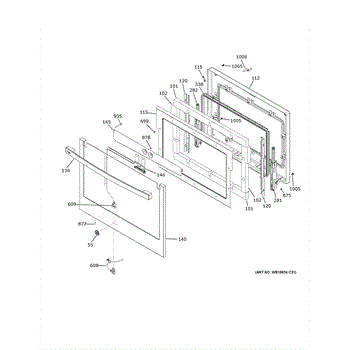

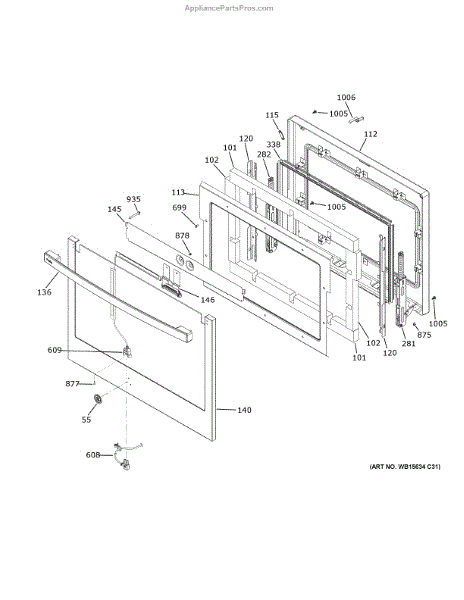

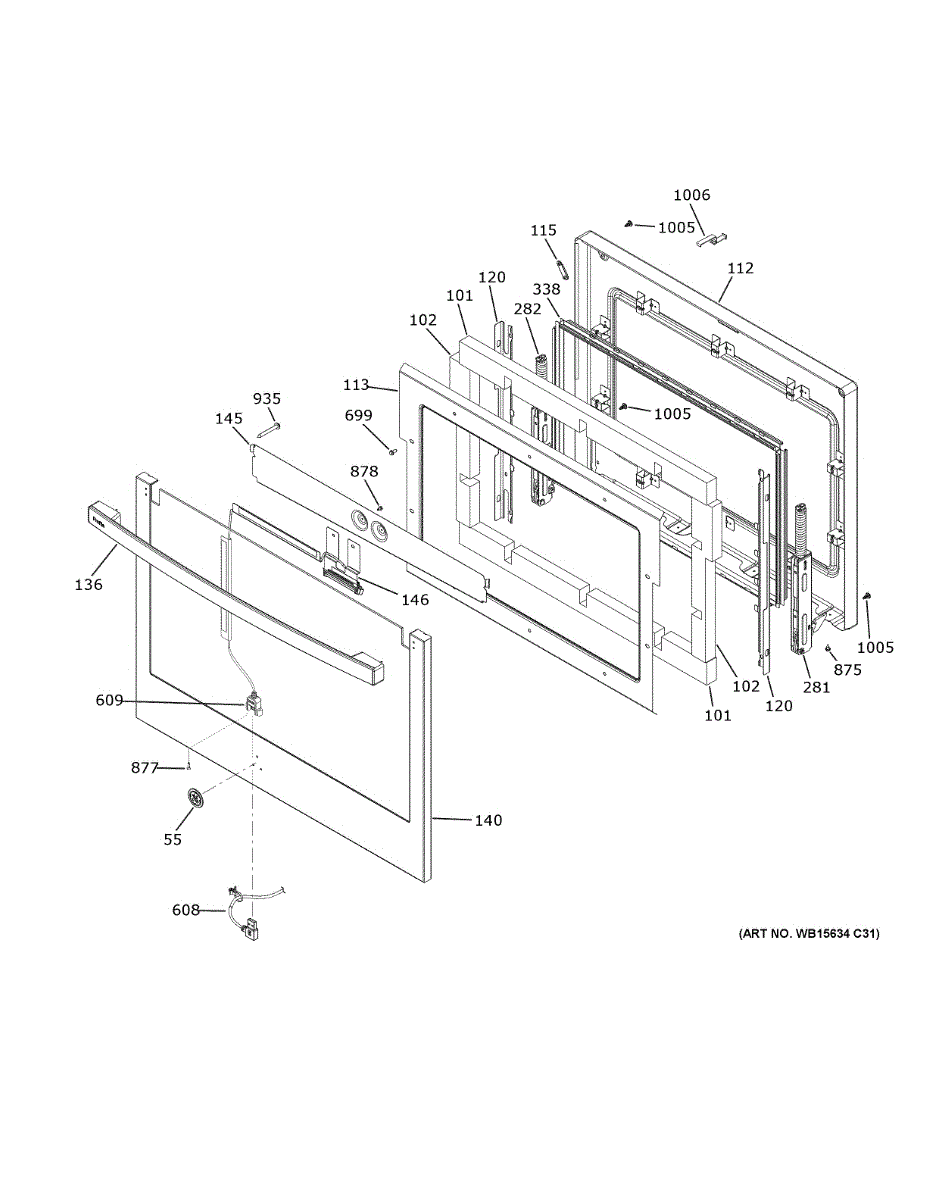

Parts for Ge PTS9000SN4SS: Door Parts

The Badge Assembly is an OEM part for GE ranges. It includes the magnetic decorative badge affixed to the front of the range. This badge displays important information such as the brand name, model number, and technical specifications.

Causes of a bad badge assembly can include damage from impacts or abrasions over time, adhesive failure from repeated heat exposure, or normal wear from routine cleaning. On a range, the badge must withstand higher cooking temperatures.

Symptoms of a bad badge assembly include:

• Faded or illegible print on the badge face
• Cracks or breaks in the plastic material
• The badge lifting or peeling away from the surface
• Missing or loose attachment clips/fasteners

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This door insulation retainer is a small plastic clip that secures insulation inside a refrigerator/freezer door to help maintain proper temperature and reduce noise. It replaces worn or missing retainers to keep the door liner insulation in place. What it does:

• Secures the door insulation to the inner door liner so insulation stays positioned
• Helps prevent insulation from shifting or sagging that can affect door seal performance
• Commonly used when insulation falls out or the liner shows gaps around the insulation
• Works as a direct-fit replacement for the original retainer designed for the door assembly

• One door insulation retainer clip

• Installation generally requires removing the door panel or liner; keep track of fasteners and trim
• Handle the door liner and insulation carefully to avoid damage or tearing the insulation
• Use proper tools and disconnect power if working near electrical components or lights
• Replace all affected clips for an even, secure fit

This door liner plug snaps into the inner door liner to cover fastener or access holes. It restores a clean, finished look and helps keep grease and debris from entering the door assembly.

• Covers exposed holes in the inner door liner
• Replaces a missing, loose, or damaged plug/cap
• Helps protect the door cavity from splashes and debris
• Restores a neat, factory-finished appearance

• Disconnect power before servicing; for gas ranges, also shut off gas. Allow the appliance to cool completely.
• Open the door and gently pry out the old plug with a plastic trim tool or flat-blade screwdriver.
• Align and press the new plug into the liner until it seats flush.
• Support glass and follow the manufacturer's instructions.

A replacement liner support that secures the refrigerator cabinet liner and keeps interior trim and panels aligned for a proper seal and appearance. Restores stability to cracked or broken support points. What it does:

• Holds the cabinet liner and interior trim in position to prevent gaps and movement
• Helps maintain door seal alignment by keeping liner edges stable
• Reduces rattling or shifting caused by a damaged support
• Commonly replaced when liner pieces are cracked, broken, or loose

• One liner support

• Disconnect power to the appliance before beginning any repair
• Remove food, shelves, and trim pieces as needed to access the damaged support
• This part typically secures with clips or fasteners; inspect existing hardware and replace if necessary

This is a replacement flat-head 6-32 screw used to secure appliance panels, trim, and components. It restores proper fastening so panels stay aligned and wiring or controls remain held in place. What it does:

• Fastens panels, control housings, brackets and trim pieces
• Helps stop loose or rattling panels and trim
• Keeps electrical components and wiring secured inside the appliance
• Restores original fastening where a missing or damaged screw causes gaps or misalignment

• One 6-32 flat-head screw

• Use the correct driver or bit for a flat-head 6-32 screw and turn until snug
• Avoid over-tightening to prevent stripped threads or damaged parts
• If working near electrical components, disconnect power before servicing
• Inspect mating threads and replace if damaged for a secure fit

This hex-head machine screw has a 10-32 thread and measures 1-3/4 inches long. Use it to replace a missing, stripped, or rusted fastener and restore a secure fit where this exact size is specified.

• Secures brackets, panels, and internal components requiring a 10-32 x 1-3/4 in hex-head screw
• Restores proper alignment and mounting integrity
• Replaces damaged, corroded, or lost hardware
• Can help resolve symptoms like loose/rattling parts or shifting components

• Disconnect power (and shut off gas, if applicable) before servicing; allow appliance to cool
• Remove the old screw, align parts, and start the new screw by hand to avoid cross-threading
• Tighten snugly but do not overtighten
• Reuse any original washers or spacers if present

This stop door is a replacement component used in the oven dehydrate function to help control airflow and temperature during low-heat drying cycles. Replacing a worn or broken stop door restores proper drying performance and cycle control. What it does

• Serves as the oven's dehydrate stop door, helping direct airflow for low-temperature drying
• Helps maintain stable conditions during dehydrate cycles so food dries evenly
• Common symptom: dehydrate cycles fail to dry food properly or produce uneven results
• Common symptom: cracked, warped, or missing stop door that interferes with airflow or closing

• One stop door

• Disconnect power to the appliance before attempting any repair
• Handle the part carefully to avoid bending or damaging mounting tabs
• Basic hand tools may be required; follow the oven's service manual for disassembly/reassembly steps
