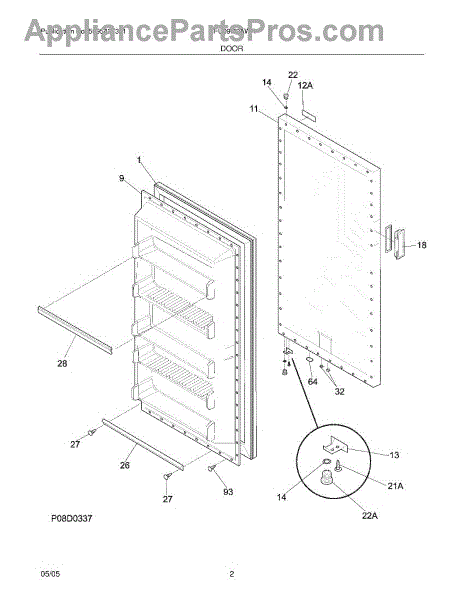

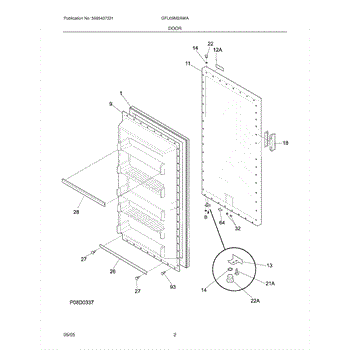

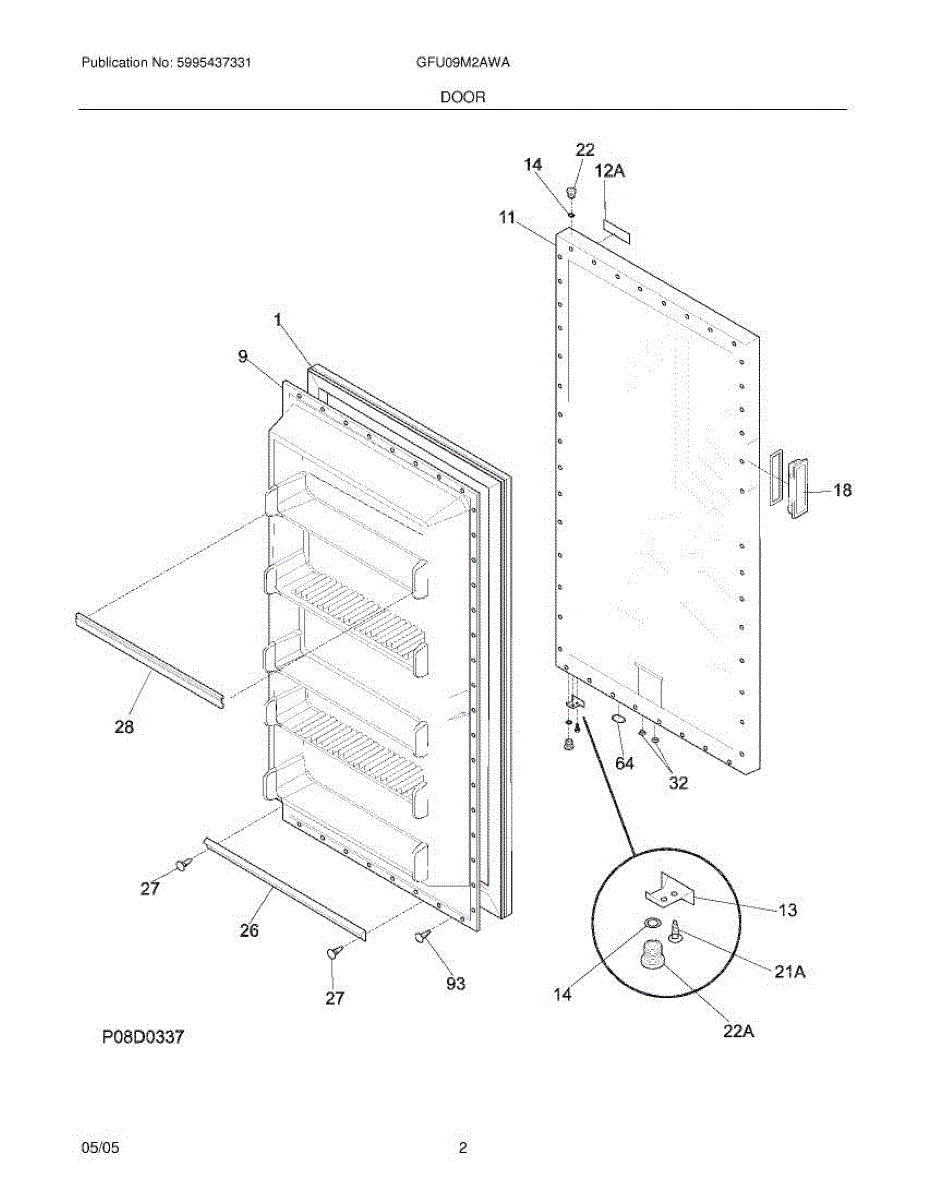

Parts for Gibson GFU09M2AWA: 03 - Door Parts

This door gasket seals the perimeter of the refrigerator or freezer door to maintain an airtight closure. Replacing a worn gasket restores a proper seal, helps stabilize temperatures, reduces frost and condensation, and supports efficient operation. What it does:

• Creates a tight seal between the door and cabinet to keep cold air in and warm air out
• Helps reduce frost buildup and moisture around the door opening
• Can address temperature fluctuations, long run times, and doors that won't fully close
• Replace if torn, deformed, brittle, or no longer sealing evenly

• 1 door gasket

• Disconnect power before servicing; open the door and remove the old gasket from its retainer/channel
• Warm the new gasket (soak in warm water) to relax and straighten before installation
• Seat the corners first, then work evenly around the perimeter to fully engage the retainer
• Close the door and check for uniform contact; adjust the gasket/retainer as needed for a complete seal

This bearing installs in the refrigerator/freezer door hinge to provide a smooth pivot point and maintain alignment. Replacing a worn bearing restores easy door movement and helps the door close and seal correctly.

• Provides a low-friction surface between the hinge pin and hinge bracket for smooth door pivoting
• Helps maintain proper door height and alignment for a reliable gasket seal
• Typical symptoms of wear: squeaking or grinding when opening, door binding or dropping, door not closing fully or popping open
• Excess wear can contribute to air leaks and frost buildup around the door

• Disconnect power before servicing; remove or secure items in the door
• Support the door; remove hinge fasteners and lift the door off if required
• Note and retain any shims/spacers; install the new bearing in the hinge as oriented in the diagram
• Reinstall and align the door; verify smooth operation and a complete gasket seal. Do not lubricate unless specified by the manufacturer

Quantity of 1 clip.

Note: See kit# 5303922007 and 5304406520.

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

The Refrigerator Door Gasket Clips are OEM parts for Frigidaire refrigerators. These clips secure the door gasket in place, ensuring a tight seal to maintain the internal temperature and prevent cold air from escaping. This pack contains 40 clips, which secure the interior trim pieces and hold the gasket and liner to the freezer lid.

Over time, the gasket clips can become damaged or worn out due to frequent opening and closing of the refrigerator door, exposure to moisture, or accidental impacts. If the clips fail, the door gasket may not stay in place, compromising the refrigerator's efficiency.

Symptoms of bad refrigerator door gasket clips include:

• The door gasket not staying securely in place
• Visible damage or wear on the clips
• Cold air escaping from around the door
• Increased energy consumption due to poor sealing

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
