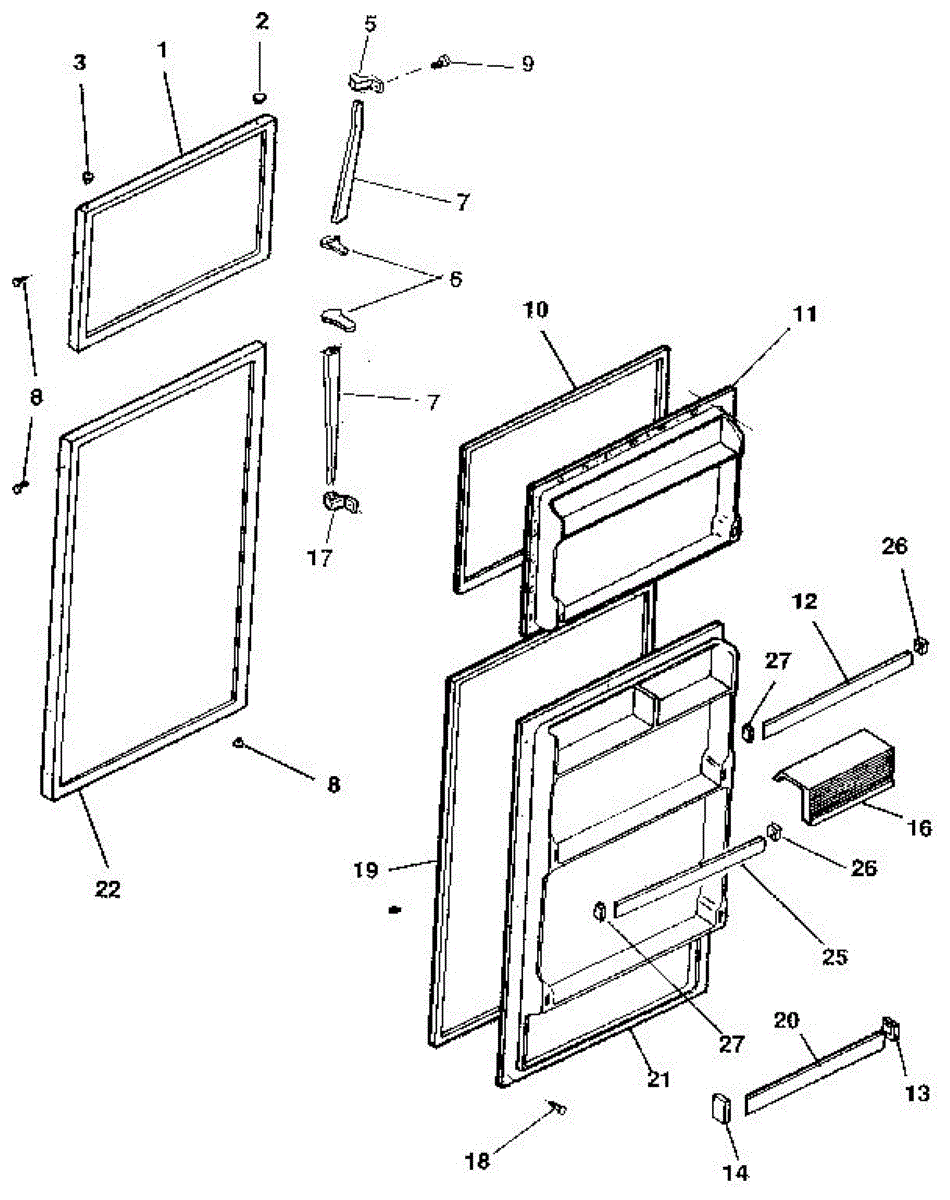

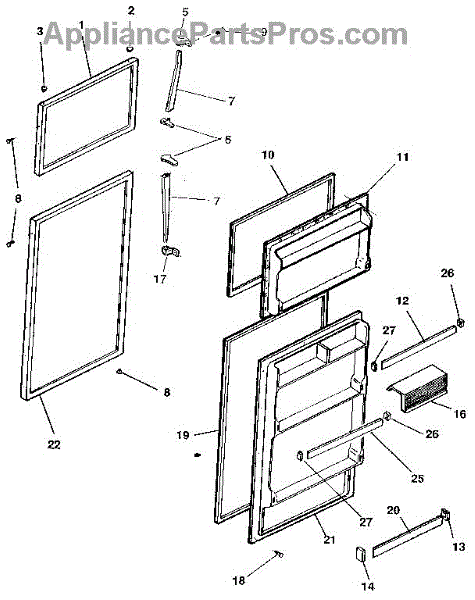

Parts for Kenmore 253.9613302 (2539613302, 253 9613302): Door Parts

This wheat-colored electrical plug restores a secure connection in the appliance wiring harness, helping ensure reliable power delivery to components and reducing intermittent operation or loss of function. What it does:

• Provides a secure, color-coded connection point for wiring harness terminals.
• Holds and insulates mating terminals to prevent shorts and corrosion.
• Maintains continuity to the associated component so it runs reliably.
• Common symptom: component or circuit works intermittently or not at all when the plug or its terminals are loose or damaged.

• Always disconnect power to the appliance before inspecting or replacing electrical parts.
• Match plug orientation and fully seat the connector until it clicks; do not force.
• Inspect wiring and terminals for damage; replace any frayed wires or corroded terminals before installing.
• After installation, restore power and verify the affected component operates normally.

Color: White

Color: White

The Freezer Door Gasket is an OEM part for Frigidaire refrigerators. This gasket creates a seal around the freezer door to prevent warm air from entering and cold air from escaping, ensuring the freezer maintains its optimal temperature.

Causes of a bad freezer door gasket can include wear and tear over time, exposure to harsh cleaning chemicals that degrade the material, or physical damage from frequent use or mishandling.

Symptoms of a bad freezer door gasket include:

• Noticeable gaps or cracks in the gasket
• Frost buildup inside the freezer
• Increased energy consumption
• The freezer door not closing properly

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This part has been discontinued and is no longer available.

The Right Hand Door Shelf Support is an OEM part for Frigidaire refrigerators. This support bracket holds the door shelf in place, providing stability and ensuring that items stored in the door compartment remain secure.

Causes of a bad door shelf support can include wear and tear from regular use, physical damage from overloading the shelf, or breakage due to impact when opening or closing the door. Over time, the plastic material can also become brittle and crack.

Symptoms of a bad door shelf support include:

• Door shelf sagging or detaching from the door
• Difficulty in securing items on the shelf
• Visible cracks or damage to the support bracket
• Items falling out when opening the door

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Left side door shelf support. Color: White. Measures about 1 3/4 inch x 1 3/4 inch. For the right hand side order 3206150.

This refrigerator door gasket seals the fresh-food compartment to help maintain proper cooling and reduce energy loss. It restores a tight door seal to help keep food fresher and the refrigerator running efficiently. What it does:

• Replaces a worn, torn, or deformed door seal to stop cold air leakage
• Helps maintain consistent internal temperature and reduce frost buildup
• Reduces strain on the compressor caused by a poor door seal
• Addresses symptoms like warm spots near the door, excessive frosting, or higher energy use

• One refrigerator door gasket

• Remove power to the appliance before replacing the gasket
• Clean the door flange and allow it to dry before installing the new gasket
• Work around the full perimeter, easing the gasket into the channel; avoid forcing or trimming unless OEM instructions specify
• If the gasket is stiff, warm it gently (per OEM guidance) to aid fitting; avoid open flames or excessive heat

Replacement part may be longer than needed, per the manufacturer it will have to be cut to fit.

This inner door panel replaces the plastic interior liner that covers a refrigerator door, restoring a clean finish and proper support for door bins and hardware. It's a direct-fit OEM panel that repairs cracked, warped, or damaged door interiors. What it does:

• Restores the interior surface of the refrigerator door and provides mounting points for door bins and shelves
• Replaces cracked, split, or warped inner liners that can trap moisture or prevent proper door closure
• Secures door hardware and helps maintain a sealed, insulated door cavity
• Improves appearance by replacing scratched, stained, or discolored door interiors

• Disconnect power to the appliance before starting any repair
• Remove the door and any attached bins or hardware to access fasteners; save and reuse existing screws/clips unless damaged
• Handle panel edges carefully to avoid cracking; align clips or screw bosses and fasten snugly without over-torquing

This part has been discontinued and is no longer available.

The Door Shelf Support is an OEM part for Frigidaire refrigerators. This part supports the door shelf, providing a sturdy base to hold various items such as bottles, jars, and condiments securely in place on the refrigerator door.

Common causes of a bad door shelf support include regular wear and tear, overloading the shelf with heavy items, or accidental damage.

Symptoms of a bad door shelf support include:

• The door shelf sagging or tilting
• Items falling off the shelf
• The shelf not staying securely in place
• Visible cracks or breakage in the support

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Door Shelf Support is an OEM part for Frigidaire refrigerators. This part holds and secures the door shelf in place, providing support for the items stored on the shelf.

Causes of a bad door shelf support can include regular wear and tear, overloading the shelves, or physical damage from impacts.

Symptoms of a bad door shelf support include:

• Shelves not staying in place or becoming loose
• Cracks or breaks in the support material
• Difficulty in securing the shelf to the door
• The shelf tilting or falling off the door

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components
