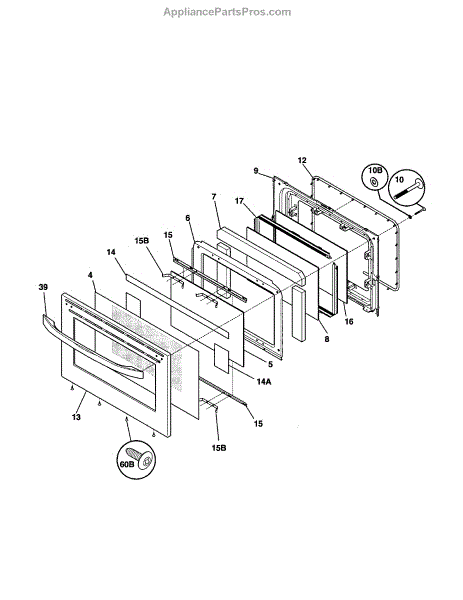

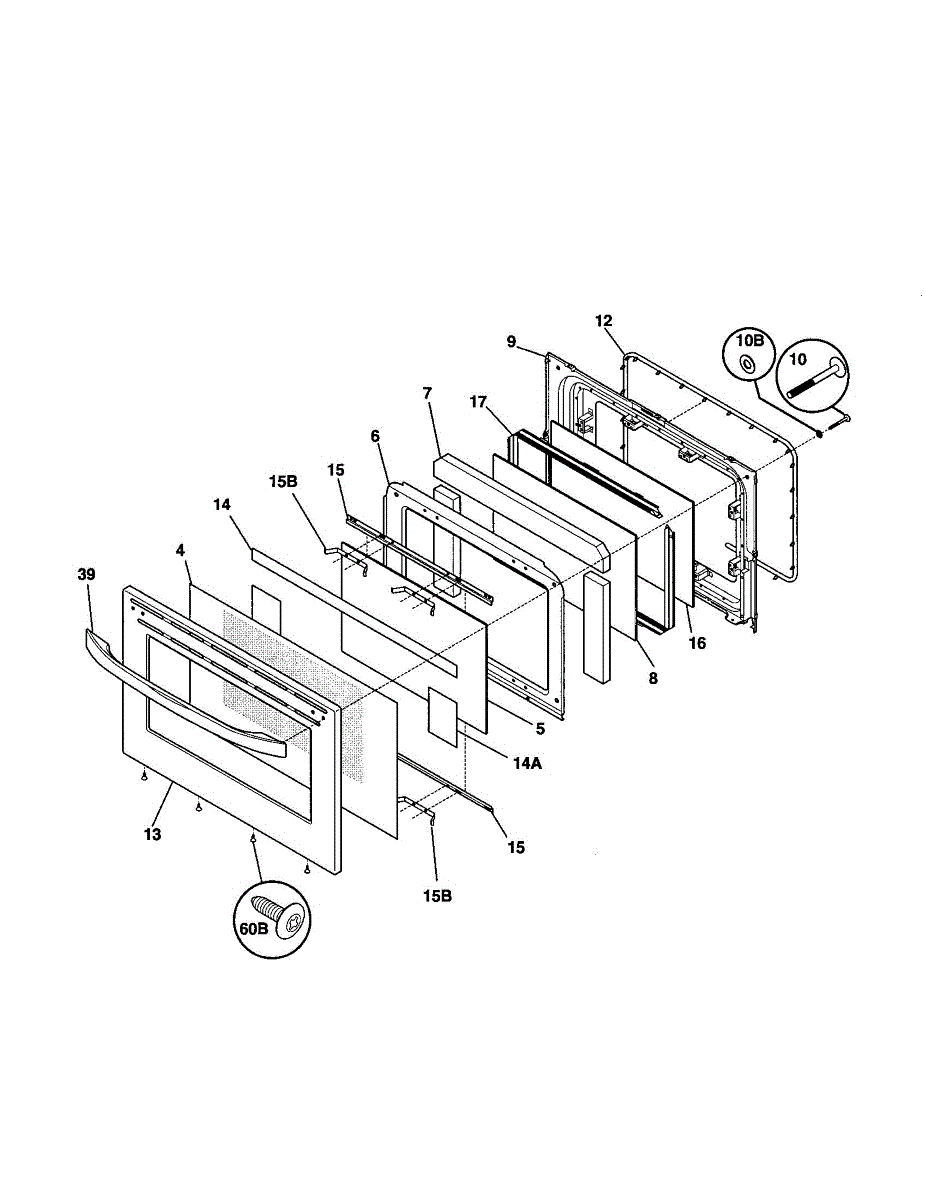

Parts for Kenmore 790.99013100 (79099013100, 790 99013100): Door Parts

This is the inner oven door glass heat barrier. NOTE: Approximate size:20 3/8"w X 13 7/8"h

Inner door glass panel for range and wall oven doors. Replace if cracked, shattered, or slipped out of position. Installs between outer glass and oven cavity.

Size: 3/4 inch od x 1/4 inch id.

Size: 10-24 x 1.375 inch.

Heat reflective foil strip for range oven doors. Insulates handle and sides from heat. Replace when damaged or during glass replacement. Confirm fit.

This is an aluminum foil insulation tape used on the oven door assembly to reflect heat and provide a thermal barrier. It helps maintain consistent oven temperatures and protects surrounding components from excessive heat. Replace this foil tape if it is torn, peeling, or missing, which can lead to heat loss, uneven cooking, or overheating of the outer door surface.

Inner door glass panel for range and wall oven doors. Replace if cracked, shattered, or slipped out of position. Installs between outer glass and oven cavity.

Size: 8-18ab x 0.5 inch.

Wiring diagram for your range. Shows electrical connections and circuit layout. Replacement needed if original is lost, damaged, or unreadable.

Replacement owners manual for your range. Includes operating instructions, care guidelines, and safety information. Needed when original is lost or damaged.

This is a small lock washer used in range and oven assemblies to secure fasteners and prevent them from loosening due to heat and vibration. It is commonly used in mounting hardware for controls or other internal components. Replace this washer if it is deformed, cracked, or no longer holds the associated bolt or screw tightly in place.

Size: 10-32 x 0.312 inch. Color: Black.

Secures burner or oven control to the control panel behind the knob. Replace if stripped, missing, or loose to keep control shaft stable and aligned.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
