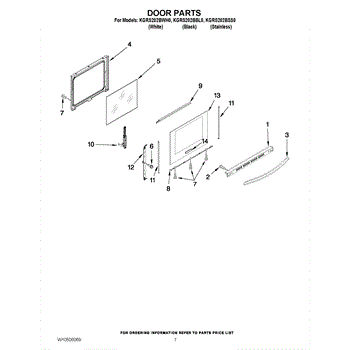

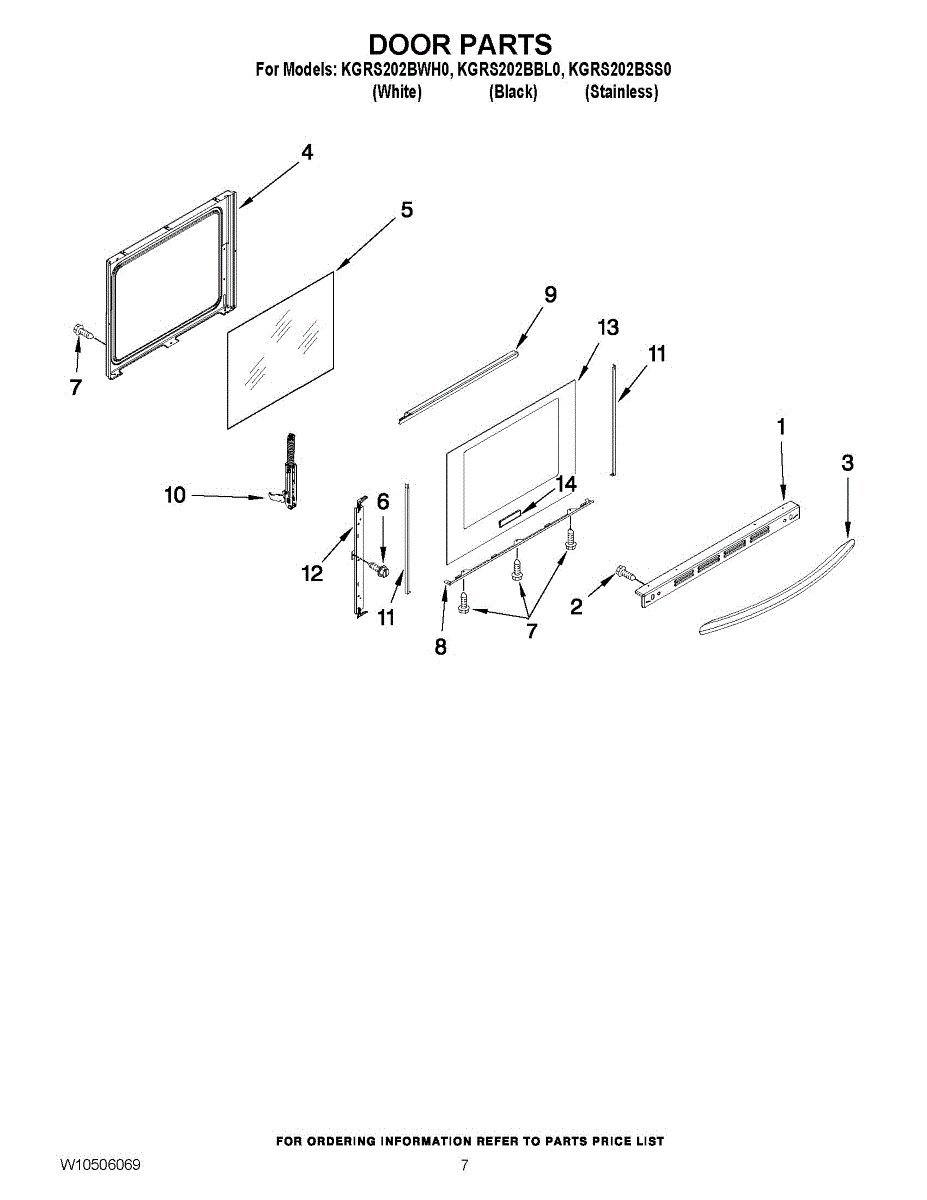

Parts for Kitchenaid KGRS202BWH0: 05 - Door Parts

Color: Black

The Vent Trim is an OEM part for Whirlpool ranges. This is a decorative and protective cover that surrounds the vent or exhaust opening, enhancing the overall aesthetic appearance while also preventing accidental access to the vent area.

Causes of a bad Vent Trim include physical damage from impact or mishandling, exposure to excessive heat or moisture, and general wear and tear over time, leading to discoloration, warping, or deterioration of the trim material.

Symptoms of a bad part include:

• Visible cracks, dents, or deformities in the trim
• Discoloration or fading of the trim's finish
• Loose or improperly fitting trim, allowing potential access to the vent area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw with a 10-16 thread secures panels, brackets, and other components in your appliance. Restoring the correct hardware keeps parts tight and aligned, reducing vibration and preventing loosening over time.

• Secures sheet-metal panels, brackets, and assemblies
• Replaces missing, stripped, or corroded fasteners
• Helps eliminate rattling or vibration from loose hardware
• Maintains proper alignment for reliable performance

• Disconnect power; turn off the water supply before servicing
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten into sheet metal or plastic
• Reinstall in the original location and orientation

Color: Stainless

This inner oven door liner replaces the damaged or warped inner panel that supports the oven door glass and helps contain heat inside the oven cavity. It restores a solid mounting surface for door glass and internal components. What it does:

• Provides the inner structural panel for the oven door and supports the door glass and insulation.
• Helps maintain proper oven heat containment to support uniform cooking.
• Prevents direct exposure of insulation and internal parts to oven cavity heat and food debris.
• Addresses symptoms like visible cracks, warping, or detached glass mounting points on the inside of the door.

• Disconnect power before starting any repair and follow manufacturer's safety instructions.
• Remove the oven door per the appliance manual to access and replace the inner liner; handle glass and sharp edges carefully.
• Keep all original screws and mounting clips; confirm screw locations during disassembly to ensure proper reassembly.
• If the door has multiple glass panels or seals, verify placement during reassembly—do not force parts into position.

This inner door glass is the heat-resistant panel mounted on the inside of the oven door. It restores a clear, secure barrier to help retain heat and visibility when the original glass is cracked, shattered, or stained.

• Forms the inner pane of the oven door to contain heat and allow viewing of food
• Damage can cause heat loss, longer preheat/cook times, and unsafe sharp edges
• Cracked, shattered, or missing glass should be replaced before using the appliance
• Cloudy or permanently stained glass reduces visibility into the oven

• Disconnect power at the breaker and allow the oven to cool completely
• Wear cut-resistant gloves and eye protection; handle glass carefully
• Support or remove the door and work face-down on a padded surface
• Transfer any brackets/clips/insulation as configured; do not overtighten fasteners against the glass

This factory fastener secures appliance panels, brackets, and internal components. Replacing a missing, stripped, or corroded screw restores proper fit and stability, helping reduce vibration, rattling, and wear during everyday operation.

• Secures covers, brackets, and assemblies to the cabinet or frame
• Restores alignment to reduce gaps, looseness, and vibration
• Replaces lost, damaged, corroded, or stripped hardware
• Matches the original fastener for correct fit and retention

• Disconnect power and shut off water or gas before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent thread or plastic damage
• Inspect receiving threads or clips; repair/replace if stripped or broken

Size: 8-18 x 1/2 inch.

The Range Bracket-Glass is an OEM part for Whirlpool ranges. It is designed to support and secure the glass surface or cooktop in place, ensuring stability during operation. This bracket is essential for maintaining the proper alignment and positioning of the glass panel.

Causes of a damaged bracket can include repeated exposure to heat and stress during cooking, accidental impacts, or improper installation. Over time, the material may weaken, crack, or warp, compromising its ability to hold the glass securely.

Symptoms of a bad bracket include:

• Loose or wobbly glass cooktop
• Visible cracks or damage to the bracket
• Gaps between the glass and the frame
• Difficulty securing the glass properly during reassembly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Range Bracket-Glass (White) is an OEM part for Whirlpool ranges. It is designed to support and secure the glass surface or cooktop in place, ensuring stability during operation. This bracket is essential for maintaining the proper alignment and positioning of the glass panel.

Causes of a damaged bracket can include repeated exposure to heat and stress during cooking, accidental impacts, or improper installation. Over time, the material may weaken, crack, or warp, compromising its ability to hold the glass securely.

Symptoms of a bad bracket include:

• Loose or wobbly glass cooktop
• Visible cracks or damage to the bracket
• Gaps between the glass and the frame
• Difficulty securing the glass properly during reassembly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This mounting bracket secures internal or external appliance components to the cabinet, restoring proper alignment and preventing vibration. It's a small but critical metal support used where fasteners attach panels or assemblies. What it does:

• Provides a secure attachment point for panels, controls, or assemblies
• Prevents loosening, rattling, and misalignment caused by broken or missing supports
• Restores proper fit and function when original bracket is bent, cracked, or missing
• Works as a direct replacement using existing fasteners and mounting holes

• Disconnect power (and gas if applicable) before beginning any repair
• Installation typically requires basic hand tools (screwdriver, nut driver, or socket)
• Retain or reuse original screws; verify bracket orientation before tightening
• If metal edges are sharp, use care and protective gloves to avoid cuts

The Door Hinge is an OEM part for Whirlpool ovens. This hinge is crucial for supporting the oven door, allowing it to open and close smoothly. It ensures the door remains securely in place during cooking and baking.

Over time, oven door hinges can wear out or become damaged due to frequent use and exposure to high temperatures. Common causes of a bad hinge include metal fatigue, rust or corrosion, and accidental damage from slamming the oven door.

Symptoms of a bad hinge include:

• Difficulty opening or closing the oven door
• The oven door not staying securely closed
• A misaligned or sagging oven door
• Noises or squeaks when the door is operated

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This door trim is the front-facing decorative bezel that restores the finish and edge protection to your appliance door. It replaces a worn, cracked, or damaged trim to improve appearance and help seal the door edge. What it does

• Replaces damaged or cracked door bezel to restore appearance
• Covers and protects the door edge from impacts and wear
• Helps maintain a clean seal line by securing the door edge trim
• Common symptom: visible cracks, chips, or loose trim along the door perimeter

• One door trim piece as shown

• Disconnect power to the appliance before beginning any service
• Use appropriate tools and keep fasteners for reassembly; handle trim carefully to avoid damage

This outer door trim restores the finished appearance of an appliance door and covers the edge gap between the door panel and console for a clean, factory look. It helps protect the door edge from everyday wear. What it does:

• Covers and finishes the outer edge of the appliance door for a seamless appearance
• Helps prevent dirt and moisture from collecting at the door edge
• Restores cosmetic damage like scratches, dings or missing trim pieces
• Useful when replacing a cracked, warped or broken door trim piece

• High-level replacement only; remove and reinstall the outer door panel to access the trim
• Use appropriate screwdrivers and keep fasteners organized for reassembly
• Disconnect power (or gas) and follow manufacturer's safety steps before beginning service
• If trim is clipped in, carefully release retaining clips to avoid breaking adjacent parts

This support bracket secures internal components to the appliance chassis, restoring proper alignment and stability for attached parts. It's a simple replacement that helps stop rattling and prevents components from shifting during use. What it does:

• Provides a secure mounting point to hold panels, assemblies or components in place
• Helps eliminate vibration or rattling caused by a loose or broken bracket
• Restores proper alignment so connected parts operate correctly
• Prevents further wear or damage from loose components

• Disconnect power to the appliance before starting any repair
• Basic hand tools (screwdriver, nut driver) are typically required
• Keep original fasteners and note their location for reassembly; replace damaged hardware as needed

This glass outer door panel replaces the outer glass on compatible oven/microwave doors to restore a clean appearance and protect the inner components. It provides the visible glass surface users touch and see. What it does:

• Replaces cracked, scratched or cosmetically damaged outer door glass
• Restores the door's visible finish and helps maintain proper sealing aesthetics
• Helps prevent exposure of inner door components to spills and debris
• Addresses rattling or movement when outer glass is missing or broken

• Disconnect power to the appliance before beginning any repair.
• Handle glass with care; use gloves and eye protection to avoid cuts.
• May require removal of door trim, screws, or clips—retain hardware and follow manufacturer disassembly order.

Color: White

Color: Black

Color: Stainless
