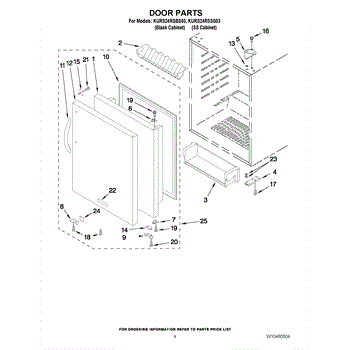

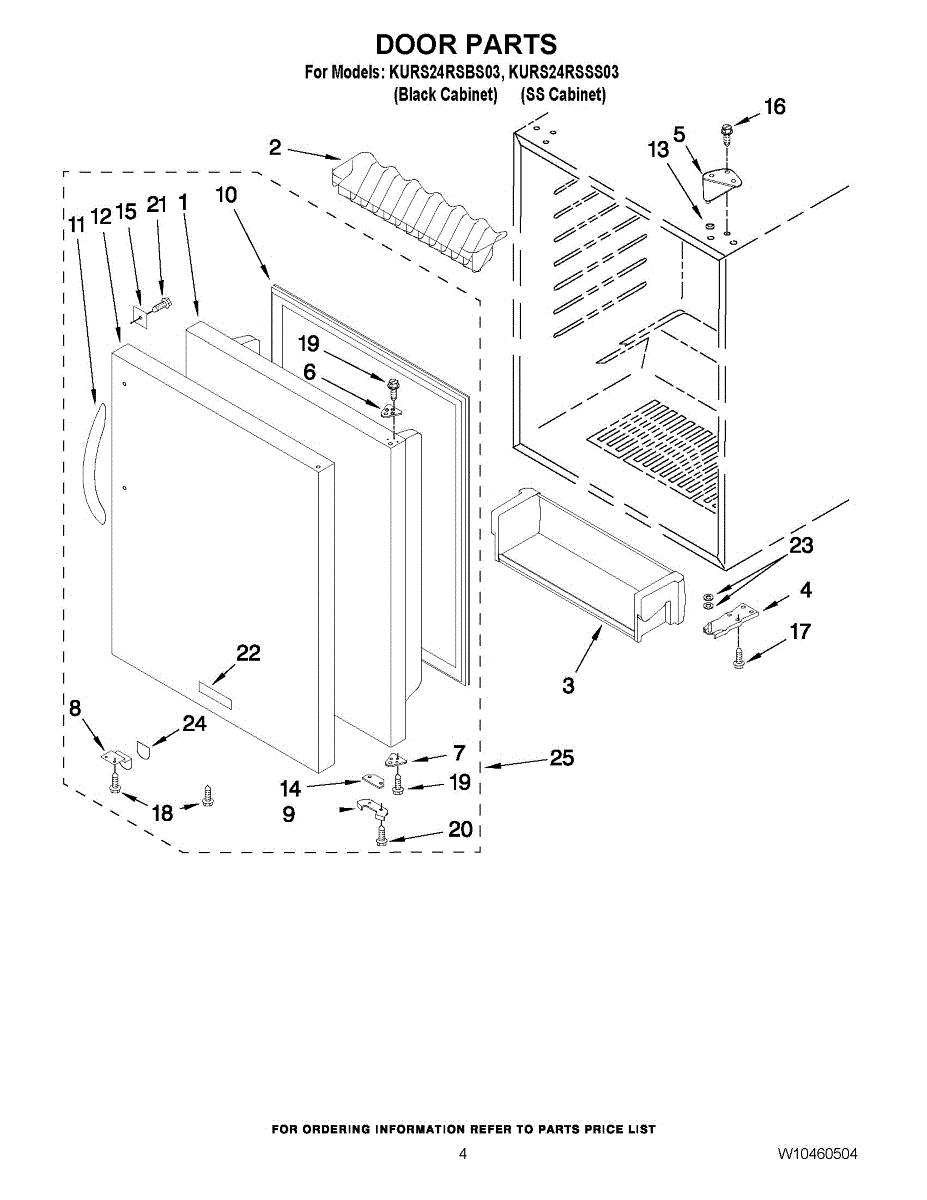

Parts for Kitchenaid KURS24RSSS03: 03 - Door Parts

This is a replacement door hinge used to secure and pivot a refrigerator door, restoring smooth opening/closing and proper door alignment. It helps stop sagging, misalignment, and uneven sealing to improve cold retention and operation. What it does:

• Provides a durable pivot point so the refrigerator door opens and closes smoothly.
• Restores correct door alignment to improve gasket sealing and reduce cold air loss.
• Stops door sag and prevents catching or scraping when opening/closing.
• Supports the door weight and maintains proper clearance for drawers and shelves.

• Power off and unplug the appliance before starting repair to avoid injury.
• Support the door during removal/installation to prevent dropping or damage.
• Use basic hand tools; torque fasteners to manufacturer specifications when available.
• Examine for additional repair needs.

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

This flat washer is a small hardware fastener used to distribute load and keep screws or bolts secure. It helps maintain tight connections and prevents damage to appliance surfaces where fasteners pass through. What it does:

• Provides a smooth bearing surface for screws or bolts to reduce wear
• Helps distribute load to prevent fastener pull-through or material deformation
• Reduces loosening from vibration that can cause rattling or misalignment
• Commonly used where a secure, flush fastener connection is required

• One flat washer

• Disconnect power and water to the appliance and follow basic electrical and safety precautions before replacing hardware
• Use the washer with the matching screw or bolt size and material specified by the manufacturer
• Inspect mating surfaces and replace any damaged fasteners or parts to ensure a secure fit
