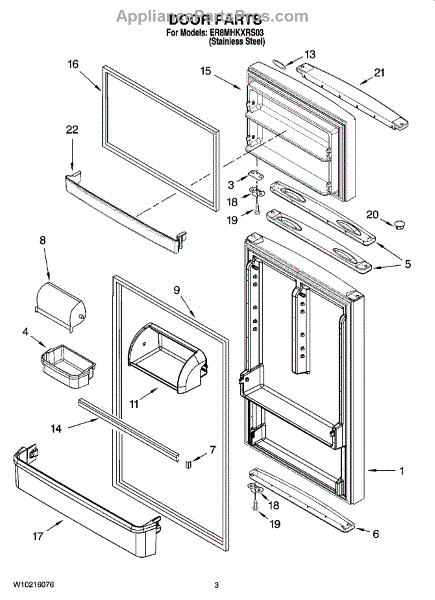

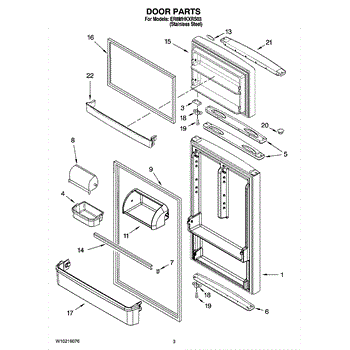

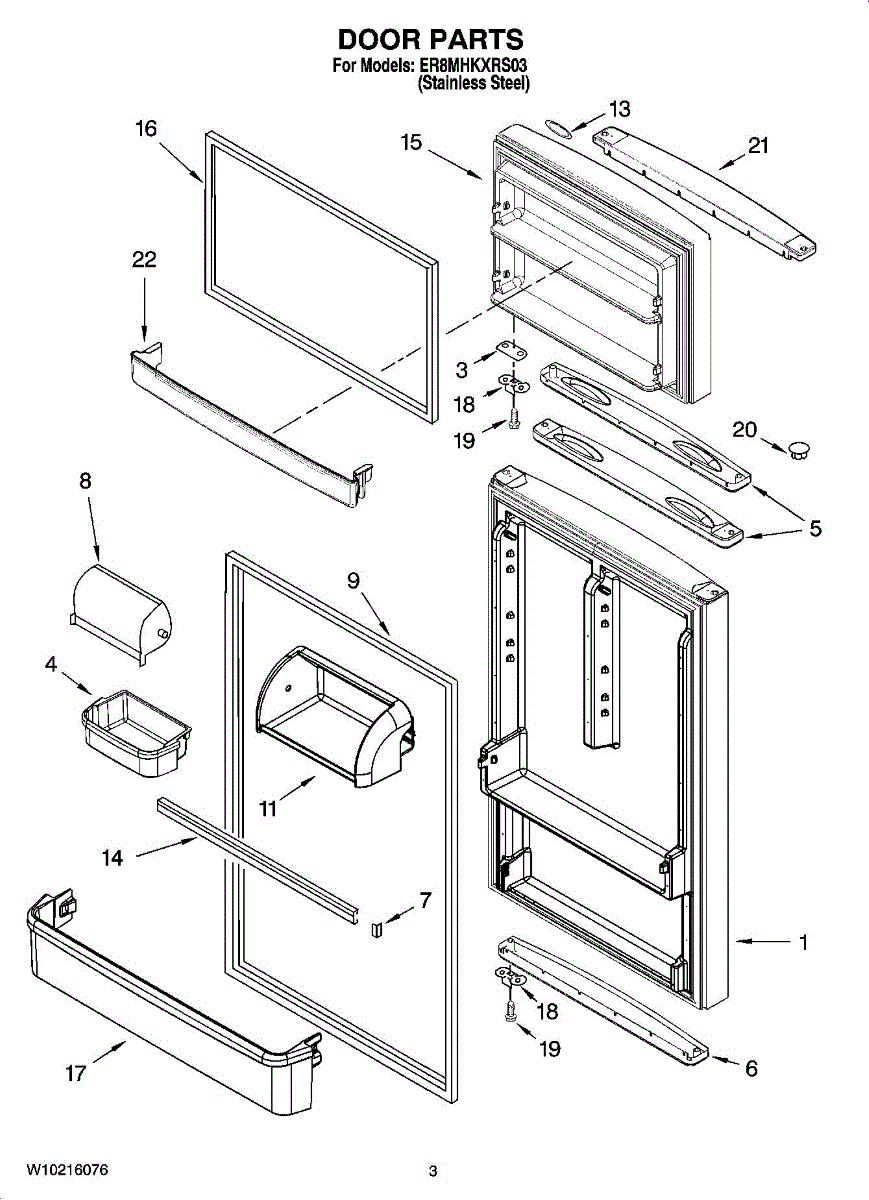

Parts for Whirlpool ER8MHKXRS03: 02 - Door Parts

This small black door stop shim helps position and stabilize the appliance door for correct alignment and smoother closing. It replaces a worn or missing shim to reduce door gaps and rubbing against the cabinet or frame. What it does:

• Centers and supports the door stop so the door closes evenly and seals properly.
• Prevents door-to-cabinet rubbing, scraping, or uneven wear on hinges and seals.
• Helps eliminate minor misalignment that can cause noise or uneven gaps.
• Compatible where the OEM diagram lists a door stop shim in the hinge/stop assembly.

• One black door stop shim

• High-level replacement: typically installs at the door stop or hinge area; may slide or snap into place—retain original orientation.
• Always support the door during removal/installation to avoid dropping or damaging the door or hinges.
• If the repair requires removing trim or hinge fasteners, keep fasteners organized and follow the appliance diagram.
• For any work near electrical components, unplug the appliance or switch off power at the breaker first.

The Door Shelf Bin is an OEM part for Whirlpool refrigerators. It provides organized storage on the refrigerator door, allowing quick access to frequently used items like eggs, butter, or condiments.

Causes of a bad door shelf bin can include warping or cracking of the plastic over time due to temperature changes from door opening. Handles may also loosen or break off from heavy use.

Symptoms of a bad door shelf bin include:

• Food items rolling around inside the door
• Loss of organized storage and ability to neatly display contents
• Possible premature spoilage from lack of airflow

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Shelf End Cap is an OEM part for Whirlpool refrigerators. This part secures the door shelf bar in place, ensuring that items stored in the door bins are properly supported and contained. The end cap attaches to the ends of the door shelf bar, providing stability and a finished look.

Causes of a bad end cap can include wear and tear from frequent use, heavy loads in the door bins causing stress and fractures, and accidental impacts or mishandling leading to cracks or breaks.

Symptoms of a bad door shelf end cap include:

• The door shelf bar becoming loose or falling off
• Cracks or breaks in the end cap
• Door bins not staying in place
• Difficulty in securing the door shelf bar

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

The Refrigerator Door Gasket is an OEM replacement part for Whirlpool French-door refrigerators. Located around the perimeter of refrigerator door openings, it forms a critical insulating seal to maintain optimum interior temperatures.

Causes of a bad Refrigerator Door Gasket involve years of compression cycles compressing the door gasket material. Chemical deterioration from foods or spills could inhibit proper sealing as well.

Symptoms of a bad Refrigerator Door Gasket include:

• Sections inside the fridge appear warmer than expected
• Visible frost or condensation indicating temperature inconsistencies
• The cool air felt escaping around edges when doors are closed
• Inability to maintain a tight, insulating seal around doorways

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, and select Kenmore models.

Color: Black

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black
