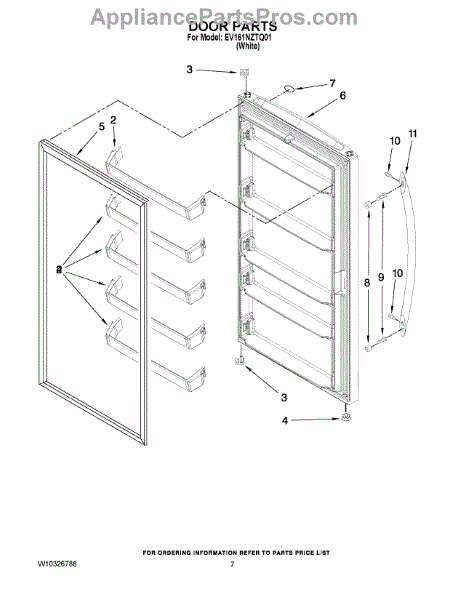

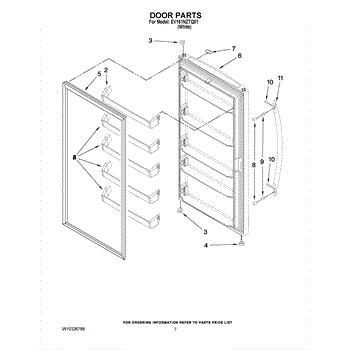

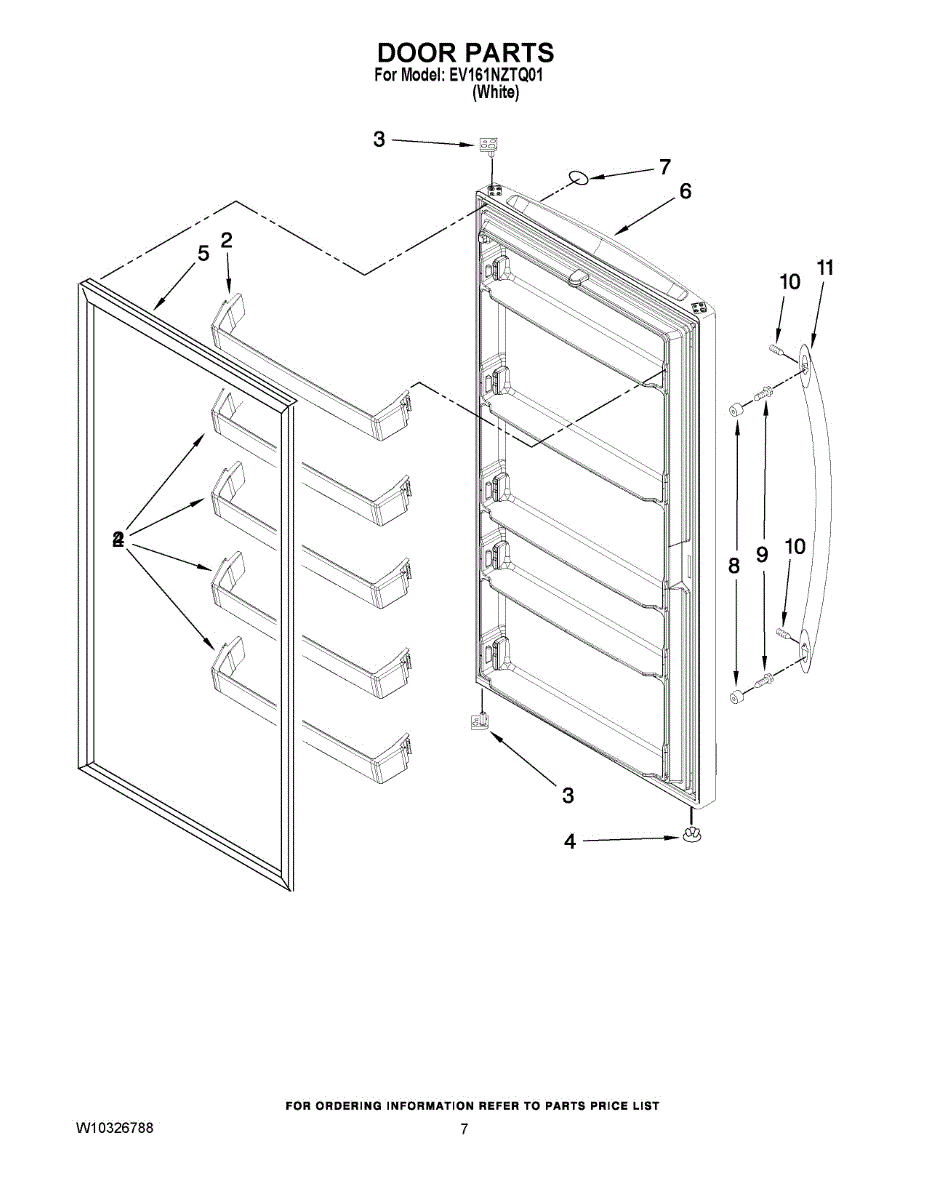

Parts for Whirlpool EV161NZTQ01: 04 - Door Parts

This door stop replaces the worn or broken stop that limits door travel and keeps the door aligned for smooth opening and closing. Restores proper door positioning to prevent over-travel and edge wear. What it does:

• Acts as the mechanical stop that limits the door's range of motion
• Helps keep the door aligned and prevents the door from swinging past the designed stop
• Reduces stress on hinges and adjacent trim from over-travel
• Commonly replaced when the door binds, catches, or does not sit flush

What's included:

• One door stop (stop-door) as shown

Install notes:

• Disconnect power and follow the appliance manufacturer's safety instructions before servicing
• Removal typically requires basic hand tools; keep fasteners for reassembly
• Inspect surrounding hinge and trim for wear; replace as needed

This vent plug seals the designated vent port on the appliance assembly to maintain the intended seal and containment. Replacing a worn or missing plug helps prevent nuisance leaks and odors from an open or damaged vent.

• Seals a factory vent opening on the specified assembly
• Helps prevent moisture or drips from escaping at the vent area
• Helps keep dust and debris from entering through an open port
• Replace if the plug is cracked, hardened, shrunken, loose, or missing
• Typical signs include moisture around the vent, visible damage, or a plug that won't stay seated

• Disconnect power and shut off water or gas supplies (as applicable) before servicing
• Allow appliance surfaces to cool and dry; wear protective gloves
• Remove the old plug, clean the vent port, and press the new plug fully flush in the same orientation
• Restore power and run a brief test; inspect the vent area for leaks

This magnetic door gasket creates an airtight seal around the perimeter of your refrigerator/freezer door. Replacing a worn gasket restores proper sealing to help maintain temperature, reduce frost and condensation, and improve overall efficiency.

• Seals the door to minimize air leaks and temperature swings
• Helps reduce frost buildup and moisture around the door perimeter
• Supports consistent cooling and quieter, shorter run times
• Common failure signs: tears, gaps, hardened/compressed areas, or persistent condensation

• Disconnect power before servicing.
• Warm the new gasket (room temp; briefly in warm water or with a hair dryer on low) to relax bends.
• Seat the gasket evenly in the door's retainer/channel; align corners for uniform contact.
• Adjust retainer/door alignment as needed.

The Screw (Shoulder Bolt) is an OEM part for Whirlpool refrigerators. This part secures the refrigerator handle to the door, ensuring it remains firmly attached and functions correctly. The shoulder design of the bolt allows for proper spacing and alignment of the handle, providing stability and ease of use.

Causes of a bad handle screw can include regular wear and tear, over-tightening, or accidental damage during use or maintenance.

Symptoms of a bad handle screw include:

• Loose or wobbly refrigerator handle
• Handle detaching from the door
• Difficulty opening or closing the refrigerator
• Visible damage or wear on the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance panels, brackets, and components. Using the correct size restores a snug fit to reduce vibration, prevent loosening, and keep assemblies properly aligned during operation. What it does:

• Fastens sheet metal and component brackets in designated locations
• Replaces missing, stripped, or corroded hardware
• Helps eliminate rattling and vibration from loose panels
• Maintains proper alignment of covers and assemblies

• 1 screw

• Disconnect electrical power; shut off water or gas supplies if applicable
• Match length/thread to the original; replace one fastener at a time to preserve alignment
• Start by hand to avoid cross-threading; use the correct driver size
• Snug firmly but do not overtighten to prevent stripping

The Handle Set Screw is an OEM part for Whirlpool refrigerators. As an internal component, the set screw is used to securely hold refrigerator door handles in place for easy opening and closing of access doors.

Symptoms of a bad handle set screw include:

• Handles that spin loose and no longer open doors properly
• Loss of attachment causing handles to fall off doors
• Potential for handles to fall on feet presenting a safety hazard
• Opening issues, like hands slipping off spinning handles

Causes involve wear from repeated use or accidental tightening damage stripping threads and allowing handle loosening, affecting usability.

This OEM Whirlpool part is also compatible with some Kenmore and KitchenAid models.
