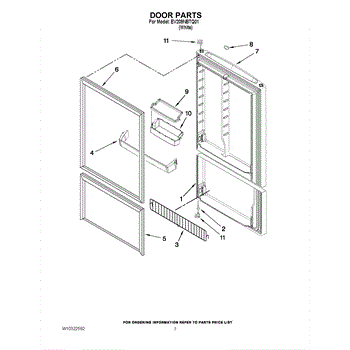

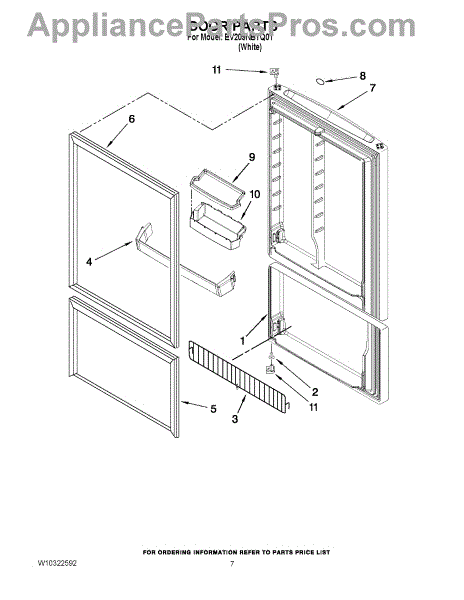

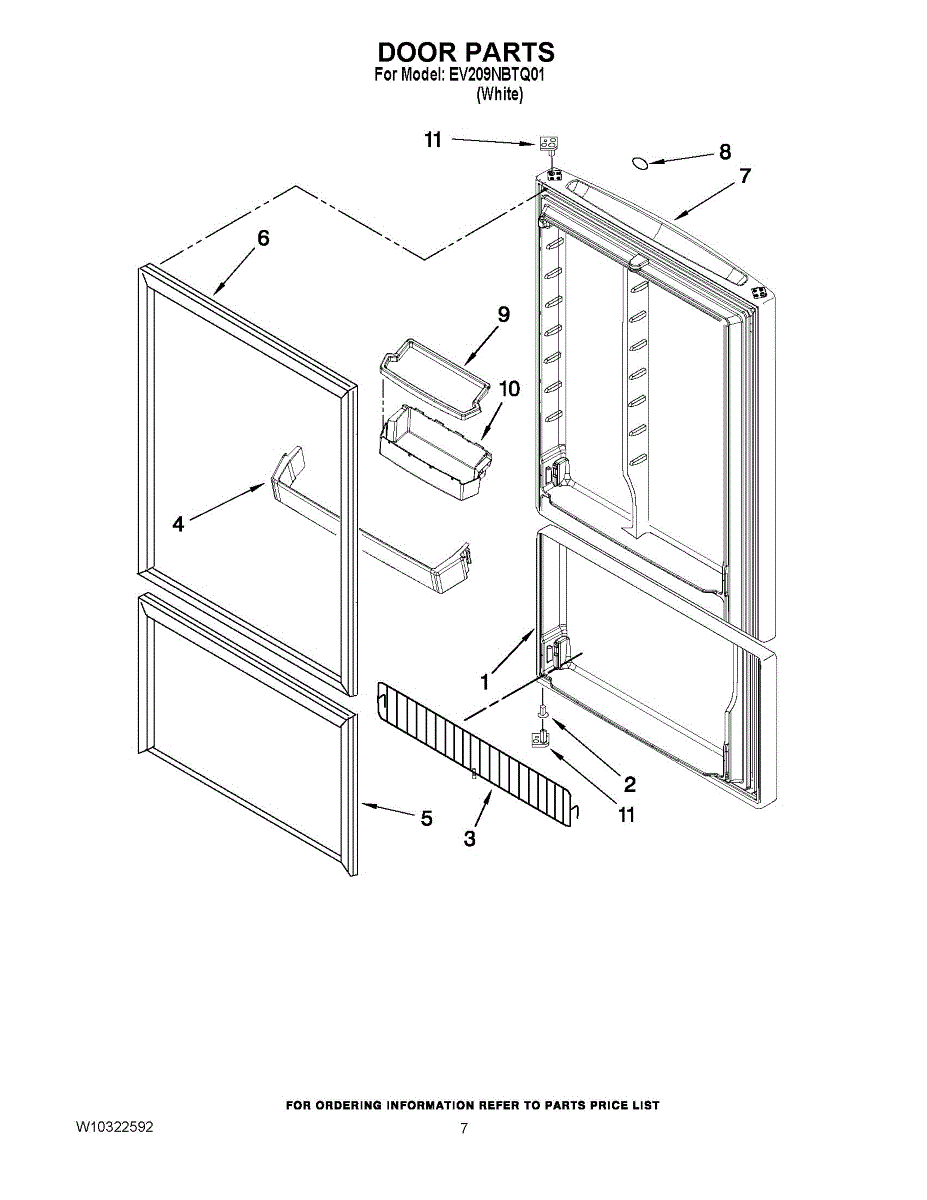

Parts for Whirlpool EV209NBTQ01: 04 - Door Parts

This is a 33-inch non-gallon door shelf rail that secures refrigerator door bins and keeps stored items from falling out. It restores proper bin support and helps maintain neat, usable door storage. What it does:

• Replaces a cracked, broken or warped door shelf rail that no longer holds a door bin securely
• Keeps bottles, jars and other items contained on the refrigerator door shelf
• Prevents bins from shifting or dropping when the door is opened
• Matches the OEM fit for a direct replacement when the original rail is damaged

• Remove all items from the door bins before starting
• Many installations are snap-in or secured with a few screws; keep original fasteners
• Handle carefully to avoid scratching the door or damaging the bin

A replacement door gasket that seals the appliance door to help maintain proper temperature and prevent leaks. Fits the OEM door opening to restore an effective seal and reduce heat or moisture loss. What it does

• Replaces a worn, torn, or brittle door seal to restore a tight closure
• Helps prevent heat, steam, or water from escaping around the door
• Reduces cycling and improves temperature stability (oven/dryer) or stops leaks (dishwasher)
• Restores proper door compression for reliable operation

• One door gasket as shown

• Disconnect power and/or water before starting any repair
• Remove the old gasket carefully; some models use retaining clips or a channeled flange
• Work around the entire door to seat the gasket evenly; avoid sharp bends or stretching

This clear replacement door shelf bin restores door storage and visibility in your refrigerator, keeping bottles, jars and condiments organized and easy to see. Ideal for replacing cracked, cloudy or broken door bins. What it does:

• Provides a secure shelf on the refrigerator door to hold bottles, jars and other small items
• Restores visibility with a clear design so contents are easy to identify
• Replaces cracked, chipped or cloudy bins that no longer hold items securely
• Helps prevent items from falling when the door is opened or closed

• One clear door shelf bin

• Remove all items from the door before installing
• Align the bin hooks with the door rail and snap into place; do not force
• Inspect mounting tabs for damage and replace if broken
• Wear gloves to avoid cuts on damaged plastic and dispose of broken parts safely

This door stop replaces the worn or broken stop that limits door travel and keeps the door aligned for smooth opening and closing. Restores proper door positioning to prevent over-travel and edge wear. What it does:

• Acts as the mechanical stop that limits the door's range of motion
• Helps keep the door aligned and prevents the door from swinging past the designed stop
• Reduces stress on hinges and adjacent trim from over-travel
• Commonly replaced when the door binds, catches, or does not sit flush

What's included:

• One door stop (stop-door) as shown

Install notes:

• Disconnect power and follow the appliance manufacturer's safety instructions before servicing
• Removal typically requires basic hand tools; keep fasteners for reassembly
• Inspect surrounding hinge and trim for wear; replace as needed
