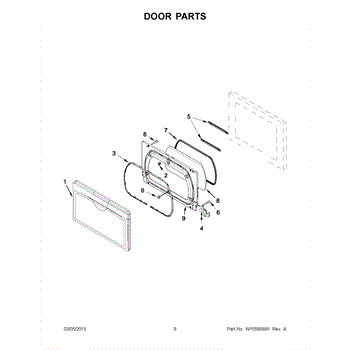

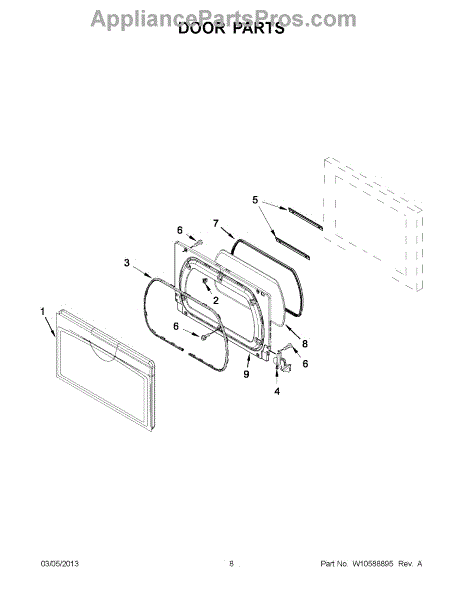

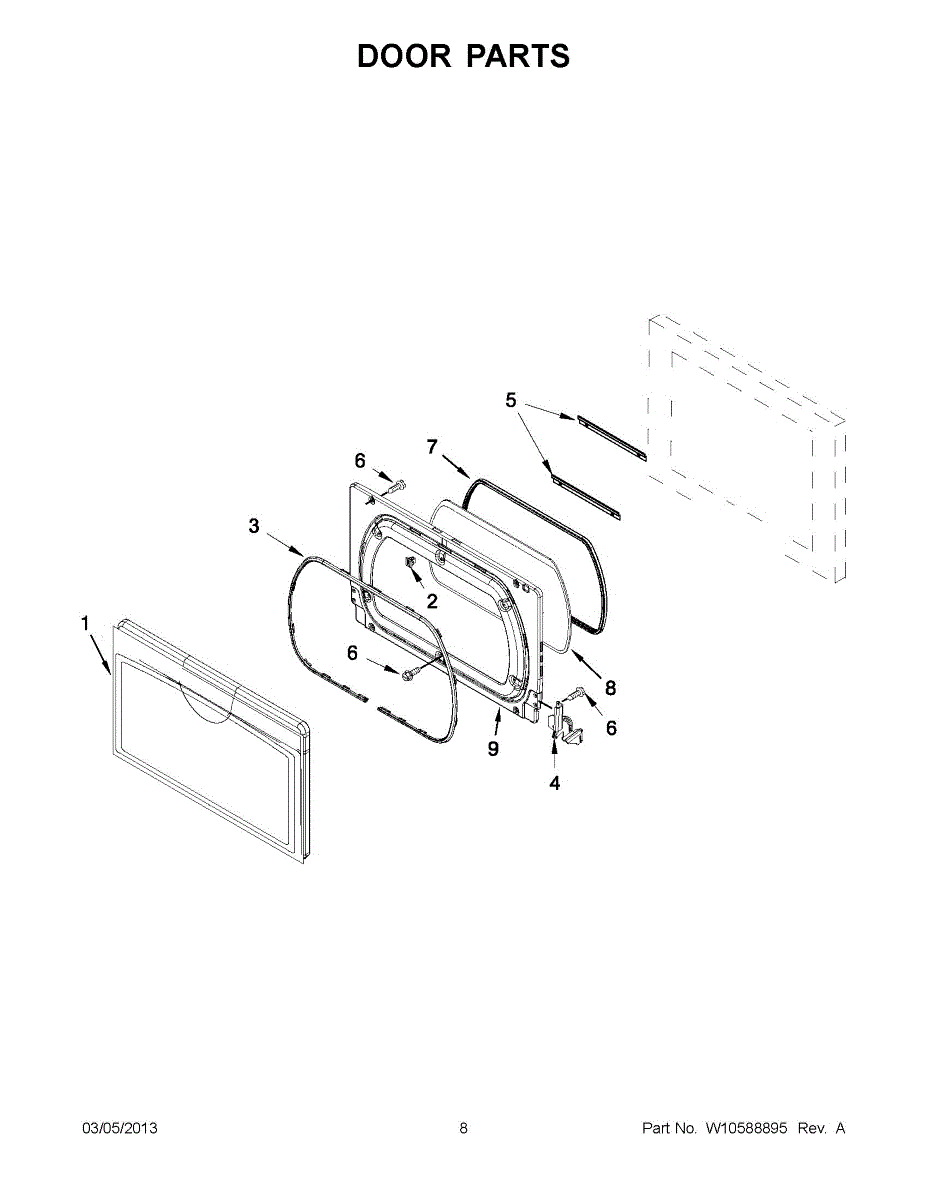

Parts for Whirlpool WED5700AC1: 04 - Door Parts

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

This Door Seal replaces the perimeter gasket on the appliance door so it closes snugly and maintains a proper barrier during operation. A fresh seal supports performance and helps reduce heat and moisture escaping around the door edge.

• Creates a continuous barrier between the door and front frame
• Helps maintain proper door fit and latching
• Replaces a torn, warped, or brittle seal that can cause leaks or a loose-feeling door
• Common symptoms include visible gaps, escaping steam/heat at the door, or needing extra force to close

• Disconnect power at the breaker before servicing; allow the unit to cool completely
• Open the door and remove any retaining trim/fasteners to release the old seal; avoid bending the door
• Clean the channel and press the new seal fully into place, ensuring an even, continuous fit around the perimeter

This replacement hinge supports and pivots the appliance door or lid, keeping it aligned for smooth opening and a secure close. Replacing a worn hinge restores proper movement and helps the latch engage consistently.

• Provides the pivot point for the door or lid
• Maintains alignment for correct latch/strike engagement and consistent closing
• Helps prevent binding, scraping, and uneven gaps
• Common symptoms: door sags, won't close fully, feels loose, squeaks, or rubs

• Disconnect power (and any other utilities) before servicing
• Support the door/lid to prevent strain or injury during removal
• Remove mounting screws/pins and note hinge orientation and position
• Reinstall, then check alignment and latch operation; adjust if needed

Right-hand hinge assembly that restores proper refrigerator door alignment and smooth opening and closing. Replaces a worn or damaged hinge to help stop door sag, binding, gaps, or uneven sealing that lets cold air escape. What it does:

• Provides the pivot and mounting support for the right-side refrigerator door to maintain correct alignment.
• Allows the door to swing smoothly and latch reliably, reducing sticking or grinding noises.
• Helps restore a full seal to prevent cold-air leaks and temperature loss around the door edge.
• Replaces damaged or bent hinge hardware that can cause visible sagging or uneven gaps.

• Disconnect power to the appliance and remove food from the door area before beginning work.
• Support the door from below (and have a second person if needed) before removing the old hinge to prevent dropping or damage.
• Use appropriate hand tools to remove and install mounting fasteners; transfer any brackets or striker plates exactly as removed.
• After installation, check door alignment and latch; adjust per manufacturer instructions.

This retainer clip secures small appliance components in place to prevent movement and ensure proper alignment for reliable operation. It's a simple replacement that restores lost or broken mounting support. What it does:

• Holds and stabilizes the attached component or assembly to prevent shifting during use
• Maintains proper alignment for connected parts to reduce wear and noise
• Commonly used where a small plastic or metal clip is needed for secure mounting
• Can address symptoms like loose panels, rattling, or parts that won't stay seated

• One retainer clip

• Disconnect power to the appliance before attempting any repair
• Remove surrounding panels as needed to access the clip; small trim tools may help
• Replace the broken retainer with the new clip and verify the secured component is seated correctly

This is a replacement sheet-metal screw used to secure panels and components on compatible Whirlpool appliances. It provides a reliable fasten point for reattaching trim, brackets, and access panels after service. What it does:

• Secures appliance panels, brackets, and smaller components to the cabinet or frame
• Helps restore original fit and finish after repairs or part replacement
• Prevents rattles or loose panels when properly installed
• Matches OEM thread size and head style for a correct fit

• Turn off and unplug the appliance before removing panels or installing hardware
• Use the correct driver bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing to prevent thread damage or warped panels

This replacement seal restores a tight barrier at its mounting point in your appliance. It helps prevent leaks and maintains performance by ensuring a proper fit between connected components where fluids or air must be contained. Location varies by model.

• Creates a reliable seal between mating parts to contain water or air
• Helps stop drips, seepage, and unwanted airflow that can affect performance
• Replace if cracked, flattened, swollen, or leaking
• Common symptoms: moisture under/around unit, residue, or diminished efficiency
• Direct-fit replacement to match the original part's size and profile

• Disconnect power and, if applicable, shut off water supply before servicing
• Note the original seal's orientation; clean and dry all sealing surfaces
• Lightly moisten or use only manufacturer-approved lubricant; avoid petroleum products unless directed
• Seat evenly without twisting; after reassembly, run a test cycle and check for leaks

This outer door assembly replaces a damaged or worn exterior door to restore the appliance's appearance and proper closure. It provides a durable replacement surface that helps keep the interior sealed and protected. What it does:

• Replaces cracked, dented, or cosmetically damaged outer door panels
• Restores proper door fit and helps maintain an effective interior seal
• Helps prevent drafts, moisture intrusion, and heat/cold loss related to a damaged exterior
• Matches OEM fit and mounting locations for straightforward replacement where applicable

• One outer door assembly

• Remove power and empty the appliance before starting; follow OEM service instructions
• Some installation steps may require removing trim, hinges, or internal panels—retain all fasteners
• Use proper tools and two people for alignment-heavy doors to avoid damage or injury
