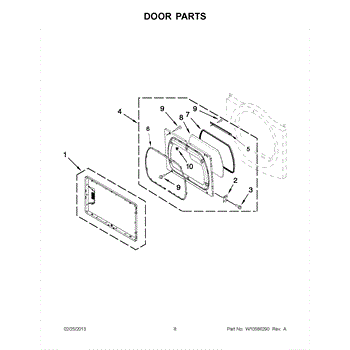

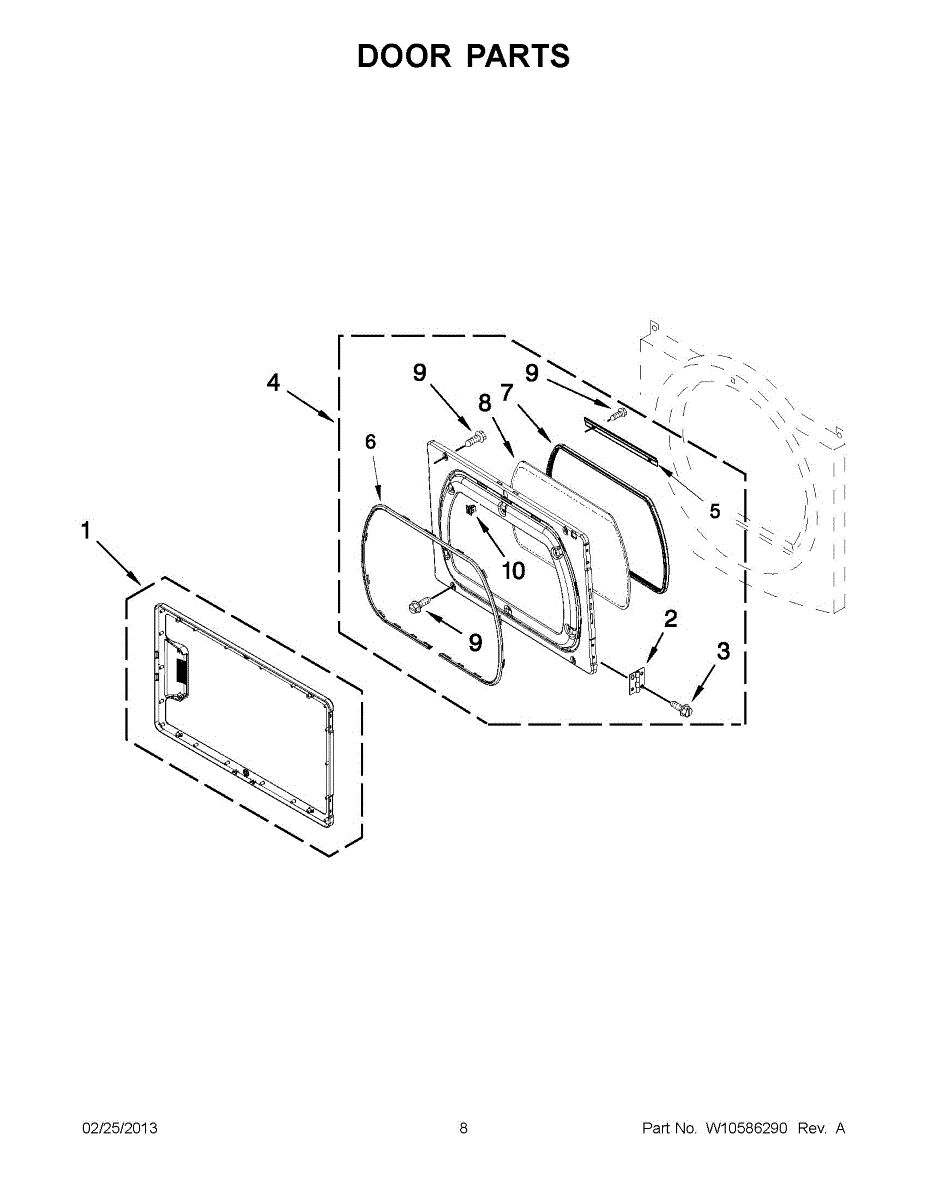

Parts for Whirlpool YWED5700AC1: 04 - Door Parts

This factory hinge supports and pivots the appliance door so it opens smoothly and closes square to the cabinet. Replacing a worn or bent hinge restores proper alignment, sealing, and overall door feel.

• Provides the pivot point and carries the door's weight for smooth operation
• Helps keep the door aligned so it closes flush and seals correctly
• Direct replacement for a bent, seized, or excessively worn hinge
• Typical symptoms: door sags or rubs, squeaks/clicks at the hinge, won't close flush or stay closed

• Disconnect power to the appliance before servicing and allow hot surfaces to cool
• Support the door during removal/installation to prevent strain on the remaining hinge
• Transfer any screws, plates, or bushings from the old hinge as shown in your model's diagram
• After installation, check door alignment and gasket contact; adjust per the service instructions if needed

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening

This retainer clip secures small appliance components in place to prevent movement and ensure proper alignment for reliable operation. It's a simple replacement that restores lost or broken mounting support. What it does:

• Holds and stabilizes the attached component or assembly to prevent shifting during use
• Maintains proper alignment for connected parts to reduce wear and noise
• Commonly used where a small plastic or metal clip is needed for secure mounting
• Can address symptoms like loose panels, rattling, or parts that won't stay seated

• One retainer clip

• Disconnect power to the appliance before attempting any repair
• Remove surrounding panels as needed to access the clip; small trim tools may help
• Replace the broken retainer with the new clip and verify the secured component is seated correctly

This Door Seal replaces the perimeter gasket on the appliance door so it closes snugly and maintains a proper barrier during operation. A fresh seal supports performance and helps reduce heat and moisture escaping around the door edge.

• Creates a continuous barrier between the door and front frame
• Helps maintain proper door fit and latching
• Replaces a torn, warped, or brittle seal that can cause leaks or a loose-feeling door
• Common symptoms include visible gaps, escaping steam/heat at the door, or needing extra force to close

• Disconnect power at the breaker before servicing; allow the unit to cool completely
• Open the door and remove any retaining trim/fasteners to release the old seal; avoid bending the door
• Clean the channel and press the new seal fully into place, ensuring an even, continuous fit around the perimeter

This replacement seal restores a tight barrier at its mounting point in your appliance. It helps prevent leaks and maintains performance by ensuring a proper fit between connected components where fluids or air must be contained. Location varies by model.

• Creates a reliable seal between mating parts to contain water or air
• Helps stop drips, seepage, and unwanted airflow that can affect performance
• Replace if cracked, flattened, swollen, or leaking
• Common symptoms: moisture under/around unit, residue, or diminished efficiency
• Direct-fit replacement to match the original part's size and profile

• Disconnect power and, if applicable, shut off water supply before servicing
• Note the original seal's orientation; clean and dry all sealing surfaces
• Lightly moisten or use only manufacturer-approved lubricant; avoid petroleum products unless directed
• Seat evenly without twisting; after reassembly, run a test cycle and check for leaks

This is a replacement sheet-metal screw used to secure panels and components on compatible Whirlpool appliances. It provides a reliable fasten point for reattaching trim, brackets, and access panels after service. What it does:

• Secures appliance panels, brackets, and smaller components to the cabinet or frame
• Helps restore original fit and finish after repairs or part replacement
• Prevents rattles or loose panels when properly installed
• Matches OEM thread size and head style for a correct fit

• Turn off and unplug the appliance before removing panels or installing hardware
• Use the correct driver bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing to prevent thread damage or warped panels

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.
