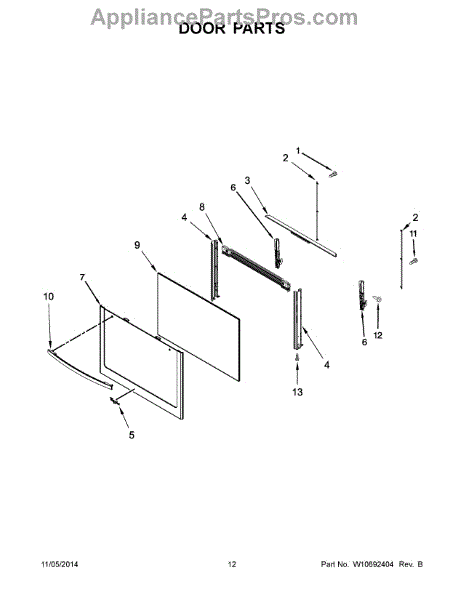

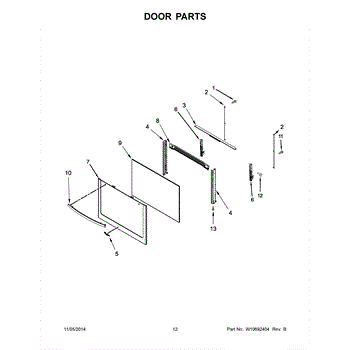

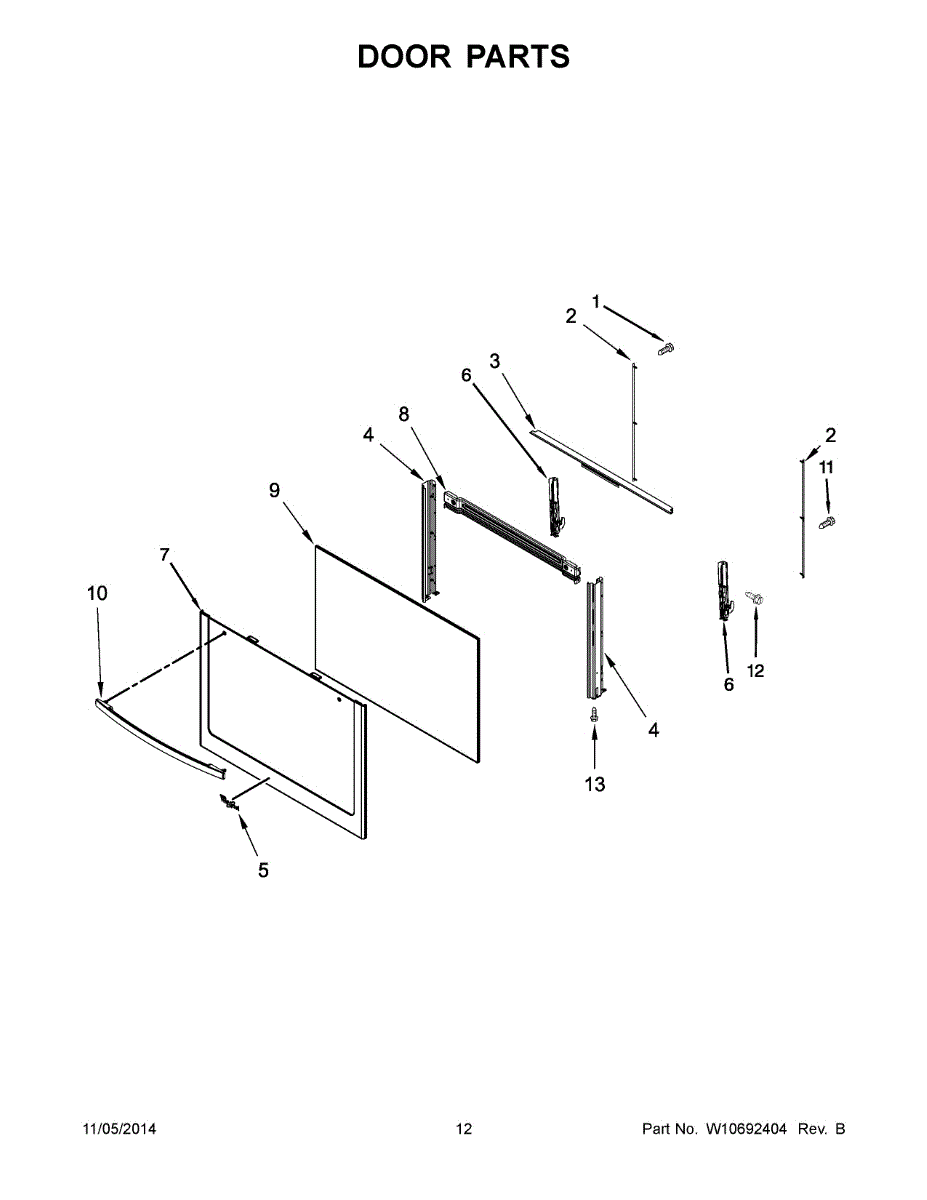

Parts for Whirlpool WFG505M0BS0: 07 - Door Parts

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.

Seals window glass to door frame, preventing rattles and heat loss. Replace if cracked, torn, or no longer cushioning properly. Verify fit by model.

Secures the inner glass panel inside your range oven door. Replace this bracket if it's cracked, broken, or missing to restore door integrity and insulation.

This is the right-side trim piece that attaches to the oven door, providing a finished appearance and helping secure the door panel components in place. It runs along the edge of the door and protects the internal layers from exposure. Replace this trim if it is cracked, warped, or missing, which can cause the door to fit improperly or allow heat to escape.

This is a metal or plastic trim piece that attaches to the left side of the oven door. It provides a finished edge and helps secure the door panel and insulation in place. Replace this trim if it is cracked, warped, or missing, which can cause the door to look unfinished or allow heat to escape during cooking.

Color: Grey

Color: Grey

Stainless steel door hinge assembly for gas range ovens. Supports door weight and maintains proper alignment. Replace if bent, worn, or damaged.

Supports and pivots your range door for smooth opening and secure closing. Replace when door sags, won't close evenly, or alignment is off. Confirm fit with your model number.

Replacement outer glass panel for gas range oven doors. Restores clear viewing window when original is cracked, broken, or damaged. Mounts as exterior layer.

White outer glass panel for range oven door. Replaces broken, shattered, or cracked glass. Installs on door exterior with mounting brackets.

The Black Glass Door is an OEM component for Whirlpool gas and electric ranges. It provides a clear viewing window into the range's oven cavity through the locked upper door. The glass measures approximately 20-5/8 by 29-5/8 inches

The glass door can become damaged due to accidental impact, thermal stress, or general wear and tear over time. Breakage or cracking can occur if the door is closed too forcefully or if heavy objects fall against it.

Symptoms of a bad glass door include:

• Visible cracks or breaks in the glass
• Difficulty maintaining oven temperature
• The door not closing properly
• Heat escaping from the oven during use

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Mounting bracket that secures and reinforces oven cavity components underneath your gas range. Replace if cracked, bent, or broken from weight stress.

Inner glass panel for gas range oven doors. Installs between door panels for visibility while cooking. Replace if cracked, broken, or shattered.

White door handle for gas range ovens. Mounts to the front of the oven door. Replace if cracked, broken, discolored, or missing hardware.

Black outer door handle for ranges. Mounts to the front of the oven door for opening and closing. Replace if cracked, broken, loose, or missing.

Stainless steel oven door handle assembly for gas ranges. Replaces broken, cracked, or worn handles. Attaches to the exterior of the oven door.

Replacement mounting screw for securing panels, trim, and internal components in your range or cooktop. Replace missing, stripped, or damaged screws.

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

Secures panels, brackets, and internal components in your range. Replace stripped, missing, or damaged screws to keep parts properly aligned and secured.
