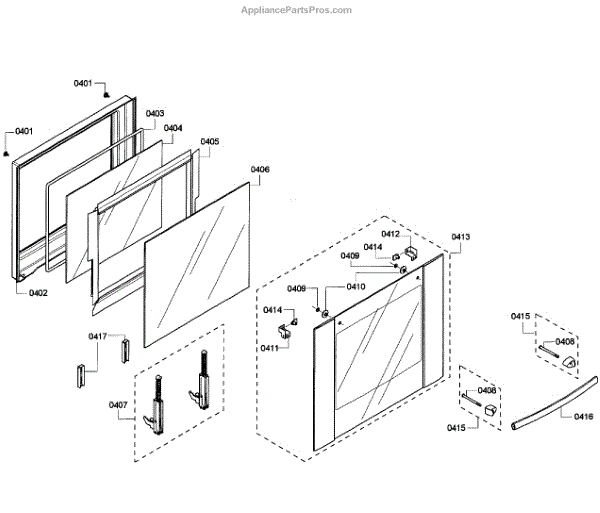

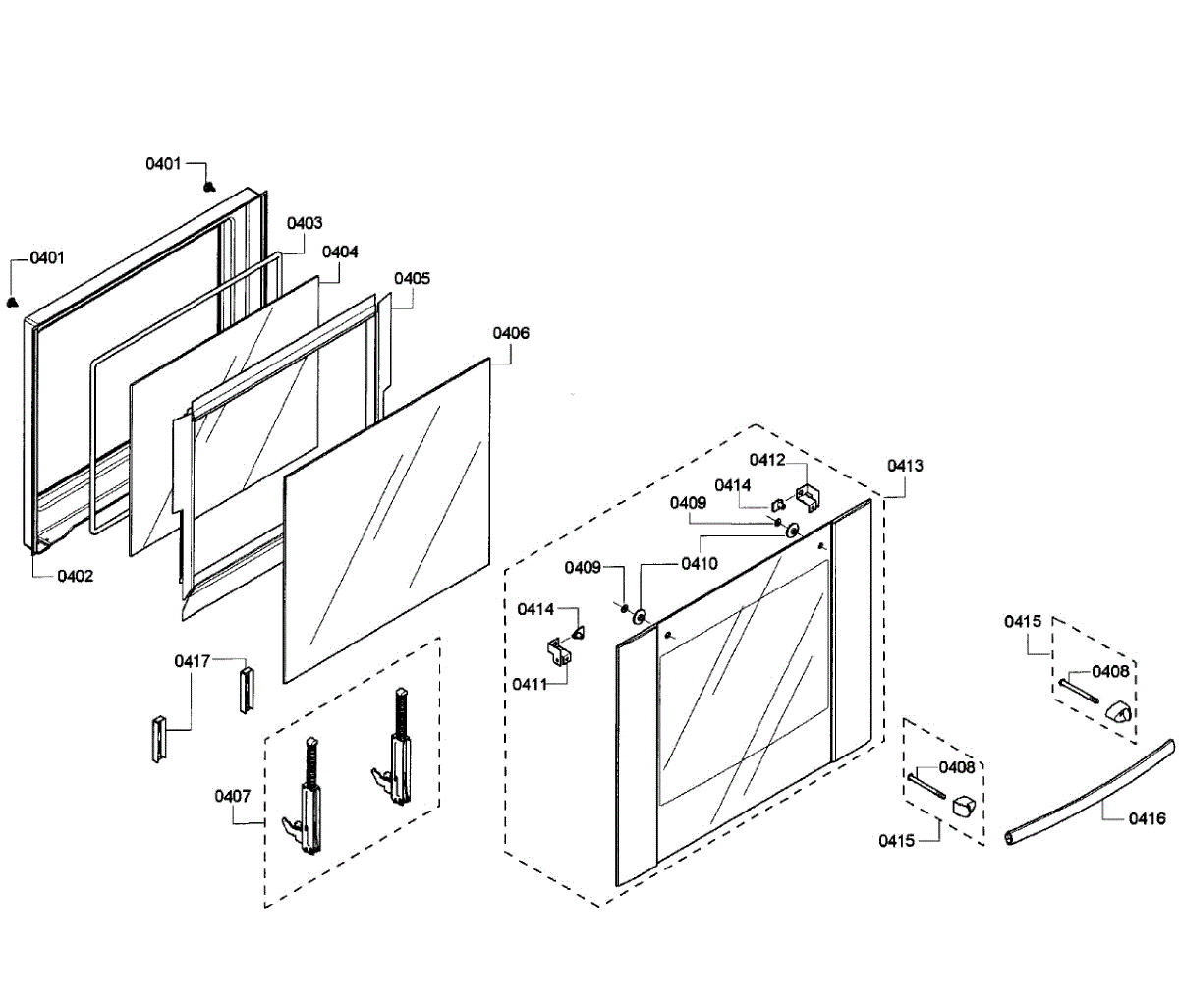

Parts for Bosch HBN5650UC/05: Door Upper Parts

This inner door panel replaces a damaged or worn interior door surface to restore structural support and a finished interior appearance. It provides the mounting surface for door hardware and helps protect internal components. What it does:

• Restores the interior door structure so latches, hinges, and assemblies mount securely
• Protects internal insulation and electrical components behind the door
• Improves the appliance's interior appearance when the original panel is cracked, dented, or warped
• Helps maintain proper door alignment for reliable opening and closing

• One inner door panel

• Disconnect power (and water supply for dishwashers) before beginning work
• Handle glass and sheet-metal edges carefully; wear gloves and eye protection
• Installation typically requires removing the outer door panel or trim and transferring door hardware to the new inner panel
• Verify fasteners and seal placement during reassembly to ensure proper alignment

This replacement door seal forms a watertight gasket around the appliance door to help prevent leaks and maintain proper sealing during cycles. Designed to restore door closure and reduce water escaping at the door perimeter. What it does:

• Creates a secure, flexible seal between the door and cabinet to help prevent water leaks.
• Restores proper door closure and helps maintain cycle performance.
• Helps reduce drips and pooling at the base of the appliance when the door is closed.

• High-level replacement: remove the old seal from the door channel and press the new seal evenly into place.
• Inspect the door channel and mounting area for debris or damage before installing the new seal.
• If adhesive or clips are used, use the same type specified by the manufacturer; avoid makeshift adhesives that can degrade or cause odors.
• Disconnect power and water supply before starting work and follow all safety precautions.

A replacement outer glass panel for Bosch appliances that restores the door's appearance and protects internal components from damage. Use this panel to repair visible chips, cracks, or shattered glass and return the door to serviceable condition. What it does:

• Replaces cracked, chipped, or broken exterior door glass for a secure, finished surface
• Protects internal controls and insulation from moisture, debris, and impact
• Restores original appearance and helps prevent sharp edges that can cause injury
• Helps maintain normal door operation by replacing damaged or warped glass

• Disconnect power (and water supply for dishwashers) before starting any repair to avoid shock or flooding.
• Handle glass with heavy gloves and eye protection; support the panel to avoid dropping or cracking.
• Removal typically requires taking off the door trim/handle and any retainers; follow OEM diagram and instructions.
• If reusing seals or clips, inspect them for damage and replace as needed for a proper fit and seal.

This is the dishwasher door frame that supports the door assembly and trim, restoring the door's fit and appearance. It replaces a damaged or bent frame to help the door close securely and sit flush. What it does:

• Forms the structural border of the dishwasher door, holding inner panels and trim in place
• Helps maintain correct door alignment and sealing for proper closing
• Addresses symptoms like a warped or dented door edge, loose trim, or visible damage
• Works with existing latch and hinge components when installed correctly

• One dishwasher door frame

• Door may need to be removed for access
• Keep track of screws and trim clips; reuse original fasteners unless replacements are provided
• Disconnect power and water to the appliance and follow safety precautions before starting
• Minor adjustments to alignment may be necessary after installation to ensure proper sealing

This glass panel protects the appliance control/display area and keeps internal components shielded while maintaining a clean, finished appearance. It restores the look and functionality of the control area after damage or wear. What it does:

• Protects control buttons, touchpads and display from spills, grease and accidental impact
• Maintains a clear viewing area for the appliance display and indicators
• Replaces cracked, chipped or scratched glass that can impair operation or appearance
• Helps preserve the underlying electronics by providing a solid protective barrier

• High-level replacement only; handle glass with care and wear cut-resistant gloves
• Disconnect power to the appliance before removing the old panel or servicing controls
• Follow OEM disassembly steps for access—do not force parts or use excessive pry tools
• If the glass is bonded or sealed, adhesive removal and proper resealing may be required

This part is a genuine OEM door hinge kit manufactured by Bosch for use with different wall ovens.This door hinge kit includes both door hinges for the left and right sides in order to properly connect the oven door to the appliance. Hinges are critical for allowing the door to close and open properly, as well as controlling the rate at which the door moves. If the user notices that the hinges are rusty, worn, or becoming detached, or the door is unable to open or close, the hinges will need to be replaced. Work gloves should always be worn for safety and to prevent injury. This replacement can be done with regular household tools.This door hinge kit is compatible with wall ovens manufactured by Bosch, Thermador, and Gaggenau. This part is sold individually and is manufactured from high-quality, durable, non-corrosive materials to ensure the best quality.

This metal mounting bracket secures internal components and panels to restore proper alignment and reduce rattling. It's a straightforward replacement part that helps keep appliance panels and assemblies firmly in place for reliable operation. What it does:

• Provides a secure attachment point for panels or internal assemblies to prevent movement and vibration
• Helps correct alignment issues that can cause rubbing, gaps, or noise
• Restores the original fit where a bent, cracked, or missing bracket caused loose parts
• Works with the appliance's existing fasteners and mounting points

• Remove power and, if applicable, disconnect the appliance from water before beginning work
• Use the factory fasteners or OEM replacement screws to secure the bracket in the original location
• Verify alignment of the attached panel or assembly before fully tightening fasteners

This is a small OEM retainer clip designed to secure wiring, hoses or small components inside the appliance to prevent rubbing, chafing and noise. It helps keep internal parts in their intended position for reliable operation. What it does:

• Holds wiring harnesses or small hoses in place to prevent contact with moving or hot parts
• Reduces rattling and vibration-related noise by keeping components secured
• Prevents wear and potential damage caused by loose or rubbing wires and hoses
• Helps maintain proper routing so related components continue to function as intended

• Disconnect power and water before accessing internal components
• Inspect surrounding area and replace any damaged or worn clips with the same style
• Press clip into the designated mounting slot or panel until it seats securely; ensure harness/hose is routed correctly
• Use caution around sharp sheet metal; wear gloves and follow appliance manufacturer instructions

This cap is a direct-fit replacement closure used to protect and seal an exposed opening or component on compatible Bosch appliances, preventing dirt, moisture and damage for reliable operation. What it does:

• Covers and seals an exposed port or fastener to keep contaminants out
• Protects internal components from moisture and debris that can cause malfunctions
• Replaces cracked, warped or missing caps that allow leaks or debris intrusion
• Restores proper fit and appearance where a damaged cap leaves an opening

• Disconnect appliance power and water supply before starting any repair
• Verify the cap matches the damaged/original part before installation
• Press or snap the cap into place until fully seated; do not force or pry
• Inspect mating surfaces for damage or debris and clean before installing
