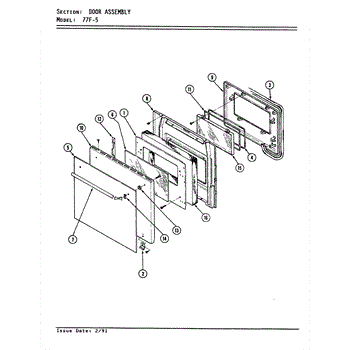

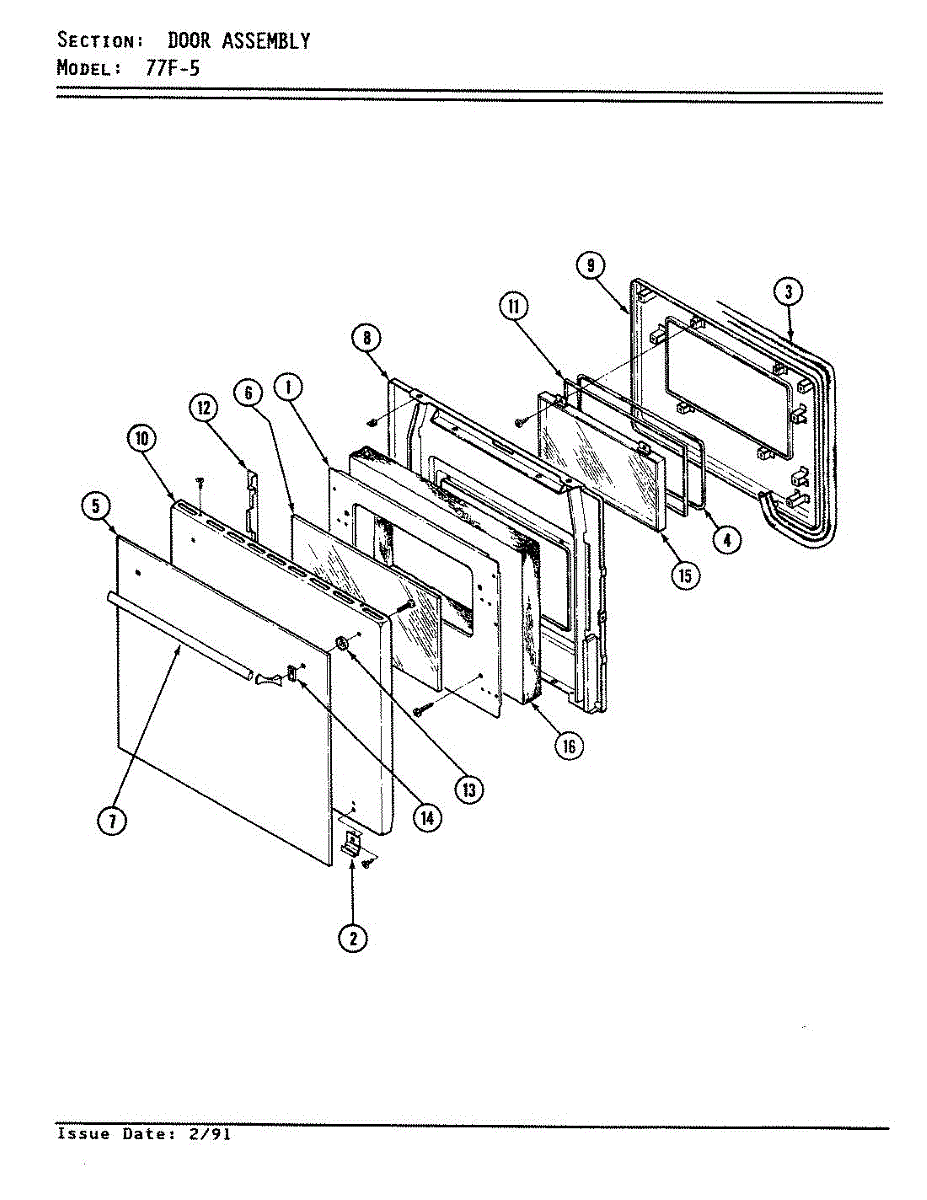

Parts for Magic Chef B77FN-5EVWW: 04 - Door - Upper Parts

This part has been discontinued by the manufacturer and is no longer available.

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This seal strip replaces a worn or damaged door gasket edge to restore a proper seal and help the appliance maintain temperature and operate quietly. It's a direct-fit service part used where a continuous seal is required. What it does:

• Provides a flexible barrier along the door/frame to reduce air leaks and heat/cold loss
• Helps prevent moisture buildup and improves energy efficiency when sealing is restored
• Reduces rattling and vibration caused by a compressed or torn seal edge
• Commonly replaced when the strip is torn, missing, or no longer adheres properly

• One seal strip

• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Clean and dry the mounting surface; remove old adhesive or residue for best adhesion
• Align the strip carefully and press firmly; allow any adhesive to cure per manufacturer instructions

This spacer fits between the inner and outer oven door glass panels to help maintain the correct gap and alignment for safe operation. It replaces a missing or damaged spacer to restore proper door assembly and appearance. What it does:

• Keeps the inner and outer door glass correctly spaced and aligned
• Helps prevent glass contact, rattling, and uneven sealing
• Supports proper door assembly after glass or panel replacement
• Addresses symptoms like loose or rattling door glass and misaligned panels

• One door glass spacer as shown

• High-level replacement only; follow the appliance's service manual for disassembly and reassembly steps
• Handle glass carefully and wear cut-resistant gloves and eye protection
• Ensure power is disconnected before accessing the door assembly
• If door glass is cracked or damaged, replace glass panels per OEM instructions rather than relying solely on the spacer

Oven door glass assembly.

Oven door glass assembly.
