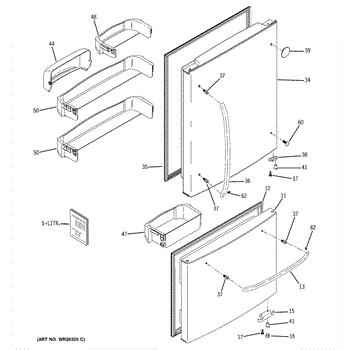

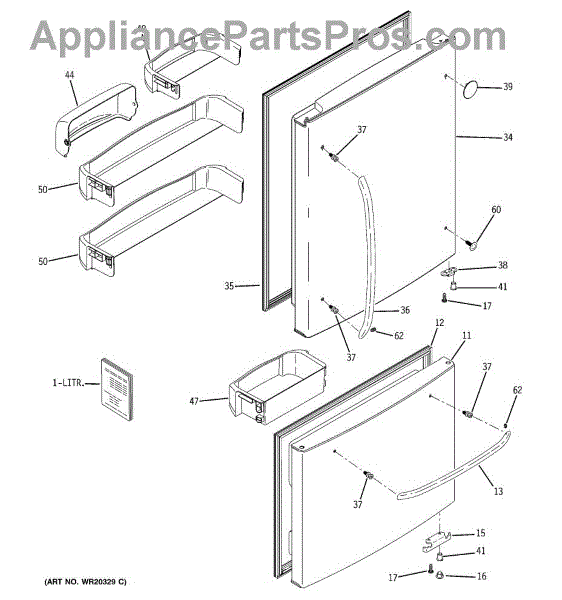

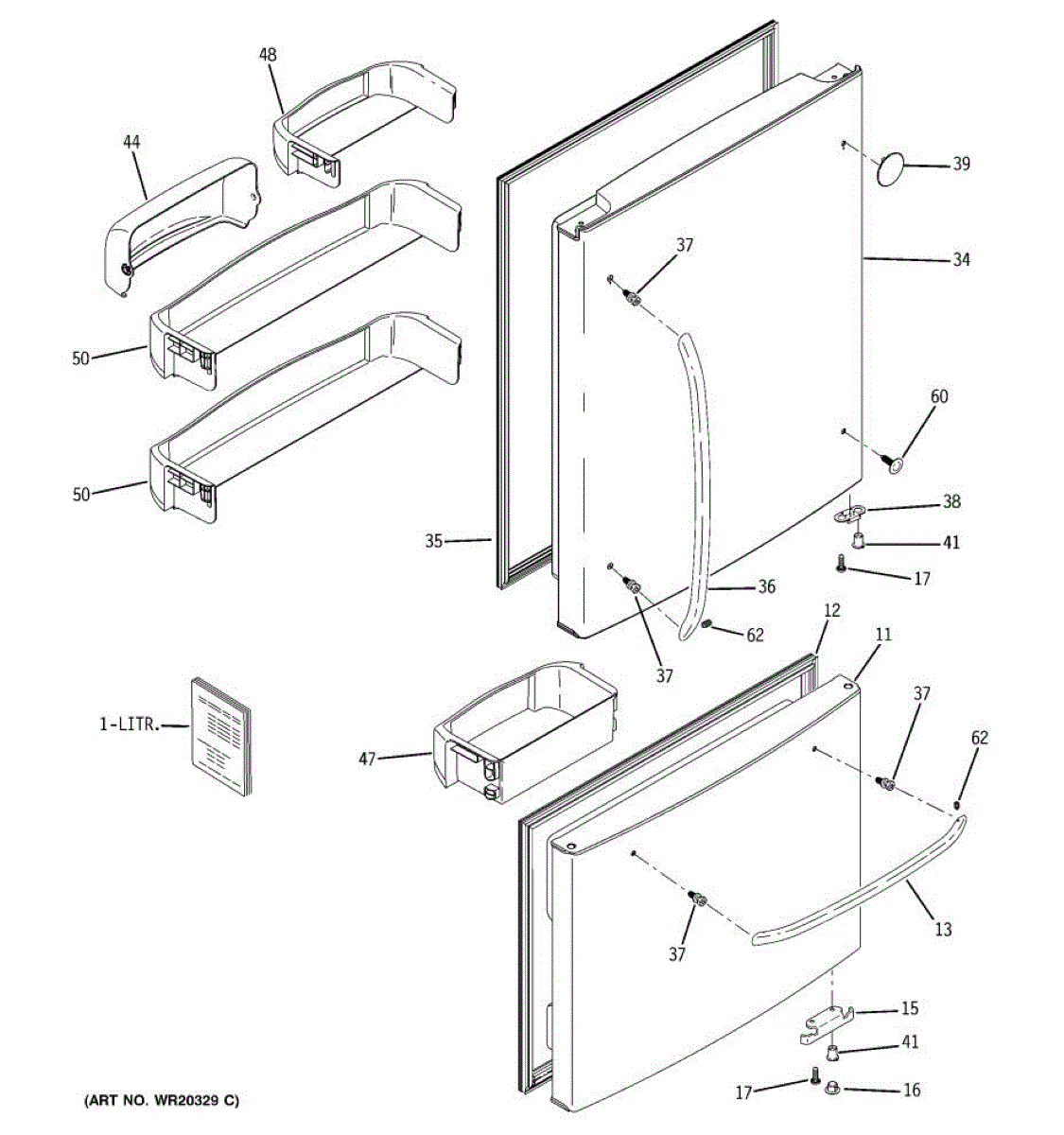

Parts for Ge GBSC3HBXARBB: 01 - Doors Parts

This refrigerator door gasket forms an airtight seal between the door and cabinet. Replacing a worn or warped gasket restores proper sealing to improve temperature control, reduce frost and condensation, and help your fridge run efficiently.

• Creates a continuous seal around the door perimeter to prevent air leaks
• Helps maintain consistent temperatures and humidity inside the compartment
• Reduces frost, ice, and condensation caused by warm air infiltration
• Common symptoms: tears or warping, visible gaps/light, door not closing fully or popping open, excess frost or moisture

• Unplug the refrigerator before servicing
• Lay the gasket flat and warm it with hot water or gentle heat to relax folds; do not overheat
• Remove the old gasket and press the new one fully into the retainer channel, starting at the corners
• Close the door and check for uniform contact all around; reseat or adjust hinges if needed

This refrigerator door gasket creates an airtight seal between the door and cabinet to keep cold air in and moisture out. Replacing a worn or damaged gasket helps restore proper sealing, temperature stability, and efficiency. What it does:

• Seals the door perimeter to prevent air leaks and energy loss
• Helps maintain consistent interior temperatures
• Reduces frost buildup and condensation around the door opening
• Addresses issues like torn, warped, or compressed gasket material and doors not sealing fully

• 1 door gasket

• Unplug the appliance before servicing; open the door fully for access
• Let the new gasket warm to room temperature; gently warm with low heat or warm water to relax folds
• Remove the old gasket from the retainer/channel; on some models loosen retainer screws
• Seat the new gasket starting at the corners, then work along each side; tighten any retainers evenly and check for a uniform seal all around

This stop door is the replacement dispenser flap that opens to let ice or water out and seals the dispenser chute when idle to help keep cold air and moisture inside. A simple swap restores proper dispenser operation. What it does:

• Opens and closes the dispenser chute so ice or water dispenses only when activated
• Seals the dispenser opening to reduce cold air loss and prevent warm air or pests entering
• Helps prevent frost buildup and dripping at the dispenser area when functioning correctly
• Works with the dispenser actuator/lever to ensure smooth, timed operation

• One stop door

• Disconnect power to the appliance before starting any repair
• Remove dispenser cover or bezel as needed to access the stop door; retain fasteners and springs
• Handle plastic parts gently to avoid cracking; align hinge pins and test movement before reassembling

This stop door is the dispenser door that seals the ice/water opening to prevent leaks and maintain proper dispenser operation. It replaces a worn, cracked, or stuck door to restore normal dispensing and help stop drips. What it does:

• Covers and seals the dispenser opening to prevent water or ice from leaking into the dispenser area
• Opens and closes with the dispenser actuator or motor to allow ice/water flow only when needed
• Prevents drafts and helps maintain internal dispenser insulation when closed
• Commonly used when the dispenser door is cracked, warped, stuck, or failing to close fully

• One stop door

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove dispenser housing or access panel per manufacturer diagram to reach the door assembly
• Inspect actuator linkage and mounting tabs; replace any broken clips and align door before tightening
• Handle plastic parts gently to avoid cracking; test operation before reassembling outer panels

This stop door is the small dispenser door that helps block the ice/water opening when not in use, keeping cold air in and preventing drafts. It restores proper dispenser sealing and operation for a smooth user experience. What it does:

• Covers and seals the dispenser opening to reduce air loss from the cabinet
• Guides the dispenser flap so it opens and closes cleanly
• Helps prevent warm air intrusion that can cause frost build-up
• Common symptom: dispenser door hangs, sticks, or fails to close fully

• One stop door

• Disconnect power to the appliance before servicing to avoid injury
• Inspect mounting posts and the actuator for damage; replace if worn
• Typically a snap-in replacement; gentle prying may be needed to remove the old door

A small trim piece that fits around a control or plug-style button to protect the button edge and give the control surface a finished look. Restores button alignment and helps keep debris out of the button opening. What it does:

• Covers and protects the edge of a push button to reduce wear and prevent grime buildup
• Keeps the button centered and improves button feel when pressed
• Restores the original look of the control panel by replacing a damaged or missing trim
• Simple cosmetic part — no electrical function

• Disconnect power to the appliance before beginning any work.
• Typically snaps or presses into the control panel opening; may require a small flat tool to remove the old thimble.
• Handle carefully to avoid scratching surrounding surfaces; replace if cracked or deformed.

This replacement screw fastens refrigerator components securely, restoring a tight, rattle-free fit when original hardware is missing, stripped, or corroded. Use it to secure panels, brackets, or trim and keep parts properly aligned.

• Secures panels, brackets, covers, or trim in place
• Helps maintain correct alignment of components and hardware
• Reduces vibration and rattling caused by loose or missing screws
• Replaces lost, rusted, or stripped screws

• Unplug the refrigerator and turn off water supply if working near water components
• Match thread and length to the removed fastener; hand-start threads to avoid cross-threading
• Tighten snugly; do not overtighten into plastic or thin sheet metal
• Keep track of any spacers or washers reused from the original assembly

The Set Screw is an OEM part for GE refrigerators. It is used to secure various components within the refrigerator, ensuring they remain firmly in place during operation.

Over time, a set screw can become worn, stripped, or lost due to regular use or during repairs. A missing or damaged set screw can lead to loose components, which may cause operational issues or even damage other parts of the refrigerator.

Symptoms of a bad Set Screw include:

• Loose or rattling components inside the refrigerator
• Difficulty in keeping parts securely fastened
• Noise coming from the area where the screw is used
• Misalignment of parts, leading to improper functioning

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
