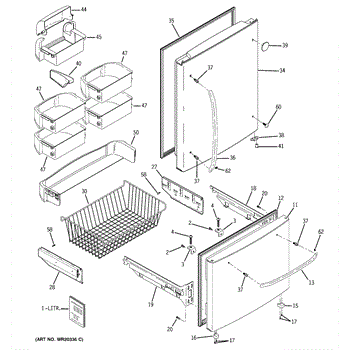

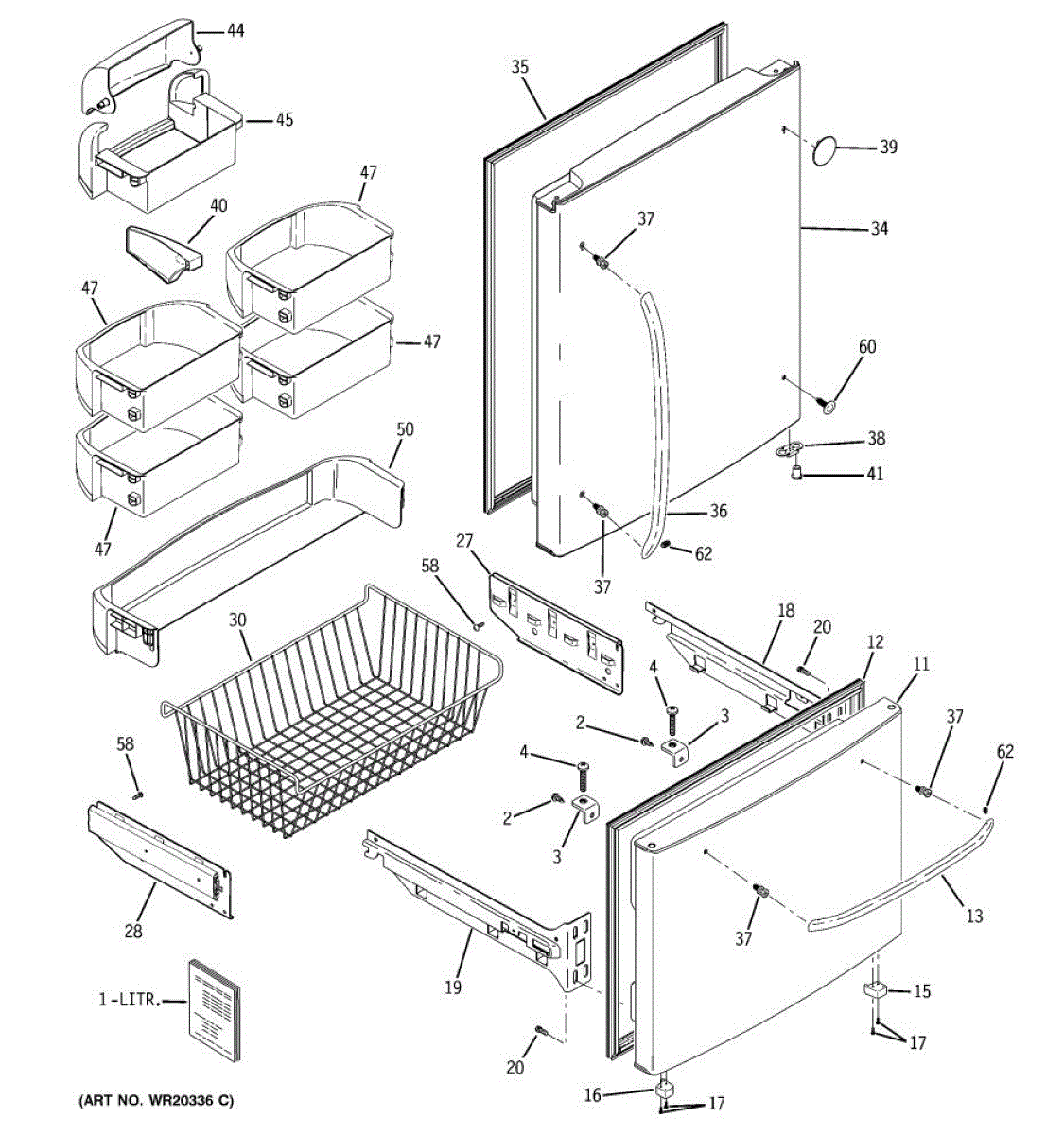

Parts for Ge GDSC0KCXARBB: 01 - Doors Parts

This bracket support is a small mounting bracket that secures and stabilizes appliance components, helping keep panels and assemblies aligned for proper operation and reduced vibration. It's a direct-fit replacement when the original bracket is broken or missing. What it does

• Provides a sturdy mounting point to hold panels or internal components in place
• Restores proper alignment to doors, panels or assemblies that sit on the bracket
• Reduces rattling or vibration caused by a loose or damaged bracket
• Helps prevent wear or damage from parts shifting during use

• Unplug the appliance and shut off water/gas (if applicable) before starting work
• Use the original mounting screws; replace damaged fasteners as needed
• Handle sharp sheet-metal edges carefully and wear gloves and eye protection

This is a 1/4-20 UNC machine screw used to fasten appliance components securely. It restores proper fit and stability where threaded fasteners are required, preventing loose panels or shifting parts. What it does:

• Secures panels, brackets, or assemblies that use a 1/4-20 UNC threaded hole
• Stops rattling or movement caused by a missing or damaged screw
• Restores correct mechanical connection for safe operation
• Useful when replacing stripped, corroded, or lost fasteners

• Disconnect power to the appliance before servicing.
• Start threads by hand to avoid cross-threading; tighten until snug.
• Do not overtighten — use appropriate torque for the material to avoid stripping threads or damaging parts.
• Ensure proper contact and secure fastening.

Color: Black

Color: White

This right-hand cam closure secures the freezer door, helping the door latch and maintain a tight seal to keep the compartment cold and reduce frost buildup. It's a direct-fit replacement for the freezer closure on compatible units. What it does

• Replaces the right-side cam that engages the door latch mechanism
• Helps the freezer door close securely and hold shut
• Can reduce air leaks that cause frosting or temperature loss
• Commonly replaced when the door feels loose, won't stay closed, or the cam is broken/worn

• One right-hand cam closure

• Disconnect power to the appliance before starting any repair
• Remove contents from the door/freezer area as needed for access
• Typically accessed near the door hinge/latch; basic hand tools required

This cam closure is the left-side closing cam that secures and aligns the freezer door, helping the door latch properly and maintain an even seal to keep the compartment cold. A direct-fit replacement that restores proper door action. What it does:

• Guides and locks the freezer door into the correct closed position
• Helps maintain an even door seal to reduce cold air loss and frost buildup
• Prevents door sagging or misalignment that can keep the door from latching
• Works with the door hinge/latch mechanism to ensure smooth opening and closing

• Disconnect power to the appliance before starting any repair
• Installation may require removing the freezer door or inner door panel; keep fasteners organized
• Handle plastic components carefully to avoid cracking; align cam to hinge before tightening

This cam closure secures the freezer door hinge, helping the door align and latch properly to maintain a tight seal and consistent temperatures. It replaces a worn or broken left-side cam closure to restore normal door movement. What it does:

• Guides and supports the freezer door hinge so the door closes and opens smoothly
• Helps maintain a proper door seal to prevent cold air loss and uneven cooling
• Replaces a broken, cracked, or excessively worn cam that causes door sag or misalignment
• Works with the hinge assembly to keep the door correctly positioned during use

• Disconnect power (unplug or switch off breaker) before starting repairs.
• Remove the freezer door or hinge trim as needed to access the cam; keep fasteners organized.
• Inspect hinge and surrounding components for wear; replace additional damaged parts as required.

This cam closure secures the freezer door hinge, helping the door latch properly and maintain a tight seal for consistent cooling. It replaces a worn or broken left-side closure to restore reliable door movement. What it does:

• Acts as the left-side hinge cam that guides and locks the freezer door into position
• Restores proper door alignment and sealing when the closure is worn, cracked, or loose
• Reduces door sag and helps prevent cold air loss and cycling issues
• Works with the freezer hinge assembly to ensure smooth opening and closing

• One left-side cam closure

• Verify left/right orientation before installation; part is specific to the left-side hinge
• Disconnect power to the appliance and remove food from the door area for safe access
• Use basic hand tools; support the door while replacing the cam to avoid damage or injury

This replacement screw fastens refrigerator components securely, restoring a tight, rattle-free fit when original hardware is missing, stripped, or corroded. Use it to secure panels, brackets, or trim and keep parts properly aligned.

• Secures panels, brackets, covers, or trim in place
• Helps maintain correct alignment of components and hardware
• Reduces vibration and rattling caused by loose or missing screws
• Replaces lost, rusted, or stripped screws

• Unplug the refrigerator and turn off water supply if working near water components
• Match thread and length to the removed fastener; hand-start threads to avoid cross-threading
• Tighten snugly; do not overtighten into plastic or thin sheet metal
• Keep track of any spacers or washers reused from the original assembly

A replacement lower right bracket that secures and supports the lower section of the assembly for proper alignment and stable operation. Restores the original mounting point to reduce sagging and movement. What it does:

• Provides a secure mounting point for the appliance's lower assembly so panels, doors or components stay aligned
• Helps prevent sagging, rattling or uneven gaps caused by a damaged or missing bracket
• Maintains correct part-to-frame spacing so connected components operate smoothly
• Fits into the OEM mounting locations and matches factory attachment points

• Disconnect power to the appliance before attempting any repair to avoid shock or injury
• Requires basic hand tools; keep fasteners from the original bracket for reinstallation unless replacements are provided
• Hand-tighten fasteners, then snug to manufacturer torque recommendations—do not overtighten to avoid stripping

This replacement screw secures appliance brackets, panels, and components. It restores a tight, aligned fit when the original hardware is stripped, rusted, or missing, helping reduce vibration and rattling for reliable operation.

• Fastens brackets, panels, or mounts to keep components secure and aligned
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration, rattling, or loose/misaligned parts
• Matches original spec for reliable hold and fit

• Disconnect power before servicing; use proper PPE
• Match thread and length to the removed screw before installation
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Ensure parts are aligned and seating surfaces are clean before tightening

This replacement screw secures appliance brackets, panels, and components. It restores a tight, aligned fit when the original hardware is stripped, rusted, or missing, helping reduce vibration and rattling for reliable operation.

• Fastens brackets, panels, or mounts to keep components secure and aligned
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration, rattling, or loose/misaligned parts
• Matches original spec for reliable hold and fit

• Disconnect power before servicing; use proper PPE
• Match thread and length to the removed screw before installation
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Ensure parts are aligned and seating surfaces are clean before tightening

2 Per Kit

2 Per Kit

This refrigerator door gasket creates an airtight seal around the door to help maintain proper internal temperature and energy efficiency. It replaces a worn or damaged seal to reduce air leaks and help prevent frost buildup. What it does:

• Seals the refrigerator door to keep cold air in and warm air out
• Helps maintain consistent internal temperature for food safety
• Reduces frost and moisture buildup caused by leaking seals
• Can improve energy efficiency if original gasket is cracked or deformed

• One door gasket

• High-level replacement: remove the old gasket, position the new gasket into the door channel, and secure per manufacturer guidance
• Inspect the door flange and mounting channel for debris or damage before installing
• Warm the gasket if needed to make it more flexible for proper seating
• Turn off power to the appliance or follow manufacturer safety instructions before starting work

This module snugger is a small retaining piece used in the refrigerator to hold its associated module or component securely in place. Replacing a cracked or missing snugger restores a tight fit, reduces vibration and noise, and supports correct operation.

• Secures the related module or assembly to prevent shifting
• Helps maintain proper alignment for reliable performance
• Reduces rattles and wear from vibration or movement
• Typical signs it's needed: part is broken or missing, components feel loose, or you hear rattling

• Disconnect power to the refrigerator before servicing
• Note the original orientation and location; take a photo for reference
• Reuse existing fasteners or clips if applicable; avoid overtightening
• After installation, confirm the part holds the assembly firmly and that movement is smooth where intended

This refrigerator shelf module provides a sturdy, level surface for food storage. Replace a cracked, damaged, or missing shelf to restore safe storage space, keep items organized, and ensure the shelf seats securely on the cabinet supports. What it does:

• Creates a flat, stable platform for containers and groceries
• Helps organize the interior by maintaining proper spacing between levels
• Locks into the cabinet rails/supports to stay in position
• Common symptoms: cracked or broken shelf/frame, shelf tilts or sags, won't stay seated, missing shelf

• One shelf module

• Disconnect power before servicing interior components
• Remove food items and any obstacles, then release the old shelf from its supports
• Align and seat the new shelf fully in the correct rails/slots; ensure it is level and secure
• Avoid overloading; verify placement per your model's cabinet diagram

This 8-18 x 9/16 screw is a short sheet-metal fastener used to secure panels, trim and small components on appliances. It replaces missing or stripped screws to restore proper fit and reduce noise from loose parts. What it does

• Secures appliance panels, brackets and trim to prevent movement and rattling
• Holds small components in correct alignment for reliable operation
• Replaces lost, worn or stripped screws that cause gaps or loose fittings
• Common symptom link: fixes rattling panels, loose trim, or parts that shift during use

• One 8-18 x 9/16 screw

• Use the correct 8-18 driver bit and hand or low-torque power driver to avoid stripping
• Do not overtighten; snug until secure to prevent thread damage or panel deformation
• Turn power off/unplug appliance when installing near electrical components
• Keep extra screws on hand—hardware often comes in single quantities

The Set Screw is an OEM part for GE refrigerators. It is used to secure various components within the refrigerator, ensuring they remain firmly in place during operation.

Over time, a set screw can become worn, stripped, or lost due to regular use or during repairs. A missing or damaged set screw can lead to loose components, which may cause operational issues or even damage other parts of the refrigerator.

Symptoms of a bad Set Screw include:

• Loose or rattling components inside the refrigerator
• Difficulty in keeping parts securely fastened
• Noise coming from the area where the screw is used
• Misalignment of parts, leading to improper functioning

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
