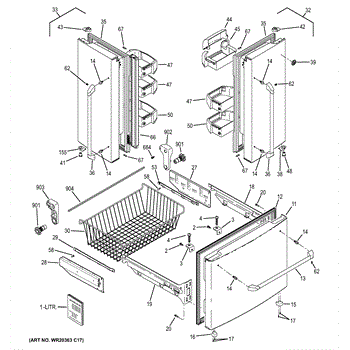

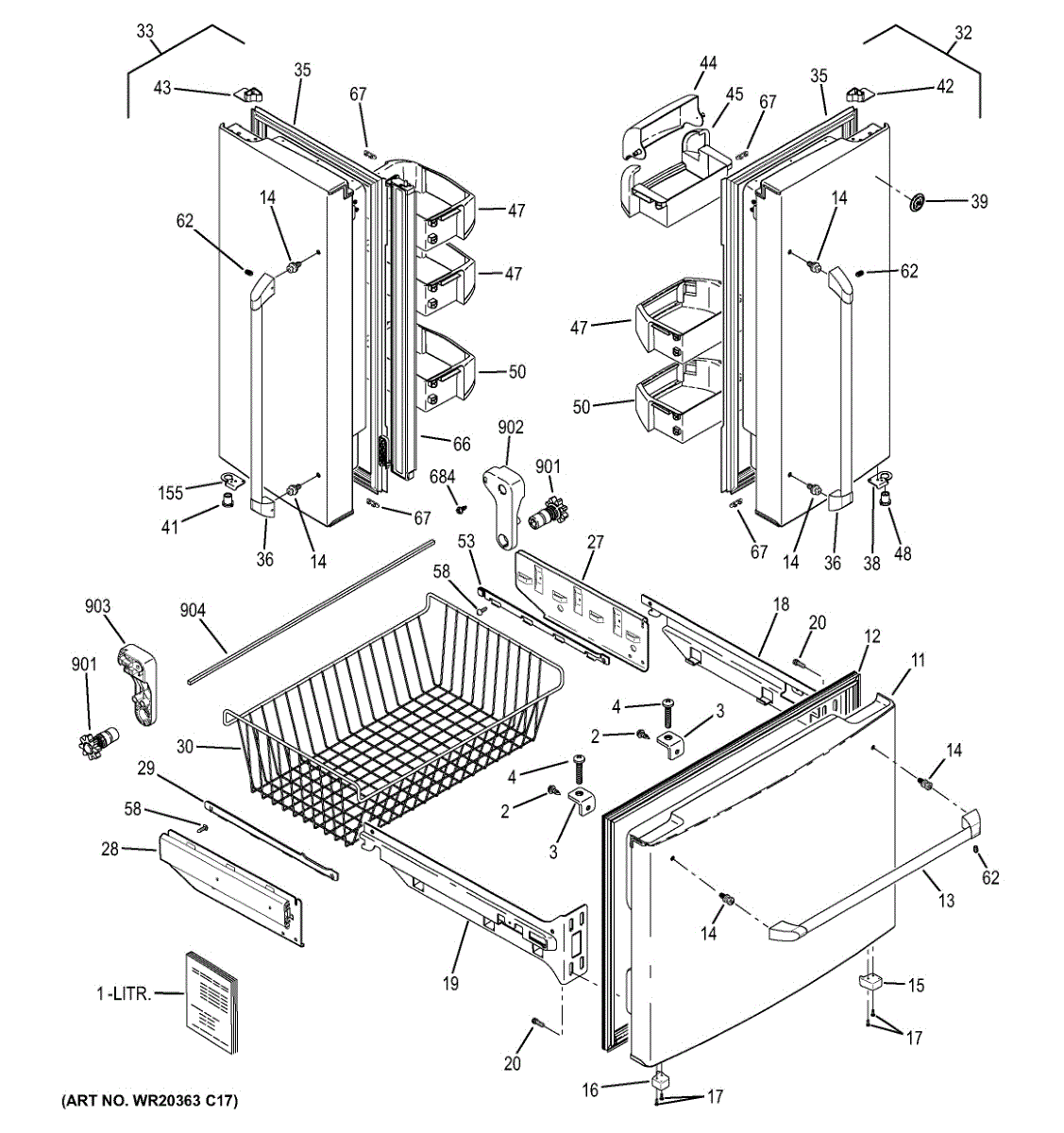

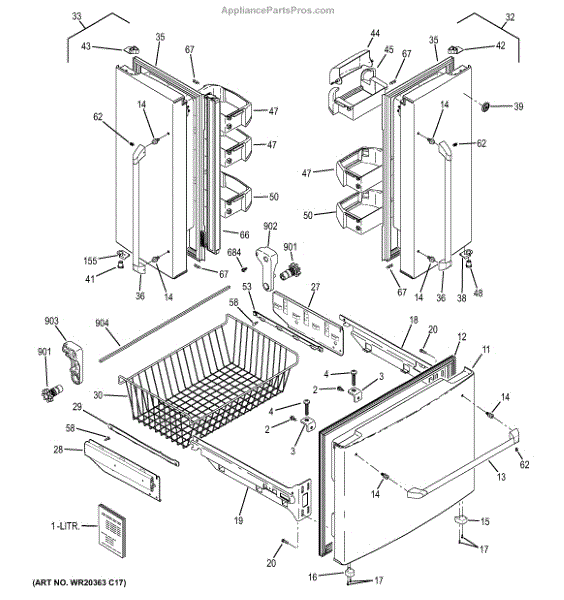

Parts for Ge CNS23SSHAFSS: Doors Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This bracket support is a small mounting bracket that secures and stabilizes appliance components, helping keep panels and assemblies aligned for proper operation and reduced vibration. It's a direct-fit replacement when the original bracket is broken or missing. What it does

• Provides a sturdy mounting point to hold panels or internal components in place
• Restores proper alignment to doors, panels or assemblies that sit on the bracket
• Reduces rattling or vibration caused by a loose or damaged bracket
• Helps prevent wear or damage from parts shifting during use

• Unplug the appliance and shut off water/gas (if applicable) before starting work
• Use the original mounting screws; replace damaged fasteners as needed
• Handle sharp sheet-metal edges carefully and wear gloves and eye protection

This is a 1/4-20 UNC machine screw used to fasten appliance components securely. It restores proper fit and stability where threaded fasteners are required, preventing loose panels or shifting parts. What it does:

• Secures panels, brackets, or assemblies that use a 1/4-20 UNC threaded hole
• Stops rattling or movement caused by a missing or damaged screw
• Restores correct mechanical connection for safe operation
• Useful when replacing stripped, corroded, or lost fasteners

• Disconnect power to the appliance before servicing.
• Start threads by hand to avoid cross-threading; tighten until snug.
• Do not overtighten — use appropriate torque for the material to avoid stripping threads or damaging parts.
• Ensure proper contact and secure fastening.

This refrigerator door gasket forms an airtight seal between the door and cabinet. Replacing a worn or warped gasket restores proper sealing to improve temperature control, reduce frost and condensation, and help your fridge run efficiently.

• Creates a continuous seal around the door perimeter to prevent air leaks
• Helps maintain consistent temperatures and humidity inside the compartment
• Reduces frost, ice, and condensation caused by warm air infiltration
• Common symptoms: tears or warping, visible gaps/light, door not closing fully or popping open, excess frost or moisture

• Unplug the refrigerator before servicing
• Lay the gasket flat and warm it with hot water or gentle heat to relax folds; do not overheat
• Remove the old gasket and press the new one fully into the retainer channel, starting at the corners
• Close the door and check for uniform contact all around; reseat or adjust hinges if needed

A stainless-steel handle fastener that secures the refrigerator door handle to the door assembly for a solid, wobble-free grip. Use to restore a loose, stripped, or missing handle attachment point. What it does:

• Secures the door handle to the door/handle mounting point so the handle stays tight and aligned.
• Stops handle movement, wobbling, or rattling caused by a worn or missing fastener.
• Replaces a corroded or damaged fastener to restore a secure connection.
• Stainless finish resists corrosion at the handle mounting point.

• Disconnect power to the appliance before starting work whenever access to internal parts is required.
• Use the correct screwdriver or bit; turn carefully and avoid sideways force on the handle.
• Do not overtighten—over-torquing can strip threads or crack surrounding trim.
• Keep removed hardware and any trim pieces for reassembly; inspect handle and threaded inserts for damage.

This right-hand cam closure secures the freezer door, helping the door latch and maintain a tight seal to keep the compartment cold and reduce frost buildup. It's a direct-fit replacement for the freezer closure on compatible units. What it does

• Replaces the right-side cam that engages the door latch mechanism
• Helps the freezer door close securely and hold shut
• Can reduce air leaks that cause frosting or temperature loss
• Commonly replaced when the door feels loose, won't stay closed, or the cam is broken/worn

• One right-hand cam closure

• Disconnect power to the appliance before starting any repair
• Remove contents from the door/freezer area as needed for access
• Typically accessed near the door hinge/latch; basic hand tools required

This cam closure secures the freezer door hinge, helping the door latch properly and maintain a tight seal for consistent cooling. It replaces a worn or broken left-side closure to restore reliable door movement. What it does:

• Acts as the left-side hinge cam that guides and locks the freezer door into position
• Restores proper door alignment and sealing when the closure is worn, cracked, or loose
• Reduces door sag and helps prevent cold air loss and cycling issues
• Works with the freezer hinge assembly to ensure smooth opening and closing

• One left-side cam closure

• Verify left/right orientation before installation; part is specific to the left-side hinge
• Disconnect power to the appliance and remove food from the door area for safe access
• Use basic hand tools; support the door while replacing the cam to avoid damage or injury

This replacement screw fastens refrigerator components securely, restoring a tight, rattle-free fit when original hardware is missing, stripped, or corroded. Use it to secure panels, brackets, or trim and keep parts properly aligned.

• Secures panels, brackets, covers, or trim in place
• Helps maintain correct alignment of components and hardware
• Reduces vibration and rattling caused by loose or missing screws
• Replaces lost, rusted, or stripped screws

• Unplug the refrigerator and turn off water supply if working near water components
• Match thread and length to the removed fastener; hand-start threads to avoid cross-threading
• Tighten snugly; do not overtighten into plastic or thin sheet metal
• Keep track of any spacers or washers reused from the original assembly

A replacement lower right bracket that secures and supports the lower section of the assembly for proper alignment and stable operation. Restores the original mounting point to reduce sagging and movement. What it does:

• Provides a secure mounting point for the appliance's lower assembly so panels, doors or components stay aligned
• Helps prevent sagging, rattling or uneven gaps caused by a damaged or missing bracket
• Maintains correct part-to-frame spacing so connected components operate smoothly
• Fits into the OEM mounting locations and matches factory attachment points

• Disconnect power to the appliance before attempting any repair to avoid shock or injury
• Requires basic hand tools; keep fasteners from the original bracket for reinstallation unless replacements are provided
• Hand-tighten fasteners, then snug to manufacturer torque recommendations—do not overtighten to avoid stripping

This replacement screw secures appliance brackets, panels, and components. It restores a tight, aligned fit when the original hardware is stripped, rusted, or missing, helping reduce vibration and rattling for reliable operation.

• Fastens brackets, panels, or mounts to keep components secure and aligned
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration, rattling, or loose/misaligned parts
• Matches original spec for reliable hold and fit

• Disconnect power before servicing; use proper PPE
• Match thread and length to the removed screw before installation
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Ensure parts are aligned and seating surfaces are clean before tightening

2 Per Kit

2 Per Kit

The Lower Freezer Basket is an OEM replacement part for GE refrigerators designed to fit in the lower section of the freezer, providing a convenient storage area for your frozen items.

A bad lower freezer basket can occur due to regular wear and tear or damage from mishandling. If you notice symptoms such as cracks, broken parts, or difficulty in sliding the basket in and out, it may indicate a need to replace the basket.

Symptoms of a bad lower freezer basket include:

• Cracked or broken basket
• Difficulty in sliding the basket in and out
• Uneven or limited storage space

Restore your refrigerator's freezer section by replacing the faulty lower freezer basket with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This refrigerator French door gasket restores a tight seal around the door opening. Replacing a worn or damaged gasket helps keep cold air in and humid air out to maintain stable temperatures and reduce condensation. What it does:

• Forms an airtight seal between the door and the cabinet on French-door models
• Helps prevent warm air leaks, moisture buildup, and frost around the door opening
• Replace if torn, warped, cracked, or if gaps remain when the door is closed
• Common signs include condensation on or around the gasket and the door not sealing fully

• 1 door gasket

• Unplug the refrigerator and remove items from the door bins
• Warm and relax the new gasket (soak in warm water or use low heat) to remove kinks; do not overheat
• Lift the old gasket out of the retainer; if your model uses retainer screws, loosen them, swap the gasket, then re-tighten
• Press the new gasket fully into the channel, ensure corners seat, then close the door and check for an even seal all around

This plastic thimble fits into the appliance cabinet where the door or dispenser mates with the opening, helping provide a smooth seal and protecting surrounding trim from wear. It restores proper fit and reduces rubbing or chafing. What it does:

• Replaces worn or cracked door thimble that can allow rubbing or misalignment at the door opening
• Guides and cushions the door edge or dispenser as it closes, helping reduce noise and abrasion
• Helps maintain a cleaner seal area by covering damaged or missing trim
• Useful when repair requires restoring proper door fit or preventing further trim damage

• One plastic door thimble as described

• Remove power to the appliance before beginning any repair; follow manufacturer's safety guidance
• Typically installs by snapping into the opening or securing with existing fasteners—inspect surrounding clips or screws for damage
• No special tools usually required, but a flat tool can help remove the old thimble; avoid excessive force to prevent cabinet damage
• If replacement does not correct fit or sealing issues, further inspection of hinges, strikes, or surrounding trim may be needed

This replacement dairy door restores a sealed compartment on the fridge door to keep butter, cheese and small items contained and organized. It replaces a cracked, broken or missing dairy door to improve closure and appearance. What it does:

• Provides a covered compartment on the inner door to keep small dairy items organized and contained
• Replaces cracked, broken or warped dairy doors that no longer latch or sit flush
• Helps reduce shifting and spills on the door shelf
• Restores proper fit and appearance to the refrigerator door interior

• One dairy door assembly

• Remove items from the door bin and lift or unclip the old dairy door per your model's instructions
• Align the replacement door with the hinge/slots and snap into place until it seats securely
• Inspect for proper closure and latch engagement before returning contents
• Use gloves to protect hands from sharp edges; unplug or disconnect power only if recommended by your model's service manual

This shelf module assembly restores a sturdy, level storage surface inside your refrigerator. Replace a damaged or missing shelf to recover usable space and keep items organized and easy to access. What it does

• Provides a flat, stable surface to support food containers in the refrigerator compartment
• Restores storage capacity when the original shelf is broken, warped, or missing
• Helps keep contents organized and accessible
• Addresses issues like sagging, instability, or a shelf that won't stay seated in its rails

• One shelf module assembly

• Disconnect power to the refrigerator before servicing
• Remove items from the area and slide/lift out the old shelf
• Transfer any reusable trims or components from the old shelf
• Fully seat the new shelf in the side rails; ensure it's level and secure before reloading

This thimble door is the molded trim piece that surrounds the refrigerator/freezer door opening, restoring proper fit and finish. It replaces damaged or worn trim to reduce drafts and improve door alignment and appearance. What it does

• Covers and protects the door opening edge, providing a finished appearance
• Helps maintain a consistent seal by supporting proper door alignment
• Reduces air leaks and drafts at the door opening when installed correctly
• Replaces cracked, warped, or missing trim that can catch or rub during door use

• One thimble door trim piece as shown

• Disconnect power to the appliance before beginning any repair
• Typically secures with clips or screws; inspect existing fasteners and retainers for reuse
• Handle trim gently to avoid cracking; align carefully to ensure a proper fit

This 8-18 x 9/16 screw is a short sheet-metal fastener used to secure panels, trim and small components on appliances. It replaces missing or stripped screws to restore proper fit and reduce noise from loose parts. What it does

• Secures appliance panels, brackets and trim to prevent movement and rattling
• Holds small components in correct alignment for reliable operation
• Replaces lost, worn or stripped screws that cause gaps or loose fittings
• Common symptom link: fixes rattling panels, loose trim, or parts that shift during use

• One 8-18 x 9/16 screw

• Use the correct 8-18 driver bit and hand or low-torque power driver to avoid stripping
• Do not overtighten; snug until secure to prevent thread damage or panel deformation
• Turn power off/unplug appliance when installing near electrical components
• Keep extra screws on hand—hardware often comes in single quantities

The Set Screw is an OEM part for GE refrigerators. It is used to secure various components within the refrigerator, ensuring they remain firmly in place during operation.

Over time, a set screw can become worn, stripped, or lost due to regular use or during repairs. A missing or damaged set screw can lead to loose components, which may cause operational issues or even damage other parts of the refrigerator.

Symptoms of a bad Set Screw include:

• Loose or rattling components inside the refrigerator
• Difficulty in keeping parts securely fastened
• Noise coming from the area where the screw is used
• Misalignment of parts, leading to improper functioning

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This mullion articulation assembly mounts on the fresh food door and flips out to form the center seal between French doors, helping the refrigerator close properly while reducing air leaks and moisture at the door gap.

• Flips between doors to create the center mullion seal in the fresh food compartment
• Helps maintain proper door alignment and smooth closing
• Damage or wear may cause poor sealing, condensation or frost at the center, or temperature issues
• Common clues include a broken hinge/pivot, warped or loose rail, or a flipper that sticks

• Disconnect power before servicing
• Remove door bins/shelves for access, then take out the screws or clips securing the old mullion; note orientation
• Position the new assembly, transfer any caps/fasteners if needed, and tighten securely
• Close both doors to ensure the flipper moves freely and the center seal is even

Small replacement bumper that mounts on a French-door to cushion contact, reduce rattling and protect the door and cabinet from wear. Restores smoother closing and helps maintain proper door alignment. What it does:

• Cushions the door to prevent metal-to-metal contact and reduce noise.
• Protects the door edge and cabinet finish from wear and impact damage.
• Helps the door align and seat properly for an even, quiet close.
• Commonly used when doors rub, squeak, or close unevenly.

• Disconnect power to the appliance before starting any work.
• Typically installs by pressing or seating into the designated bumper hole or post; may require removing the door or loosening a hinge for full access.
• Inspect surrounding mounting hole and adjacent bumpers; replace any additional worn bumpers for consistent fit.

This is a 10-32 machine-thread screw used to secure appliance panels, trim, and components. It replaces missing or damaged fasteners so parts fit tightly and operate without rattles or misalignment. What it does:

• Fastens panels, brackets, or assemblies that use a 10-32 machine screw
• Restores secure mounting where a stripped, missing, or corroded screw causes looseness
• Helps eliminate vibration noise or gaps caused by loose hardware
• Matches OEM thread size and length for correct fit in designated mounting holes

• One 10-32 x 5/16 machine screw

• Disconnect power and remove power source or batteries before servicing appliances
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully; do not force or overtighten to prevent thread damage
• Replace any damaged mating hardware or clipped inserts for a secure repair
