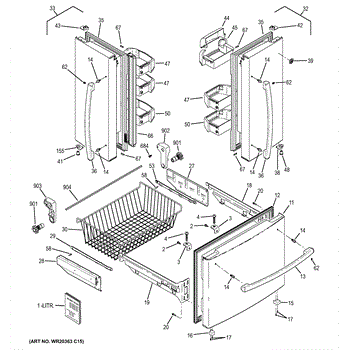

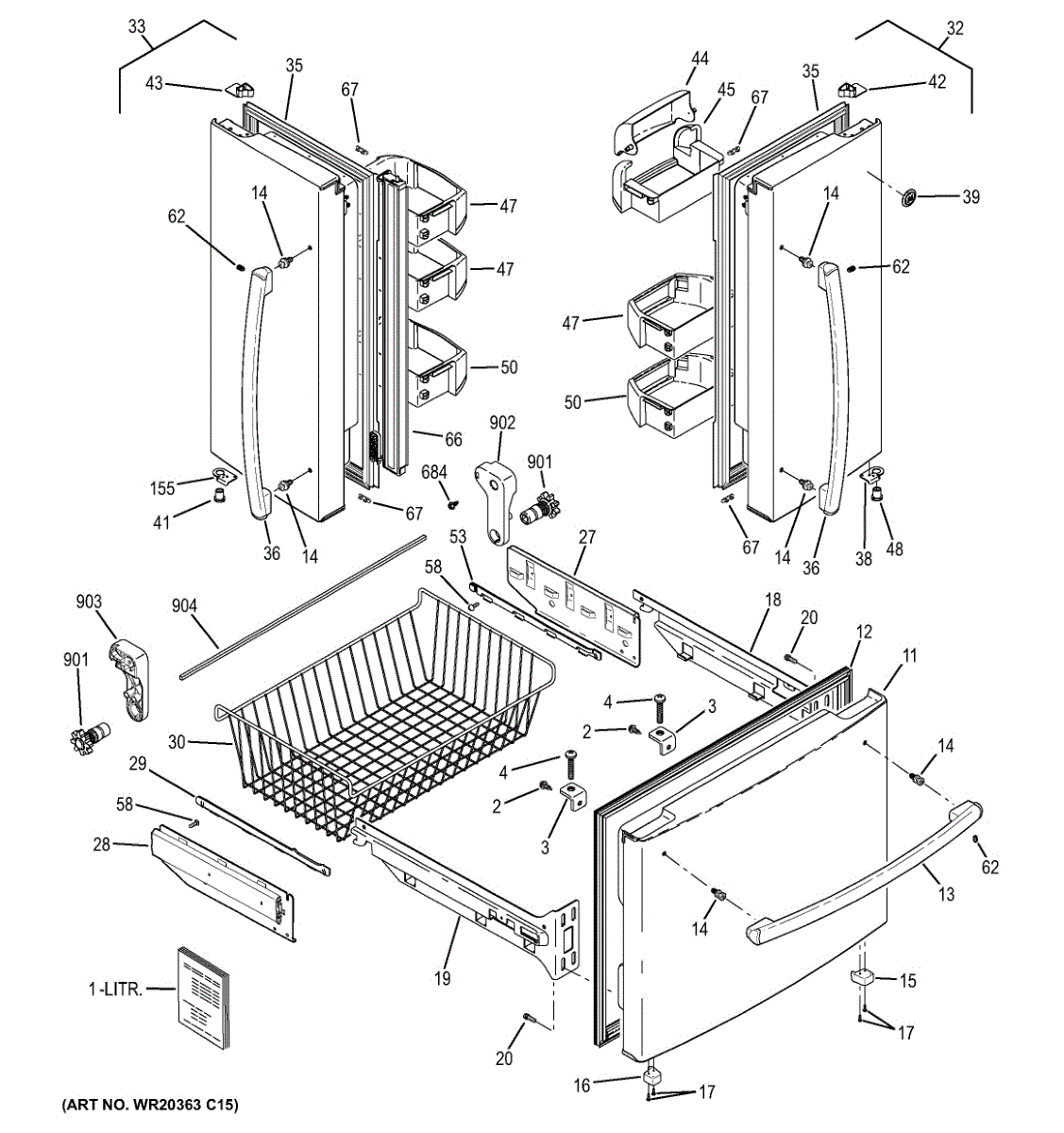

Parts for Ge PNS20KSHAFSS: Doors Parts

The GE refrigerator water filter is an OEM replacement part responsible for ensuring the quality of the water dispensed on GE Profile top and bottom freezer refrigerators. It is responsible for purifying the water before it reaches your glass or ice maker, providing you with clean and safe drinking water directly from your refrigerator. To maintain optimal water quality and ensure the filter's effectiveness, it is recommended to replace the filter every 6 months or when the rated capacity of 750 gallons is reached.

Over time, the water filter can become clogged with sediment, reducing its effectiveness. Regular use and the accumulation of minerals and contaminants can lead to the need for replacement.

Symptoms of a bad water filter include:

• Reduced water flow from the dispenser
• Ice cubes with an unusual taste or odor
• The filter indicator light staying on
• Visible particles in the water or ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. For the best performance, it is recommended to replace the water filter every six months or as indicated by the filter change light on your refrigerator.

This bracket support is a small mounting bracket that secures and stabilizes appliance components, helping keep panels and assemblies aligned for proper operation and reduced vibration. It's a direct-fit replacement when the original bracket is broken or missing. What it does

• Provides a sturdy mounting point to hold panels or internal components in place
• Restores proper alignment to doors, panels or assemblies that sit on the bracket
• Reduces rattling or vibration caused by a loose or damaged bracket
• Helps prevent wear or damage from parts shifting during use

• Unplug the appliance and shut off water/gas (if applicable) before starting work
• Use the original mounting screws; replace damaged fasteners as needed
• Handle sharp sheet-metal edges carefully and wear gloves and eye protection

This is a 1/4-20 UNC machine screw used to fasten appliance components securely. It restores proper fit and stability where threaded fasteners are required, preventing loose panels or shifting parts. What it does:

• Secures panels, brackets, or assemblies that use a 1/4-20 UNC threaded hole
• Stops rattling or movement caused by a missing or damaged screw
• Restores correct mechanical connection for safe operation
• Useful when replacing stripped, corroded, or lost fasteners

• Disconnect power to the appliance before servicing.
• Start threads by hand to avoid cross-threading; tighten until snug.
• Do not overtighten — use appropriate torque for the material to avoid stripping threads or damaging parts.
• Ensure proper contact and secure fastening.

Color: Black

This freezer handle assembly replaces a worn or broken handle on your refrigerator's freezer. The arc-style design restores a secure, comfortable grip and the original look so you can open the freezer confidently again.

• Provides the handhold needed to open and close the freezer
• Direct replacement when the handle is cracked, loose, or missing
• Restores a solid feel if the original handle wobbles or won't stay tight
• Refreshes appearance when the original handle is scuffed or marred

• Disconnect power and wear cut-resistant gloves to protect hands and finish
• Support the handle while loosening/tightening hardware; use the correct driver for your model
• Reuse existing studs/brackets unless they are damaged; align and tighten evenly
• Do not overtighten fasteners to avoid stripping threads or cracking the handle

The Fastener Door Handle is an OEM component for GE refrigerators. This door handle provides a comfortable grip for accessing refrigerator shelves and bins. It attaches securely to the refrigerator door through durable metal fasteners.

Causes for a bad door handle could be cracks, damage, or stripped fastener holes resulting in a loose or detached handle. Regularly gripping and lifting may also cause normal wear over time.

Symptoms of a failing door handle include:

• The handle detaching completely from the door
• Looseness making the handle wobbly or unstable to hold
• Sharp edges or broken parts posing a safety risk

This OEM GE handle is also compatible with Hotpoint, RCA, and select Kenmore refrigerator models.

This replacement screw fastens refrigerator components securely, restoring a tight, rattle-free fit when original hardware is missing, stripped, or corroded. Use it to secure panels, brackets, or trim and keep parts properly aligned.

• Secures panels, brackets, covers, or trim in place
• Helps maintain correct alignment of components and hardware
• Reduces vibration and rattling caused by loose or missing screws
• Replaces lost, rusted, or stripped screws

• Unplug the refrigerator and turn off water supply if working near water components
• Match thread and length to the removed fastener; hand-start threads to avoid cross-threading
• Tighten snugly; do not overtighten into plastic or thin sheet metal
• Keep track of any spacers or washers reused from the original assembly

A replacement lower right bracket that secures and supports the lower section of the assembly for proper alignment and stable operation. Restores the original mounting point to reduce sagging and movement. What it does:

• Provides a secure mounting point for the appliance's lower assembly so panels, doors or components stay aligned
• Helps prevent sagging, rattling or uneven gaps caused by a damaged or missing bracket
• Maintains correct part-to-frame spacing so connected components operate smoothly
• Fits into the OEM mounting locations and matches factory attachment points

• Disconnect power to the appliance before attempting any repair to avoid shock or injury
• Requires basic hand tools; keep fasteners from the original bracket for reinstallation unless replacements are provided
• Hand-tighten fasteners, then snug to manufacturer torque recommendations—do not overtighten to avoid stripping

This replacement screw secures appliance brackets, panels, and components. It restores a tight, aligned fit when the original hardware is stripped, rusted, or missing, helping reduce vibration and rattling for reliable operation.

• Fastens brackets, panels, or mounts to keep components secure and aligned
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration, rattling, or loose/misaligned parts
• Matches original spec for reliable hold and fit

• Disconnect power before servicing; use proper PPE
• Match thread and length to the removed screw before installation
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Ensure parts are aligned and seating surfaces are clean before tightening

2 Per Kit

2 Per Kit

Color: Black

The Arc Handle is an OEM part for GE refrigerators. This handle provides a comfortable and secure grip for opening and closing the refrigerator door.

Causes of a bad handle can include general wear and tear, repeated use, or accidental impact.

Symptoms of a bad arc handle include:

• Loose or wobbly handle
• Cracks or visible damage on the handle
• Difficulty in opening or closing the refrigerator door
• Handle detaching from the door

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This plastic thimble fits into the appliance cabinet where the door or dispenser mates with the opening, helping provide a smooth seal and protecting surrounding trim from wear. It restores proper fit and reduces rubbing or chafing. What it does:

• Replaces worn or cracked door thimble that can allow rubbing or misalignment at the door opening
• Guides and cushions the door edge or dispenser as it closes, helping reduce noise and abrasion
• Helps maintain a cleaner seal area by covering damaged or missing trim
• Useful when repair requires restoring proper door fit or preventing further trim damage

• One plastic door thimble as described

• Remove power to the appliance before beginning any repair; follow manufacturer's safety guidance
• Typically installs by snapping into the opening or securing with existing fasteners—inspect surrounding clips or screws for damage
• No special tools usually required, but a flat tool can help remove the old thimble; avoid excessive force to prevent cabinet damage
• If replacement does not correct fit or sealing issues, further inspection of hinges, strikes, or surrounding trim may be needed

This replacement dairy door restores a sealed compartment on the fridge door to keep butter, cheese and small items contained and organized. It replaces a cracked, broken or missing dairy door to improve closure and appearance. What it does:

• Provides a covered compartment on the inner door to keep small dairy items organized and contained
• Replaces cracked, broken or warped dairy doors that no longer latch or sit flush
• Helps reduce shifting and spills on the door shelf
• Restores proper fit and appearance to the refrigerator door interior

• One dairy door assembly

• Remove items from the door bin and lift or unclip the old dairy door per your model's instructions
• Align the replacement door with the hinge/slots and snap into place until it seats securely
• Inspect for proper closure and latch engagement before returning contents
• Use gloves to protect hands from sharp edges; unplug or disconnect power only if recommended by your model's service manual

This thimble door is the molded trim piece that surrounds the refrigerator/freezer door opening, restoring proper fit and finish. It replaces damaged or worn trim to reduce drafts and improve door alignment and appearance. What it does

• Covers and protects the door opening edge, providing a finished appearance
• Helps maintain a consistent seal by supporting proper door alignment
• Reduces air leaks and drafts at the door opening when installed correctly
• Replaces cracked, warped, or missing trim that can catch or rub during door use

• One thimble door trim piece as shown

• Disconnect power to the appliance before beginning any repair
• Typically secures with clips or screws; inspect existing fasteners and retainers for reuse
• Handle trim gently to avoid cracking; align carefully to ensure a proper fit

This shelf module assembly secures and supports a refrigerator shelf so items sit level and shelves lock into place. It restores proper shelf engagement and prevents slipping, sagging, or rattling under normal use. What it does:

• Provides a secure mounting point for a refrigerator shelf so the shelf stays seated and level
• Prevents shelf sagging or items sliding due to a loose or broken support
• Stops shelf-related rattles or shifting caused by worn or damaged module parts
• Restores proper shelf alignment for safe storage of food and containers

• Disconnect power or unplug the appliance before servicing for safety
• Remove the shelf and any items, then release the old module and snap or screw the new module into the same mounting location
• Use original mounting hardware if undamaged; replace any broken fasteners

This 8-18 x 9/16 screw is a short sheet-metal fastener used to secure panels, trim and small components on appliances. It replaces missing or stripped screws to restore proper fit and reduce noise from loose parts. What it does

• Secures appliance panels, brackets and trim to prevent movement and rattling
• Holds small components in correct alignment for reliable operation
• Replaces lost, worn or stripped screws that cause gaps or loose fittings
• Common symptom link: fixes rattling panels, loose trim, or parts that shift during use

• One 8-18 x 9/16 screw

• Use the correct 8-18 driver bit and hand or low-torque power driver to avoid stripping
• Do not overtighten; snug until secure to prevent thread damage or panel deformation
• Turn power off/unplug appliance when installing near electrical components
• Keep extra screws on hand—hardware often comes in single quantities

This set screw secures refrigerator components—most commonly door handles—to their mounting studs. Replacing a missing or stripped screw restores a solid, secure feel and helps prevent loose or wobbly handles.

• Locks the handle to its mounting stud to keep it tight and secure
• Helps resolve a loose, wobbly, sliding, or rattling handle
• Replaces a missing, rounded, or damaged set screw
• Helps maintain proper handle alignment and consistent door operation

• Unplug the appliance or switch off power before servicing
• Ensure the handle is fully seated on the studs before tightening
• Start the screw by hand to avoid cross-threading; then tighten until snug
• Do not overtighten to prevent stripping the screw or handle threads

Small replacement bumper that mounts on a French-door to cushion contact, reduce rattling and protect the door and cabinet from wear. Restores smoother closing and helps maintain proper door alignment. What it does:

• Cushions the door to prevent metal-to-metal contact and reduce noise.
• Protects the door edge and cabinet finish from wear and impact damage.
• Helps the door align and seat properly for an even, quiet close.
• Commonly used when doors rub, squeak, or close unevenly.

• Disconnect power to the appliance before starting any work.
• Typically installs by pressing or seating into the designated bumper hole or post; may require removing the door or loosening a hinge for full access.
• Inspect surrounding mounting hole and adjacent bumpers; replace any additional worn bumpers for consistent fit.

A short 8-32 x 3/8 hex washer head screw used to secure small appliance panels and components. Simple replacement for stripped or missing fasteners to restore proper fit and prevent rattles or loose parts. What it does:

• Secures panels, brackets, and small assemblies in place
• Helps eliminate vibration-related noise from loose parts
• Replaces missing, damaged, or corroded screws to restore proper alignment
• Fits standard 8-32 threaded holes requiring a 3/8" length screw

• One 8-32 x 3/8 hex washer head screw

• Use the correct 8-32 driver to avoid stripping the head
• Tighten snugly but avoid over-torquing to prevent thread damage
• Disconnect power and follow appliance safety procedures before accessing internal components
• Replace only like-for-like fasteners in load-bearing or safety-critical locations

This is a 10-32 machine-thread screw used to secure appliance panels, trim, and components. It replaces missing or damaged fasteners so parts fit tightly and operate without rattles or misalignment. What it does:

• Fastens panels, brackets, or assemblies that use a 10-32 machine screw
• Restores secure mounting where a stripped, missing, or corroded screw causes looseness
• Helps eliminate vibration noise or gaps caused by loose hardware
• Matches OEM thread size and length for correct fit in designated mounting holes

• One 10-32 x 5/16 machine screw

• Disconnect power and remove power source or batteries before servicing appliances
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully; do not force or overtighten to prevent thread damage
• Replace any damaged mating hardware or clipped inserts for a secure repair
